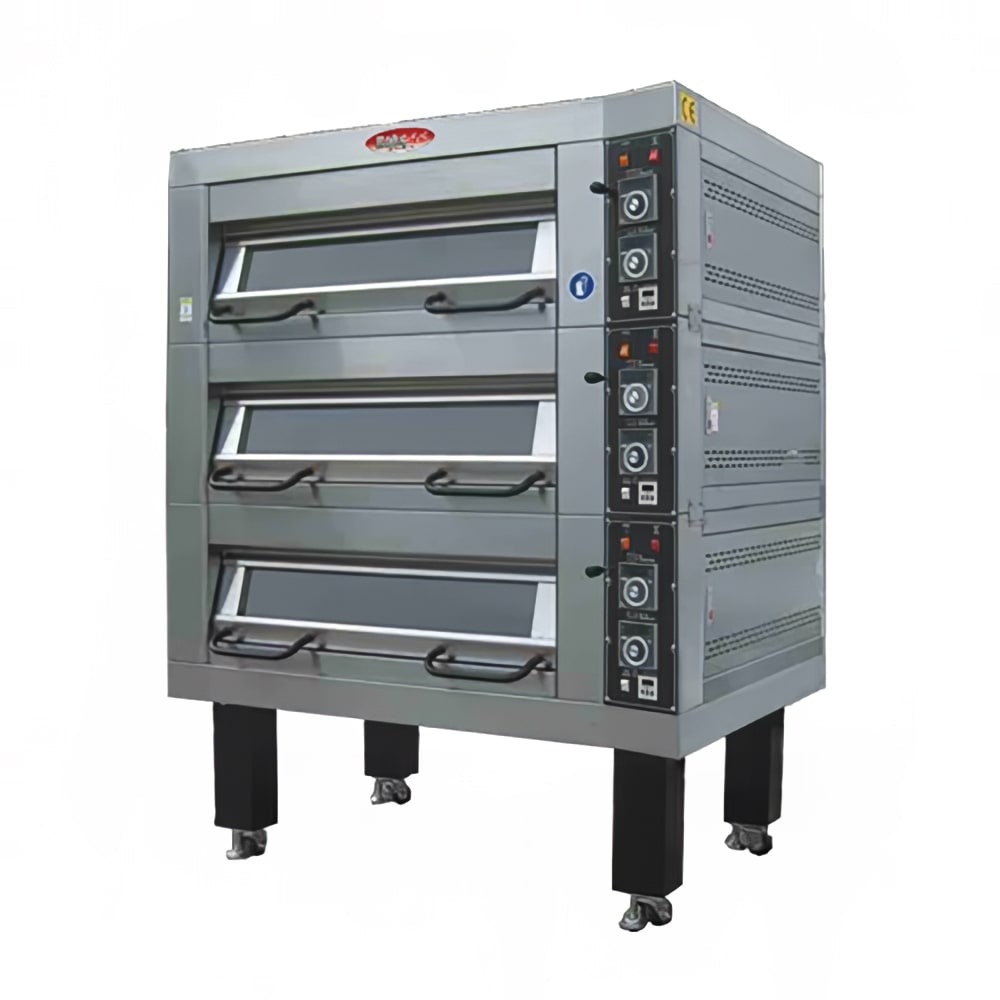

Bakemax BMTD003 Floor Model Triple Multi-Purpose Deck Oven - 220v
Retail Price: $65,800.00
$34,690.99 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Bakemax BMTD003 Description

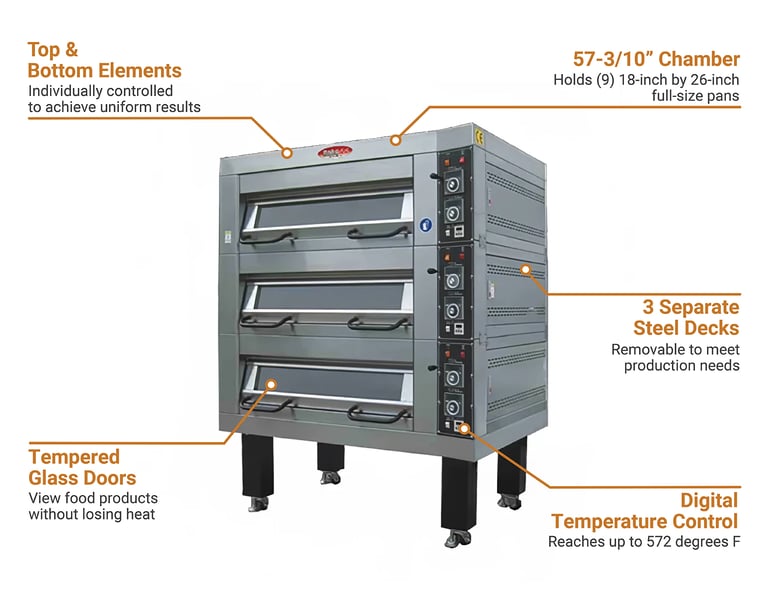

The Bakemax BMTD003 all-purpose deck oven measures 573/10 inches wide and 83 inches high, providing three separate decks to hold a total of nine pans (not included). To accommodate real-time production needs, the unit’s steel decks can be removed when needed. This tall unit has adjustable doors with large, tempered windows that enable users to view the products’ doneness. The exterior body is made of stainless steel for corrosion resistance and durability, and the high-grade steel chamber has a stone hearth bottom for crispier results. For insulation, the cabinet features rock wool material to minimize heat loss.
This Bakemax BMTD003 triple all-purpose deck oven has a digital control system on each deck. The digital display allows operators to track the oven’s conditions, and it's LED illuminated for a simple view. Each compartment can reach a maximum of 572 degrees Fahrenheit, which is tracked continuously using thermocouple sensors. Quick recovery is achieved using the compartment steam generator, and the heating elements are placed at the top and bottom of the chamber for even heat distribution. This unit is supported by sturdy legs with lockable casters.
Product Details
- Holds 9 pans (not included)
- Compartment steam generator
- Removable separate steel decks
- On/off power switch per deck
- Adjustable doors featuring large tempered glass windows
- Stainless steel front exterior
- High-grade steel chamber
- Fully insulated with rock wool
- Stone hearth for crispier bottom crust
- Heavy-duty legs with lockable castors
Control System
- Digital temperature controllers
- LED display and temp-ready LED indicators
- K-type thermocouple sensors
- Maximum temperature: 572 degrees F
- Top and bottom elements heating elements are operator controlled
- Moisture control dampers
Dimensions & Utilities
- Chamber: 573/10 in. W x 31 in. D x 7 in. H
- Overall: 75 in. W x 421/2 in. D x 73 in. H
- 71 A
- 220 V/60 Hz/3 ph
Product Features
*Free shipping on Bakemax BMTD003 within the 48 contiguous states.
From The Manufacturer
The BakeMax® Triple Deck Oven, electric, accommodates (9) 18" x 26" pans, on-off rocker switch each deck, digital temperature display each deck, steam injection each deck, separate switches for top & bottom elements each deck, digital timers with audible alarm, artisan stone each deck, tempered glass windows each deck, interior light, fully insulated, stainless steel exterior & interior, 71.0 amps, 27.0 kW, 220v/60/3-ph, CE

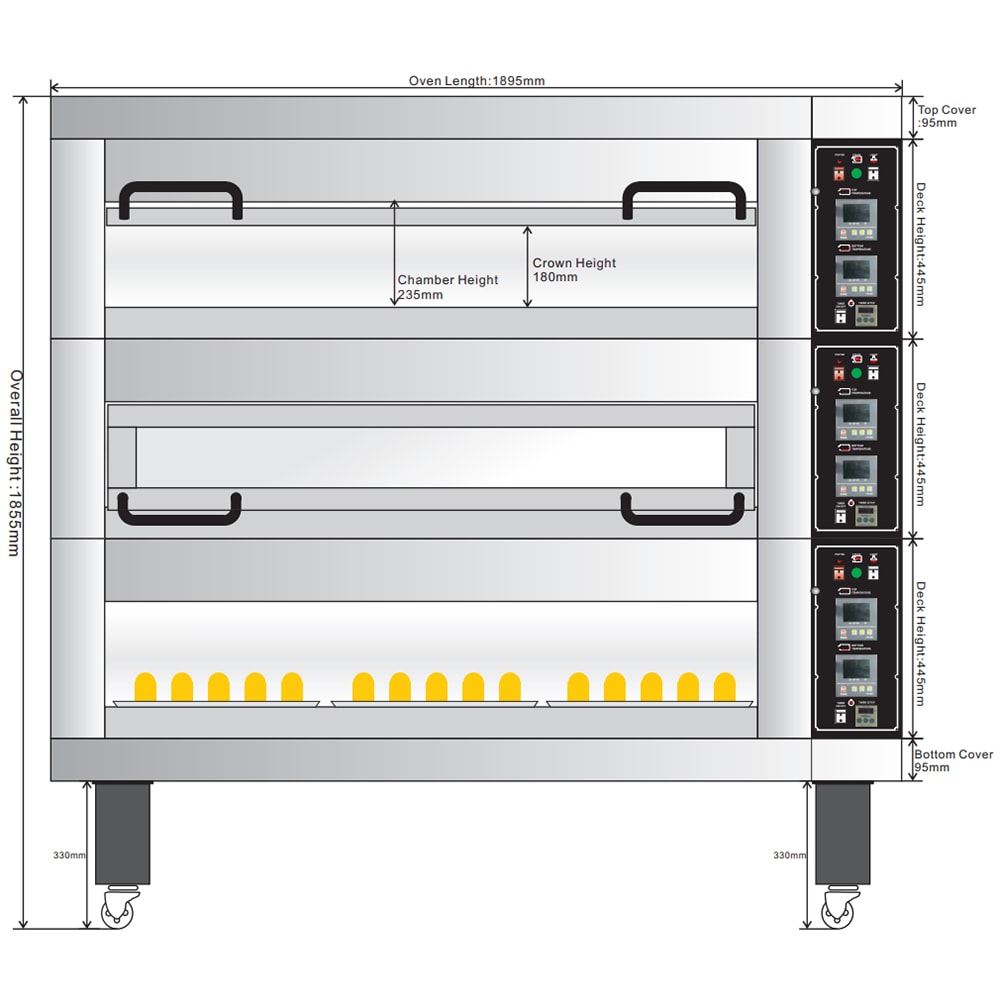

Refer to this model's second image to see accurate representation of deck configuration.
*Image may not depict product color, inclusions or accessories.
Bakemax BMTD003 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Bakemax |
| Compartment Width (in) | 57.3 |
| Heat | Electric |
| Hertz | 60 |
| Interior Depth (in) | 31 |
| Interior Width (in) | 57.3 |
| Maximum Pizza Diameter | 18" |
| No. of Compartments | 3 |
| Number of Levels | 3 |
| Phase | 3 |
| Product | Deck Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | The BakeMax® |
| Type | Floor Model |
| Use | Bakery |
| Use | Pizza |
| Voltage | 220 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 2491.00 |
