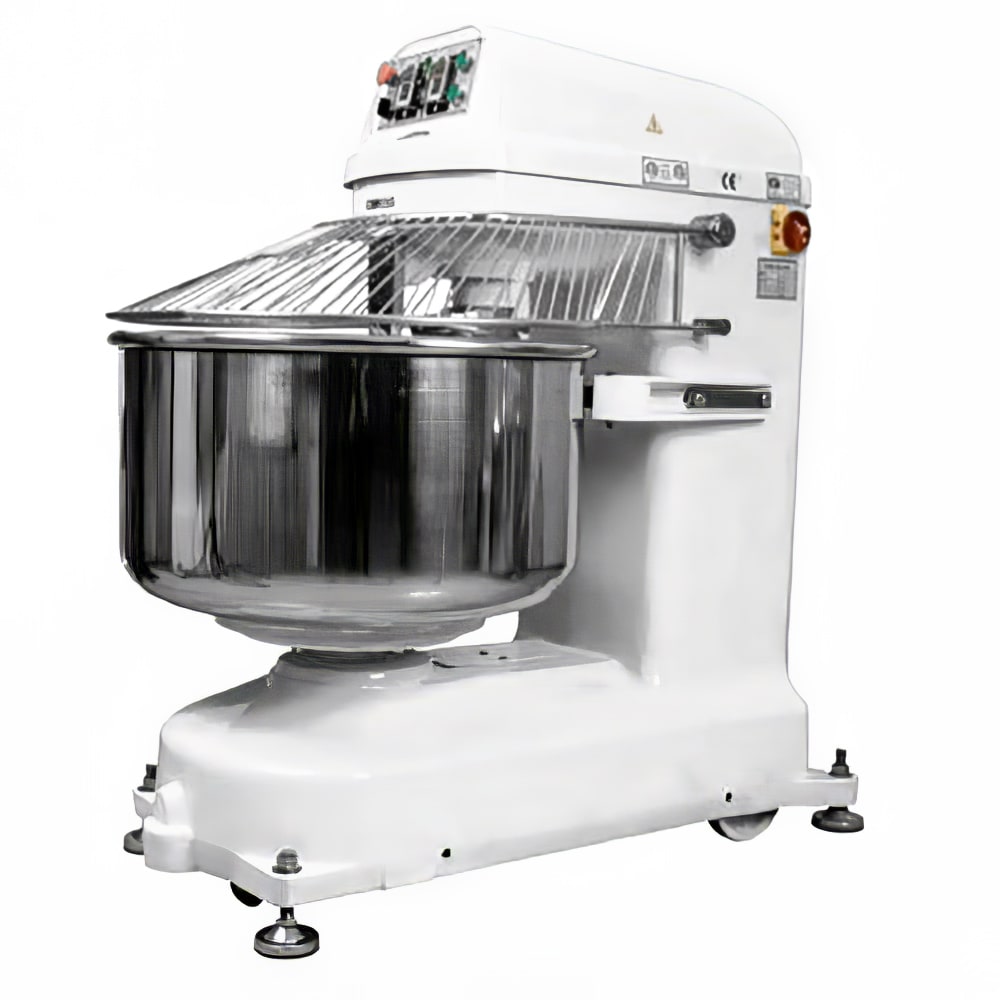

Model BMSM120 - Spiral Mixer, 190 qt / 285 lb Capacity
This Spiral Mixer from BakeMax has been specially designed for heavy dough such as that used in pizzas and bagels with the stainless steel spiral agitator and bowl specifically designed to Baking Industry Sanitation Standards. The durable, rotating bowl has a 190 qt / 285 lb capacity and is removable for ease of operation and cleaning.
BakeMax's new, dual-directional mixing technology synchronizes agitator and bowl rotation in order to mix dough ingredients and hydraulically blend dough downwards; this technology works to keep dough cooler and to achieve desired results more efficiently by increasing water absorption, volume and uniformity.
The unit also features numerous safety guards such as instant termination of operation if the safety guard is lifted, making operation possible only when the safety guard is in place.
- Heavy-duty stainless steel spiral agitator and bowl, designed to Baking Industry Sanitation Standards.
- Instant termination of operation if safety guard is lifted. Operation is possible only when safety guard is in place.
- Minimal-Maintenance, high-power motor. Speed is altered without shifting gear.
- Accurate timers automatically control mixing time. Machine is still operational even if timer is interrupted.
- New, dual-direction mixing technology, speed is synchronized with reverse-rotating bowl to mix ingredients and blend dough hydraulically downward. This keeps dough cooler, and achieves desired results more efficiently.
- Powerful spiral mixing increases water absorption by dough, thus increasing volume and assuring uniform texture.
- Instant-response servo-limit switch for safety.
- Bowl may be set to rotate either forward or backward.
- High-efficiency, 2-speed mixing achieves through blending ingredients to achieve desired results consistently within 7-10 minutes.
Features, Options & Specifications Subject to Change Without Notice.
264 lb / 190 qt. spiral mixer, safety guard/stainless steel grid guard standard, high efficientcy two speed motor assures complete bledning dough to give positive results within 15 minutes every time, timers automatically control mixing time, one for slow speed and one for high speed, new special mixing technologyc, synchronized speed with reverse turning bowl, positive spiral mixing provides dough with water absorption ability and much more volue to assur more uniform texture, bowl has two rotary directions available, forward and backward, strong stainless steel spiral, agitator, guard bar and bowl are designed to meet bakin industry sanitation standards, 2 heavy duty motors: one to drive spiral, one to drive bowl. 8.5 hp arm motor, 2 hp bowl motor. 208v/3-ph.
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
BakeMax BMSM120 SpecificationsPDF Spec Sheet
|Type||Spiral Mixer (Dough & Pizza)|
|Flour Capacity (lbs)||165|
|Dough Capacity (lbs)||264|
|HP||8-1/2 & 2|
|Bowl Features||Fixed Bowl|
