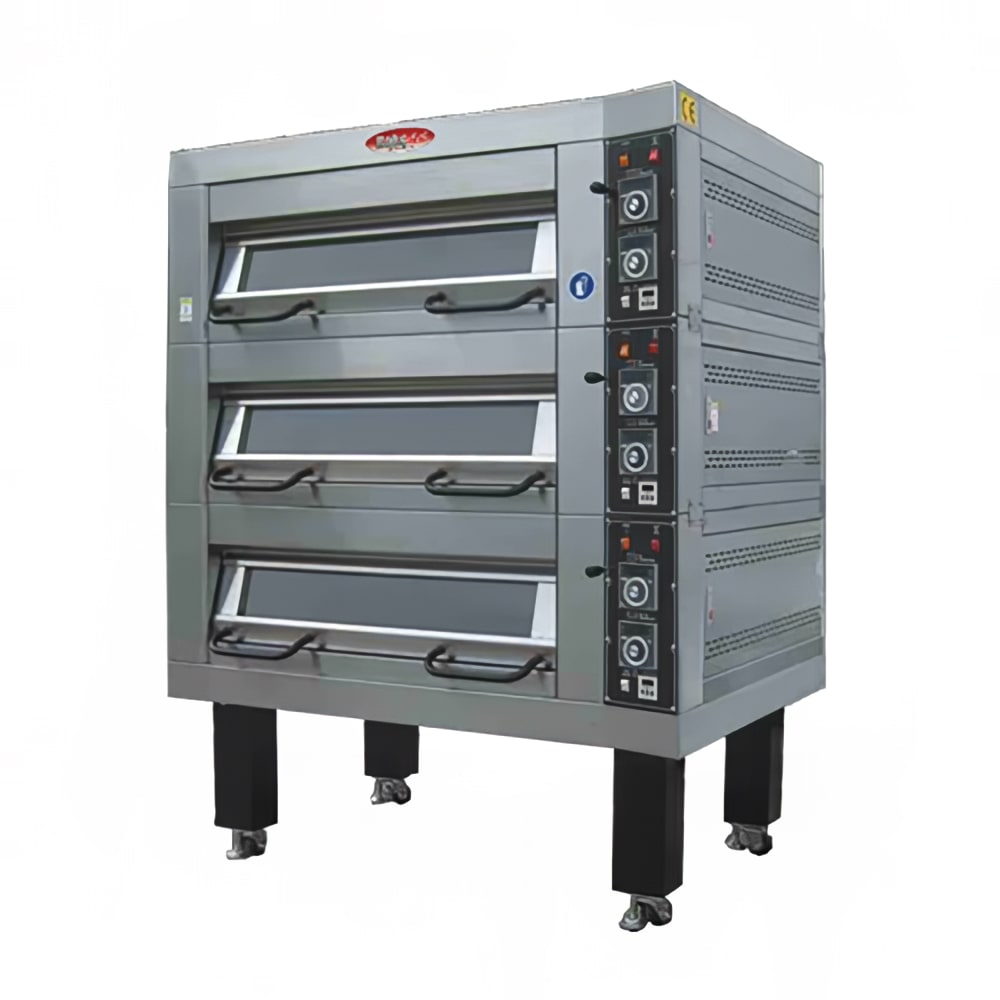

Bakemax BMSD004 Floor Model Quadruple Multi-Purpose Deck Oven - 220v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $41,300.00
$20,954.94 /Each
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 05-01-2025 to save before the price increases!
Bakemax BMSD004 Description

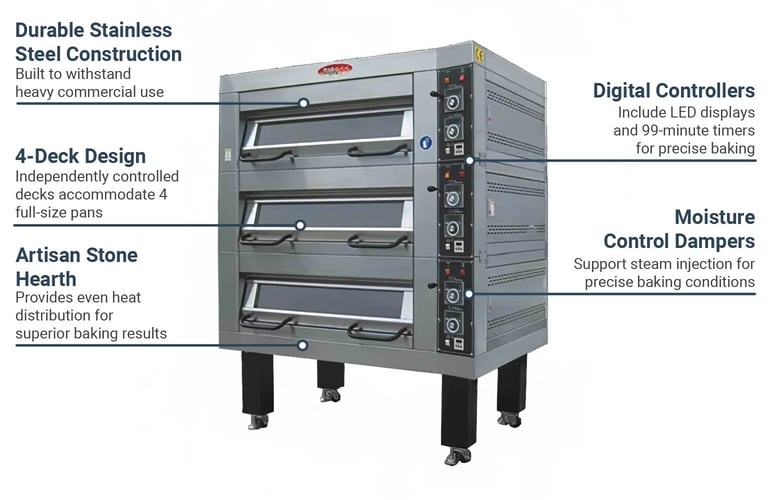

The Bakemax BMSD004 quadruple multi-purpose deck oven is a high-capacity baking solution ideal for commercial kitchens with demanding production needs. Part of the BakeMax® series, this four-deck oven accommodates up to four 18-inch by 26-inch pans, with each deck independently controlled for optimal versatility. Built with heavy-duty stainless steel and fully insulated with rock wool, the oven delivers exceptional heat retention for consistent and efficient baking. Each deck is equipped with an artisan stone hearth for even heat distribution, tempered glass windows for enhanced visibility, and interior lighting to simplify monitoring during operation. A compartment steam generator, installed above the heating elements, supports steam injection for precise moisture control, ensuring high-quality baking results.
Designed for precision and ease of use, the Bakemax BMSD004 multi-deck oven features digital controllers with LED displays, on-off rocker switches, and 99-minute digital timers with audible alarms for each deck. Operators can independently control the top and bottom heating elements on every deck and use moisture control dampers to customize baking conditions. Additional features include LED indicators, chamber oven lights controlled by rocker switches, and heavy-duty legs with lockable casters for stability and mobility. With its robust construction and advanced features, this oven is a reliable choice for high-volume commercial baking operations.
Product Details
- BakeMax series
- 4-deck design
- Heavy-duty stainless steel construction
- Fully insulated with rock wool
- Accommodates (4) 18 in. x 26 in. pans
- Artisan stone hearth in each deck
- Large tempered glass windows with adjustable doors
- Compartment steam generator installed above heating elements
- Separate switches for top and bottom heating elements on each deck
- Moisture control dampers
- Steam injection capability in each deck
- Digital controllers with LED displays
- 99-minute digital timers with audible alarms
- Chamber oven light controlled by rocker switches
- On-off rocker switch for each deck
- Interior lighting
- 4 heavy-duty legs with lockable casters
Dimensions & Utilities
- Chamber dimensions: (4) 30 in. W x 21 in. D x 7 in. H
- Overall dimensions: 47 in. W x 341/2 in. D x 83 in. H
- 40 A, 16 kW
- 220 V/60 Hz/3 ph
Product Features
*Free shipping on Bakemax BMSD004 within the 48 contiguous states.
From The Manufacturer
The BakeMax® Four Deck Oven, electric, accommodates (4) 18" x 26" pans, on-off rocker switch each deck, digital temperature display each deck, steam injection each deck, separate switches for top & bottom elements each deck, digital timers with audible alarm, artisan stone each deck, tempered glass windows each deck, interior light, fully insulated, stainless steel exterior & interior, 40.0 amps, 16.0 kW, 220v/60/3-ph, CE

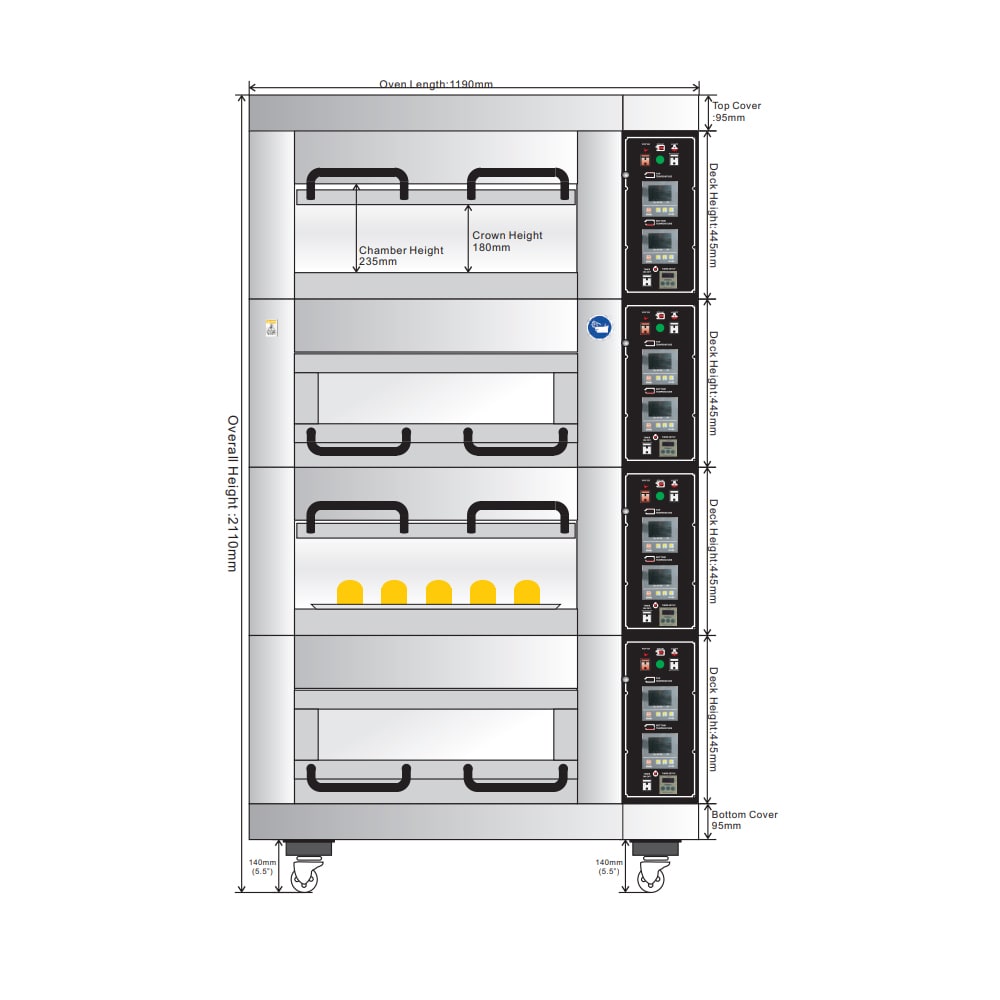

Refer to this model's second image to see accurate representation of deck configuration.
*Image may not depict product color, inclusions or accessories.
Bakemax BMSD004 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Bakemax |
| Compartment Width (in) | 30 |
| Heat | Electric |
| Hertz | 60 |
| Interior Depth (in) | 21 |
| Interior Width (in) | 30 |
| Maximum Pizza Diameter | 18" |
| No. of Compartments | 4 |
| Number of Levels | 4 |
| Phase | 3 |
| Product | Deck Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | The BakeMax® |
| Type | Floor Model |
| Use | Bakery |
| Use | Pizza |
| Voltage | 220 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 1399.00 |
