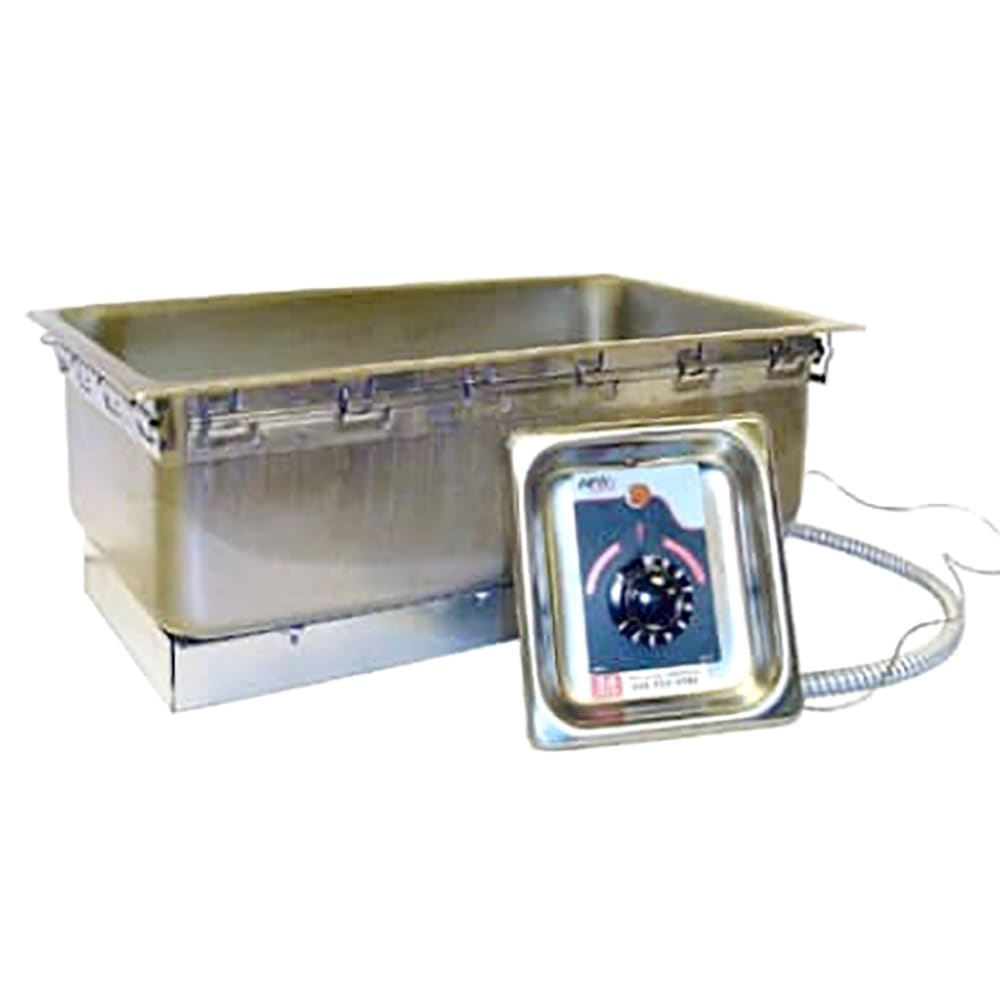

APW TM-90 UL Drop-In Hot Food Well w/ (1) Full Size Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 011-TM90UL • MPN: TM-90UL 120/1
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $364.00

Image may not depict product color, inclusions or accessories.

APW TM-90 UL Description


The APW Wyott TM-90UL 120V hot food well comes standard with four EZ locks on each side so installing the unit is simple and quick. The well accommodates standard-sized, 12-inch-by-20-inch steam table pans. The top-mounted, drop-in, rectangular hot food well is designed to be installed in metal or wooden countertops. Made from deep-drawn, seamless stainless steel, the well is durable and easy to clean.

This well's aluminized outer housing is built with a fully-insulated bottom and sides for energy efficiency. The tubular heating element is made in a serpentine shape to evenly distribute heat and eliminate hot and cold spots. Maximum efficiency is reached since the element is mounted under the APW Wyott TM-90UL 120V hot food well and secured by an aluminized deflector shield. A 1-inch layer of fiberglass insulation is fixed to the bottom of the pan with the galvanized housing that covers the entire heating assembly.

Product Details

  • Top-mounted, drop-in, rectangular hot food well
  • Made to be installed in wooden or metal countertops or tables
  • Deep-drawn, stainless steel construction adds durability and easy maintenance
  • Holds standard full-size steamtable pans
  • Sides and bottom are fully insulated in the aluminized outer housing
  • Tubular heating element with serpentine shape prevents hot and cold spots by evenly distributing heat
  • Element is mounted under the well and secured with an aluminized deflector shield
  • Heating element is easily accessible for maintenance and repairs
  • Heat assembly is covered with galvanized housing and 1-in. fiberglass insulation that is fixed to the bottom of the pan
  • Can be used for wet or dry applications but works best with wet
  • Large pilot indicator light lets the user know if the well is on or off
  • E-Z locks on all 4 sides make installation quick and easy
  • Thermostatic control with 36-in. capillary provides accurate temperature recovery
  • 120 V/60 Hz/1 ph, 750/1200 W, 6.3/10.0 A
  • Overall Dimensions: 2158 in. L x 1358 in. W x 8516 in. H
  • CSA and UL-EPH listed
  • UL listed complete construction or UL recognized component construction

Food Warmer, drop-in, electric, (1) 12" x 20" well, wet or dry operation, thermostatic control, without drain, uninsulated, EZ lock, stainless steel construction, UL, CSA, NSF, CE, 120v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

APW TM-90 UL Specifications

PDF Spec Sheet
Manufacturer APW
Weight 23.00
APW TM-90 UL Certifications
  • UL
  • NSF
