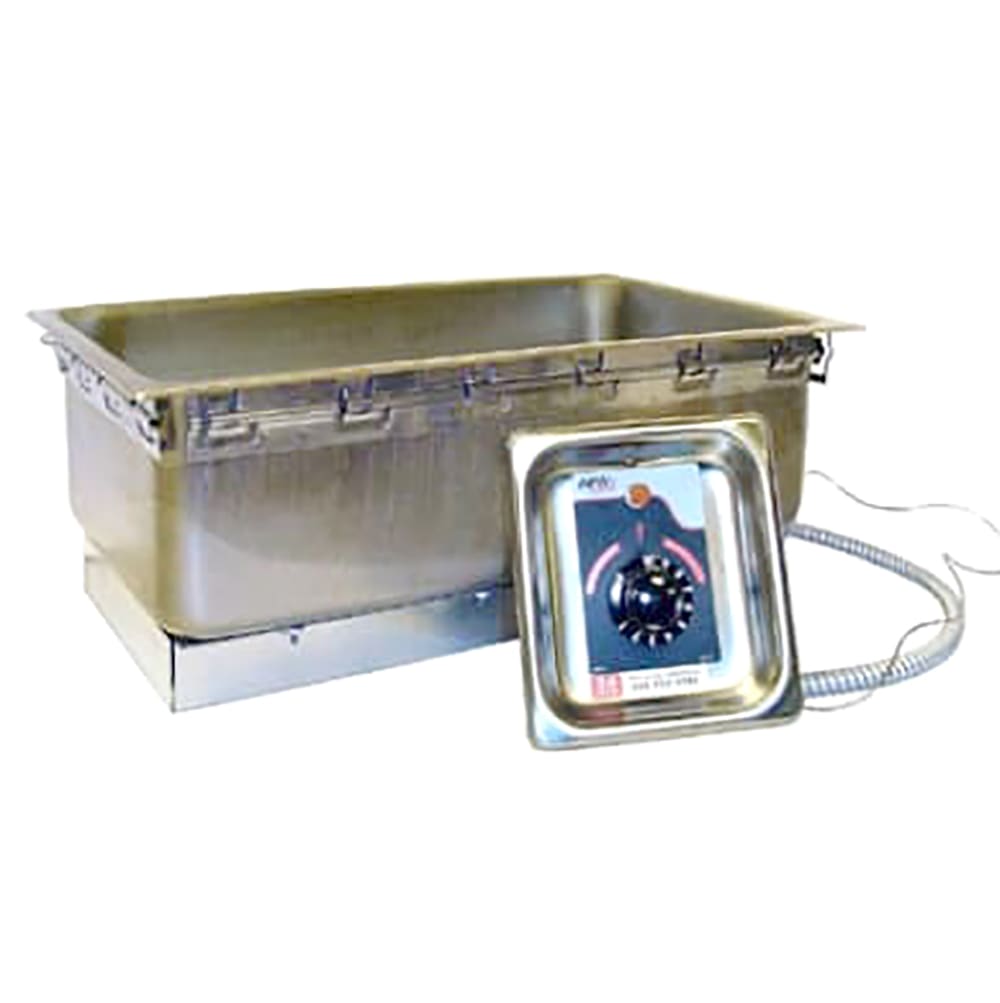

APW TM-90D UL Description
The APW Wyott TM-90DUL 120V hot food well is mounted from the top and is designed to be installed in a metal or wooden countertop. It is made from deep-drawn stainless steel for durability and has aluminized outer housing with fully-insulated sides and bottom. Since this unit has a drain, it comes with a stainless steel 1⁄2-inch NPT connection welded to the bottom of the pan with a removable screen. This pan accommodates standard-size steamtable pans. A tubular heating element is mounted under the well, and for the most efficient heating process, the element is secured by an aluminized deflector shield. Since the element has a serpentine shape, heat evenly distributes so there are no cold spots when heating food. The entire heat assembly is covered by galvanized housing with a 1-inch layer of fiberglass. For easy installation, the APW Wyott TM-90DUL 120V hot food well has E-Z locks on all four sides.
Product Details
- Top-mounted, uninsulated, rectangular drop-in hot food well
- Meant to be installed in metal or wooden countertops
- Constructed from stainless steel that has been deep drawn to form strong, easy-to-clean wells
- Aluminized outer housing with fully insulated sides and bottom
- Accommodates standard-size steamtable pans
- Stainless steel 1⁄2-in. NPT drain
- Drain is welded to the bottom of the pan with a removable screen
- Element assembly is attached with threaded studs on the bottom of pan make maintenance easy
- E-Z locks are on all 4 sides so installation is simple
- Can be used for dry or wet applications, but wet applications yield the best results
- Thermostatic control with a 36 in. capillary provides quick response to temperature changes
- Pilot light lets the operator know if the well is on or off
- 120 V/60 Hz/1 ph, 750/1200 W, 6.3/10.0 A
- Overall Dimensions: 215⁄8 in. L x 135⁄8 in. W x 85⁄16 in. H
- CSA and UL-EPH listed
Serpentine Heating Element
- Tubular heating element is mounted under the well
- Heating element is secured by an aluminized deflector shield to maximize heating efficiency
- Heating element has a serpentine shape so heat is evenly distributed, resulting in no cold spots
- Accessing the heating element is easy for service and repairs
- Heat assembly is covered in galvanized housing with 1-in. fiberglass insulation
Food Warmer, drop-in, electric, (1) 12" x 20" well, wet or dry operation, thermostatic control, with drain, uninsulated, EZ lock, stainless steel construction, UL, CSA, NSF, CE, 120v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
APW TM-90D UL Specifications
PDF Spec Sheet| Manufacturer | APW |
| Warranty | 1 year limited parts & labor |
| Capacity (Pans) | 1 |
| Voltage | 120 |
| Controls | Thermostatic |
| Type | Hot |
| Hertz | 60 |
| Phase | 1 |
| Pan Size | Full |
| Specialty Options | Wet or Dry |
| Specialty Options | With Drain |
| Weight | 23.00 |
