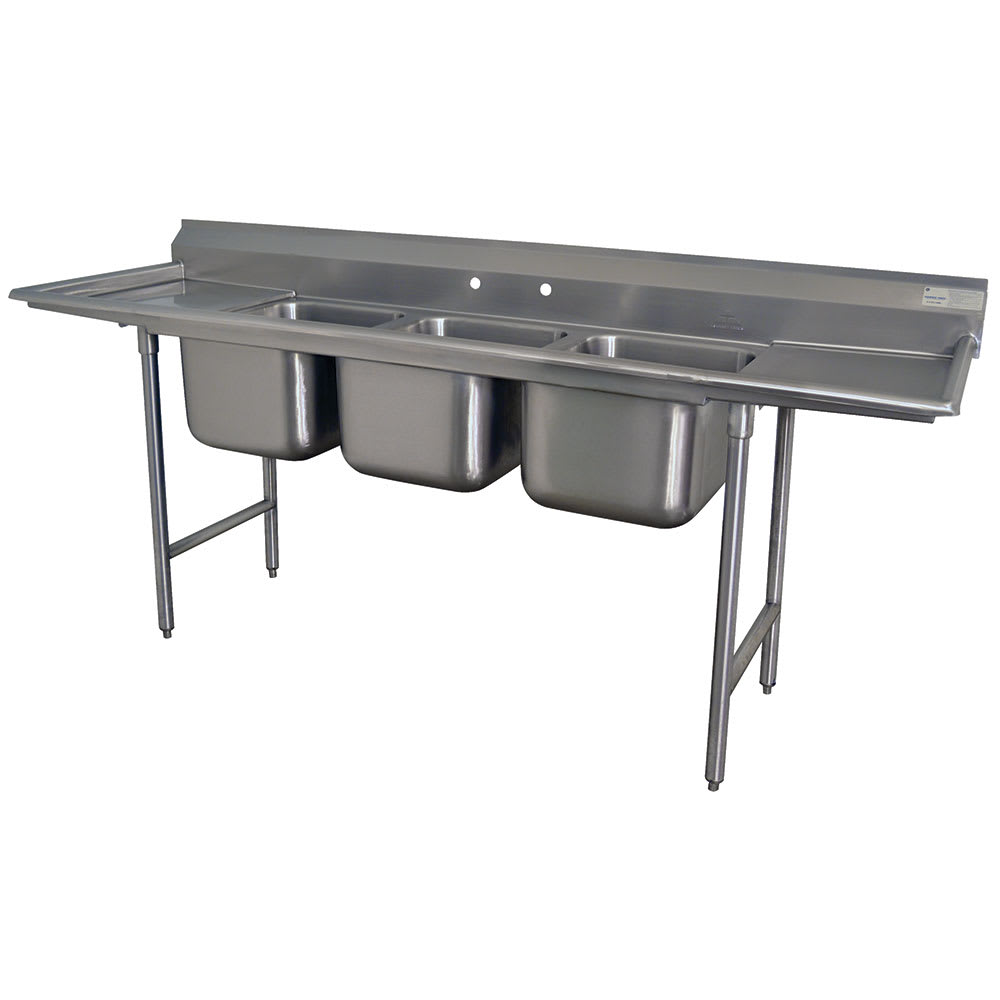

Advance Tabco T9-63-54-24RL-X 109" 3-Compartment Sink w/ 18"L x 24"W Bowl, 12" Deep

KaTom #: 009-T9635424RLX • MPN: T9-63-54-24RL-X

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $3,108.00
$1,599.07 / Each

Advance Tabco T9-63-54-24RL-X Description

In your restaurant or place of business, you need an area to clean up the soiled dishes. With Advance Tabco Regaline Sinks, you have a stainless steel 3 compartment sink with dual side drain boards. The overall dimensions are 109 in. L x 31 in. W x 42 in. H. and have a one piece deep drawn sink bowl. Each bowl has dimensions of 18 in. x 24 in. x 15 in. With a commercial Regaline Sink that is fully TIG welded and with a polished satin finish, this Advance Tabco commercial 3 compartment sink is all you need in restaurant or commercial sink ware!

Standard Features:

  • Bowl Dimensions: 18" x 24" x 15"
  • 12" Water level accommodates pot & dish applications.
  • Overall Dimensions: 109" L x 31" W x 42" H
  • 37" working height
  • Tile edge for ease of installation.
  • One piece Deep Drawn sink bowl.
  • Integral drain board with splash
  • All sink bowls have a large liberal 3" radius.
  • Placement of the welded leg assembly ensures stability and furnishes direct support of the column load requirement for the entire sink unit.


  • 1 5/8" diameter galvanized legs and gussets
  • 1" adjustable plastic bullet feet
  • Bowls are heavy gauge stainless steel type 304 series
  • Drain boards, splash and rolled rims are fabricated using heavy gauge stainless steel type 304 series


  • All TIG welded.
  • Welded areas blended to match adjacent surfaces and to a satin finish.
  • Gussets welded to a die-embossed reinforcing channel..

Regaline Sink, 3-compartment, with 24" left & right-hand drainboards, 24" front-to-back x 18" W compartment, 12" deep, with 8" high splash, galvanized tubular legs with plastic feet, 18 gauge 304 series stainless steel, overall 31" F/B x 109" L/R

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco T9-63-54-24RL-X Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Overall Length (in) 109
Sink Length (Side to Side) 18
Sink Width (Front to Back) 24
Sink Depth 12
Stainless Steel Gauge 18 gauge
Stainless Steel Grade 304 Series
Backsplash Height 8"
Drainboard Location Both Sides
Drainboard Length 24"
Faucet Mount Splash
Faucet Centers 8"
Weight 305.00
Advance Tabco T9-63-54-24RL-X Certifications
  • NSF
