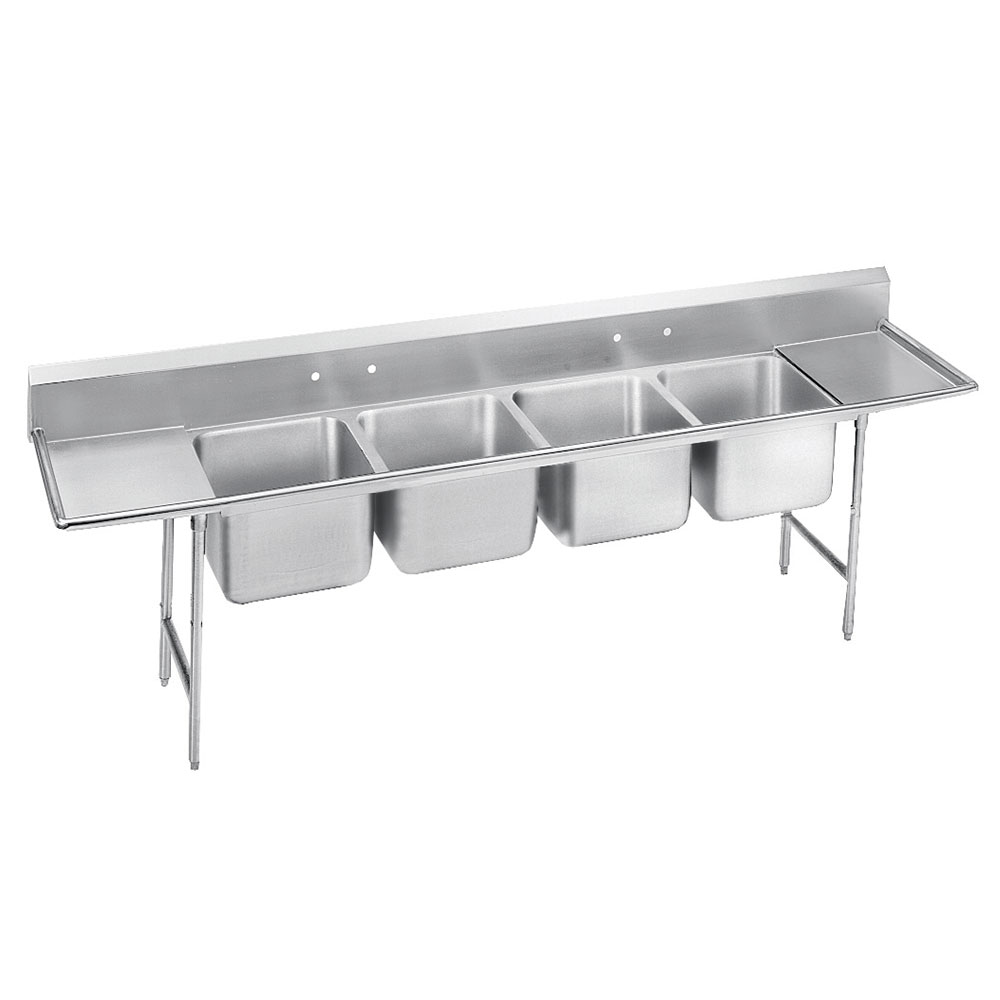

4 Compartment Sink with Dual Side Drainboards
- Bowl Dimensions: 16' x 20' x 15'
- 12' Water level accommodates pot & dish applications.
- Overall Dimensions: 110' L x 27' W x 42' H
- 37' working height
- Tile edge for ease of installation.
- One piece Deep Drawn sink bowl.
- Integral drain board with splash
- All sink bowls have ea large liberal 3' radius.
- Placement of the welded leg assembly ensures stability and furnishes direct support of the column load requirement for the entire sink unit.
- 1 5/8' diameter galvanized legs and gussets
- 1' adjustable plastic bullet feet
- Bowls are heavy gauge stainless steel type 304 series
- Drainboards, splash and rolled rims are fabricated using heavy gauge stainless steel type 304 series
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- Gussets welded to a die-embossed reinforcing channel..
Regaline Sink, 4-compartment, with 18" left & right-hand drainboards, 20" front-to-back x 16" wide sink compartment, 12" deep, with 8" high splash, galvanized open frame base with side crossrails, 18 gauge 304 series stainless steel, overall 27" F/B x 110" L/R (requires 2 faucets)
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Advance Tabco T9-4-72-18RL-X SpecificationsPDF Spec Sheet
|Overall Length (in)||110|
|Sink Length (Side to Side)||16|
|Sink Width (Front to Back)||20|
|Stainless Steel Gauge||18 gauge|
|Stainless Steel Grade||304 Series|
|Drainboard Location||Both Sides|
