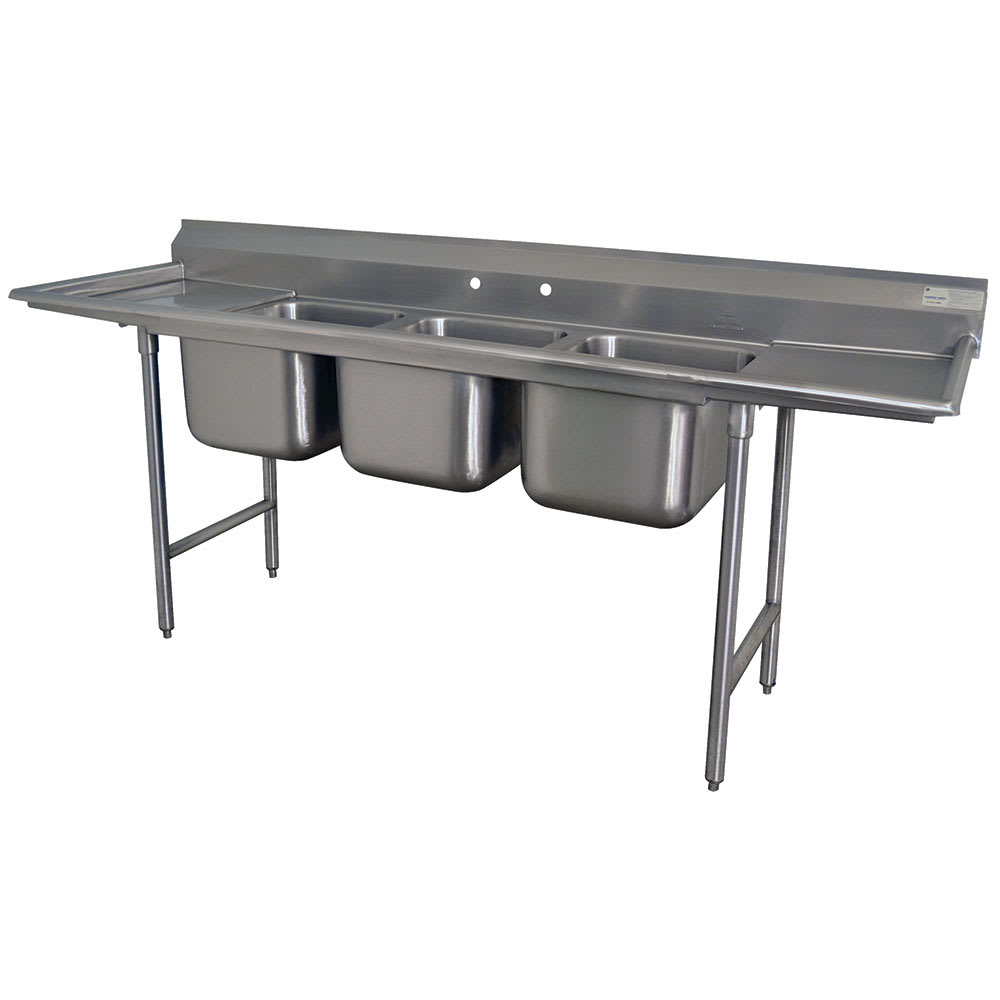

Advance Tabco T9-23-60-18RL-X 72" 3-Compartment Sink w/ 16"L x 20"W Bowl, 12" Deep

KaTom #: 009-T9236018RLX • MPN: T9-23-60-18RL-X

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,718.00
$1,398.41 / Each

Advance Tabco T9-23-60-18RL-X Description

In your restaurant, you need a convenient way to clean up the used dishware. With the Advance Tabco Regaline sink, you can embrace the work head on! This commercial stainless steel sink has 3 compartment sinks with dual drain boards. This commercial Regaline sink is all TIG welded and the actual welded areas are blended to match adjacent surfaces and polished to a satin finish. The overall dimensions are 103 in. L x 27 in. W x 42 in. H. This Advance Tabco commercial Regaline sink is all that you need for your commercial dish-washing needs.

Standard Features:

  • Bowl Dimensions: 20" x 20" x 15"
  • 12" Water level accommodates pot & dish applications.
  • Overall Dimensions: 103" L x 27" W x 42" H
  • 37" working height
  • Tile edge for ease of installation.
  • One piece Deep Drawn sink bowl.
  • Integral drain boards with splash.
  • All sink bowls have a large liberal 3" radius.
  • Placement of the welded leg assembly ensures stability and furnishes direct support of the column load requirement for the entire sink unit.
  • 1 5/8" diameter galvanized legs and gussets
  • 1" adjustable plastic bullet feet
  • Bowls are heavy gauge stainless steel type 304 series
  • Drain boards, splash and rolled rims are fabricated using heavy gauge stainless steel type 304 series
  • All TIG welded.
  • Welded areas blended to match adjacent surfaces and to a satin finish.
  • Gussets welded to a die-embossed reinforcing channel.

Regaline Sink, 2-compartment, with 18" left & right-hand drainboards, 20" front-to-back x 16" W compartment, 12" deep, with 8" high splash, galvanized open frame base with side crossrails, 18 gauge 304 series stainless steel, overall 27" F/B x 72" L/R

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco T9-23-60-18RL-X Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Overall Length (in) 72
Sink Length (Side to Side) 16
Sink Width (Front to Back) 20
Sink Depth 12
Stainless Steel Gauge 18 gauge
Stainless Steel Grade 304 Series
Backsplash Height 8"
Drainboard Location Both Sides
Drainboard Length 18"
Faucet Mount Splash
Faucet Centers 8"
Weight 210.00
Advance Tabco T9-23-60-18RL-X Certifications
  • NSF
