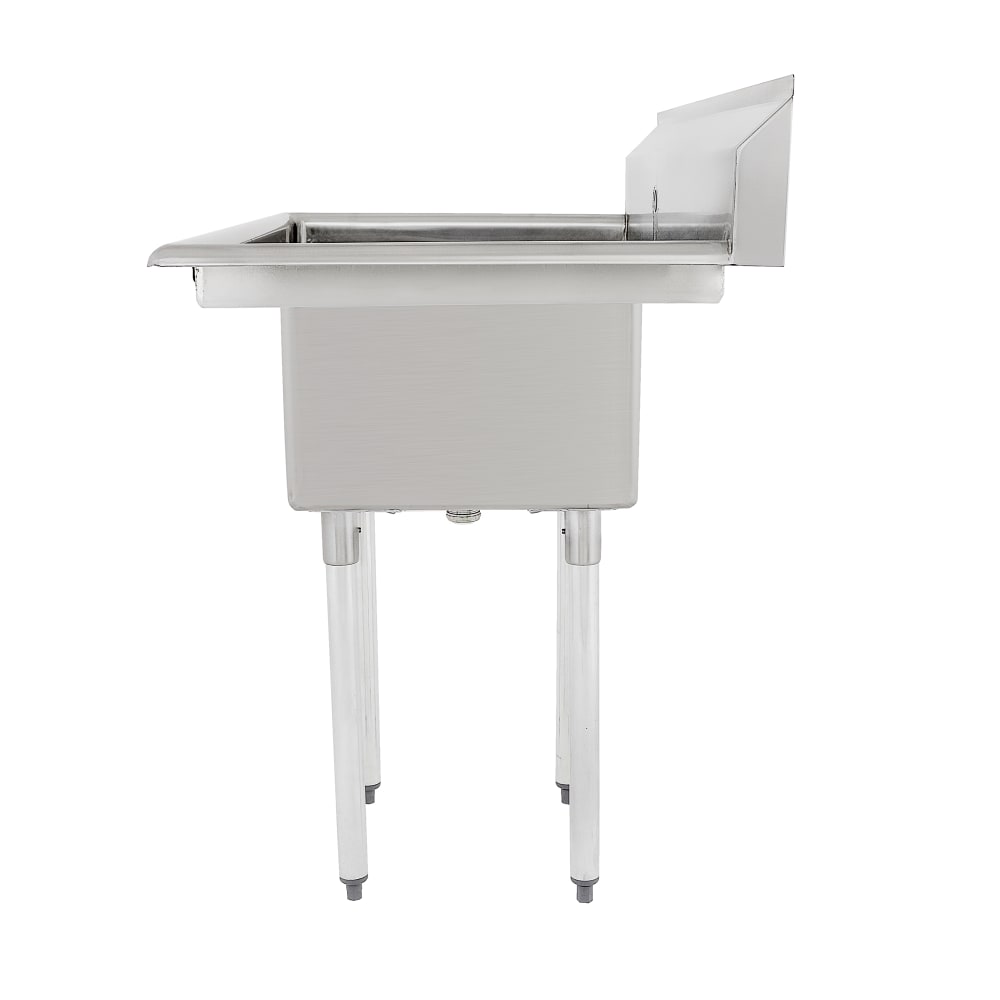

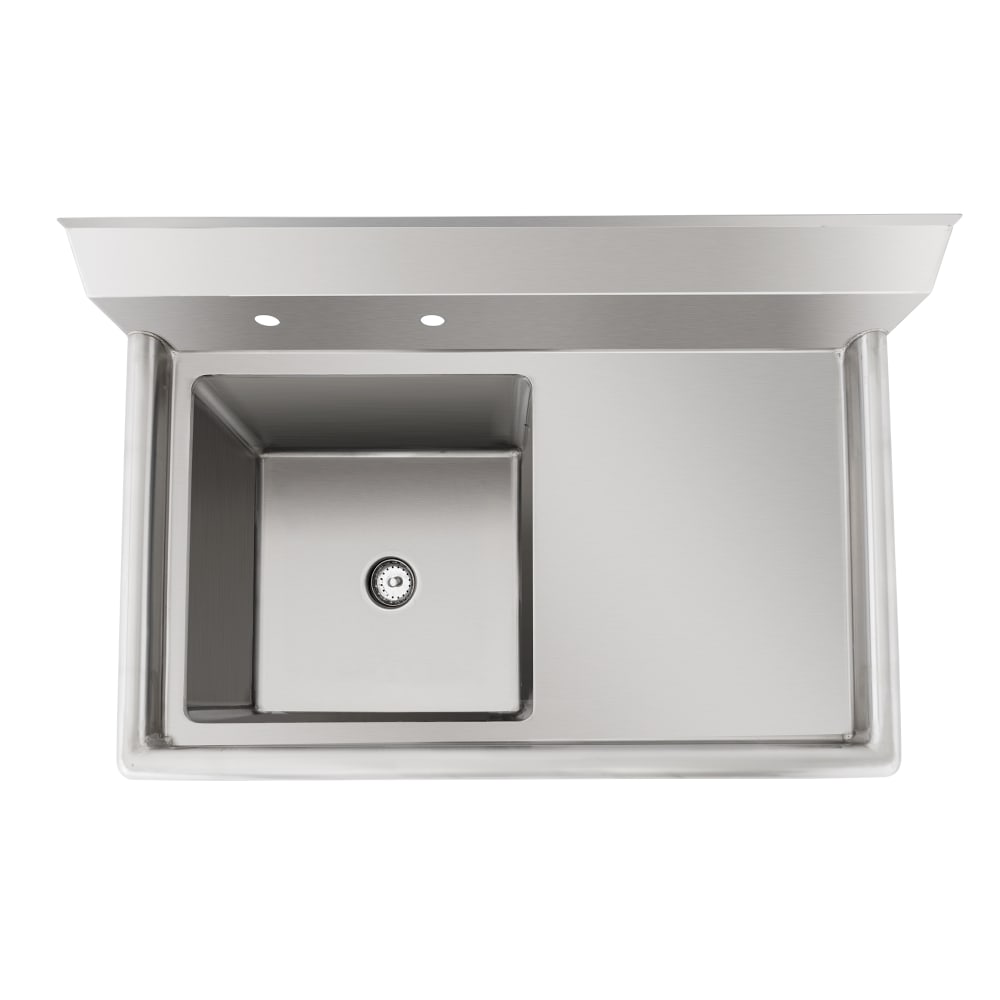

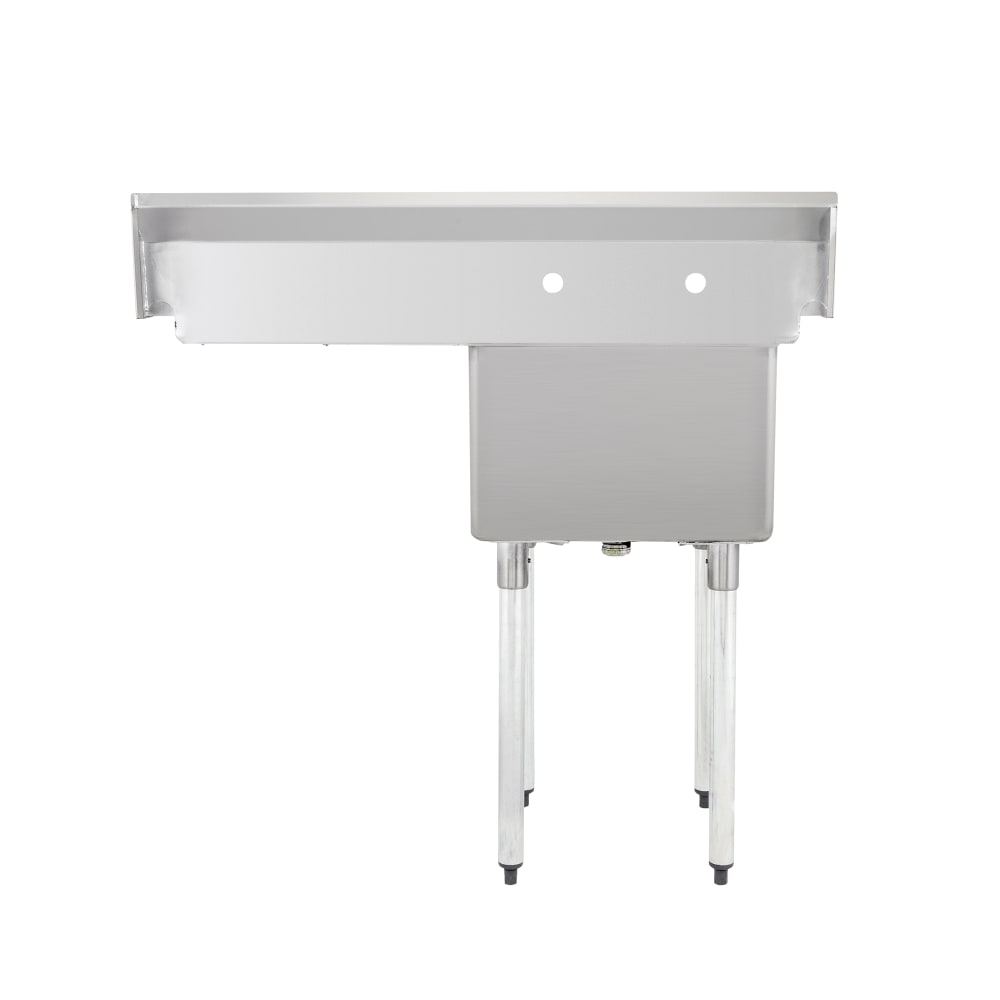

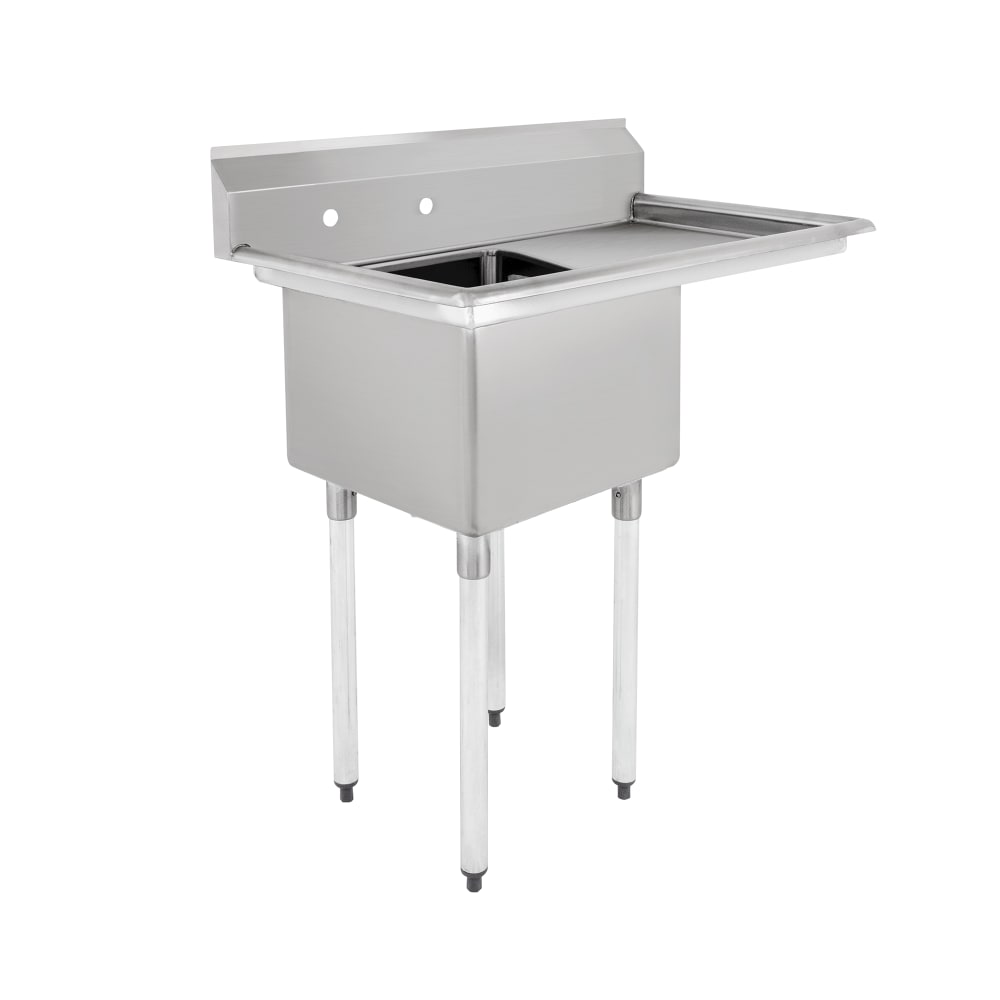

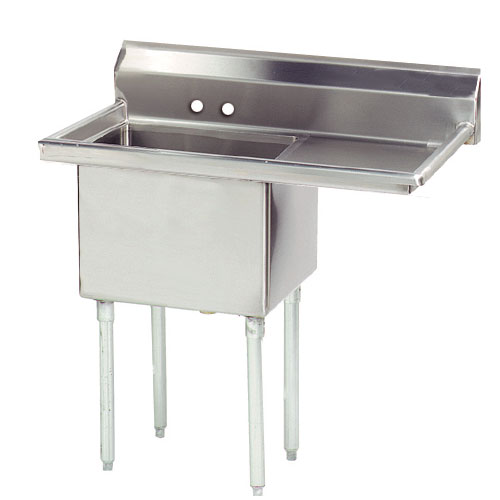

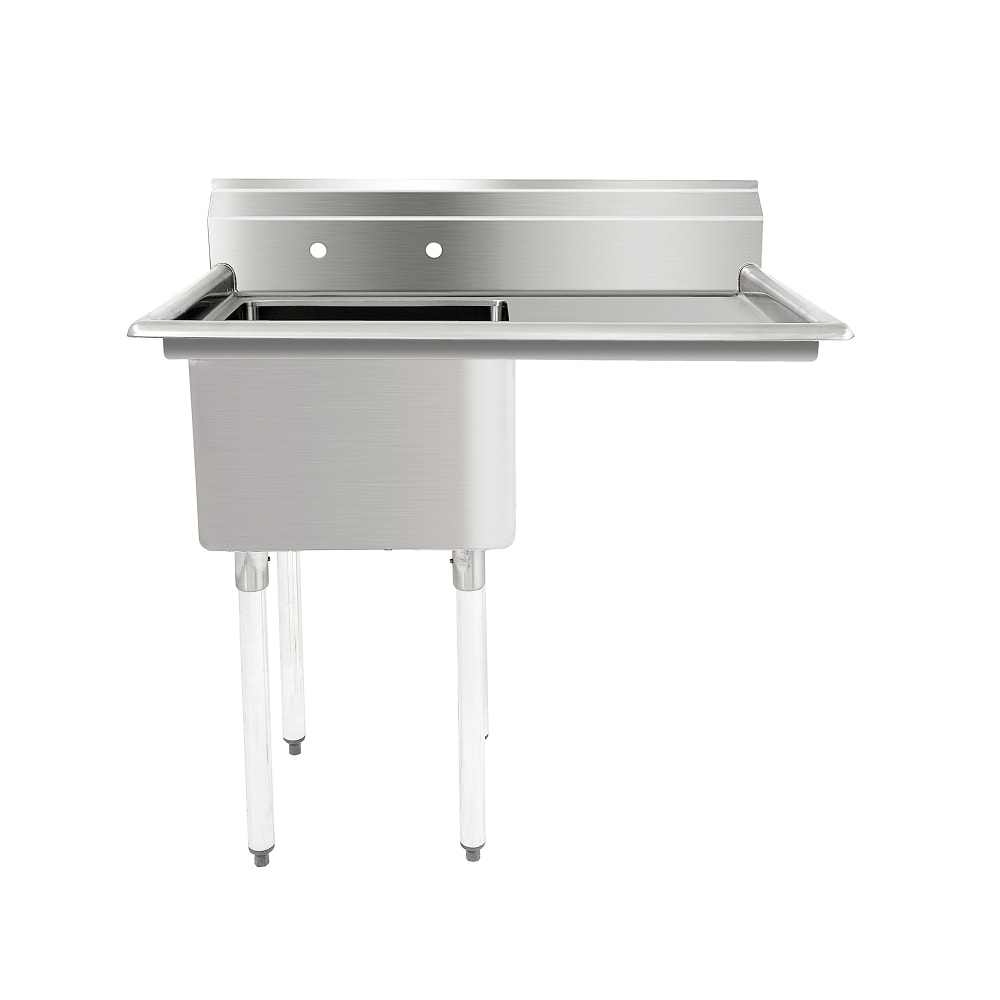

Advance Tabco FE-1-1812-18R-X Description
Designed to endure heavy duty washing, rinsing, and sanitizing, this Advance Tabco FE-1-1812-18R-X one-compartment, 12-inch-deep sink will stand up to the test of any kitchen. This compartment sink was manufactured using only the highest quality materials. The sink is constructed of 18-gauge stainless steel for easy cleaning to a beautiful shine. The 9-inch backsplash has a tile edge for ease of installation and the rolled rim edge provides additional strength.
With a sink bowl depth of 12-inches, you can achieve a greater cleaning capacity for dishes, cloths, and utensils. The sink features an all TIG construction and the welded areas blended to match adjacent surfaces and to a satin finish. The gussets are welded to a die embossed reinforced plate. A 1⁄2-inch IPS hot and cold supply is included. The faucet holes are on 8-inch centers. The waste drains are 11⁄2-inch IPS stainless steel basket type and are located in the center of the Advance Tabco FE-1-1812-18R-X sink bowl.
Product Details
- 1 compartment sink
- 18-in. right drainboard
- 3⁄4-in. coved corner sink bowl
- 9-in. backsplash
- Tile edge splash makes installation easy
- Rolled rim edge adds more strength
- Faucet holes on 8-in. centers
- Faucets are not included
- 18 gauge 304 series stainless steel
- All TIG welded
- Welded areas are blended to be the same as the adjoining surfaces
- Galvanized steel gussets are welded to a die-embossed reinforced plate
- 15⁄8-in. dia. galvanized legs
- 1-in. adjustable plastic bullet feet
- 1⁄2-in. IPS hot and cold supply

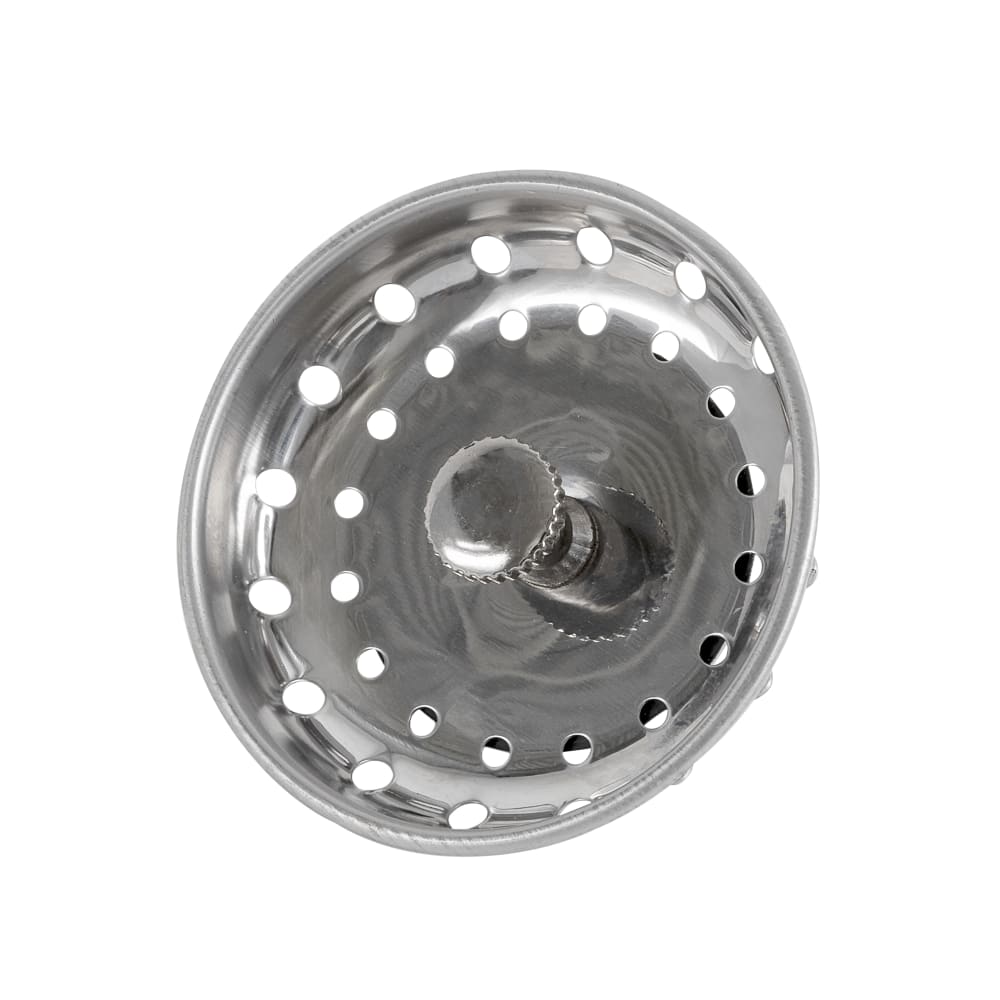

- 11⁄2-in. IPS stainless steel waste drains are located in the center of the bowl
- Bowl Dimensions: 18 in. L x 18 in. W x 12 in. H
- Overall Dimensions: 381⁄2 in. L x 233⁄4 in. W
- NSF Certified
Lite™ Series Fabricated NSF Sink, 1-compartment, 18" right drainboard, bowl size 18" x 18" x 12" deep, 18 gauge 304 series stainless steel, tile edge splash, rolled edge, faucet holes on 8" centers, galvanized legs, 1" adjustable plastic bullet feet, NSF, overall 24" F/B x 38.5" L/R
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Advance Tabco FE-1-1812-18R-X Specifications
PDF Spec Sheet| Manufacturer | Advance Tabco |
| Overall Length (in) | 38.5 |
| Sink Length (Side to Side) | 18 |
| Sink Width (Front to Back) | 18 |
| Sink Depth | 12 |
| Stainless Steel Gauge | 18 gauge |
| Stainless Steel Grade | 304 Series |
| Backsplash Height | 9" |
| Drainboard Location | Right |
| Drainboard Length | 18" |
| Faucet Mount | Splash |
| Faucet Centers | 8" |
| Weight | 54.00 |
