Fabricated Economy Sink

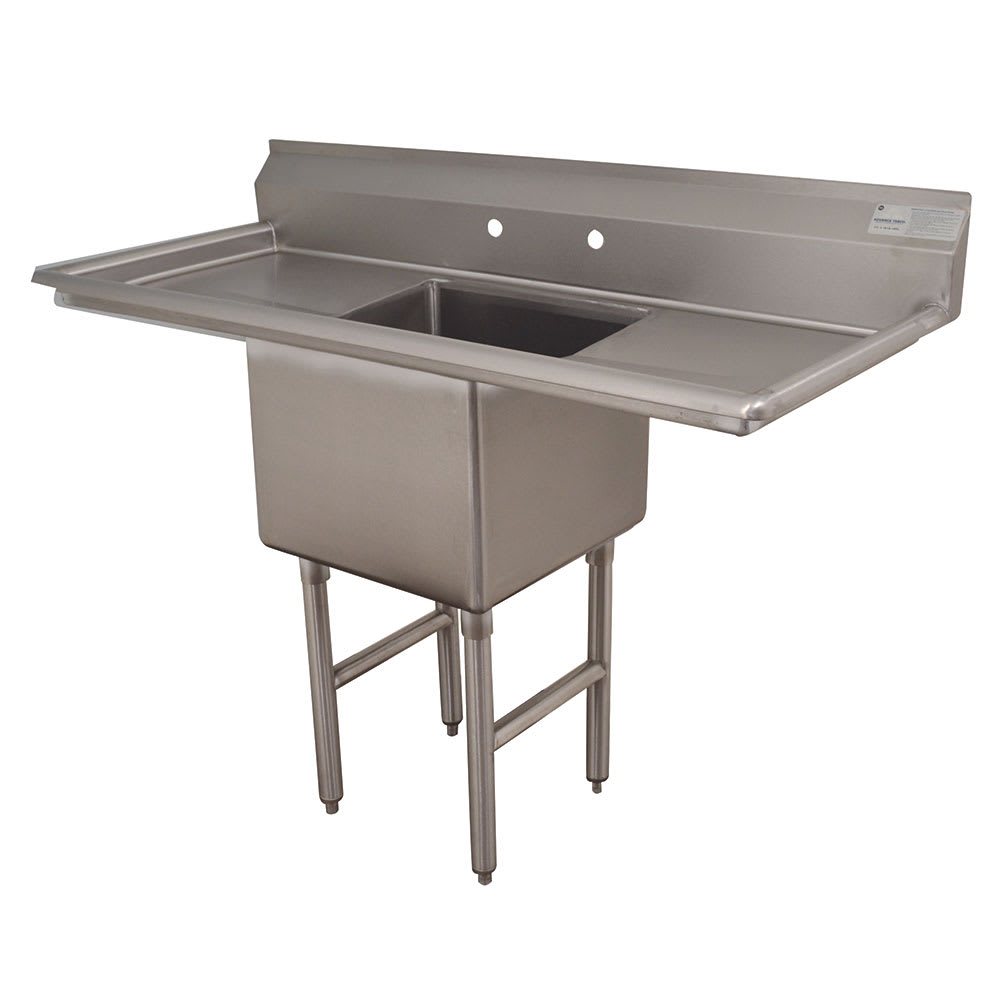

1 Compartment Sink with 2 Drainboards
- Bowl Dimensions: 18' L x 18' W x 14' D
- Overall Dimensions: 54' L x 24' W x 16-1/2' D
- (2) 18' Drainboards on either side
- Backsplash has tile edge for ease of installation..
- Sink bowls are 3/4" coved corner and meet NSF requirements.
- Faucet holes on 8' centers
- Rolled Rim Edge for additional strength.
- Sink Bowls are 14" deep for greater capacity.
- 1 5/8' diameter stainless steel legs.
- Stainless steel legs with 1" adjustable stainless steel bullet feet.
- Entire unit is 16 gauge 304 stainless steel.
- Gussets - galvanized steel.
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- Gussets welded to a die-embossed reinforced plate.
Fabricated NSF Sink, 1-compartment, 18" right & left drainboards, bowl size 18" x 18" x 14" deep, 16 gauge 304 series stainless steel, tile edge splash, rolled edge, faucet holes on 8" centers, stainless steel legs, 1" adjustable stainless steel bullet feet, NSF, overall 24" F/B x 54" L/R
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Advance Tabco FC-1-1818-18RL SpecificationsPDF Spec Sheet
