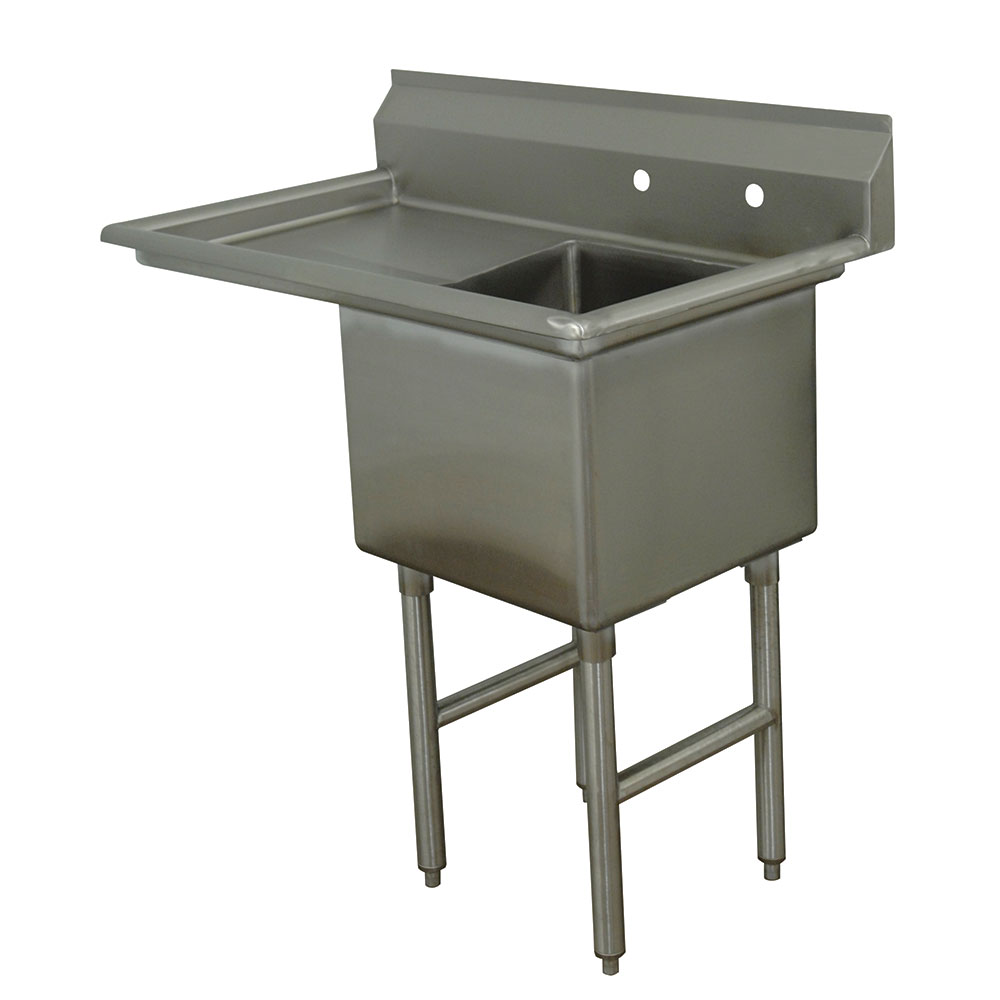

Fabricated Economy Sink
1 Compartment Sink with Left Side Drainboard
- Bowl Dimensions: 18' L x 18' W x 14' D
- Overall Dimensions: 24" F/B x 38.5" L/R
- (1) 18" Drainboards on left side
- Backsplash has tile edge for ease of installation..
- Sink bowls are 3/4" coved corner and meet NSF requirements.
- Faucet holes on 8' centers
- Rolled Rim Edge for additional strength.
- Sink Bowls are 14" deep for greater capacity.
- 1 5/8' diameter stainless steel legs.
- Stainless steel legs with 1" adjustable stainless steel bullet feet.
- Entire unit is 16 gauge 304 stainless steel.
- Gussets - galvanized steel.
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- Gussets welded to a die-embossed reinforced plate.
Fabricated NSF Sink, 1-compartment, 18" left drainboard, bowl size 18" x 18" x 14" deep, 16 gauge 304 series stainless steel, tile edge splash, rolled edge, faucet holes on 8" centers, stainless steel legs, 1" adjustable stainless steel bullet feet, NSF, overall 24" F/B x 38.5" L/R
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Advance Tabco FC-1-1818-18L SpecificationsPDF Spec Sheet
|Overall Length (in)||38.5|
|Sink Length (Side to Side)||18|
|Sink Width (Front to Back)||18|
|Stainless Steel Gauge||16 gauge|
|Stainless Steel Grade||304 Series|
|Specialty Options||All Stainless Construction|
