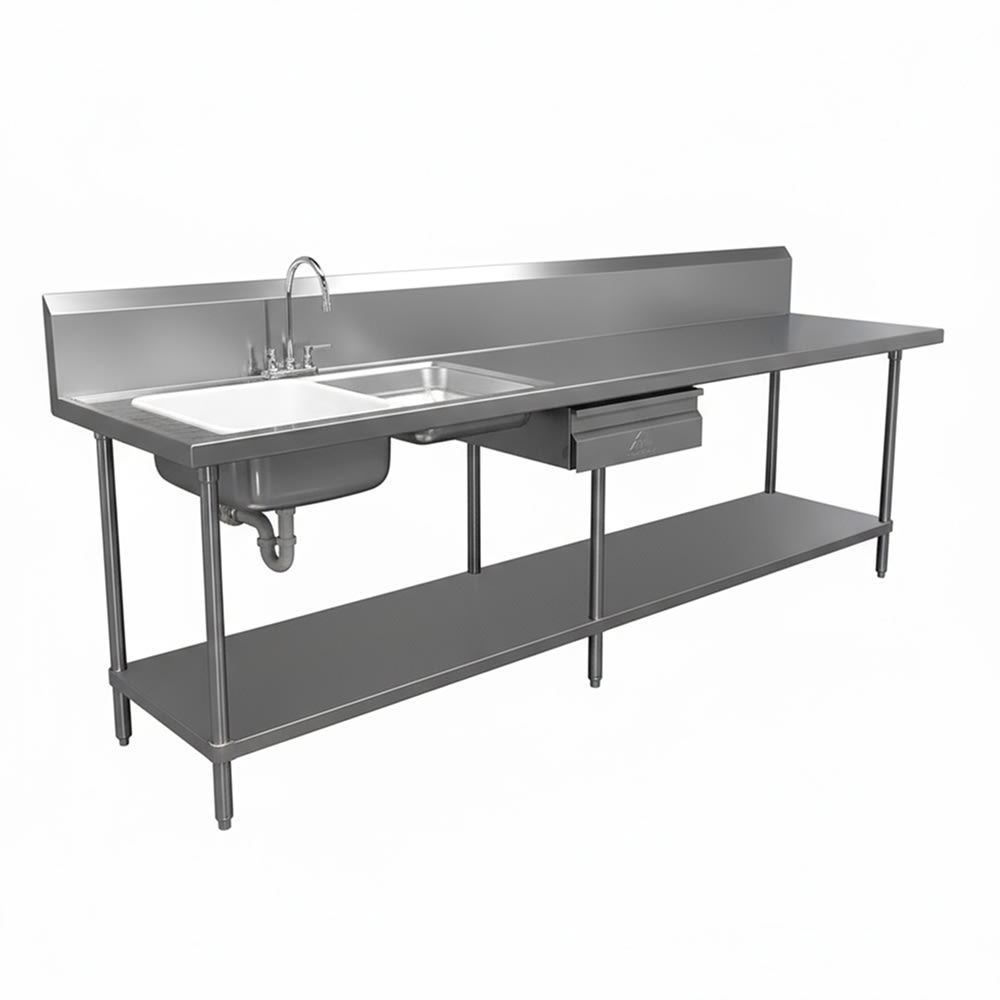

Advance Tabco DL-30-96 96" Prep Table Sink Unit - (2) Sinks, Deck Mount Gooseneck

Image may not depict product color, inclusions or accessories.

KaTom #: 009-DL3096 • MPN: DL-30-96

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price Increase Warning
Retail Price: $2,661.30

Image may not depict product color, inclusions or accessories.

Advance Tabco DL-30-96 Description

Advance Tabco

The Advance Tabco DL-30-96 prep table has an adjustable undershelf with a die cast leg clamp instead of nuts and bolts for a cleaner, more polished look. The square die embossed no-drip countertop offset edge and 10-inch splash guard help protect the surrounding area from spills and messes. A shallow sink furnished with a stainless steel perforated drain basket is featured on the DL-30-96. The table is equipped with a die-formed stainless steel drawer front mounted on roller bearing slides. By being all TIG welded, the DL-30-96 prep table has a clean, polished look and is a long-lasting product.

Product Details

  • 2 in. x 1 in. square no-drip die-embossed countertop offset edge with 12-in. return on 3 sides
  • 10-in. splash with a 2-in. return on the rear side
  • Shallow sink with stainless steel perforated drain basket
  • 20 in. L x 16 in. W x 8 in. H and 20 in. x L 16 in. W x 4 in. H stainless steel sinks welded to top
  • 20 in. L x 15 in. W x 5 in. H stainless steel drawer inset
  • Die-formed stainless steel drawer is mounted to table's front on roller bearing slides
  • Aluminum die cast leg clamp secures shelf to leg
  • Stainless steel, 1 12-in. IPS, basket type waste drain
  • Gooseneck faucet with aerator
  • 4 in. faucet holes with 12-in. hot and cold supply
  • 14-gauge,304-series stainless steel top
  • 18 gauge type430--series stainless steel shelf
  • Tubular stainless steel 1 58-in. dia. legs with stainless steel gussets and adjustable -in. bullet feet
  • Poly-vance sliding cutting board 21 in. L x 18 in. W x 5/8 in. H raised 14 in. above table surface
  • All TIG welded for uniformity and durability
  • Satin finish and sound deadened top and exposed surfaces
  • Mirror finish on countertop
  • Roll formed embossed galvanized hat channels are attached by weld studs and structural adhesive
  • Gussets are welded to support hat channels
  • Overall Dimensions: 96 in. L x 30 in. W x 45 12 in. H

Prep Table Sink Unit, free-standing, with 2 sinks, (1) 16"x20"x4", (1) 16"x20"x8", 96" long, 30" front to back, 10" back splash, no drip edge, stainless steel drawer, Poly-Vance sliding cutting board, stainless steel legs & undershelf, deck mounted gooseneck faucet

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Advance Tabco DL-30-96 Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Category Work Tables
Construction All Stainless
Length (in) 96
Specialty Options With Sink
Type 10" Backsplash
Width (in) 30
Product Type Work Tables
Product Sink Table
Weight 198.00
