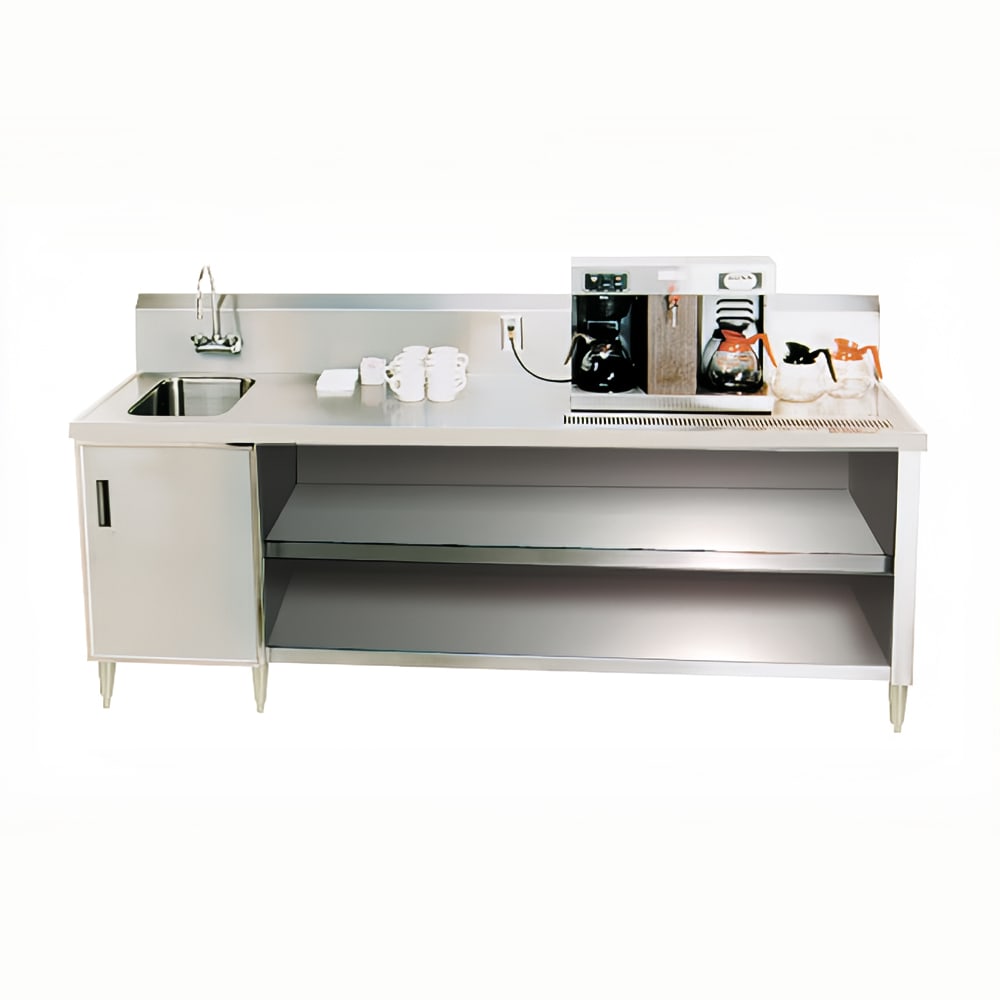

Advance Tabco BEV-30-48L 48" Beverage Table w/ Left Side Sink & Drain Trough, 30"D

KaTom #: 009-BEV3048L • MPN: BEV-30-48L

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price Increase Message
Retail Price: $2,417.40

Advance Tabco BEV-30-48L Description

The Advance Tabco BEV-30-48L beverage table body design is furnished with an intermediate, stainless steel shelf and a 14 inch by 16 inch by 12 inch deep drawn sink welded to the top. The sides, back, and shelf are welded together to make a single rigid structure, which makes the multi-purpose unit easy to install. Along with a 10-inch splash with a 2 inch return on the back and a die-embossed, no-drip countertop offset edge with a 12 -inch return on three sides, the top forms a flush fit by being assembled to the body and is equipped with a no splash drain plate trough. There is a shelf underneath the BEV-30-48L beverage table for partial storage space, as well as a front hinge door and open back under the sink area, which makes installing plumbing fixtures simple.

Product Details

  • 14-gauge, 304-series stainless steel top type
  • 18-gauge, 430-series stainless steel body type
  • Stainless steel legs with adjustable 1 12-in. hex feet
  • Splash-mounted, 4-in. O.C. faucet with 8 12 -in. gooseneck spout and 12 -in. hot and cold supply
  • All TIG welded
  • Top and exposed surfaces are sound deadened and satin finished by being mechanically polished
  • Polished mirror finish on countertop
  • Embossed, galvanized, roll-formed hat channels are secured to top with weld studs and structural adhesive
  • Features bolt-on stainless steel legs
  • Sink on left side of table
  • 2-in. x 1-in. no-drip, square die-embossed offset edge countertop with 12-in. return on 3 sides
  • 10-in. splash with 2-in. return on back side
  • Intermediate shelf
  • GFI duplex electrical outlet in backsplash
  • 16 in. L x 14 in. W x 12 in. H deep drawn sink
  • 1 12-in. IPS basket drain type
  • 5-in. x 1-in. no-splash drain plate urn trough
  • Partial undershelf under sink
  • Overall Dimensions: 48 in. L x 30 in. W x 45 12 H

Beverage Table, 48"W, with 14" x 16" x 12" deep sink on left with faucet 4"OC, urn trough 5" x 18" with no splash drain plate, 14 gauge 304 series stainless steel top with no drip counter top edge, 10" x 2" back splash, enclosed stainless steel base with bottom & intermediate undershelves, stainless steel legs

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco BEV-30-48L Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Location Left Side Sink
Length (in) 48
Depth (in) 30
Height (in) 46
Specialty Options Drain Trough
Specialty Options Duplex Outlet
Weight 230.00
Advance Tabco BEV-30-48L Certifications
  • NSF
