Advance Tabco 94-1-24-18R 40" 1-Compartment Sink w/ 16"L x 20"W Bowl, 14" Deep

KaTom #: 009-9412418R • MPN: 94-1-24-18R

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $1,500.75

Advance Tabco 94-1-24-18R Description

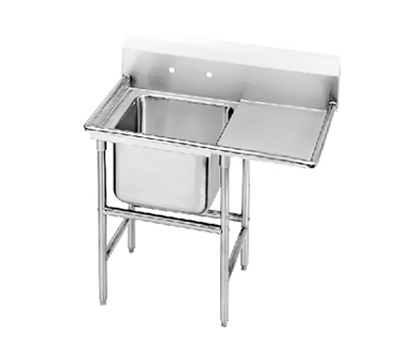

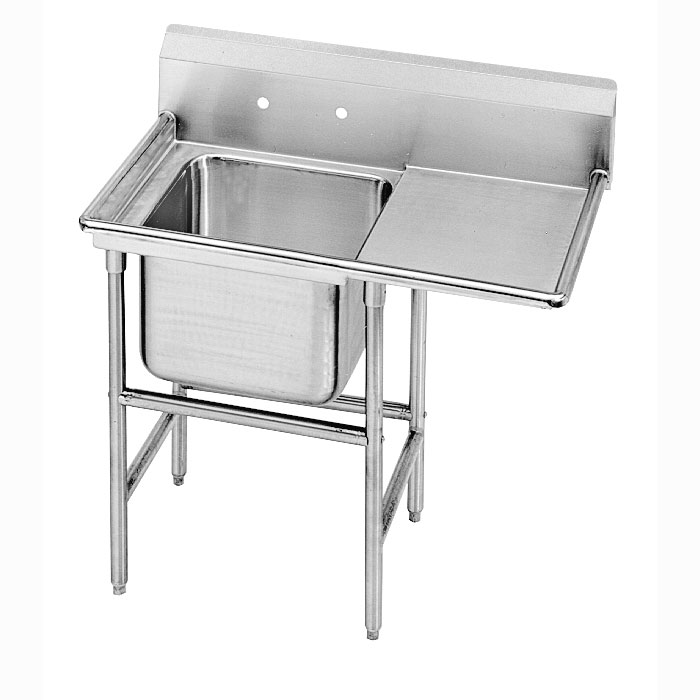

The Advance Tabco 94-1-24-18R Regaline sink features a single bowl unit design that accommodates Poly-Vance cutting boards and sink covers. This sink bowl has a large liberal 3-inch radius and an integral right-hand drainboard with a splash. There is a tile edge to make installing the sink easy. The placement of the welded leg assembly guarantees stability and furnishes direct support of the column load requirement for the entire sink unit. Since the Advance Tabco 94-1-24-18R Regaline sink is part of the “940” series, it is supplied with an adjustable front and rear cross brace featuring leg casting to secure the left to right cross bracing.

Product Details

  • Single bowl unit design with large liberal 3-in. radius
  • Right-hand 18-in. drainboard with splash
  • 1-piece deep drawn sink bowl
  • Tile edge for easy installation
  • Column load requirement for the entire sink unit is supported and stable because of the placement of the welded leg assembly
  • Has an adjustable front and rear cross brace with leg casting to secure left to right cross bracing
  • 14-gauge, “304” stainless steel
  • 11-in.-high splash
  • All TIG welded
  • Welded areas are blended to a satin finish to match the adjacent surfaces
  • Gussets are welded to a die-embossed reinforcing channel
  • 158-in.-dia. tubular stainless steel legs with stainless steel gussets and channels
  • 1-in. adjustable stainless steel bullet feet
  • 14-in. water level
  • 12 in. IPS hot and cold
  • Faucet holes on 8-in. centers
  • Faucets are not included
  • Waste drains are 112 in. IPS S/S basket type, located in the center of the sink bowl
  • Overall Dimensions: 40 in. L x 27 in. W x 45 in. H
  • NSF Certified

Regaline Sink, 1-compartment, with right-hand drainboard, 20" front-to-back x 16" wide sink compartment, 14" deep, with 11" high splash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 series stainless steel, overall 27" F/B x 40" L/R, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco 94-1-24-18R Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Overall Length (in) 40
Sink Length (Side to Side) 16
Sink Width (Front to Back) 20
Sink Depth 14
Stainless Steel Gauge 14 gauge
Stainless Steel Grade 304 Series
Backsplash Height 11"
Drainboard Location Right
Drainboard Length 18"
Faucet Mount Splash
Faucet Centers 8"
Specialty Options All Stainless Construction
Weight 98.00
Advance Tabco 94-1-24-18R Certifications
  • NSF
