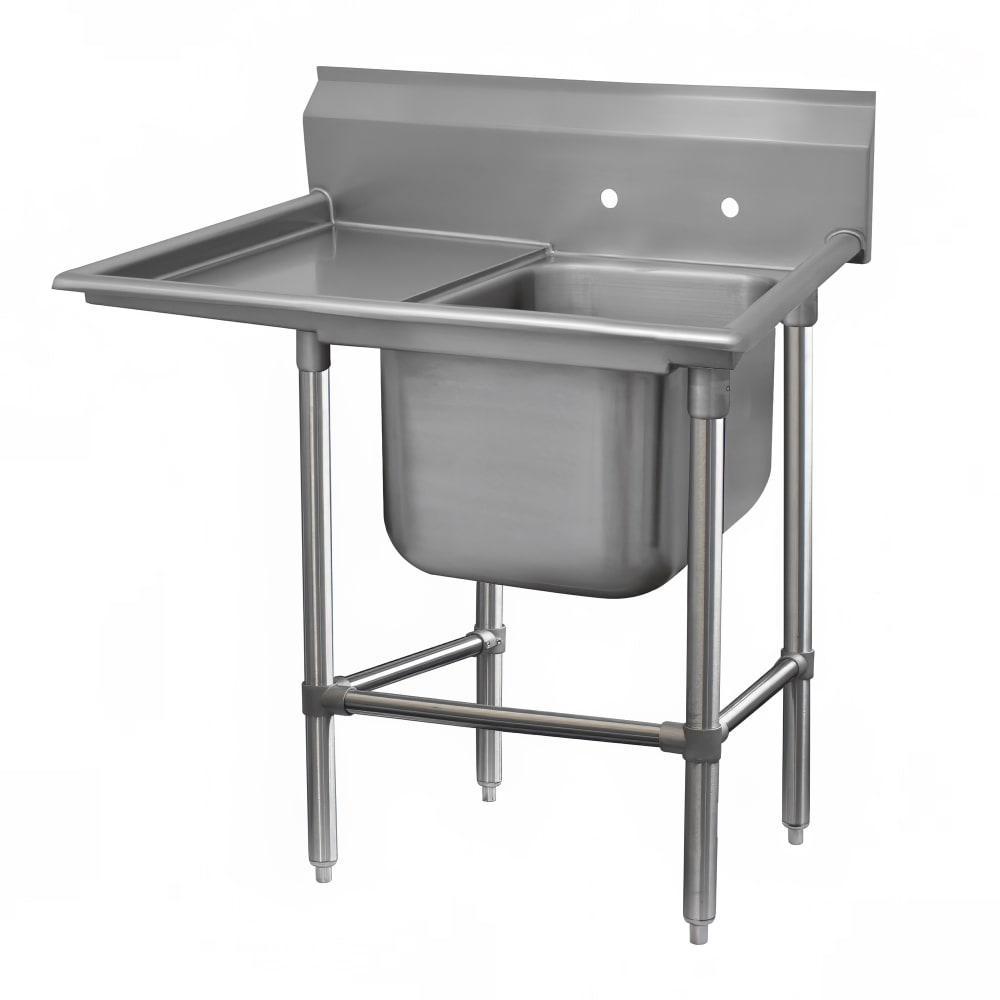

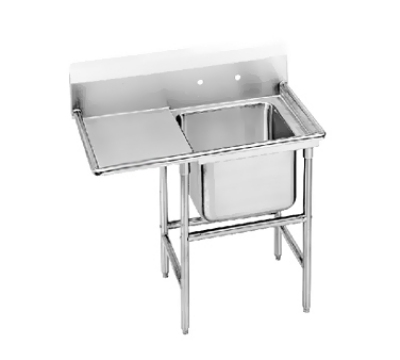

Advance Tabco 94-1-24-18L 40" 1 Compartment Sink w/ 16"L x 20"W Bowl, 14" Deep

Image may not depict product color, inclusions or accessories.

KaTom #: 009-9412418L • MPN: 94-1-24-18L

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $1,630.80

Image may not depict product color, inclusions or accessories.

Advance Tabco 94-1-24-18L Description

Advance Tabco

The Advance Tabco 94-1-24-18L Regaline sink is a deep drawn single bowl unit design with a large liberal 3-inch radius. The left-handed drainboard is integrated with a backsplash to prevent water and soap from getting on other surfaces. To make installing the sink easier, there is a tile edge. Where the welded leg assembly is placed ensures the unit is stable and furnishes direct support of the column load requirement for the entire sink unit. To secure the left to right cross bracing, the “940” series sink is supplied with an adjustable front and a rear cross brace featuring a leg casting. The Tabco 94-1-24-18L Regaline sink is all TIG welded to provide a high quality product with all smooth welded edges.

Product Details

  • Single bowl unit design with large liberal 3-in. radius
  • Left-hand 18-in. drainboard with splash
  • 1-piece, deep drawn sink bowl
  • 11-in. high back splash
  • 158 in. dia. tubular stainless steel legs
  • Stainless steel gussets
  • Stainless steel channels
  • 1-in. stainless steel adjustable bullet feet
  • Tiled edge for easy installation
  • Placement of the welded leg assembly furnishes direct support of the column load requirement for the whole unit
  • Supplied with an adjustable front and rear cross brace with leg casting to secure left to right cross bracing
  • All TIG welded
  • Welded areas are blended to a statin finish to match the adjoining surfaces
  • Gussets are welded to a die-embossed reinforcing channel
  • 14-gauge, “304”-type stainless steel
  • 14-in. water level
  • 12 in. IPS hot and cold supply
  • Faucets holes are on 8-in. centers
  • Faucets are not included
  • Waste drains are 112 in. IPS, S/S basket type, and are located in the center of the sink bowl
  • Overall Dimensions: 40 in. L x 27 in. W x 45 in. H
  • NSF Certified

Regaline Sink, 1-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartment, 14" deep, with 11"H backsplash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 27" F/B x 40" L/R, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco 94-1-24-18L Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Overall Length (in) 40
Sink Length (in) 16
Sink Width (in) 20
Sink Depth (in) 14
Stainless Steel Gauge 14 gauge
Stainless Steel Grade 304 Series
Backsplash Height (in) 11"
Drainboard Location Left
Drainboard Length (in) 18"
Faucet Mount Splash
Faucet Centers 8"
Specialty Options All Stainless Construction
Product Type Commercial Sinks
Product Compartment Sink
Weight 98.00
Advance Tabco 94-1-24-18L Certifications
  • NSF
