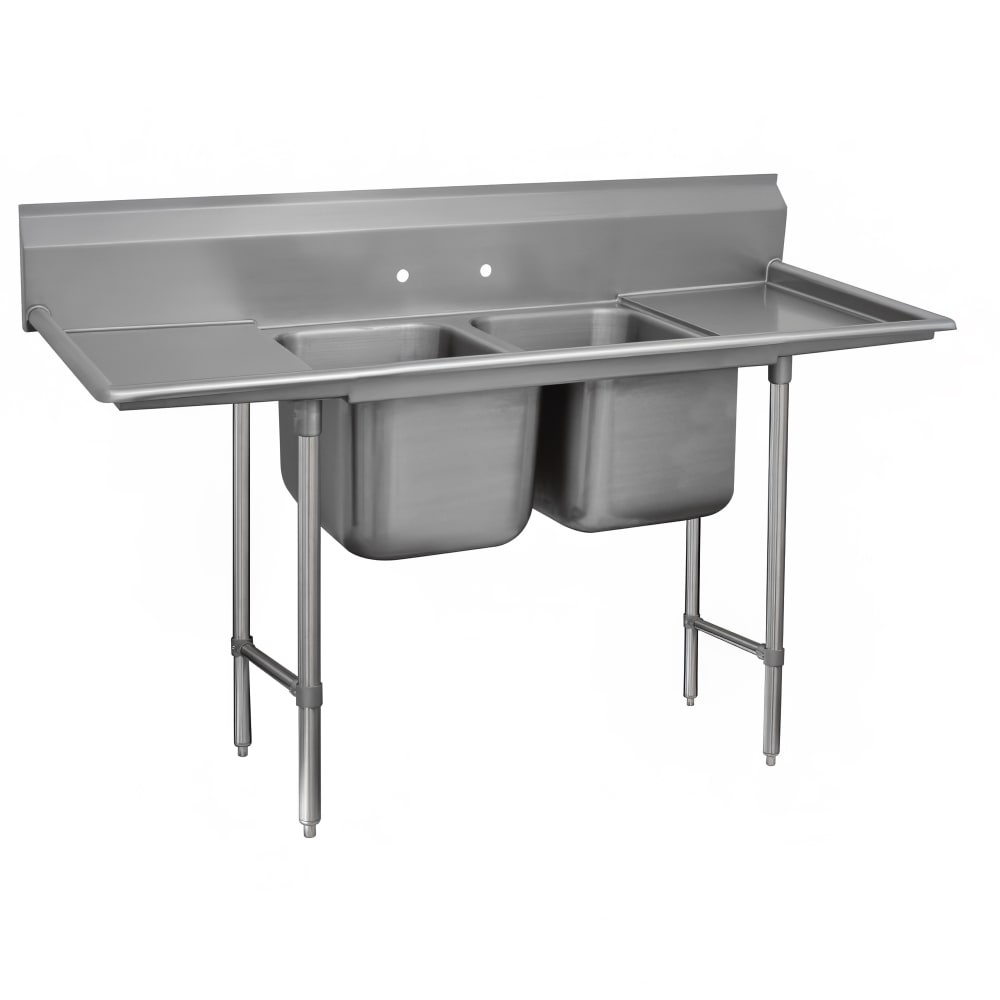

Advance Tabco 93-82-40-24RL 93" 2 Compartment Sink w/ 20"L x 28"W Bowl, 12" Deep

Image may not depict product color, inclusions or accessories.

KaTom #: 009-93824024RL • MPN: 93-82-40-24RL

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $2,985.30

Image may not depict product color, inclusions or accessories.

Advance Tabco 93-82-40-24RL Description

Advance Tabco

Advance Tabco's 93-82-40-24RL pan sink features two bowls that each measure 20 inches by 28 inches. Each of those bowls are deep drawn for a seamless, easy-to-clean design that won't harbor debris or bacteria. This unit is built with standard-duty, 14-gauge 304 stainless steel and is completely TIG welded for durability. All welded areas are blended to match the rest of the unit for a uniform appearance.

This sink has two drainboards, one on either side, each measuring 24 inches square. An 8-inch-high backsplash protects surrounding walls from splashing water. Each sink bowl has a 12-inch water level and a 15-inch flood level. The Advance Tabco 93-82-40-24RL two-compartment pan sink is mounted to heavy-duty 158-inch tubular steel legs and 1-inch adjustable bullet feet.

Product Details

  • 24-in. drainboards mounted to each side of sink compartment
  • Built with standard-duty, 14 gauge 304 stainless steel
  • 8-in. high backsplash protects the wall behind the equipment from damage
  • Tile edge makes installation easy
  • Sink bowl is deep drawn for a one-piece construction that makes it easy to clean
  • Wide 3-in. radius corners will not trap debris
  • Welded leg assembly is place where it best supports the weight of a full sink
  • TIG welded construction provides a long service life
  • Welded areas are blended to a satin finish to match the rest of the sink
  • Gussets are welded to a reinforcing channel for stability
  • 12-in. water level and 15-in. flood level
  • 158 in. dia. stainless steel legs lend durability
  • Mounted on 1-in. adjustable bullet feet
  • Overall Dimensions: 93 in. W x 35 in. D x 42 in. H
  • NSF Certified

Regaline Sink, 2-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side crossrails, 24" drainboards, 1" adjustable feet, 16 gauge 304 stainless steel, overall 35" F/B x 93" L/R, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco 93-82-40-24RL Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Overall Length (in) 93
Sink Length (in) 20
Sink Width (in) 28
Sink Depth (in) 12
Stainless Steel Gauge 16 gauge
Stainless Steel Grade 304 Series
Backsplash Height (in) 8"
Drainboard Location Both Sides
Drainboard Length (in) 24"
Faucet Mount Splash
Faucet Centers 8"
Product Type Commercial Sinks
Product Compartment Sink
Weight 253.00
Advance Tabco 93-82-40-24RL Certifications
  • NSF
