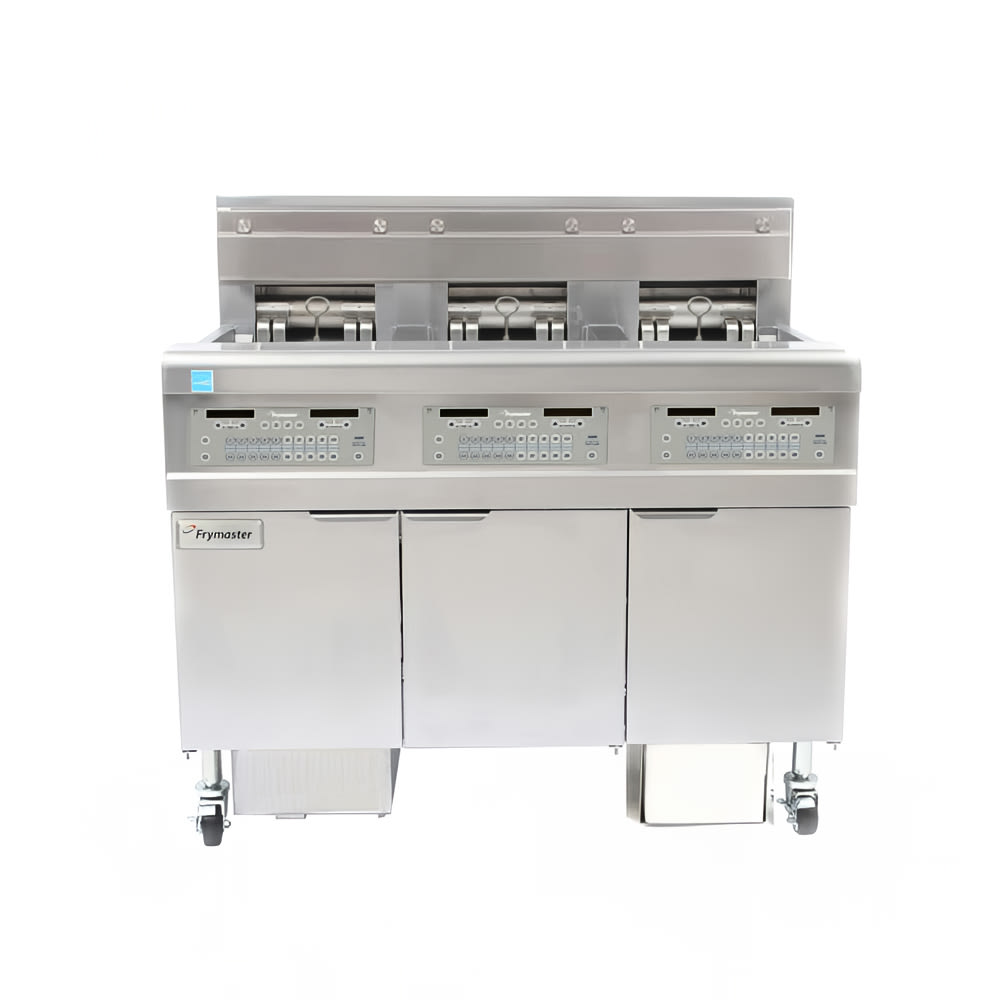

Frymaster FPEL314CA Description
For high-volume applications, the Frymaster FPEL314CA OCF30™ Fryer Battery floor-model fryer has three 13-inch-long by 14-inch-wide by 33⁄4-inch-deep frypots—each of which can hold as much as 30 pounds of oil. Their small, open structures are easy to clean, and refilling costs are lower than costs for large frypots. For energy efficiency, they're heated with self-standing, swing-up flat-bar heating elements. Temperature is monitored and managed with a center-mounted RTD, which uses a 1-degree-Fahrenheit action thermostat for uniform results. Filtration is built into this deep fryer cart's battery for accessibility. Once oil levels become too low, SMART4U® technology use Oil Attendant®—a mechanism that adds oil to the vats from the jug-in-box from the fryer cabinet.
The Frymaster FPEL314CA commercial fryer's 3000 controller offers operational management for oil quality and equipment performance. Users can input as many as 20 recipes or food items into the programmable cook buttons, and for best results, the unit will automatically adjust the cook time to match load size. To streamline operation, it includes twin baskets, which can be placed on the basket hanger or the rack-type basket support during frying. It also has a filter starter kit to ensure oil buildup is removed correctly. The cabinet sides, door, and frypot have a stainless steel construction to withstand common wear from kitchen environments. Measuring 467⁄8 inches wide by 307⁄8 inches deep by 453⁄8 inches high, it's furnished with adjustable casters that account for uneven flooring to prevent rocking.
Product Details
- Part of the OCF30 series
- 3 open-design frypots
- 30-lb. oil capacity per pot
- Center-mounted RTD with 1-degree-F action thermostat
- Filtration built into fryer battery
- SMART4U technology
- 3000 controller offers operational management
- 20 programmable cook buttons
- Cook time automatically adjusts to match load size
- Automatic oil refill
- Self-standing flat-bar heating elements are energy efficient
- Stainless steel frypots, door, and cabinet sides
- Rack-type basket support, basket hanger, twin baskets, and filter starter kit included
- 8 GPM pump
- Front clearance: 24 in.
- Side and rear clearances: 6 in.
Dimensions & Utilities
- Frying areas: (3) 13 in. L x 14 in. W x 33⁄4 in. D
- Overall: 467⁄8 in. W x 307⁄8 in. D x 453⁄8 in. H
- 67 A, 14 kW
- 208 V/60 Hz/1 ph, must be field wired (cord and plug not included)
*Free shipping on Frymaster FPEL314CA within the 48 contiguous states.
From The Manufacturer
Frymaster® OCF30™ Fryer Battery, electric, (3) 30 lb. capacity each, built-in filtration, SMART4U® 3000 controller, auto top-off, oil-conserving, open-pot design, includes: rack-type basket support, basket hanger, twin baskets & filter starter kit, 8 GPM pump, stainless steel frypot, door & cabinet sides, adjustable casters, 208v/1ph, cULus, NSF, ENERGY STAR®, Enerlogic®
*Image may not depict product color, inclusions or accessories.
Frymaster FPEL314CA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Frymaster |
| Capacity (lbs) | 90 |
| Hertz | 60 |
| kW | 14 |
| Number of Fry Pots | 3 |
| Oil Capacity (lb) | 90 |
| Oil Capacity/Fryer (lb) | 30 |
| Phase | 1 |
| Product | Electric Fryers |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | OCF30™ |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 2-year Parts; 1-year Labor; Lifetime Frypot Parts |
| Width (in) | 46.88 |
| Weight | 667.00 |
