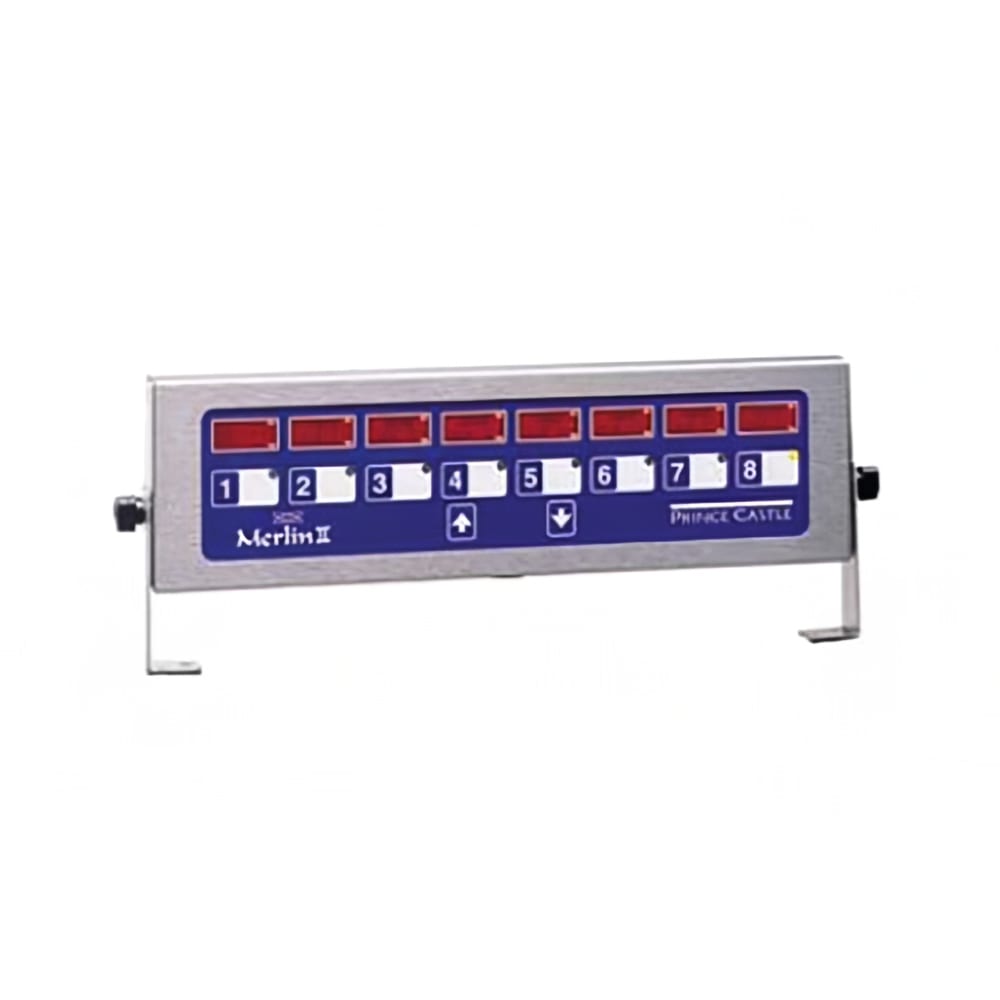

Prince Castle 740-T88H 8-Channel Multi-Display Horizontal Electric Timer, Bold LCD Readout

Image may not depict product color, inclusions or accessories.

KaTom #: 005-740T88H • MPN: 740-T88H

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $1,249.74
$749.84 / Each

Image may not depict product color, inclusions or accessories.

Prince Castle 740-T88H Description

Prince Castle

The Prince Castle 740-T88H timer has eight individually-programmable channels. Labels are included so that kitchen staff can easily identify which dish each channel is monitoring, and the labels are removable to allow your channel assignments to change with your menu. Each channel has its own display that shows the time remaining on its countdown, which can be set in a combination of minutes and seconds or minutes and hours, for a maximum countdown of 59 minutes and 59 seconds or 59 hours and 59 minutes. To indicate the remaining time in a countdown, the channel light changes colors, and to indicate the end of a countdown, the light flashes and an audible alarm sounds. The alarm is turned off manually.

The Prince Castle 740-T88H comes with a horizontal design, wall-mounted transformer, and 312-inch mounting brackets for easy installation. It is wired for 120 volts and includes a 10-foot cord and NEMA 5-15P plug.

Product Details

  • Multi-display horizontal timer
  • 8 channels with individual displays
  • Removable labels identify which menu item the channel is timing
  • Channels are activated and programmed with the push buttons
  • Countdown can be set in combination of hr./min. or min./sec.
  • Indicator lights change colors to signal the time remaining
  • Audible alarm and flashing light signal the end of a countdown
  • Alarm is manually shut off
  • Comes standard with a wall-mounted transformer and 312-in. mounting brackets
  • 120 V/60 Hz/1 ph, NEMA 5-15P plug and 10-ft. cord included
  • Overall Dimensions: 14.07 in. W x 1.09 in. D x 4 in. H
  • cULus Listed

Merlin II Single Function Timer, electronic, 8-channel, multi-display, horizontal mounting, independently functioning programmable channels, multi colored LED channel indicators, digital channel display, audible alarm (manual shut-off), includes mounting brackets & menu labels, 6' cord, "fat plug" transformer, 120v/60/1-ph, .096 amps, NEMA 5-15P, UL, cUL

Prince Castle 740-T88H Specifications

PDF Spec Sheet
Manufacturer Prince Castle
Voltage 120/60/1
Weight 5.20
Prince Castle 740-T88H Certifications
  • UL
