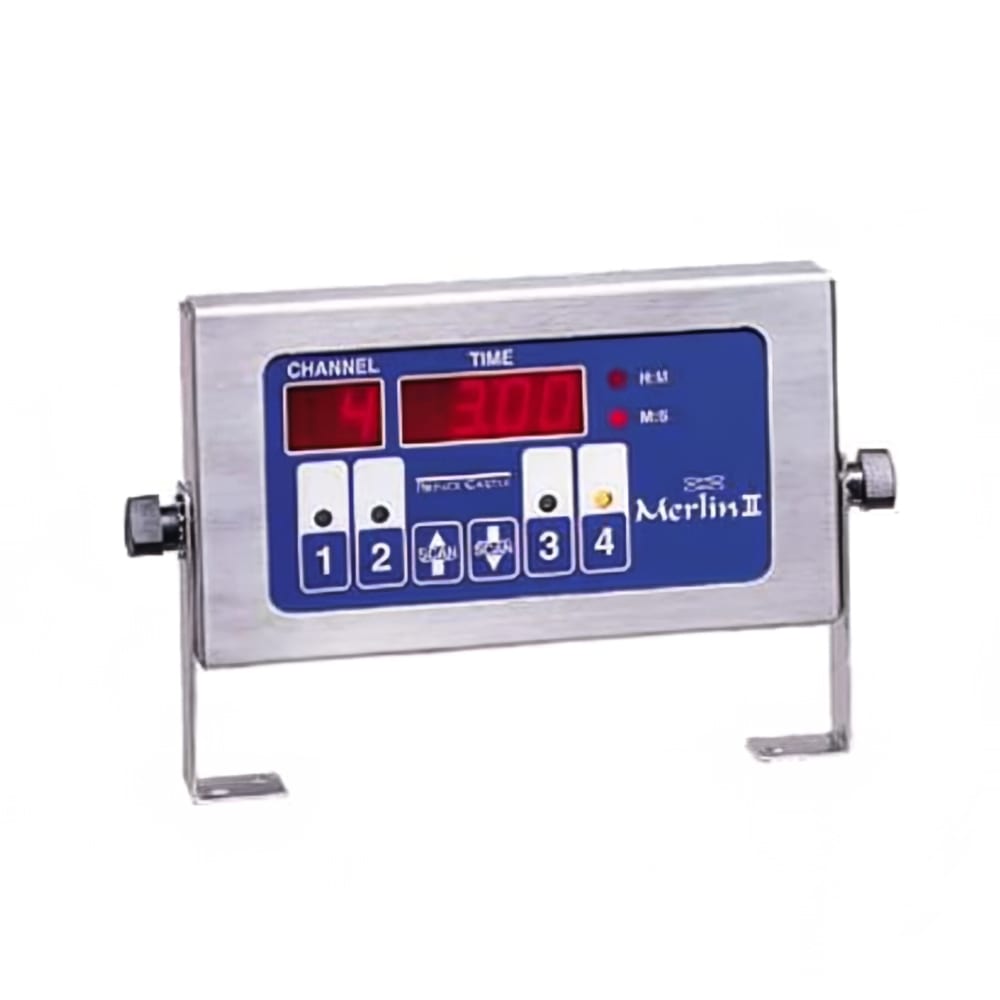

Prince Castle 740-T4 4 Channel Single Function Timer w/ Alarm, 120v

The Prince Castle 740-T4 is an electric timer with four channels and a digital display. Each channel is independently programmable and able to function simultaneously, enabling operators to accurately time up to four different kitchen tasks at once. The timer includes a number of removable labels to make sure that kitchen staff knows which channel is assigned to which task, and to make it easy to change those assignments at any time. The channels can be selected and programmed with push buttons, and the time cycle can be set in hour-minute or minute-second formats. The digital display shows the selected channel as well as the time remaining on the countdown.

This Prince Castle 740-T4 timer provides advance warning of a countdown nearing its conclusion with the use of channel lights that change colors, from green to yellow to red. To ensure the end of a time cycle is never missed, the operator is given audio and visual signals, a beep alarm and a flashing channel light. To provide flexible installation, this unit has a slim design and a 10-foot cord. Mounting brackets are included.

Product Details

• 4-channel electric timer
• Digital display shows selected channel
• Provide accurate countdowns for various kitchen tasks
• Assign channels to a specific task with removable labels
• Program times in hour/minute or minute/second combinations
• Up and down push buttons make programming easy
• Channel lights indicate how much time is left in a countdown
• Light changes from green to yellow to red to give advance warning of the end of a countdown
• A flashing channel light and audible beep indicate that a time cycle is finished
• Audible beep is adjustable between high and low volume
• Comes with 3¹/₂-in. mounting brackets for installation

Dimensions & Utilities

• 8⁹³/₁₀₀ in. W x 1⁹/₁₀₀ in. D x 4 in. H
• 0.083 A, 10 W
• 120 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

*Prince Castle 740-T4 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Merlin II Single Function Timer, electronic, 4-channel, single display, independently functioning programmable channels, multi colored LED channel indicators, digital channel display, dual tone alarm, includes 3-1/2" mounting brackets & menu labels, 10 ft. cord, "fat plug" transformer, 120v/60/1-ph, .083 amps, NEMA 5-15P cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year

Prince Castle 740-T4 Specifications

Documents

Spec Sheet
