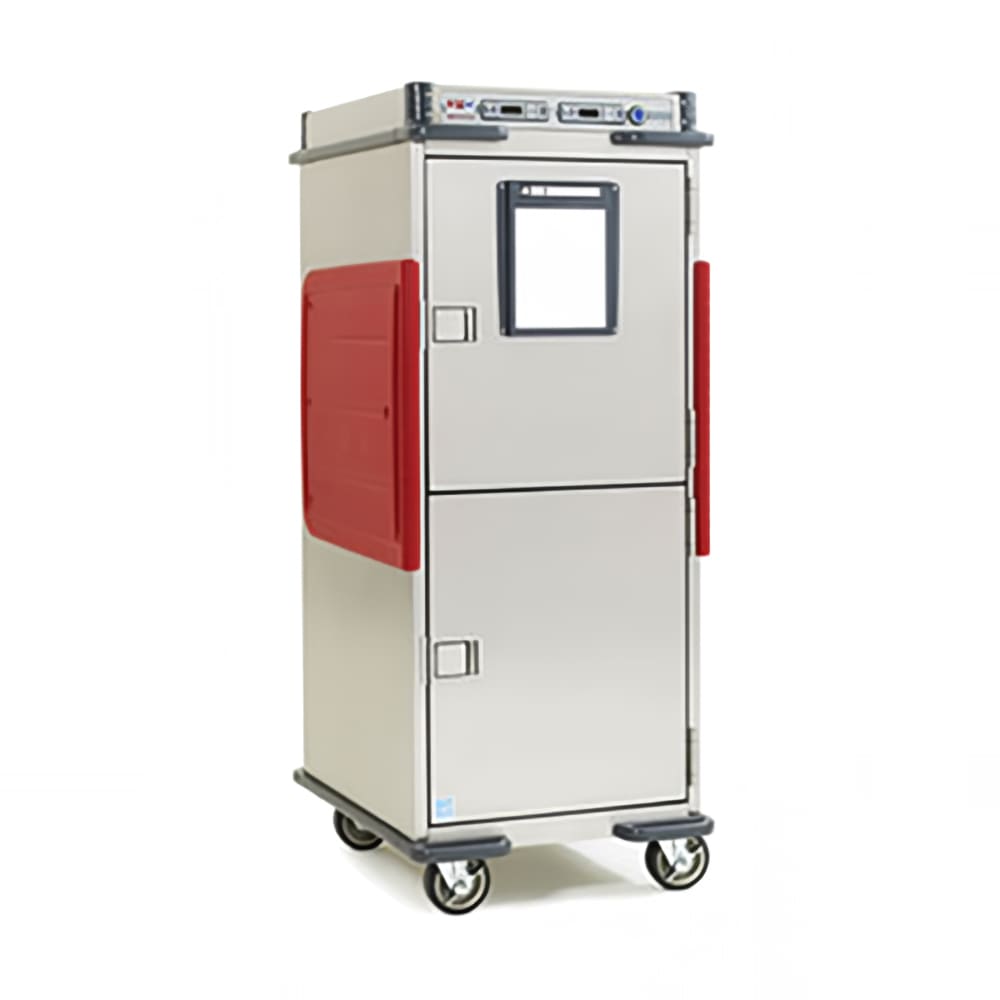

Metro C5T9D-DSB Full Height Insulated Mobile Heated Cabinet w/ (14) Pan Capacity, 120v

To ensure precooked foods are warm for serving, the Metro C5T9D-DSB C5™ T-Series Transport Armour™ heavy-duty heated cabinet features solid-state digital temperature controls, including low- and high-temperature alarms, a recall and memory button, diagnostic troubleshooting, and a digital display. Operators can adjust temperatures to a maximum of 200 degrees Fahrenheit, and the ducted convection heating system maintains the programmed temperature. The solid-state control's mobile power mechanism continues circulating air inside the cabinet and ensures the controller is operable, even if the unit is unplugged or being transported.

The Metro C5T9D-DSB heated cabinet's sides, top, base, and rear wall are insulated with foamed-in-place polyurethane to minimize temperature changes, while a solid Dutch door correlates with both cavities so users can access a specific cabinet. For quick identification, a cabinet ID, whiteboard, and clipboard are included with the doors. Bottom-load slides built into the cabinet hold as many as 14 sheet pans or 32 steam table pans, and these slides can be raised or lowered by 1¹⁷/₂₅ inches. Because this cabinet is designed to be moved, its steel-reinforced polymer handles work like bumpers to protect the unit from collision damage, and polymer armour panels add side barriers that shield the exterior from panic bars and door handles. Overall, this full-height unit has a 30-inch-wide by 39¹/₄-inch-deep by 73⁷/₈-inch-high structure.

Product Details

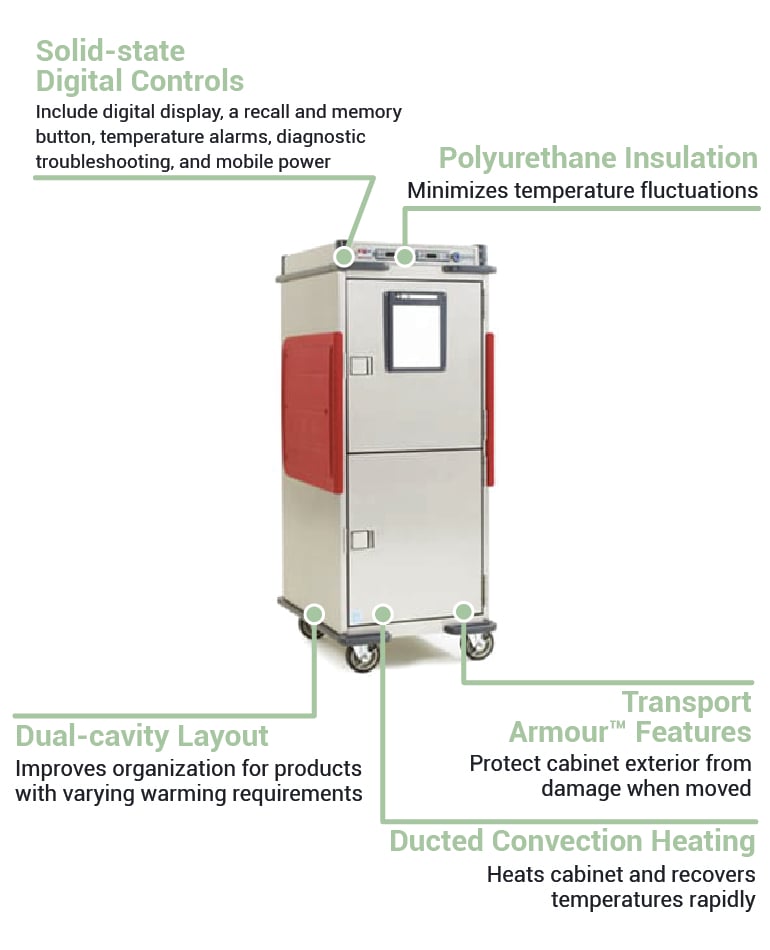

• Dual-cavity, reach-in, full-height configuration
• Top-mounted, solid-state digital controls: digital display, low- and high-temperature alarms, recall and memory button, and diagnostic troubleshooting
• Mobile power feature
• Maximum cabinet holding temperature: 200 degrees F
• Convection ducted heating system
• Foamed-in-place polyurethane insulation built into sides, top, base, and rear wall
• Durable, type 304 stainless steel construction
• Steel-reinforced polymer handles and Polymer Armour panels
• 2 welded, 20-ga. stainless steel Dutch doors with clipboard, whiteboard, and cabinet ID
• Pan capacity: (14) 18-in. x 26-in. sheet pans or (32) 12-in. x 20-in. x 2¹/₂-in. steam pans
• Bottom-load slides adjustable by 1¹⁷/₂₅ in.
• (4) 6-in. swivel casters (2 braking)
• Clearance requirement: 18 in. from cooking equipment
• Minimum clearances for sides, back, and top: 1¹/₂ in.

Product Features

Dimensions & Utilities

• 30 in. W x 39¹/₄ in. D x 73⁷/₈ in. H
• 12 A, 1,400 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-15P plug

*Free shipping on Metro C5T9D-DSB within the 48 contiguous states.

From The Manufacturer

C5™ T-Series Transport Armour™ heavy-duty insulated mobile heated cabinet, full height dual cavity with independent cavity temperature control, adjustable bottom load slides 3-2/5" OC, top mount solid state digital controls with mobile power (14) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 304 stainless steel, foamed-in-place polyurethane insulation, maximum temperature 200°F, 6" casters, 120V/60/1, 1400 watts, 12 amps, NEMA 5-15P, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
