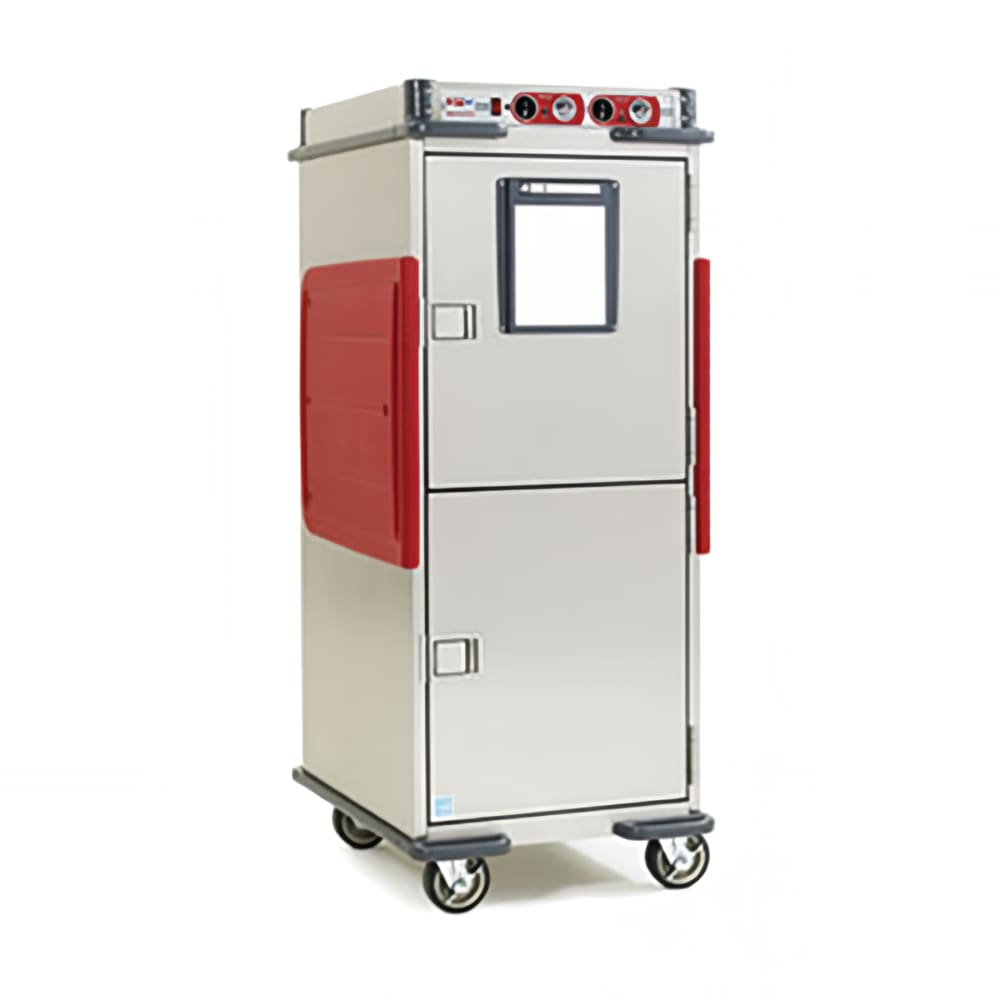

Metro C5T9D-ASL Full Height Insulated Mobile Heated Cabinet w/ (14) Pan Capacity, 120v

The Metro C5T9D-ASL C5™ T-Series mobile heated cabinet is made of type 304 stainless steel—a heavy-duty metal that resists rust and corrosion. Transport Armour™ features, such as steel-reinforced polymer handles and polymer panels, help protect the exterior from dents and scuffs to preserve its original look over time. Inside the two cavities, the sides, top, base, and rear wall are insulated with foamed-in-place polyurethane to minimize temperature fluctuations and add structural rigidity. The two solid Dutch doors provide direct access to a specific cabinet section, and to determine a cavity's contents quickly, each door features a three-function information panel that includes a cabinet ID, whiteboard, and clipboard.

Inside this full-height Metro C5T9D-ASL heated cabinet, lip-load slides accommodate (28) 12-inch by 20-inch by 2.5-inch steam pans or (14) 18-inch by 26-inch sheet pans. As inventory changes, the slides can be raised or lowered by 1¹⁷/₂₅ inches. Operators can use the top-mounted, electromechanical thermostat to adjust each cavity's temperature as high as 200 degrees Fahrenheit. The ducted convection heating system warms the cavities quickly and recovers temperature changes to support consecutive uses. Even when the unit is unplugged or turned off, the analog thermometer displays a temperature readout so operators can ensure product is held at safe temperatures.

Product Details

• 2 cavities
• Reach in
• Full height
• Maximum cabinet holding temperature: 200 degrees F
• Electromechanical thermostat controls for independent cavity temperature adjustments
• Top-mounted, always-on analog thermometer
• Quick-heating ducted convection heating system
• Sides, top, and base insulated with 2-in.-thick polyurethane
• 3¹/₂-in.-thick polyurethane insulation built into rear wall
• Rigid stainless steel construction
• (2) 20-ga. stainless steel Dutch doors with 3-function information panel (clipboard, whiteboard, and cabinet ID)
• Pan capacity: (14) 18-in. x 26-in. sheet pans or (28) 12-in. x 20-in. x 2¹/₂-in. steam pans
• Lip-load slides adjustable by 1¹⁷/₂₅ in.
• Steel-reinforced polymer handles act as bumpers
• Side-protecting Polymer Armour panels
• (4) 6-in. swivel casters (2 with brakes)
• Clearance requirement: 18 in. from cooking equipment
• Minimum clearances for sides, back, and top: 1¹/₂ in.

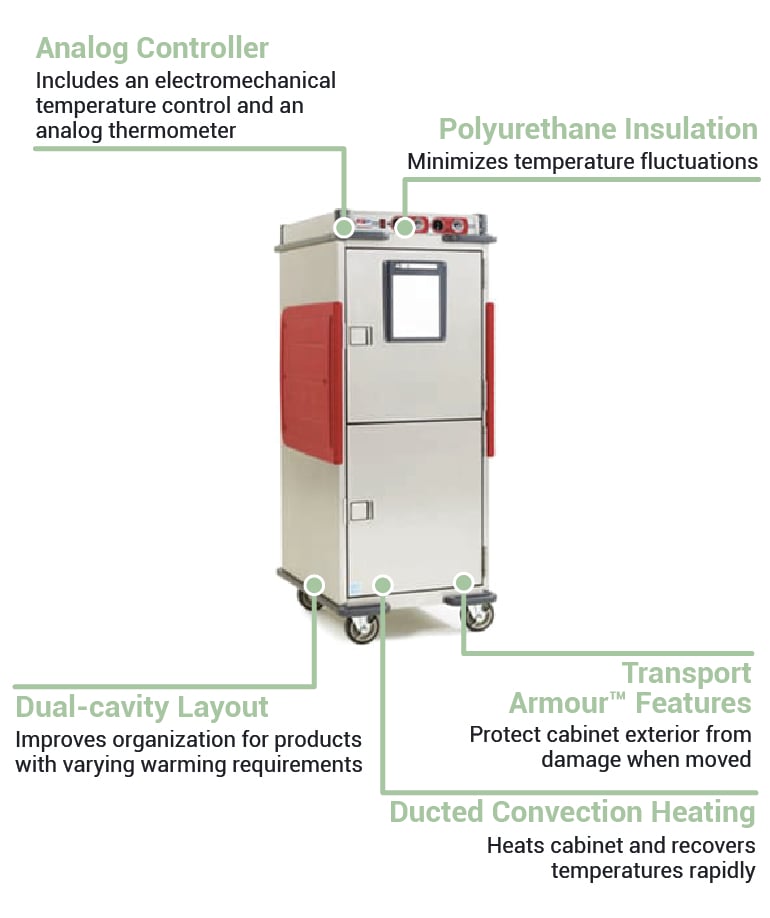

Product Features

Dimensions & Utilities

• 30 in. W x 39¹/₄ in. D x 73⁷/₈ in. H
• 12 A, 1,400 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

*Free shipping on Metro C5T9D-ASL within the 48 contiguous states.

From The Manufacturer

C5™ T-Series Transport Armour™ heavy-duty insulated mobile heated cabinet, full height dual cavity with independent cavity temperature control, adjustable lip load slides 3-2/5" OC, top mount analog thermometer & electro-mechanical thermostat (14) 18" x 26" or (28) 12" x 20" x 2-1/2" pan capacity, 304 stainless steel, foamed-in-place polyurethane insulation, maximum temperature 200°F, 6" casters, 120V/60/1, 1400 watts, 12 amps, NEMA 5-15P, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
