Metro C5T9-ASL Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
$8,251.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

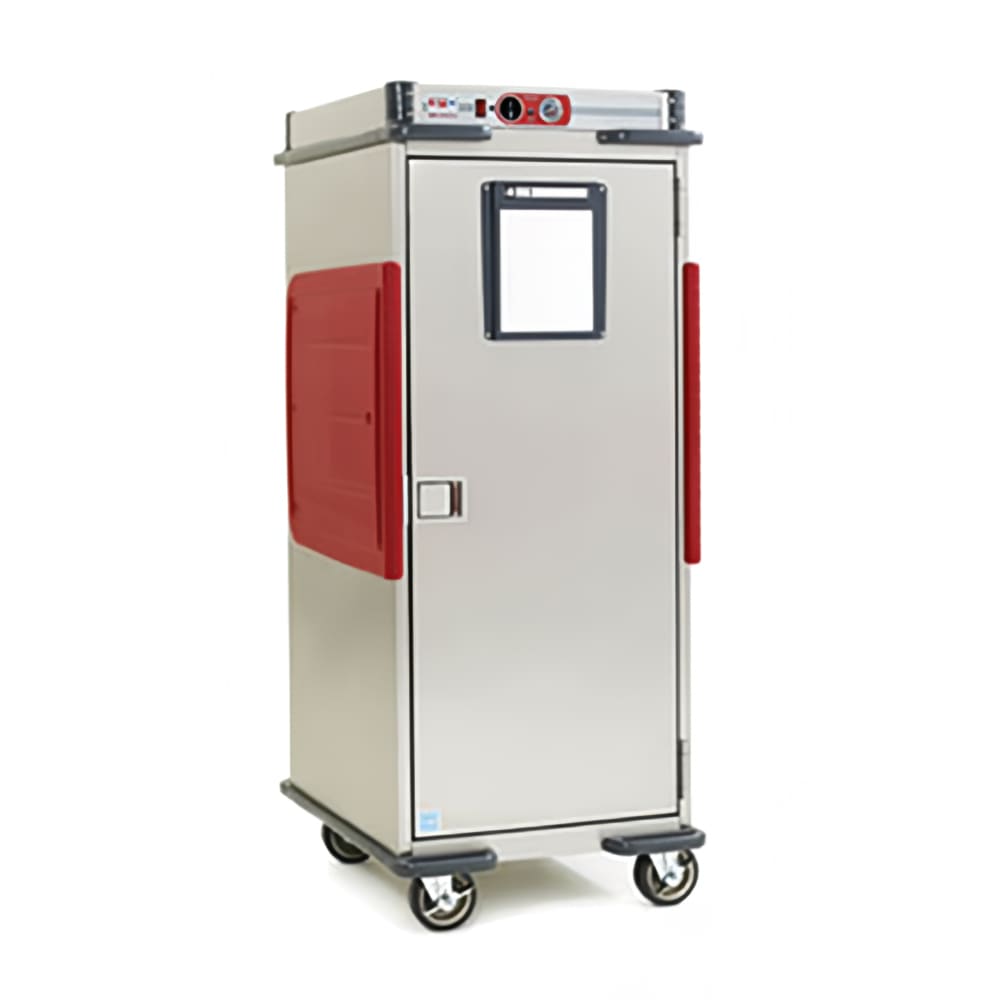

Metro C5T9-ASL Description
The Metro C5T9-ASL C5™ T-Series mobile heated cabinet's ducted convection heating system circulates temperatures as high as 200 degrees Fahrenheit to ensure precooked foods are warm for serving. With a heating element built into the cabinet chamber, this system heats and adjusts temperature fluctuations rapidly to keep pace with consecutive uses. Operators can manipulate temperatures via the top-mounted, analog electromechanical control, and the analog thermometer displays a temperature readout, even if the unit is turned off or unplugged. Overall, the cabinet is equipped to warm 16 sheet pans or 32 steam pans.
Designed to endure heavy-duty use, the Metro C5T9-ASL heated cabinet is built with Transport Armour™, which includes features that protect the cabinet's exterior from dents, scuffs, and scratches. Polymer panels are built into the sides to shield the unit from door handles and panic bars, and they're equipped with molded-in hand holds that let operators guide the unit. The steel reinforced polymer handles work like bumpers if the unit crashes into a door or wall. Polyurethane insulation is foamed into the stainless steel construction to improve temperature retention and increase structural strength. This 30-inch-wide by 1/4-inch-deep by 737/8-inch-high unit is furnished with 6-inch swivel casters—two of which brake.
Product Details
- Reach in
- Single cavity
- Full height
- Adjustable lip-load slides accommodate (16) 18-in. x 26-in. sheet pans or (32) 12-in. x 20-in. x 21/2-in. steam pans
- Sides, top, base, and rear wall insulated with foamed-in-place polyurethane
- 304 stainless steel construction
- Solid, full-length door includes cabinet ID, whiteboard, and clipboard
- Reinforced polymer handles and polymer side panels
- Ducted convection heating
- Maximum cabinet temperature: 200 degrees F
- Electromechanical temperature control and analog thermostat with constant readout
- (4) 6-in. swivel casters (2 braking)
- Clearance requirement: 18 in. from cooking equipment
- Minimum clearances for sides, back, and top: 11/2 in.

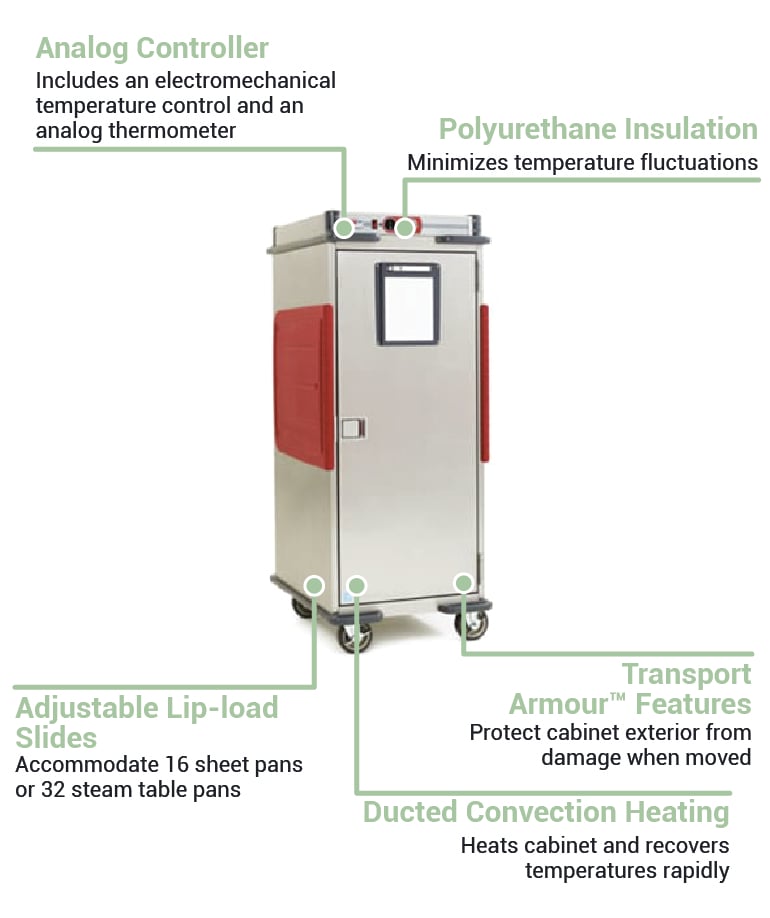

Product Features
Dimensions & Utilities
- 30 in. W x 391/4 in. D x 737/8 in. H
- 12 A, 1,400 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-15P plug
*Free shipping on Metro C5T9-ASL within the 48 contiguous states.
From The Manufacturer
C5™ T-Series Transport Armour™ heavy-duty insulated mobile heated cabinet, full height, adjustable lip load slides 3-2/5" OC, top mount analog thermometer & electro-mechanical thermostat (16) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 304 stainless steel, foamed-in-place polyurethane insulation, maximum temperature 200°F, 6" casters, 120V/60/1, 1400 watts, 12 amps, NEMA 5-15P, cULus, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Metro C5T9-ASL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 39.25 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 73.88 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Includes | Bumpers |
| kW | 1.4 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 16 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ T-Series |
| Size | Full Height |
| Slide Spacing (in) | 3.4 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 30 |
| Weight | 476.00 |
