Metro C599-SDS-UPDC Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v
$9,086.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 05-12-2025 to save before the price increases!
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below

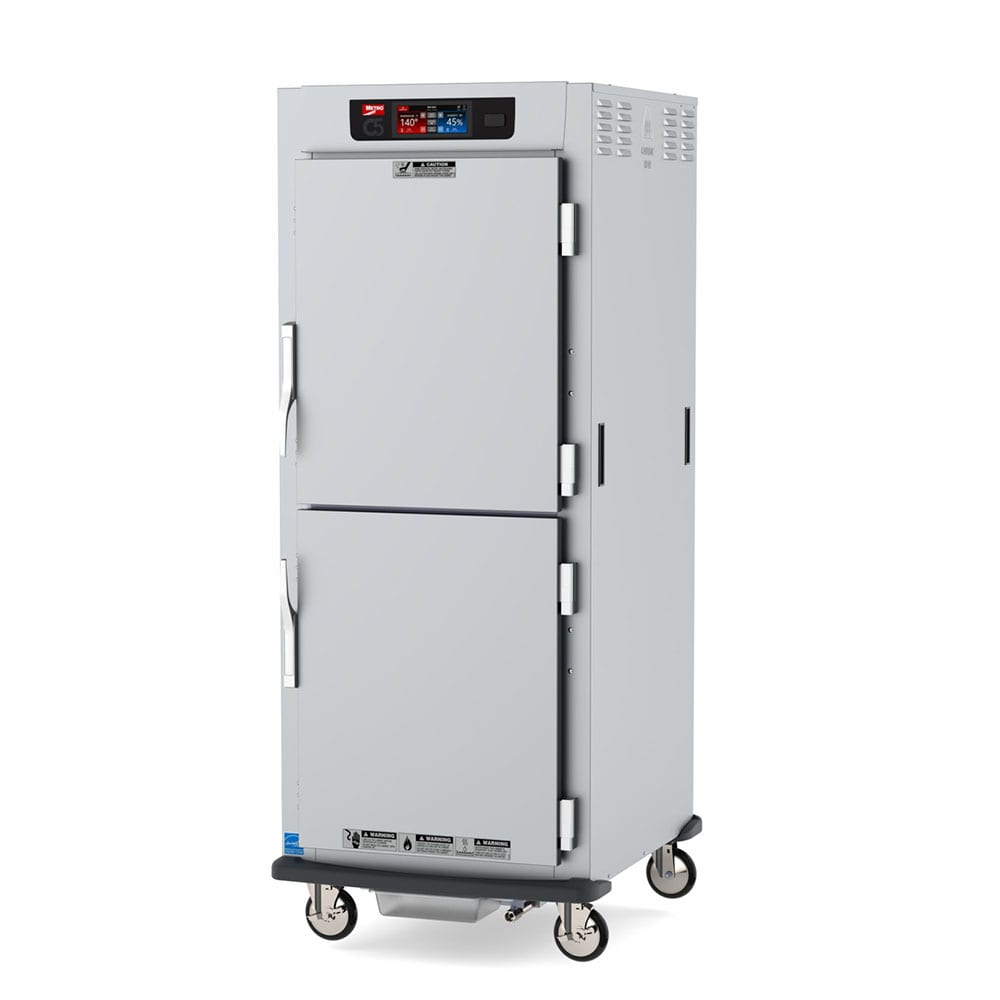

Metro C599-SDS-UPDC Description
The Metro C599-SDS-UPDC C5® 9 Series heated holding and proofing cabinet produces heat and humidity to keep prepared dishes warm without drying them out or sacrificing their original flavors. This unit generates gentle, natural convective air that circulates heat and moisture evenly for consistency. Operators can modify temperatures between 90 and 200 degrees Fahrenheit on the top-mounted touchscreen display, and humidity can be adjusted according to set cabinet temperatures. To streamline operational oversight, its control panel displays a precise temperature readout and enables users to set recipes, program timers, and initiate the auto-start feature. This system can also alert operators when temperature or water levels are low, log HACCP data, and prevent unauthorized employees from adjusting settings.
This full-height Metro C599-SDS-UPDC insulated heated cabinet's universal wire slides support (32) 12-inch by 20-inch by 21/2-inch-high steam pans or (17) 18-inch by 26-inch sheet pans, and as inventory changes, the slides can be adjusted in 11/2-inch increments. To minimize heat loss, two solid Dutch doors and two glass Dutch doors are built onto the front and rear so users can access a specific section. While the solid doors are insulated to preserve generated heat, the glass doors grant a direct view into the cabinet. This 30-inch-wide by 363/8-inch-deep by 743/4-inch-high stainless steel cabinet is mounted on 5-inch casters to simplify transport, and four built-in polymer steering handles enable controlled steering. During transport, high-density fiberglass insulation avoids temperature loss, while the stainless steel exterior and polymer bumper withstand impacts from collision.

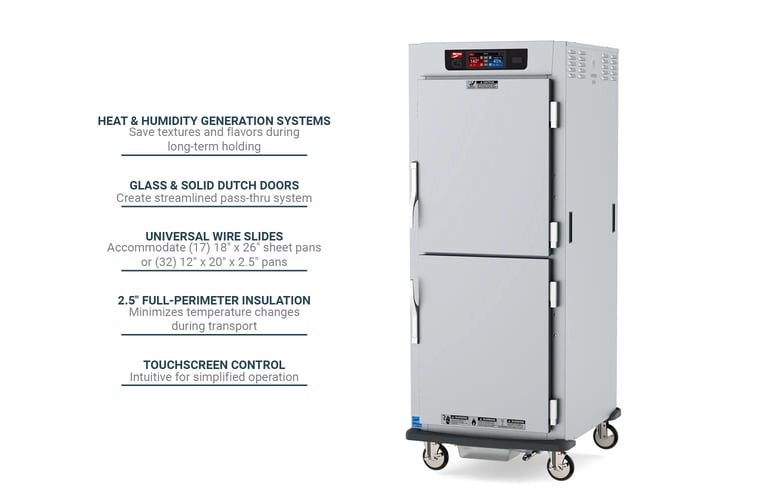

Product Details
- Full-height, pass-thru design
- Capacity: (17) 18-in. x 26-in. sheet pans or (32) 12-in. x 20-in. x 21/2-in. steam pans
- 18 universal wire slides positioned on 3-in. centers (adjustable in 11/2-in. increments)
- Produces heat and humidity
- Natural and gentle convective airflow
- Heat generation system: thermostatically controlled tubular heating elements, ball-bearing blower motor, and ducted air system
- Humidity generation system: tubular heating element with ducted air system, low-water alarm, and 4-gal. water reservoir with drain
- Temperature range adjustable between 90-200 degrees F
- Humidity adjustable at various temperatures
- 64/5-in. top-mounted touchscreen display with separate heat and humidity controls, menu presets, programmable timers, auto-start feature, alarms for low temperature and low water, USB port with built-in HACCP data logging, and control-lock feature
- Rust- and corrosion-resistant stainless steel cabinet and exterior
- 4 built-in polymer handles
- Nonmarking polymer bumper and drip trough combination
- Full perimeter insulated with 21/2-in. high-density fiberglass
- 2 solid, insulated Dutch doors and 2 clear tempered glass Dutch doors (2 front, 2 rear)
- Cabinet-mounted Santoprene gaskets
- Chrome-plated magnetic pull latches with lever-action release
- (4) 5-in. casters (2 with brakes)
- Minimum side and back clearances: 11/2 in.
- Minimum top clearance: 6 in.
Dimensions & Utilities
- 30 in. W x 363/8 in. D x 743/4 in. H
- 16.7 A, 2000 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with NEMA 5-20P plug
Product Features
*Free shipping on Metro C599-SDS-UPDC within the 48 contiguous states.
From The Manufacturer
C5™ 9 Series Controlled Humidity Heated Holding & Proofing Cabinet with 6.8" touch-screen controls, mobile, full height, pass thru (1) solid Dutch & (1) glass Dutch doors, universal wire slides, capacity (17) 18" x 26" or (34) 12" x 20" x 2-1/2" pans, 3" OC (adjustable on 1-1/2" increments), stainless steel, 5" casters, polymer bumper & drip trough combination, 120v/60/1-PH, 2000 watts, 16 amps, NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C599-SDS-UPDC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 36.38 |
| Door Design | Dutch |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Includes | Bumpers |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Pan Capacity | 17 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 9 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 30 |
| Weight | 435.00 |
