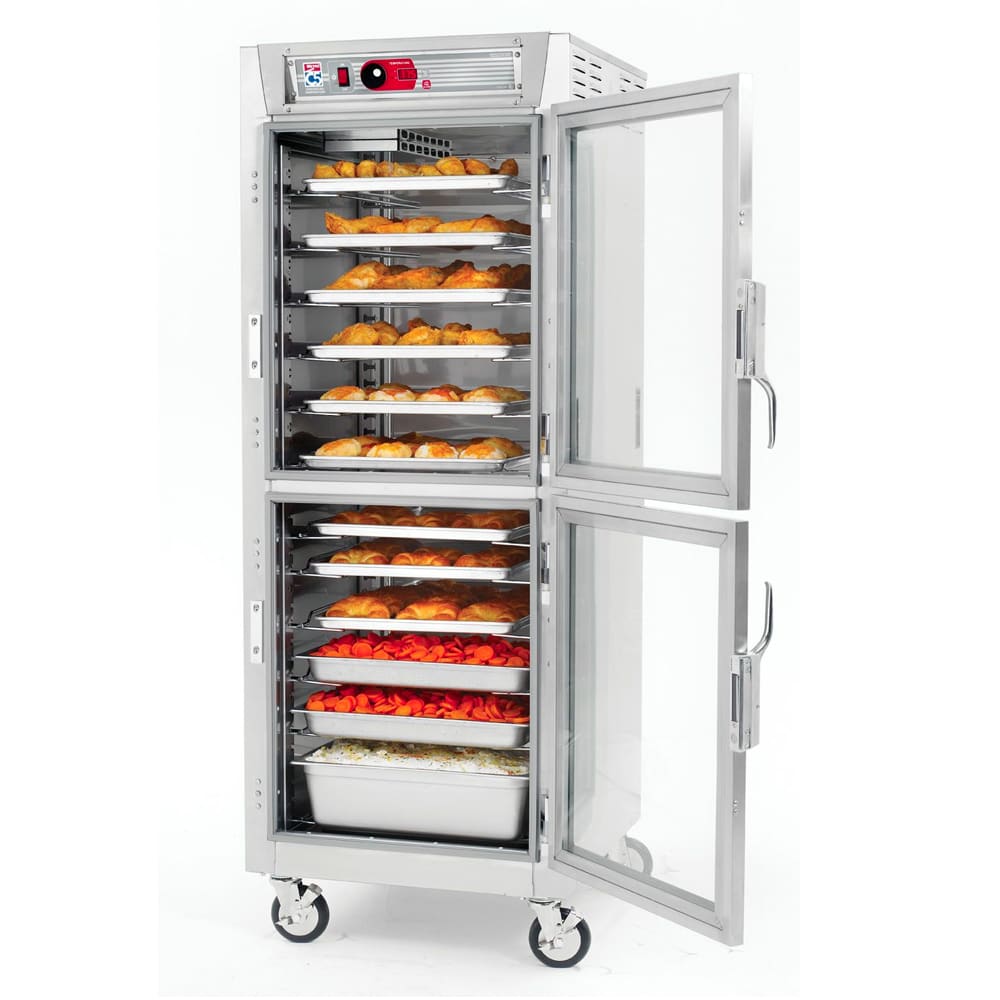

Metro C589-SDC-LPDS Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v

To ensure precooked food is held at safe temperatures prior to being served, the Metro C589-SDC-LPDS C5™ 8 series controlled-temperature holding cabinet's solid-state controller uses continuous, closed-loop monitoring for accurate temperature readouts. The digitally controlled ducted heating system generates temperatures between 70 and 200 degrees Fahrenheit throughout the cabinet and recovers temperatures quickly to ensure it's prepared for back-to-back use. High-density fiberglass insulates the cabinet's perimeter to retain temperatures, and if temperatures change, an alarm notifies operators. All the unit's controls are top mounted to prevent accidental adjustment while improving accessibility.

The Metro C589-SDC-LPDS holding cabinet features a pass-thru configuration that enables operators to retrieve and insert pans from the front and back. The doors' Dutch style enables users to access a specific section of the cabinet rather than opening an entire full-length door. While the front doors are made of clear tempered glass, the back doors have a solid, fully insulated construction. Lip-load slides built onto stainless steel uprights accommodate (34) 18-inch by 26-inch sheet pans, which is great for high-volume holding applications. Overall, this full-height unit measures 29¹/₈ inches wide by 34⁵/₈ inches deep by 74³/₄ inches high and is mounted on 5-inch neoprene casters.

Product Details

• Full-height, pass-thru configuration
• Lip-load slides accommodate (34) 18-in. x 26-in. sheet pans
• Stainless steel interior and exterior
• Cabinet holding temperature range: 70-200 degrees F
• Ducted heating system enables quick recovery
• Solid-state controller with continuous, closed-loop monitoring system
• Digital temperature display
• Low-temperature alarm
• Recall button
• 2¹/₂-in.-thick, high-density fiberglass insulation
• Integral water pans create passive humidity
• 2 Dutch, double-pane tempered glass front doors
• 2 solid, fully insulated, Dutch back doors
• 5-in. casters (2 with brakes)

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 74³/₄ in. H
• 16 A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-20P plug

From The Manufacturer

C5™ 8 Series Controlled Temperature Holding Cabinet, mobile, full height, pass thru, insulated, lip load (34) 18" x 26" pan capacity, (1) Dutch double pane tempered glass & (1) Dutch solid doors, top mount digital control, low temp alarm & memory recall, ducted heating system, thermostat 70° to 200°F temp, 1-1/2" wire slides, 5" casters, 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects
