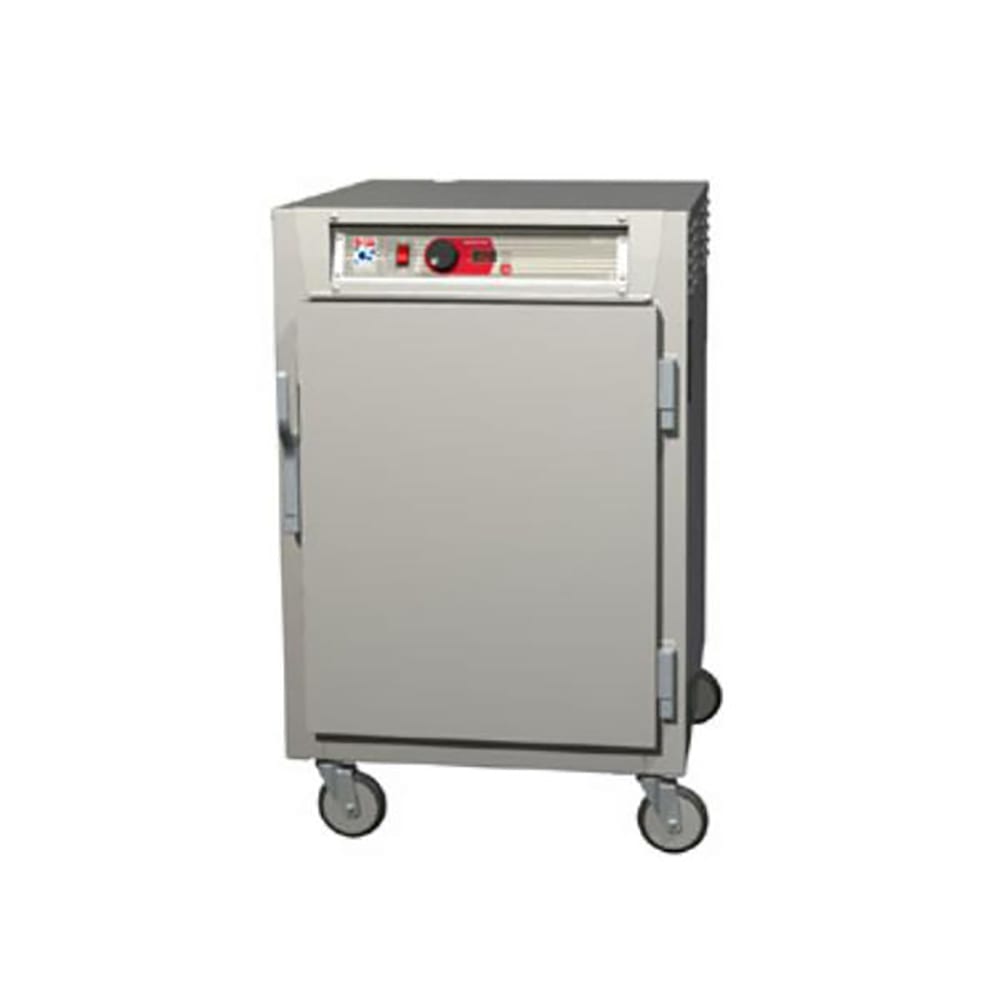

Metro C585-SFS-UPFC 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

The Metro C585-SFS-UPFC C5™ 8 series controlled temperature holding cabinet's ducted heating system produces temperatures between 70 and 200 degrees Fahrenheit to accommodate various prepared foods. This mechanism recovers lost temperatures quickly, so it's ideal for consecutive uses. To preserve temperatures, the cabinet's interior is lined with 2¹/₂-inch-thick, high-density fiberglass insulation, while a low-temperature alarm alerts the operator to unexpected drops. The solid-state controller uses continuous closed-loop monitoring for precise temperature measurements, which are displayed digitally on the top-mounted controls. Operators can adjust temperatures and recall past menu item settings with these controls, as well.

The Metro C585-SFS-UPFC holding cabinet's pass-thru layout grants access to the cabinet's front and back, so operators can load and remove pans from either side. The front door's solid, insulated stainless steel construction helps retain temperatures, while the clear tempered glass back door enables users to see stored items. Universal wire slides built into the cabinet accommodate (16) 12-inch by 20-inch by 2¹/₂-inch steam pans or (8) 18-inch by 26-inch sheet pans; as inventory changes, operators can raise or lower these slides by 1¹/₂ inches. Designed for longevity, the cabinet's interior is made of polished 20-gauge stainless steel, while the interior is made of 22-gauge stainless steel—both of which resist corrosion and rust. This half-height unit is mounted on 5-inch casters.

Product Details

• Pass thru
• Half height
• Pan capacity: (8) 18-in. x 26-in. sheet pans or (16) 12-in. x 20-in. x 2¹/₂-in. steam pans
• Adjustable universal wire slides
• 22-ga. stainless steel interior
• Polished 20-ga. stainless steel exterior
• Cabinet holding temperature: 70-200 degrees F
• Fast-heating ducted heating system
• Solid-state controls track temperatures with closed-loop monitoring
• Top-mounted controls: low-temperature alarm, recall and memory button, and digital temperature readout
• Passive humidity with integral water pans
• High-density fiberglass insulation
• Fully insulated, solid stainless steel front door
• Transparent tempered glass back door
• (4) 5-in. neoprene casters (2 braking)

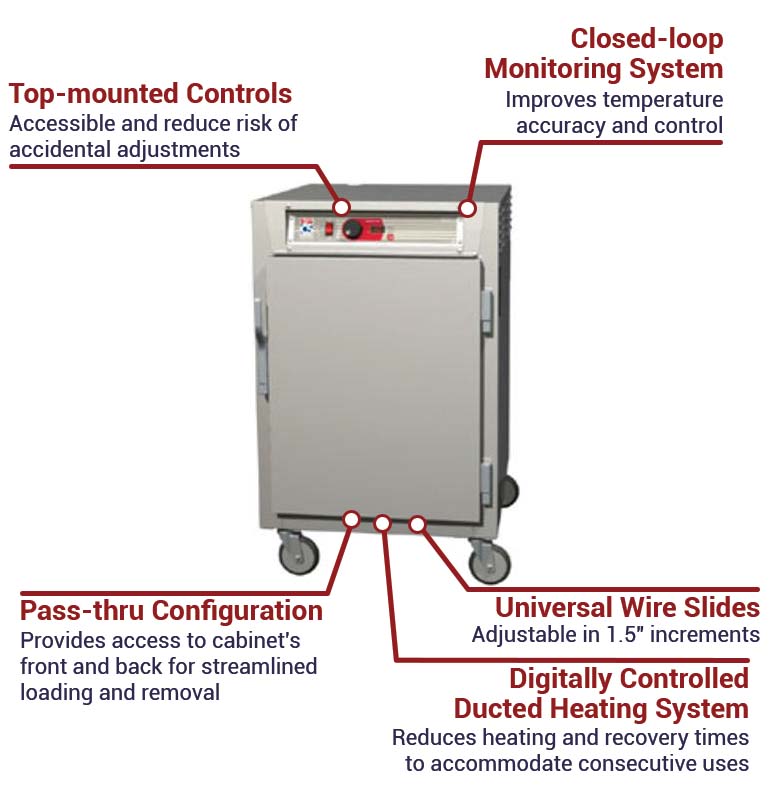

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 44³/₄ in. H
• 16.7 A, 2,000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-20P plug

*Free shipping on Metro C585-SFS-UPFC within the 48 contiguous states.

From The Manufacturer

C5™ 8 Series Controlled Temperature Holding Cabinet, mobile, half height, pass thru, insulated, universal wire slides (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, (1) solid & (1) double pane tempered glass doors, top mount digital control, low temp alarm & memory recall, ducted heating system, thermostat 70° to 200°F temp, 1-1/2" adjustable wire slides, 5" casters, 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
