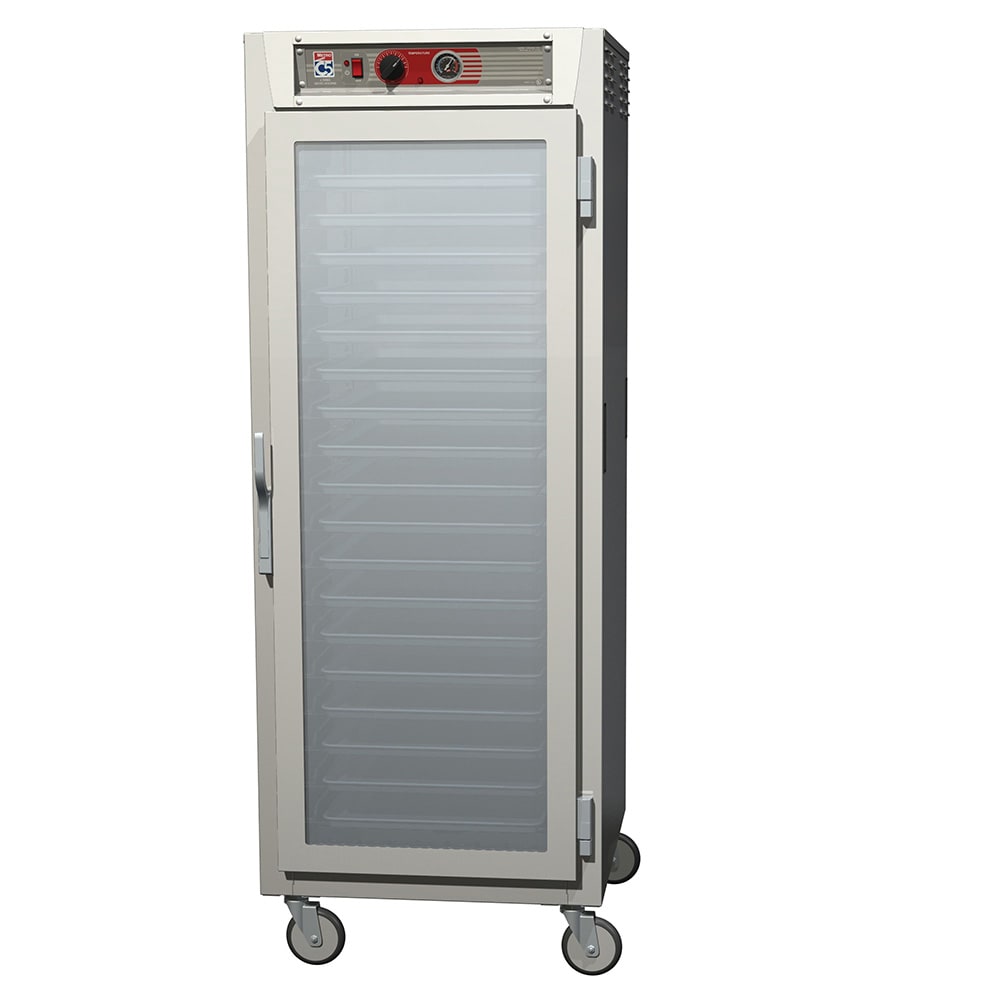

Metro C569-SFC-LPFC Full Height Insulated Mobile Heated Cabinet w/ (35) Pan Capacity, 120v

Operators can adjust the Metro C569-SFC-LPFC C5™ 6 series heated holding cabinet's top-mounted temperature controls to produce temperatures between 70 and 200 degrees Fahrenheit to ensure prepared foods are warm prior to serving. The thermostatically ducted heating system circulates warm air evenly through the cabinet and recovers lost temperatures rapidly to accommodate consecutive use. High-density fiberglass is built into the cabinet's perimeter to help maintain temperatures when the doors are opened for short periods of time. Its analog thermometer reads a temperature constantly—even when the unit is turned off or unplugged—for consistent tracking. Operators can also incorporate the integral water pan system, which adds passive humidity to prevent foods from drying out and preserve product texture.

The Metro C569-SFC-LPFC heating cabinet's extruded aluminum lip-load casters accommodate (35) 18-inch by 26-inch sheet pans. Because the unit features a pass-thru configuration, operators can access the front or back of the cabinet to streamline pan loading and retrieval. A clear, double-pane tempered glass door is built into the front and back, providing a direct view of product. The interior is made of 22-gauge stainless steel, while the exterior has a polished, 20-gauge stainless steel construction. Both the interior and exterior resist corrosion, rust, and can withstand high-volume use. This 29¹/₈-inch-wide by 34⁵/₈-inch-deep by 74³/₄-inch-high structure is furnished with 5-inch neoprene donut casters—two of which brake for stability during use.

Product Details

• Pass thru
• Stainless steel interior and exterior
• Pan capacity: (35) 18-in. x 26-in. sheet pans
• Extruded aluminum lip-load slides
• Cabinet holding temperature range: 70-200 degrees F
• 2¹/₂-in.-thick, high-density fiberglass insulation
• Fast-acting ducted heating system
• Integral water pan system
• Top-mounted temperature controls
• Analog thermometer has constant temperature readout
• 2 full-length tempered glass doors
• (4) 5-in. neoprene casters (2 with brakes)

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 74³/₄ in. H
• 16 A, 2 kW
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-20P plug

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, double pane tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (35) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C569-SFC-LPFC Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Product Info

Brochure

Certifications
