Metro C569-SDS-U Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v
$6,548.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

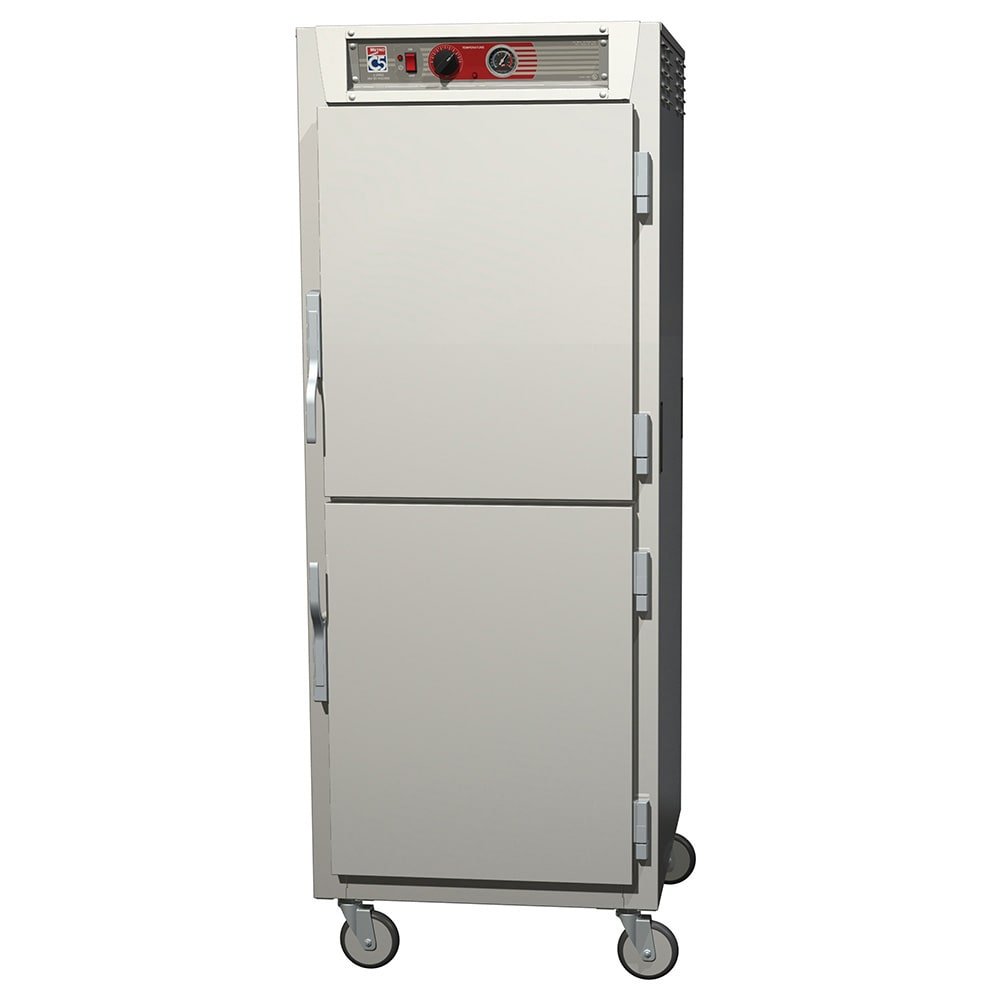

Metro C569-SDS-U Description
The universal wire slides built into the Metro C569-SDS-U C5™ 6 series heated holding cabinet accommodate (17) 18-inch by 26-inch sheet pans or (32) 12-inch by 20-inch by 21/2-inch steam pans to support high-volume holding. Each nickel-chrome wire slide is adjustable by 11/2 inches; stainless steel vertical uprights stabilize them in place. Solid, double-panel, fully insulated Dutch doors are built into the front of this reach-in, full-height unit so operators can access the top and bottom sections separately, minimizing temperature fluctuations. The cabinet's interior and exterior are made of stainless steel that resists corrosion and ensures durability. For maneuverability, its 291/8-inch-wide by 325/8-inch-deep by 743/4-inch-high structure is furnished with 5-inch neoprene casters.

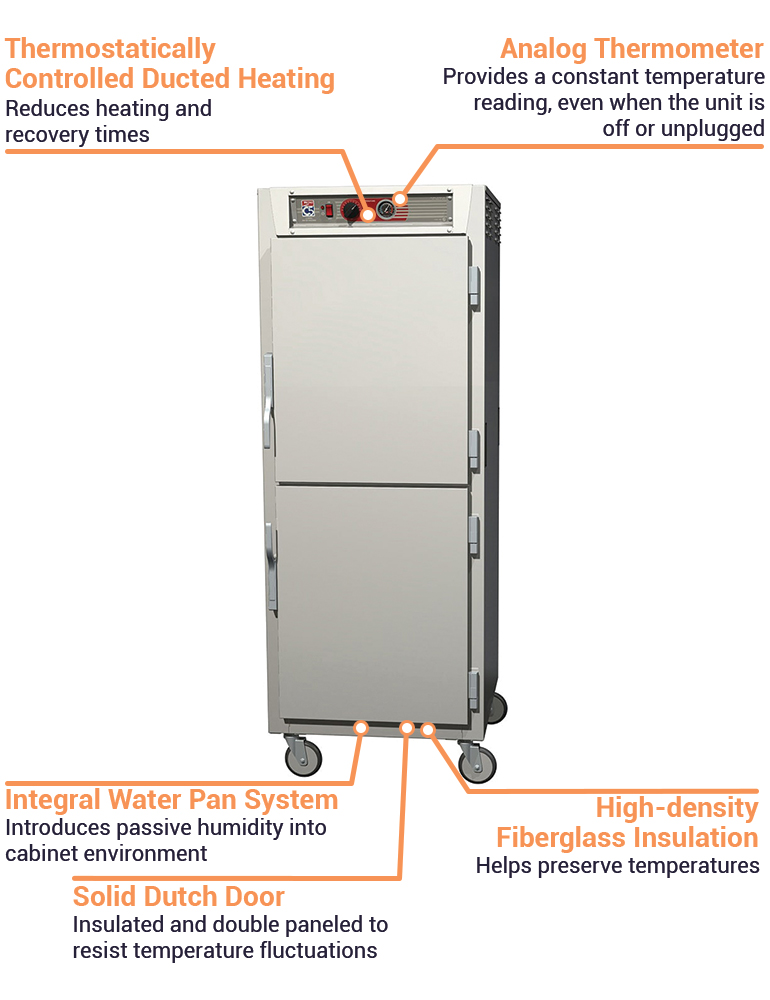

The Metro C569-SDS-U holding cabinet's thermostatically controlled, ducted heating system heats the cabinet's interior and recovers lost temperatures quickly. This system produces and maintains temperatures between 70 and 200 degrees Fahrenheit, and the interior is lined with 21/2-inch-thick, high-density fiberglass that preserves temperatures. Operators can adjust temperatures quickly with the top-mounted temperature controls, and its analog thermometer provides a constant temperature readout, even when the unit is unplugged. To retain food's original texture, the unit's integral water pan system introduces passive humidity that can keep foods from becoming dry.
Product Details
- Full-height, reach-in configuration
- Pan capacity: (17) 18-in. x 26-in. sheet pans or (32) 12-in. x 20-in. x 21/2-in. steam pans
- Cabinet holding temperature range: 70-200 degrees F
- Stainless steel exterior and interior
- Cabinet insulated with high-density fiberglass
- Adjustable, universal wire slides
- Top-mounted temperature controls and analog thermometer
- Thermostatically controlled, ducted heating system
- Integral water pan system for passive humidity
- 2 solid Dutch doors
- 5-in. casters (2 with brakes)
Product Features
Dimensions & Utilities
- 291/8 in. W x 325/8 in. D x 743/4 in. H
- 16 A, 2 kW
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-20P plug
*Free shipping on Metro C569-SDS-U within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, insulated, solid Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire (17) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 1-1/2" adjustable wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16 amps, NEMA 5-20P, cULus, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Metro C569-SDS-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 32.63 |
| Door Design | Dutch |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 2 |
| Pan Capacity | 17 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 385.00 |
