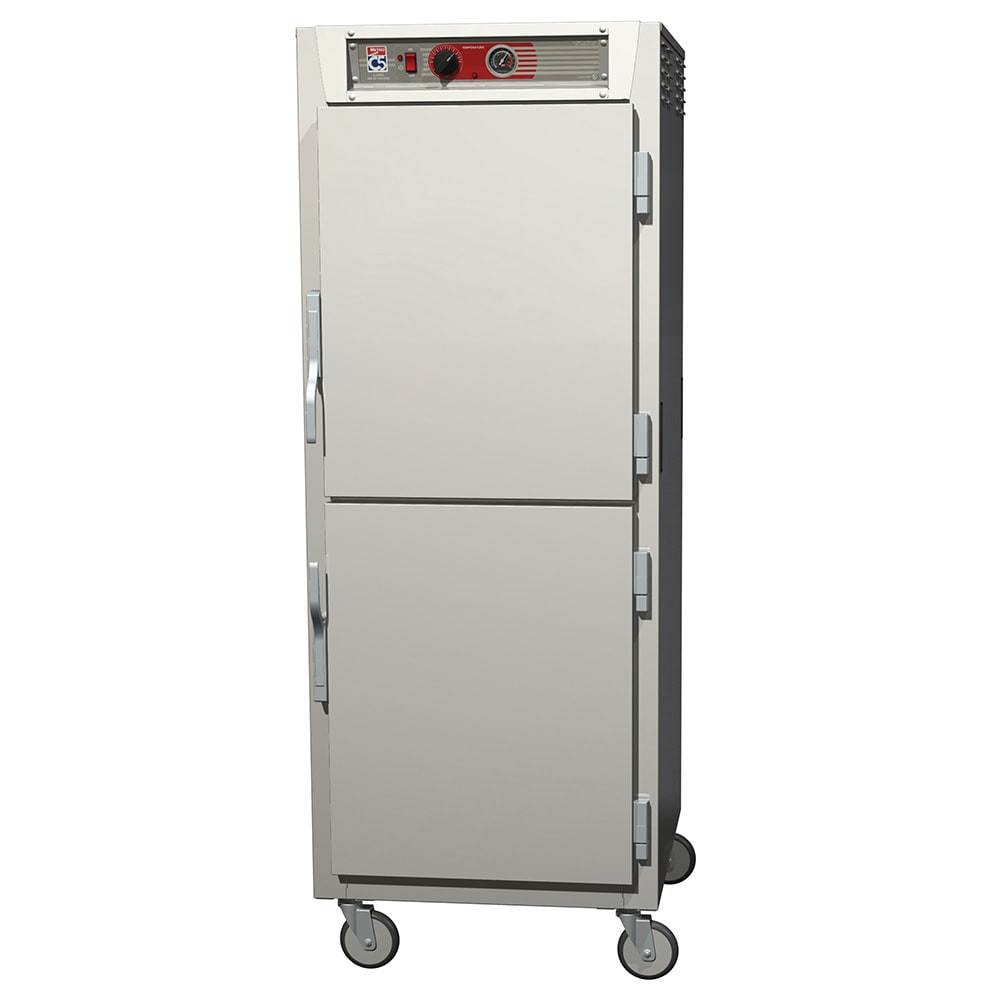

Metro C569-SDS-LPDS Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v
$6,902.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 05-12-2025 to save before the price increases!
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below
Metro C569-SDS-LPDS Description
The Metro C569-SDS-LPDS C5™ heating holding cabinet is a full-height, pass-thru model with two sets of solid Dutch doors. To withstand heavy use without rusting or corroding, it's constructed of durable, simple-to-clean stainless steel. It's equipped with a reliable analog thermometer with which operators can monitor the unit's temperature; this temperature can be adjusted from 70 to 200 degrees Fahrenheit with the top-mounted control system. Overall, this unit measures 291/8 inches wide by 345/8 inches deep by 743/4 inches high.
Users can wheel the Metro C569-SDS-LPDS heated cabinet throughout an event venue or dining hall because it's equipped with 5-inch casters. Its integral water pan system delivers passive humidity to the cabinet to prevent food from drying out, and its high-density fiberglass insulation preserves heat to optimize product quality further. It operates with a ducted heating system to shorten recovery times and accommodates a total of (34) 18-inch by 26-inch pans.
Product Details
- Full-height Metro C5 6 series model
- Pass-thru configuration with 2 sets of solid Dutch doors
- Lip-load slides hold (34) 18-in. x 26-in. pans
- Operates with ducted heating system
- Insulated with high-density fiberglass to preserve warmth
- Top-mounted controls
- Reliable analog thermometer
- Temperature range: 70-200 degrees F
- Stainless steel construction supports rigorous use
- Integral water pan system prevents food from drying out
- Positioned on (4) 5-in. donut casters (2 with brakes)
Product Features
Dimensions & Utilities
- 291/8 in. W x 345/8 in. D x 743/4 in. H
- 16 A, 2000 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-20P plug
*Free shipping on Metro C569-SDS-LPDS within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, solid Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 3" OC, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C569-SDS-LPDS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Dutch |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Pan Capacity | 34 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 390.00 |
