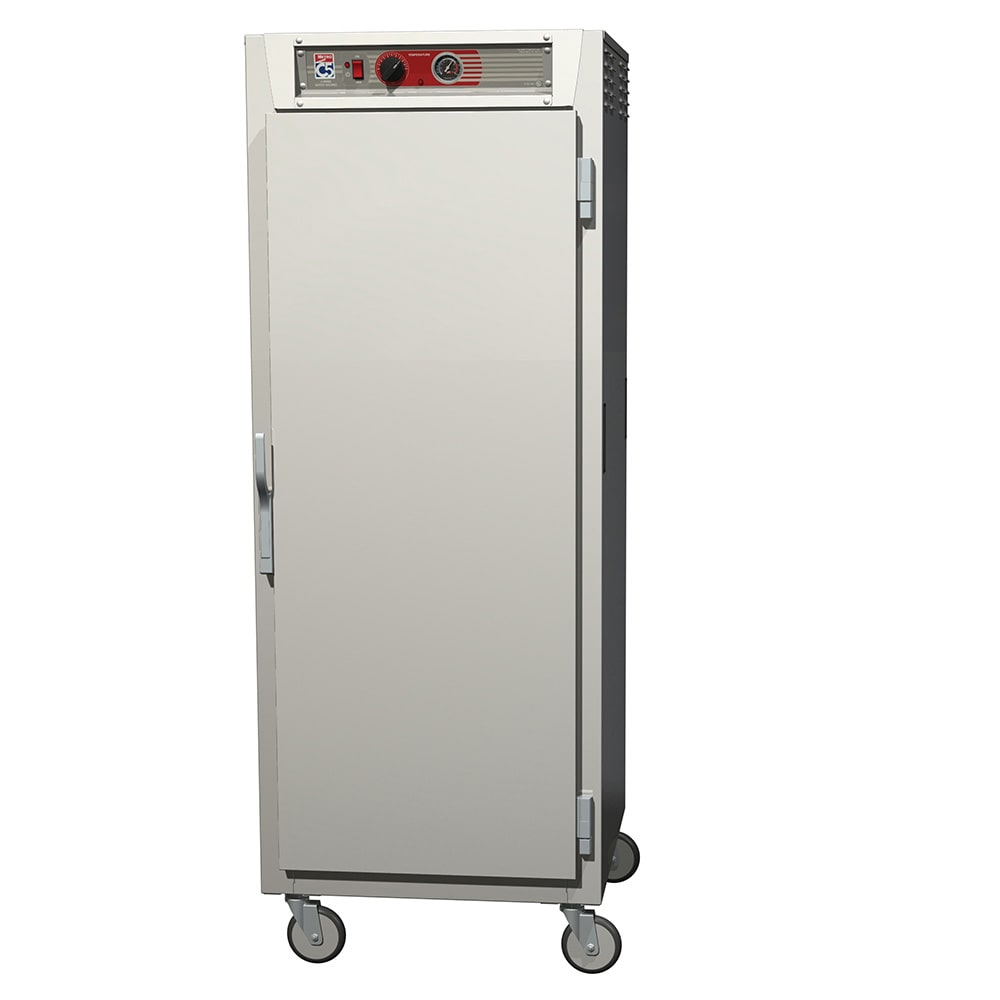

Metro C569L-SFS-LPFC Full Height Insulated Mobile Heated Cabinet w/ (35) Pan Capacity, 120v

The Metro C569L-SFS-LPFC C5™ 6 series heated holding cabinet's pass-thru layout streamlines pan retrieval and loading since operators can access both sides of the unit. One side of the unit has a solid, full-length door that's fully insulated to help preserve temperatures, while the other door is made of transparent, double-pane, tempered glass that provides operators a clear view of stored items without opening the door. Inside the cabinet, lip-load slides accommodate (35) 18-inch by 26-inch pans and are secured on stainless steel vertical uprights. Overall, this cabinet measures 29¹/₈ inches wide by 34⁵/₈ inches deep by 74³/₄ inches high, is made of durable, corrosion-resistant stainless steel, and is furnished with 5-inch casters.

Because the Metro C569L-SFS-LPFC holding cabinet produces temperatures between 70 and 200 degrees Fahrenheit, prepared foods can be served warm. A ducted heating system heats and recovers the unit rapidly while even circulating warm air to eliminate cold spots. To prevent foods from drying out, operators can use the integral water pan system to introduce humidity to the cabinet. Dial temperature controls are located at the top of the unit, and an analog thermometer displays a constant temperature readout, even if the unit is off or unplugged.

Product Details

• Pass thru
• Full height
• Lip-load slides accommodate (35) 18-in. x 26-in. sheet pans
• Cabinet holding temperature range: 70-200 degrees F
• Top-mounted controls
• Thermostat displays constant temperature readout
• Ducted heating system
• Integral water pan system boosts humidity
• Rust- and corrosion-resistant stainless steel construction
• High-density fiberglass insulation
• 1 solid door and 1 double-pane, tempered glass door
• 5-in. casters (2 braking)

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 74³/₄ in. H
• 12 A, 1440 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-15P plug

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) solid & (1) double pane tempered glass door, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (35) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C569L-SFS-LPFC Specifications
