Metro C569L-SDC-LPDS Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v
$7,680.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below

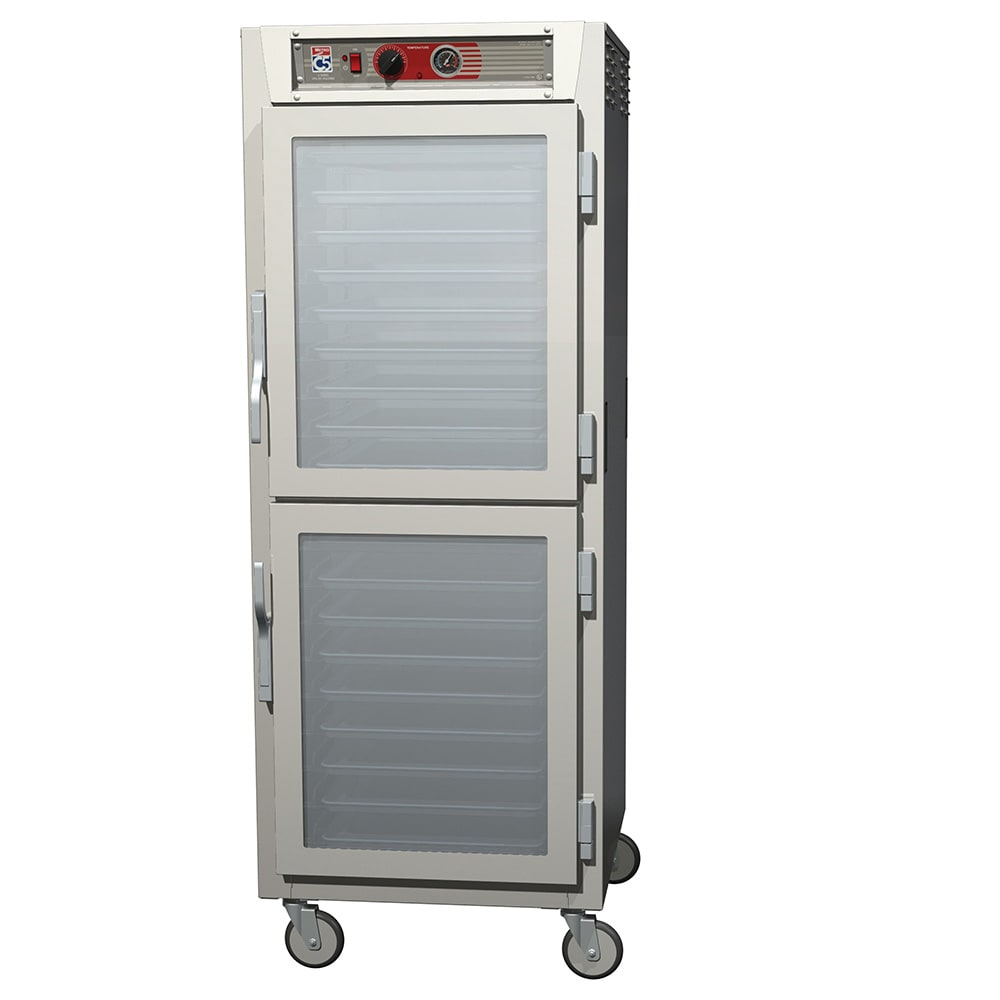

Metro C569L-SDC-LPDS Description
A full-height model, the Metro C569L-SDC-LPDS C5™ 6 series heated holding cabinet measures 291/8 inches wide by 325/8 inches deep by 743/4 inches high. It's mounted on 5-inch donut casters that enable users to transport it through an event venue or cafeteria. It has a temperature range of 70 to 200 degrees Fahrenheit, and operators can adjust these levels using accessible top-mounted controls. This unit's universal wire slides are adjustable in 11⁄2-inch increments to accommodate various needs.
To extend its service life in high-volume environments, the Metro C569L-SDC-LPDS holding cabinet features a rugged stainless steel construction. This metal resists rusting, warping, and corroding and can be quickly wiped clean. It's insulated with high-density fiberglass to preserve heat loss, and its ducted heating system provides rapid heating and shortens recovery times. To prevent food from drying out, it uses an integral water pan system to supply the air with passive humidity.
Product Details
- Full-height Metro C5 6 series model with pass-thru configuration
- Accommodates (34) 18-in. x 26-in. pans
- 1 set of double-pane glass Dutch doors; 1 set of solid Dutch doors
- Universal wire slides are adjustable in 11⁄2-in. increments
- Operates efficiently with ducted heating system
- Top-mounted controls and analog thermometer
- Built with high-density fiberglass insulation to preserve heat
- Passive humidity added to air with integral water pan system
- Temperature range: 70-200 degrees F
- Interior and exterior are rust-resistant stainless steel
- Mounted (4) 5-in. donut casters (2 with brakes)

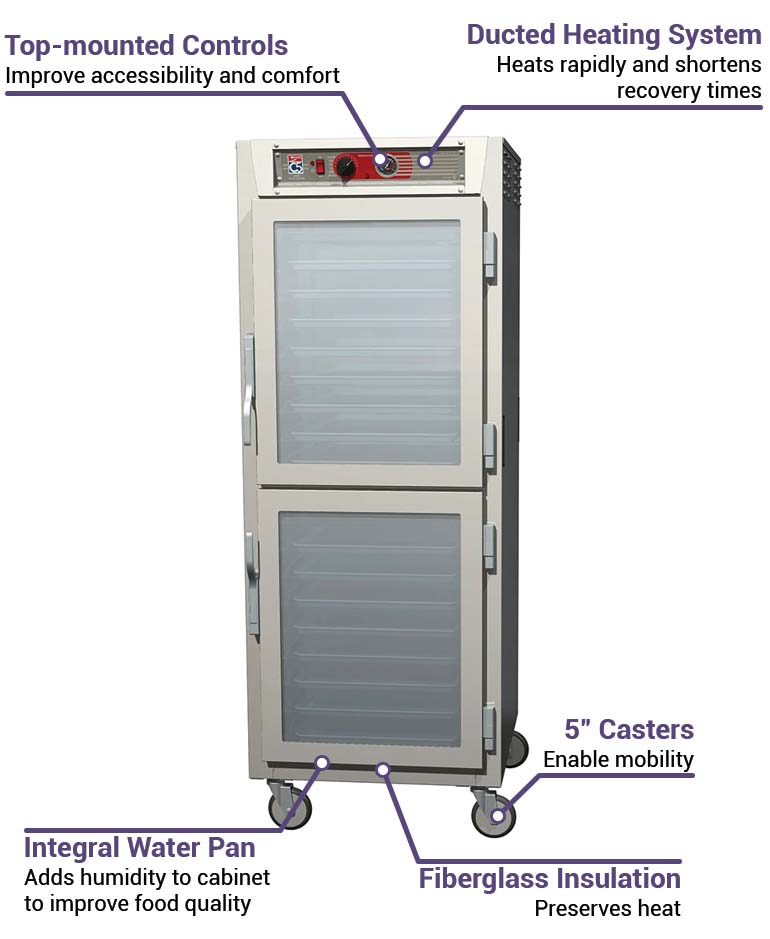

Product Features
Dimensions & Utilities
- 291/8 in. W x 345/8 in. D x 743/4 in. H
- 12 A, 1,440 W
- 120 V/60 Hz/1 ph, 71⁄2-ft. cord with NEMA 5-20P plug
*Free shipping on Metro C569L-SDC-LPDS within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) Dutch double pane tempered glass & (1) Dutch solid doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C569L-SDC-LPDS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Dutch |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 1.4 |
| Load Type | Pass Thru |
| NEMA | 5-15P |
| No. of Doors | 4 |
| Pan Capacity | 34 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 360.00 |
