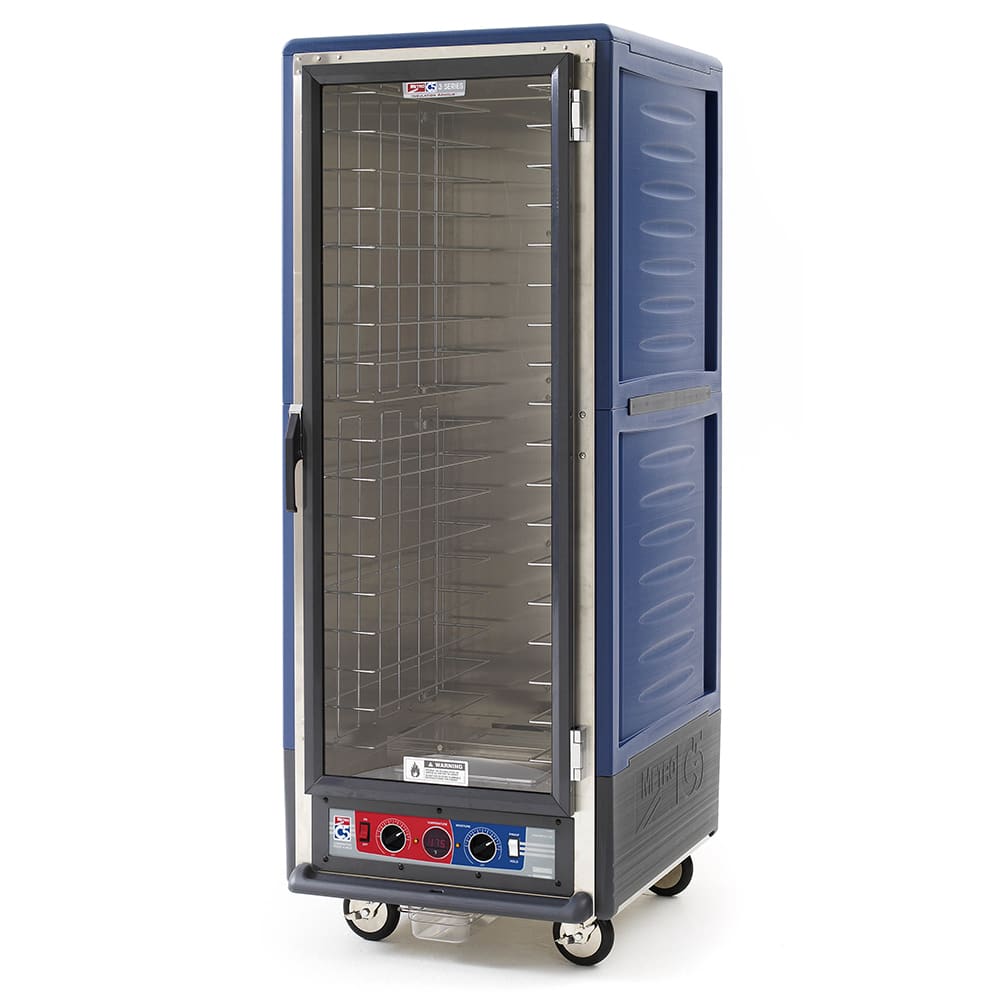

Metro C539-CFC-4-BU Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 001-C539CFC4BU • MPN: C539-CFC-4-BU
Ships Free | Special Order Item

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $2,424.40

Image may not depict product color, inclusions or accessories.

Metro C539-CFC-4-BU Description


Depending on the size of the pans, the Metro C539-CDC-U full-height insulated heated cabinet can hold 17 or 32 pans. Fixed wire shelving with 3-inch spacing is included to hold the pans. The unit has a combination mode with settings for hot holding and proofing. In the proofing mode, the operator has control over moisture at low temperatures. The thermostatically-controlled, forced convection system quickly heats up and recovers temperatures.

On the control panel, there is an on/off switch, power indicator lights, dial knobs, and a digital thermometer. This panel can be removed without tools, enabling the operator to replace it when there are upgrades. The full-length door on this Metro C539-CDC-U heated holding and proofing cabinet has a polycarbonate window that gives staff members a view of the product. Durable for high-volume applications, the unit has an Insulation Armour™ design that features polyethylene insulation and a polymer construction.

Product Details

  • Part of the C5™ 3 series
  • Holds (17) 18-in. x 26-in. pans or (32) 12-in. x 20-in. x 2.5-in. pans
  • 0.25-in.-dia. welded fixed wire slides with 3-in. spacing
  • Forced convection system offers quick heat up and recovery times
  • System is thermostatically controlled to provide accuracy
  • Temperature range: 80-200 degrees F
  • Relative humidity at 95 degrees F: 95 percent
  • Combination control module has settings for heated holding and proofing
  • Proofing setting has moisture control at low temperatures
  • Control panel is simple to use with an on/off switch, power indicator lights, dial knobs, and a digital thermometer
  • Panel is removable without tools, enabling thorough cleaning and replacement when upgrades are available
  • Polycarbonate window provides product visibility
  • Door is double hinged to enhance durability
  • Field-reversible door design
  • Brakes on 2 of the (4) 5-in. casters
  • Requires a 1.5-in. side, back, and top clearance
  • Requires an 18-in. clearance from cooking equipment
  • Avoid contact with surfaces that reach 200 degrees F
  • 2000 W, 16.7 A
  • 120 V/60 Hz/1 ph, NEMA 5-20P plug
  • Overall dimensions: 27.625 in. W x 31.5 in. D x 71 in. H
  • cULus listed; NSF certified

Insulation Armour Design

  • High-density polyethylene insulation retains heat, reducing energy use
  • Insulation ensures the exterior stays cool to the touch
  • Polymer is heavy duty and resistant to impacts and stains
  • Molded-in side handles provide control over steering in transport
  • Blue material can be used in color-coded applications

Read our heated holding cabinets buyers' guide to learn more about these units and their benefits.

C5™ 3 Series Heated Holding & Proofing Cabinet, with Blue Insulation Armour™, mobile, full height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, fixed wire slides on 3" centers (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Metro C539-CFC-4-BU Specifications

PDF Spec Sheet
Manufacturer Metro
Size Full Height
Slide Type Fixed Wire
Type Insulated
Warranty 1-year Parts & Labor
No. of Doors 1
Door Type Lexan
Load Type Reach In
Pan Capacity 18 Full Size
Construction Aluminum
Series C5™ 3 Series
Height (in) 71
Width (in) 27.63
Depth (in) 31.5
Slide Spacing 3"
Control Location Bottom
Controls Dial
Door Design Full
Application Heat & Humidity
Specialty Options Field Reversible Doors
Phase 1
Voltage 120
Hertz 60
Weight 248.00
Metro C539-CFC-4-BU Certifications
  • UL
  • NSF
