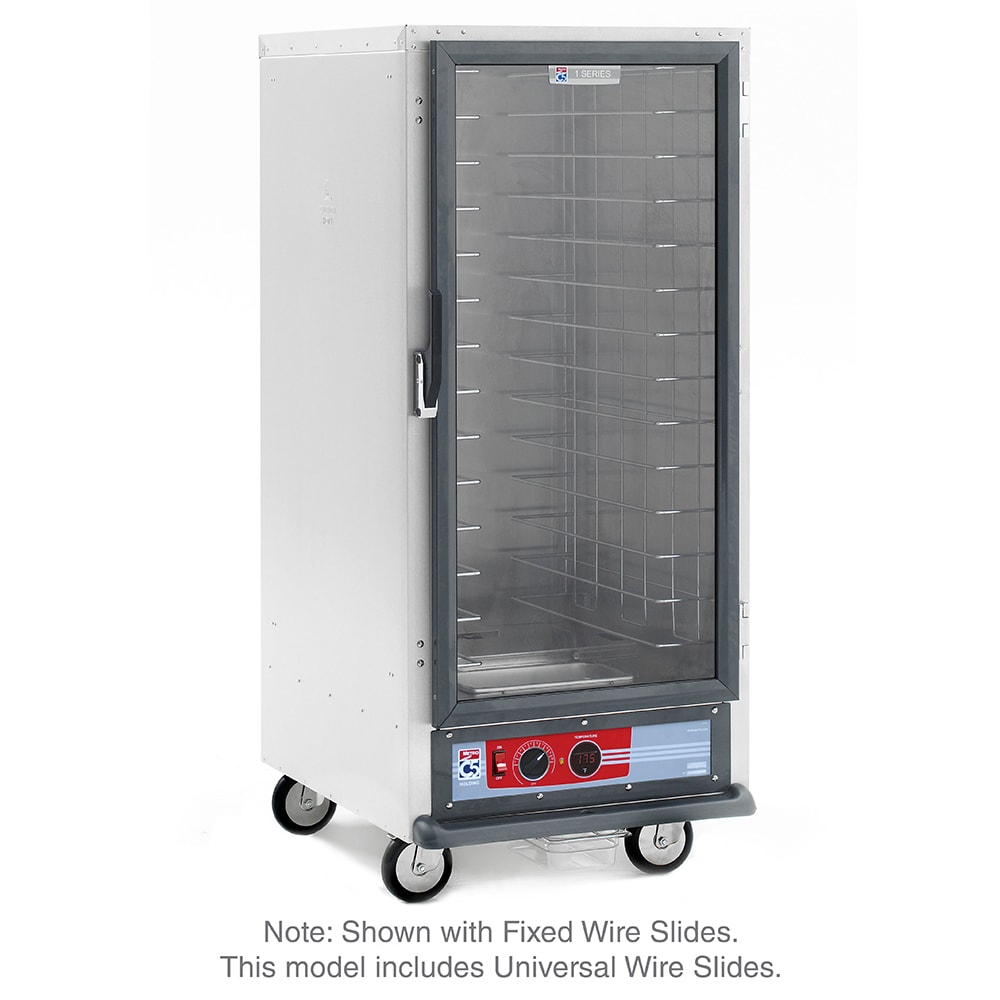

Metro C517-HFC-U 3/4 Height Non-Insulated Mobile Heated Cabinet w/ (14) Pan Capacity, 120v
$2,564.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 05-12-2025 to save before the price increases!
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below
Metro C517-HFC-U Description
Made of lightweight aluminum, the Metro C517-HFC-U C5™ 1 Series 3⁄4-height, non-insulated holding cabinet's exterior has a brushed finish that's resistant to scratches, fingerprints, and smudge marks. Resting atop an aluminum chassis and four 5-inch casters, this hot holding cabinet facilitates movement. When it's being loaded and unloaded, users can engage the unit's two locking brakes to prevent it from shifting or sliding. The hot holding cabinet's door is made of clear polycarbonate, and it's reversible, enabling the viewer to monitor the food inside.
The Metro C517-HFC-U uninsulated holding cabinet provides adjustable, universal wire slides to support pans of food as they wait to be served. Made of corrosion-resistant electroplated wire, the slides can be adjusted up and down in 11⁄2-inch increments so users can place various pans inside the unit. Santoprene gaskets seal the edges of the door, trapping heat and reducing energy loss. For flexible installation, the door is reversible to open from either the left or the right.
Product Details
- Part of the C5 1 series
- Thermostat settings from 80-190 degrees F
- Non insulated
- Heated holding function
- 3⁄4-height, mobile design
- Universal wire slides adjust in 11⁄2-in. increments
- (14) 18-in. x 26-in. pan capacity
- Heating control module is bottom mounted and removable
- Recessed analog temperature control
- Digital temperature display for readability
- Thermostatic control and forced-air system
- Master power control switch with indicating lights
- Clear door made of shatter-resistant polycarbonate
- Polymer latches are durable and magnetic
- Cabinet is constructed of lightweight aluminum
- Door gaskets made of Santoprene
- Reversible, 180-degree door hinges are heavy duty
- Catch pan and trough made of polymer
- Mobility provided by (4) 5-in. neoprene casters, 2 with brakes
Dimensions & Utilities
- 251⁄8 in. W x 301⁄4 in. D x 573⁄4 in. H
- 16.7 A, 2000 W
- 120 V/60 Hz/1 ph, 7.5-1/2 cord with a NEMA 5-20P plug
Product Features
*Free shipping on Metro C517-HFC-U within the 48 contiguous states.
From The Manufacturer
C5™ 1 Series Heated Holding Cabinet, mobile, 3/4 height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 190°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (14) 18" x 26" or (26) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C517-HFC-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat Only |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 30.25 |
| Door Design | Full |
| Door Type | Lexan |
| Heat | Electric |
| Height (in) | 57.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 1 |
| Pan Capacity | 14 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 1 Series |
| Size | 3/4 Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | Field Reversible Door |
| Type | Non-Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 25.13 |
| Weight | 139.50 |
Metro C517-HFC-U Accessories
Other Products From This Line
Compare to Similar Items
| Attributes |
Current Item: Metro C517-HFC-U 3/4 Height Non-Insulated Mobile Heated Cabinet w/ (14) Pan Capacity, 120v |
Metro C517-CFC-U 3/4 Height Non-Insulated Mobile Heated Cabinet w/ (14) Pan Capacity, 120v |
|---|---|---|
| Customer Rating |
|
|
| Price | $2,564.00 | $2,699.00 |
| Shipping | Ships Free | Ships Free |
| Application | Heat Only | Heat & Humidity |
| Type | Non-Insulated | Non-Insulated |
| Size | 3/4 Height | 3/4 Height |
| Pan Capacity | 14 | 14 |
| No. of Doors | 1 | 1 |
| Door Design | Full | Full |
| Door Type | Lexan | Lexan |
| Warranty | 1-year Against Manufacturing Defects | 1-year Against Manufacturing Defects |
