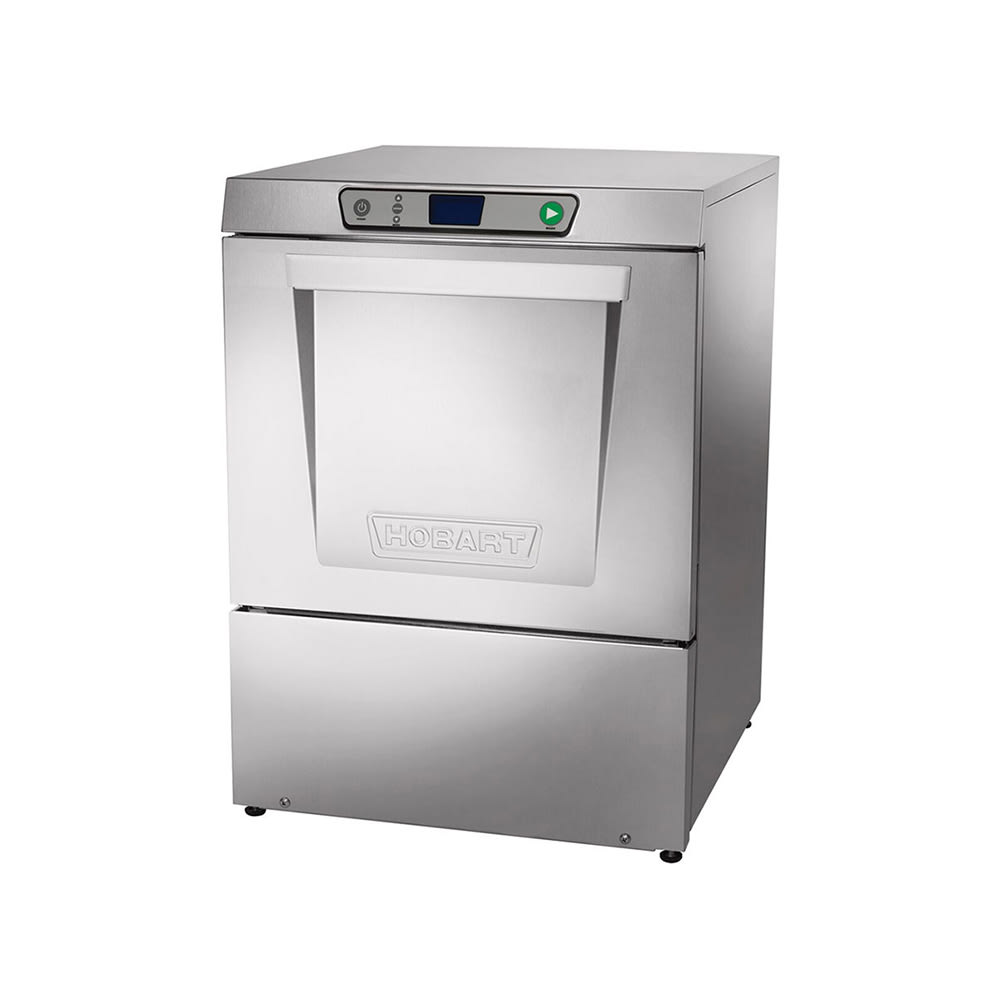

Hobart LXEH-5 High Temp Rack Undercounter Dishwasher - (32) Racks/hr, 208-240v/3ph
Non Returnable Item
Hobart LXEH-5 Description
Measuring 23 15⁄16 inches wide by 43 1⁄2 inches deep by 32 1⁄2 inches high, this Hobart LXEH-5 high-temp dishwasher is designed for undercounter installation, which is great for kitchens lacking space. Its 17-inch-high door opening provides access to load dishes into its peg and combination dishracks, both of which measure 20 inches wide by 20 inches deep. Equipped to wash as many as 32 racks per hour, a single cycle lasts just 109 seconds.

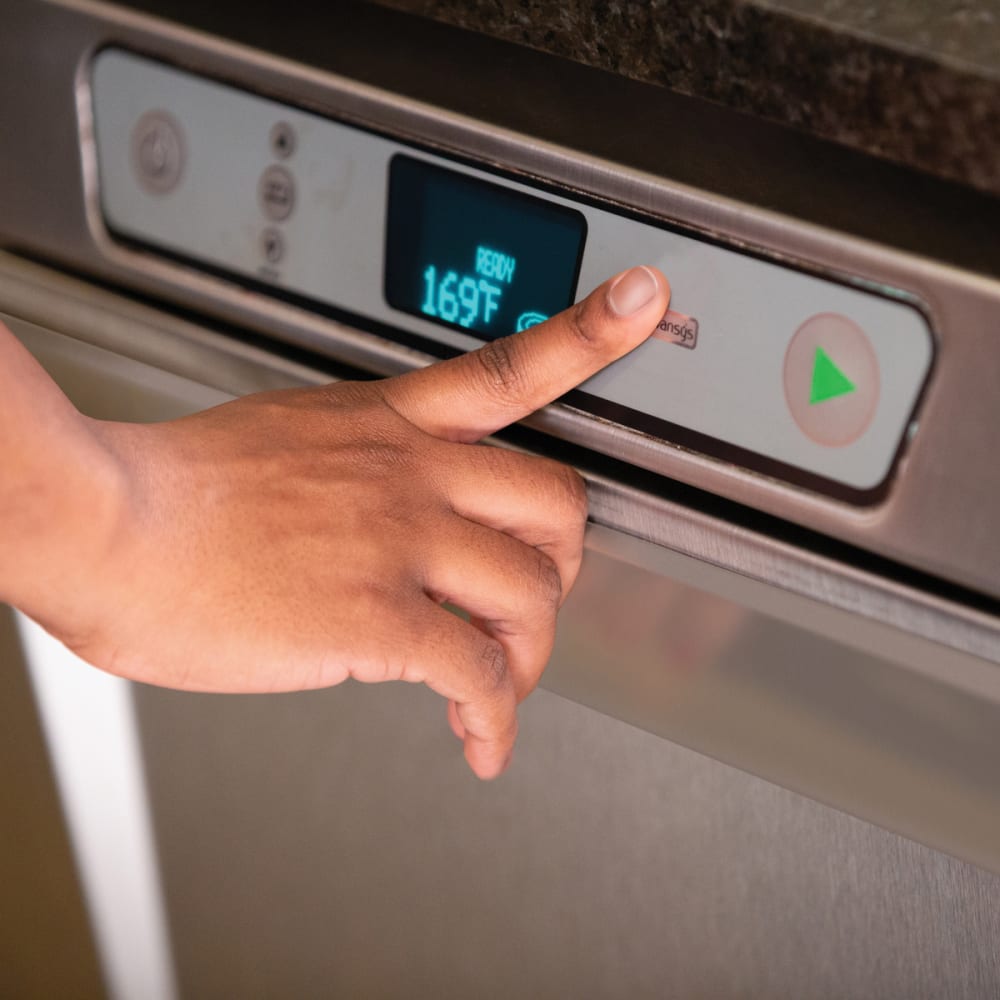

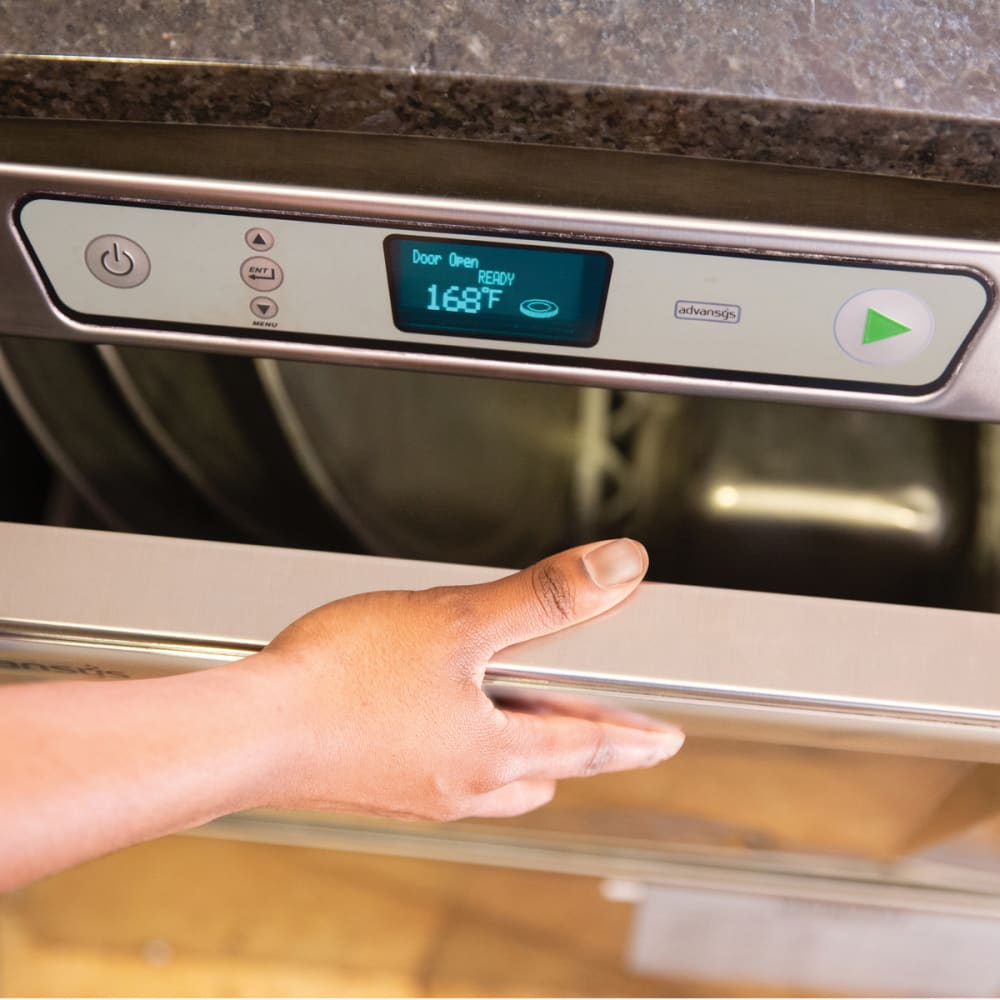

To ensure water is heated to the correct temperature for proper sanitation, this Hobart LXEH-5 dishwasher has a built-in electric tank heat and a Sense-A-Temp™ booster heater that can raise water temperatures by 70 degrees Fahrenheit. Users can manage the microcomputer top-mounted controls with a digital cycle and temperature display to ensure cycles are progressing adequately. Alerts, such as delime cycling and low-chemical notifications, help users maintain the unit properly, preventing potential damage. Made of rigid stainless steel to endure high-volume use over time, this dishmachine measures 23 15⁄16 inches wide by 25 9⁄16inches deep by 32 1⁄2 inches high.
Product Details
- Undercounter system
- Hot water sanitation system
- Uses 0.74 gal. of water per rack
- Washes 32 racks per hour
- Sense-A-Temp booster heater raises water temperature 70 degrees F

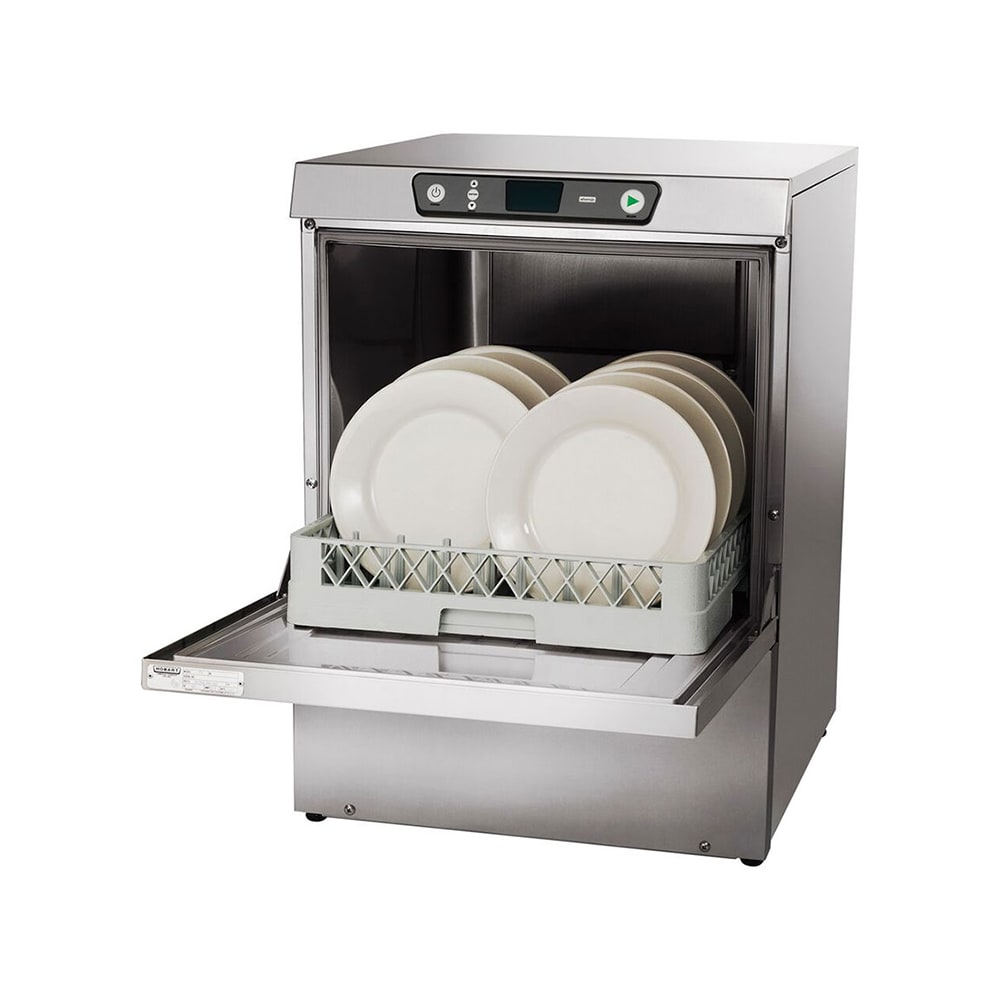

- 1 peg dishrack and 1 combination rack (both 20 in. x 20 in.)
- Low-chemical alert indicators and delime notification with cycle
- Integrated service diagnostics
- Automatic chemical priming
- Detergent and rinse aid pumps built in
- 17-in.-high chamber opening

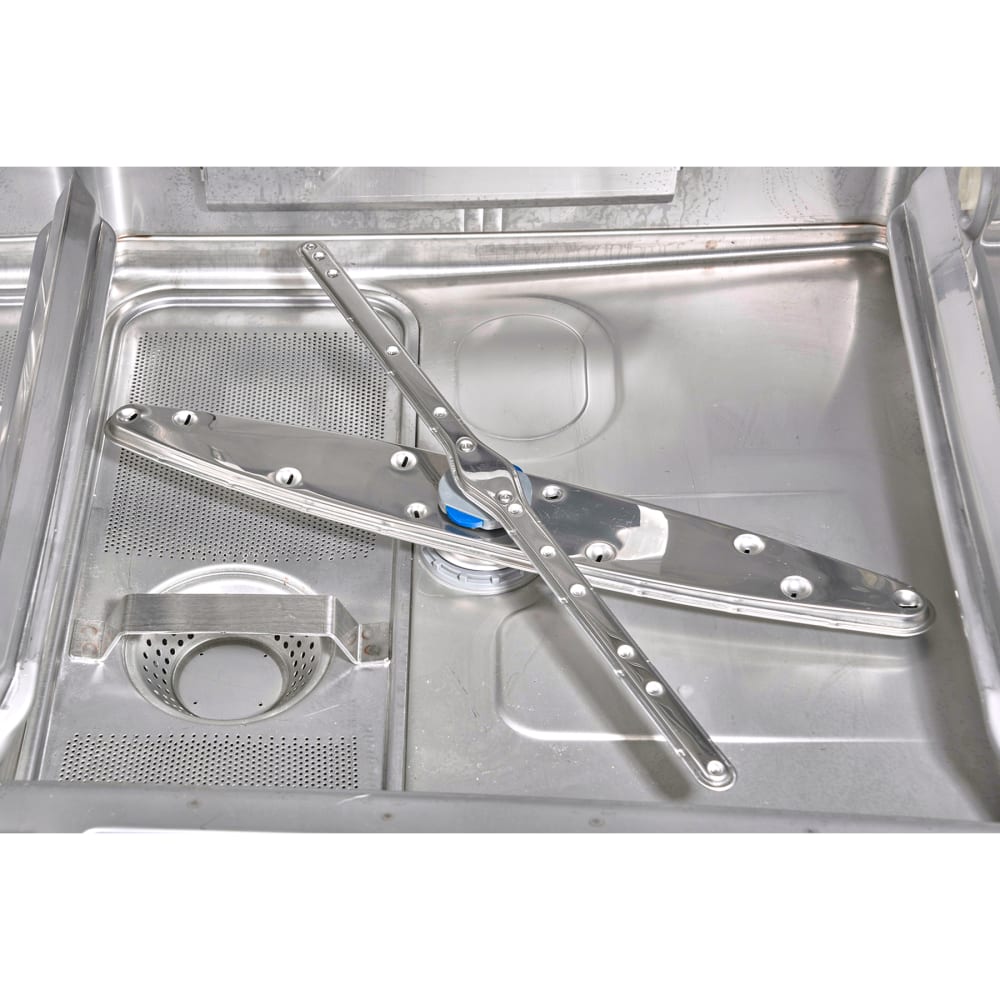

- Anti-clogging revolving upper and lower wash arms (interchangeable)
- Revolving upper and lower rinse arms
- Corrosion-resistant stainless steel composition
- Required incoming water pressure: 15-65 PSIG
- Minimum recommended incoming water temperature: 100 degrees F
- Minimum countertop opening clearance: 33 in.
- Minimum service clearance: 39 1⁄2 in.
Dimensions & Utilities
- 23 15⁄16 in. W x 25 9⁄16 in. D x 32 1⁄2 in. H (43 1⁄2 in. D when door is open)
- 30.5 A, 6.7 kW, 1.04 HP
- 208-240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart LXEH-5 within the 48 contiguous states.
From The Manufacturer
LXe Dishwasher, undercounter, 208-240v/60/3ph, accommodates optional two-level racking accessory, 23-15/16"W x 25-9/16"D x 32-15/16"H, high temperature sanitizing, 32 Racks/Hour, Fresh Water Rinse, .74 gal/rack, Delime Notification, Auto Chemical Priming, Service Diagnostics, Detergent & Rinse Aid Pump, ENERGY STAR®
Watch a video about this product
Hobart LXEH-5 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Cycle Period | 1 min 49 sec |
| Depth (in) | 25.56 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Glasses per hour | 1152 |
| Height (in) | 32.5 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 32 |
| Series | LXe |
| Special Features | Built In Booster |
| Special Features | Dual Wash Arms |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 3/4 |
| Width (in) | 23.94 |
| Weight | 170.00 |
