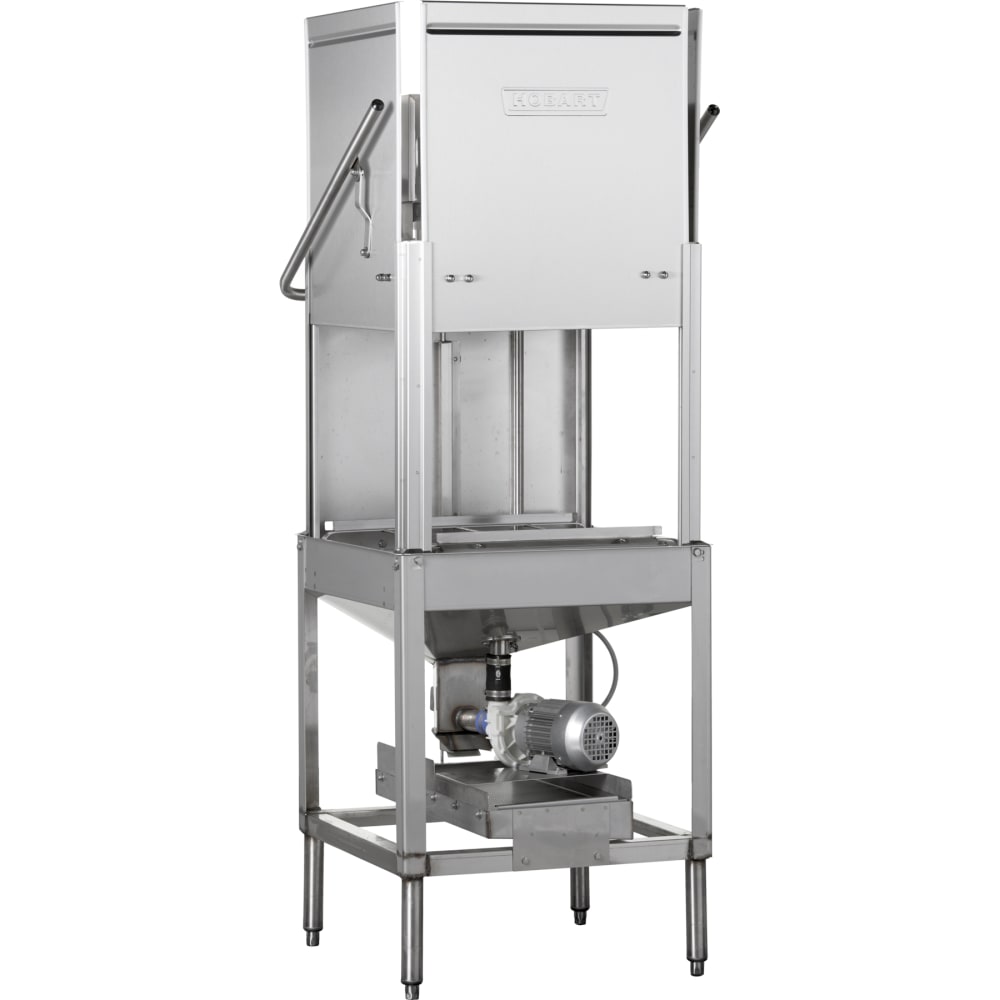

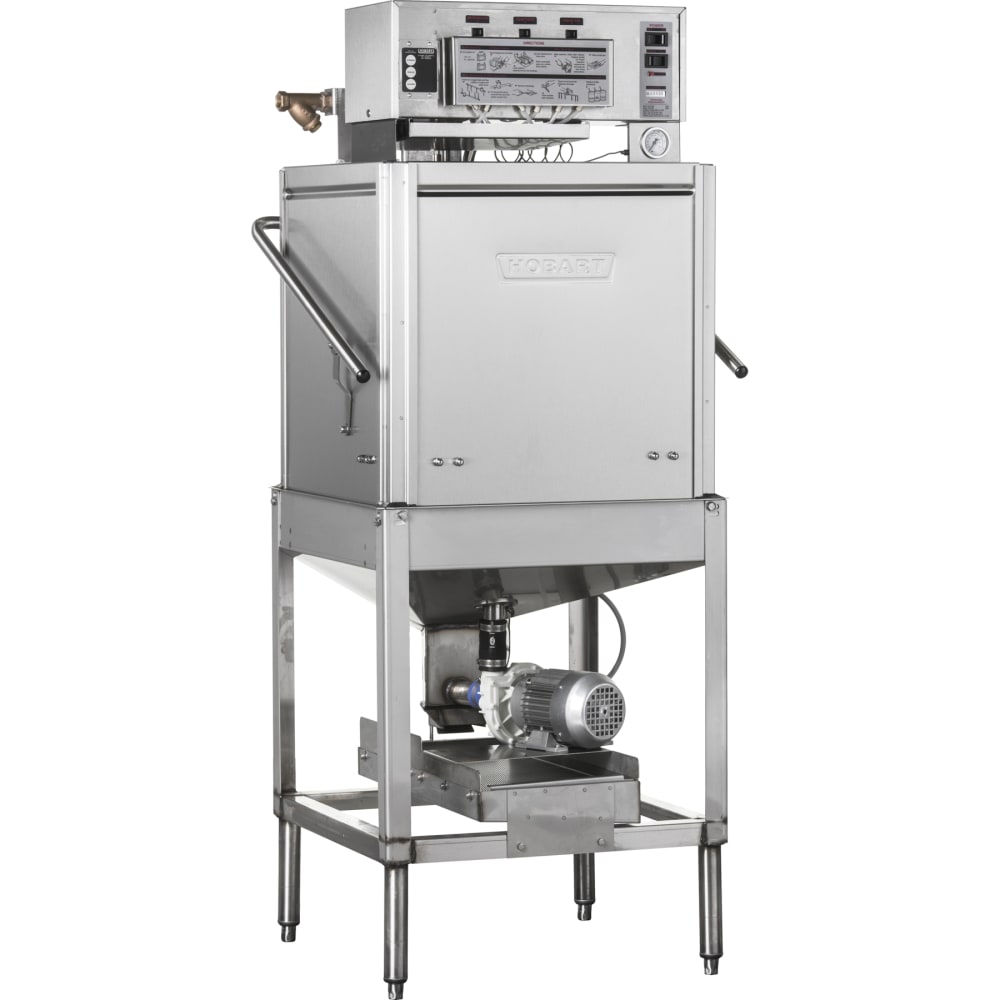

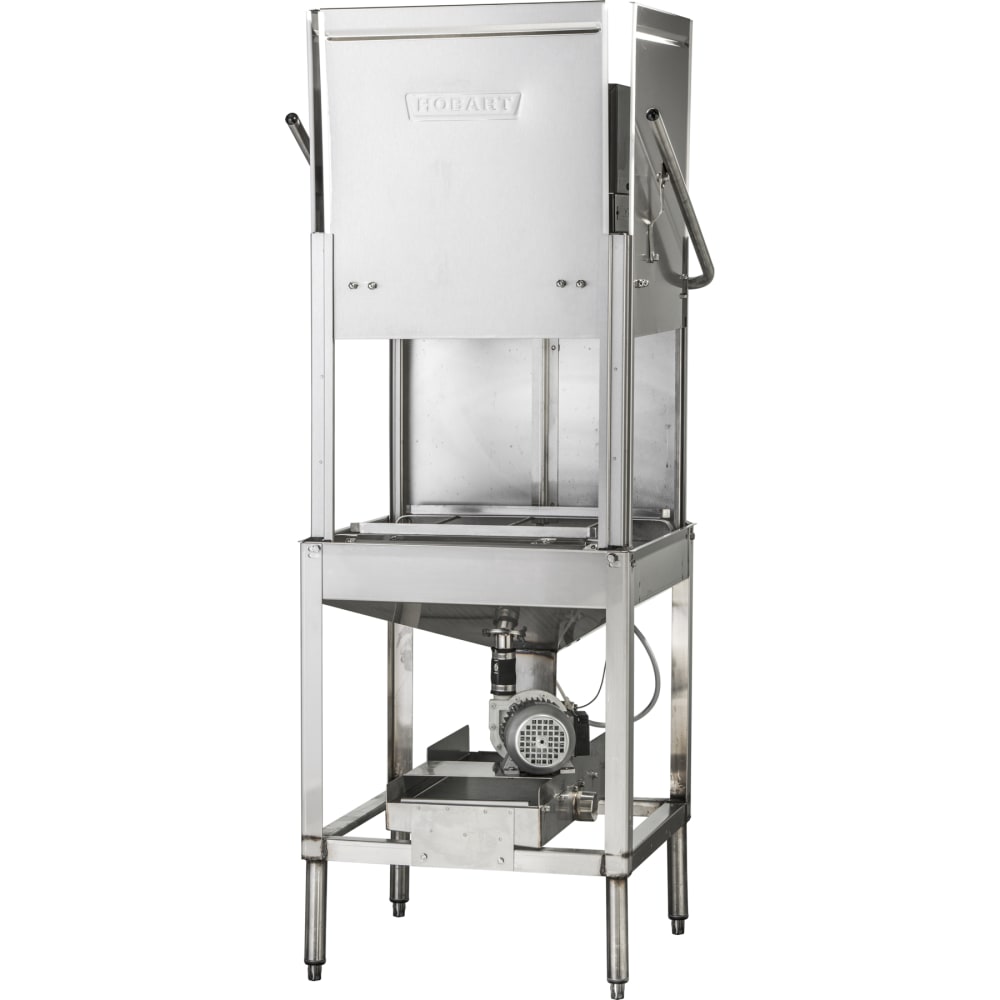

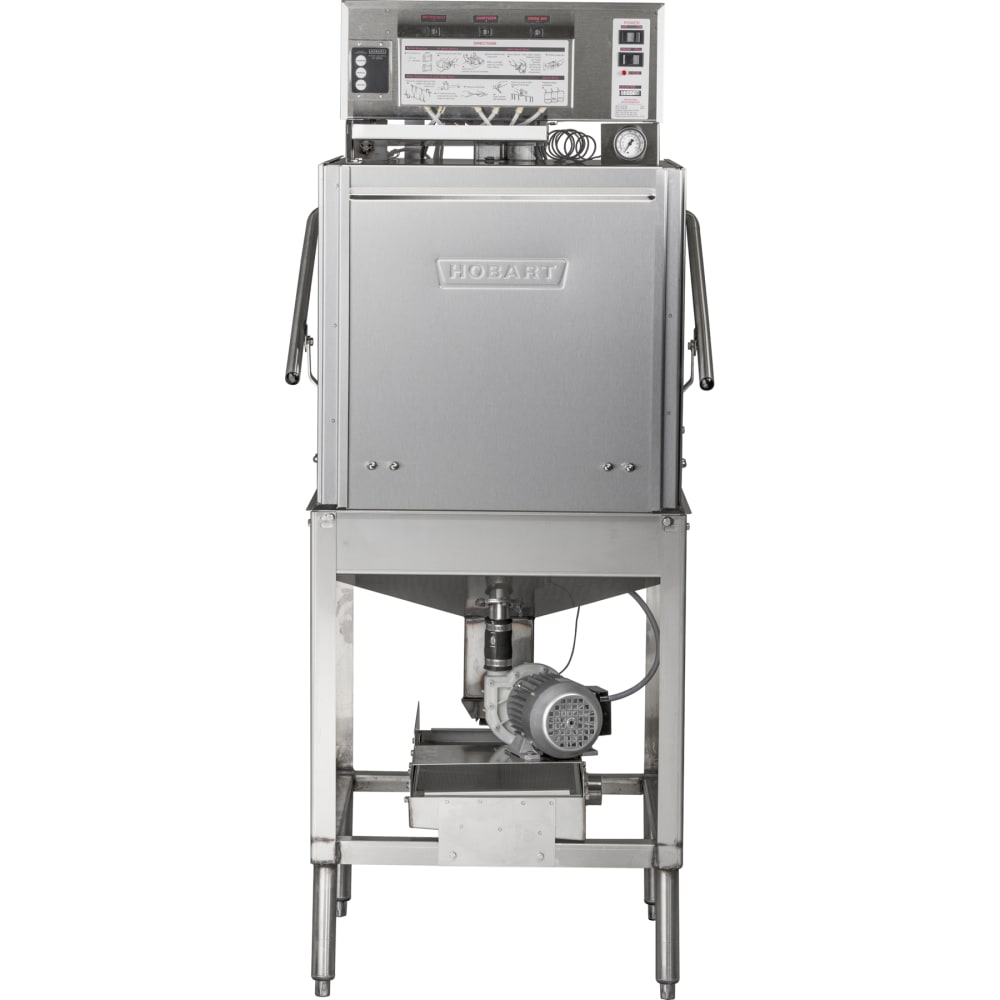

Hobart LT1-1 Low Temp Door Type Dishwasher w/ No Booster Heater, 120v

KaTom #: 617-LT11 • MPN: LT1-1
  • 617-LT11 Primary Thumbnail Image
  • 617-LT11 Multiple Thumbnail Image #1
  • 617-LT11 Multiple Thumbnail Image #2
  • 617-LT11 Multiple Thumbnail Image #3

Non Returnable Item

Mikaiyla Steffens User Image
Ask a Foodservice Equipment Specialist






Hobart LT1-1 Description

Designed for high-volume loads, the Hobart LT1-1 low-temp chemical dishwasher has a minimum water temperature of 120 degrees Fahrenheit, and it uses chemicals to clean dishes for less water use. It cleans as many as 37 racks per hour and uses 1.9 gallons of water per rack. The detergent, sanitizer, and rinse additive pumps are mounted on top of the unit for easy access, and after the first cycle, the unit will fill automatically. Using high-pressure stainless steel wash and rinse arms, the unit has a 1-horsepower, 3,400-rotations-per-minute pump motor and uses 45 gallons per minute. Operators can quickly navigate door cycle switch controls to support specific washing needs.

The Hobart LT1-1 chemical dishwasher features a hood-type structure, which reduces the need for operators to stoop when loading or unloading dishes. Designed to support either a straight-through or corner application, all of the doors raise and close at the same time for a streamlined structure. All of the unit's components have a stainless steel construction, including the tank, chamber, doors, and frames to withstand common wear from daily use. To improve general conditions, users can remove the large scrap accumulator after buildup, and a deliming cycle helps decrease scale and unwanted minerals. Overall, it measures 28 5⁄8 inches wide by 28 inches deep by 69 inches high.

Product Details

  • Door-type design
  • Engineered for corner or straight-through applications
  • Uses low-temperature water and chemicals for sanitation
  • Supports 37 racks per hour
  • Uses 1.9 gal. of water per rack
  • Minimum temperature: 120 degrees F (140 degrees F recommended)
  • Door cycle switch
  • Stainless steel tank, chamber, doors, and frames
  • Solenoid-operated positive seating drain valve (open and closed)
  • Detergent, sanitizer, and rinse additive pumps mounted on top of unit
  • Stainless steel wash/rinse arms
  • Stainless steel pump strainer self-flushes
  • Scrap accumulator included
  • Deliming cycle maintains a clean system
  • Recommending building flowing pressure: 20-25 PSI

Product Features

Hobart LT11 Features

Dimensions & Utilities

  • 28 5⁄8 in. W x 28 in. D x 69 in. H
  • 14 A, 1 HP
  • 120 V/60 Hz/1 ph
  • 1⁄2-in. conduit hole for electric connection

*Image may not depict product color, inclusions or accessories.

*Free shipping on Hobart LT1-1 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Dishwasher, door type, low temp., fill & dump chemical sanitizing, field adjustable straight-thru/corner type, approx 37 racks/hour cap, detergent-sanitizer-rinse agent pump, deliming cycle, stainless steel construction, 120/60/1

Warranty Icon
1-year

Hobart LT1-1 Specifications
