Hobart HL1400C-1STD Legacy+ 140 qt Planetary Mixer - Floor Model, 5 hp, 200-240v, 3ph

KaTom #: 617-HL1400C1STD • MPN: HL1400C-1STD
  • 617-HL1400C1STD Primary Thumbnail Image
  • 617-HL1400C1STD Multiple Thumbnail Image #1
  • 617-HL1400C1STD Multiple Thumbnail Image #2
  • 617-HL1400C1STD Multiple Thumbnail Image #3
  • 617-HL1400C1STD Multiple Thumbnail Image #4
  • 617-HL1400C1STD Multiple Thumbnail Image #5
  • 617-HL1400C1STD Multiple Thumbnail Image #6

Typically ships in 10 - 12 weeks

Free Shipping Item

$76,210.00 /Each

Selected Voltage: 200-240V, 3 Phase

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

chris shuler User Image
Ask a Foodservice Equipment Specialist

Hobart HL1400C-1STD Description

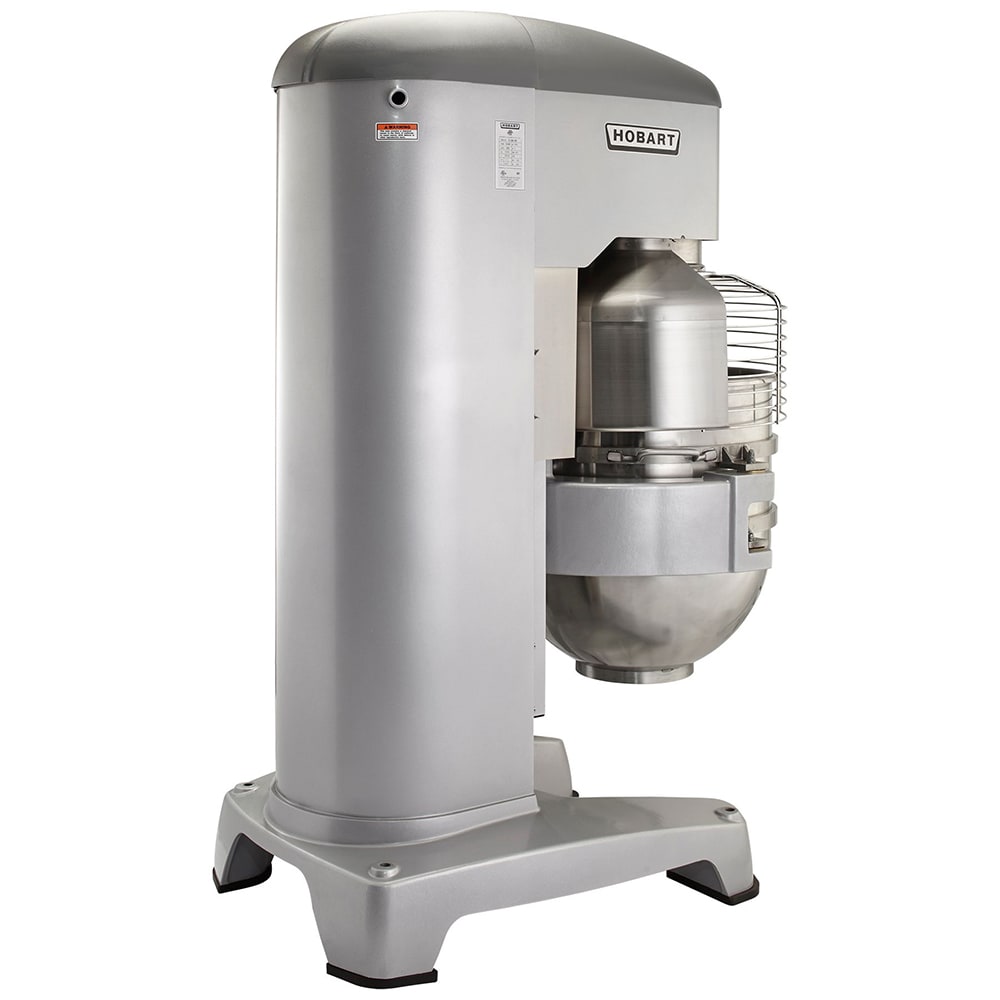

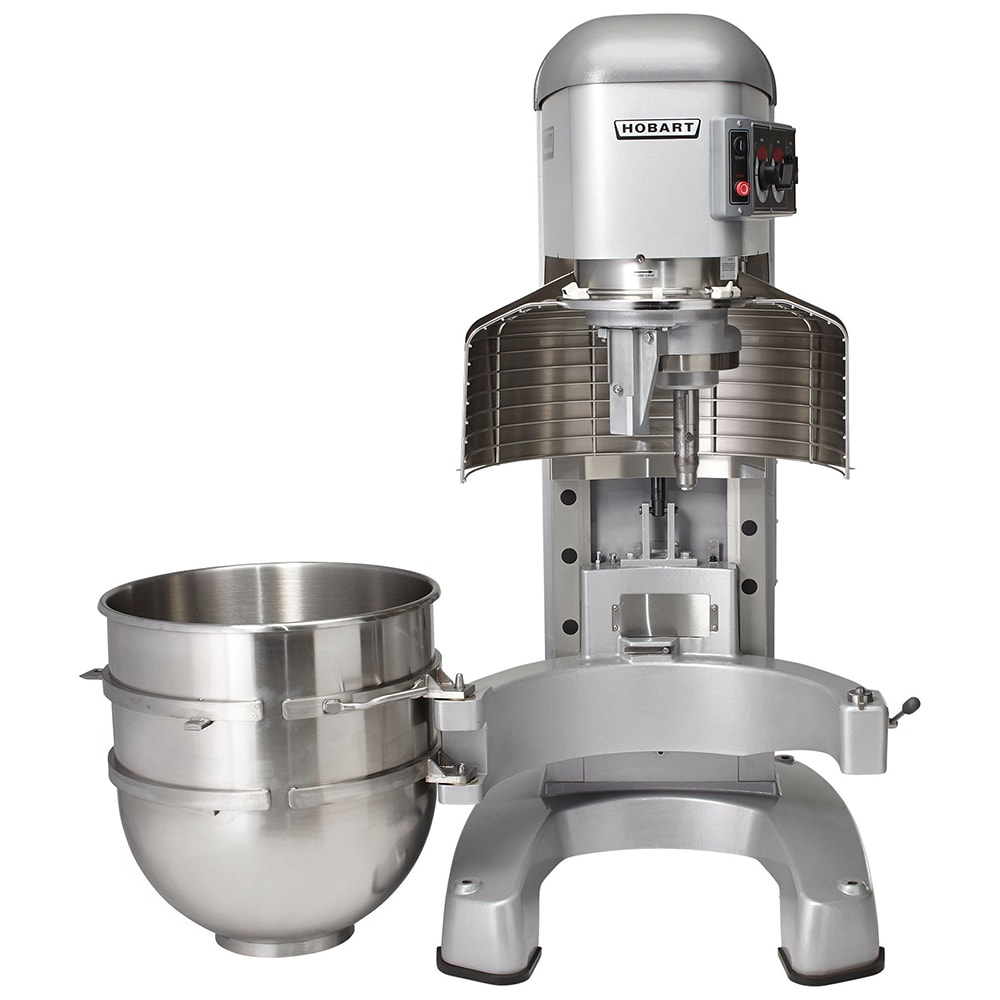

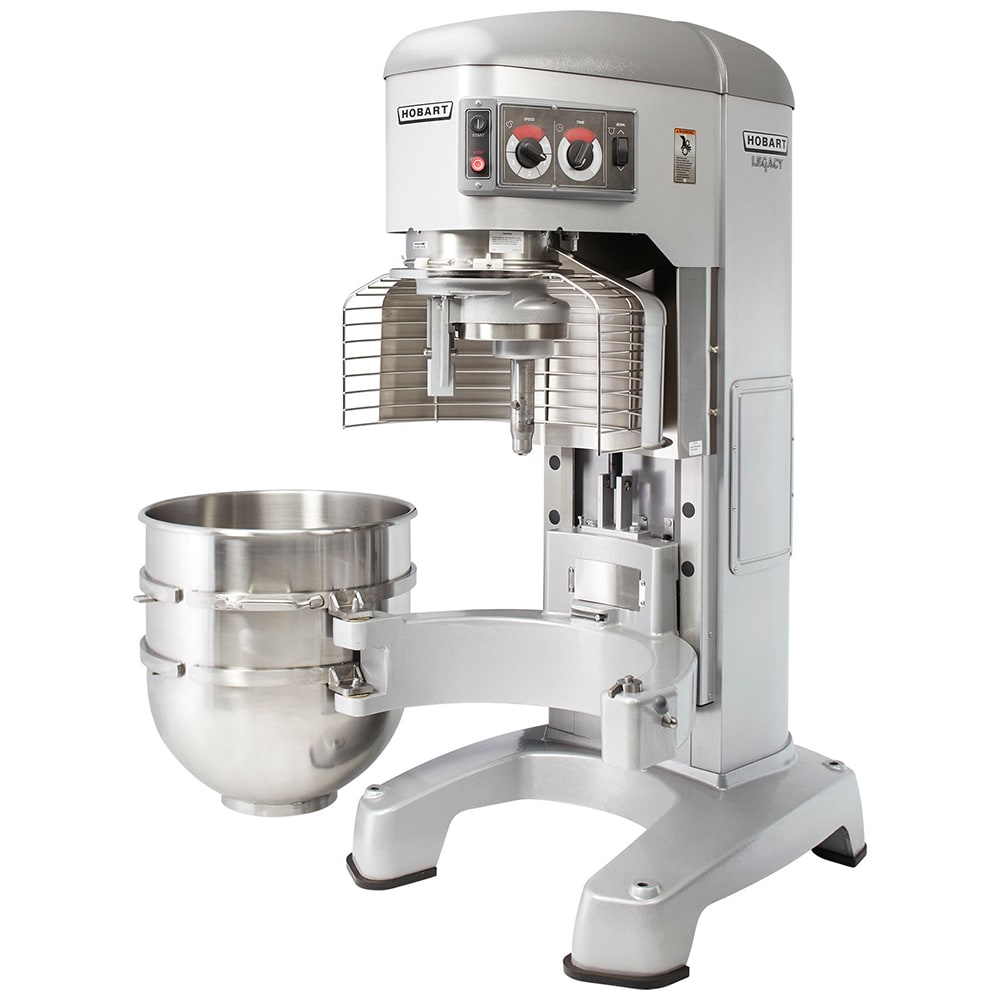

The Hobart HL1400C-1STD planetary mixer has a 140-quart-capacity bowl that enables it to create large amounts of dough for pizzas, breads, and more. This planetary mixer is a floor model with a metallic gray powder-coat finish, and it comes with rubber foot pads that aid in stability during vigorous mixing. The large stainless steel bowl swings outwards to allow operators to add ingredients, while the bowl guard helps protect operators from inadvertently reaching into the unit during operation. The guard is solid stainless steel in the back and wire in the front, which enables users to see into the bowl and monitor mixing progress.

The bowl of this planetary mixer can become extremely heavy when full of product, so it comes with a bowl truck and features a power lift design to help reduce physical strain. The power lift can be locked into top and bottom positions, and the mixer's planetary design moves the agitator around the edge of the bowl and pushes the contents back toward the bottom of the bowl to minimize wasted product. The mixer includes a beater and dough hook that click into place using the planetary shaft as a base.

The triple interlock system on the Hobart HL1400C-1STD planetary mixer prevents this unit from operating until the bowl is correctly locked into place and its bowl guard is secured. The mixer features thermal overload protection to prevent overheating. Equipped with a 20-minute timer, it can be programmed to run for a set amount of time, allowing operators to go about other kitchen tasks as the mixer runs. The heavy-duty 5 horsepower motor can run at four different speeds: 46, 80, 150, and 265 revolutions per minute. The large control panel features an option to shift speeds during mixing as well as soft-start technology. The mixer measures 33 7⁄8 inches wide by 47 1⁄10 inches deep by 67 5⁄8 inches tall and is a floor-model design.

  • 140-qt. capacity
  • Includes stainless steel bowl, beater, and dough hook
  • Metallic gray hybrid powder coat finish
  • Ergonomic swing-out bowl design
  • Stainless steel bowl guard with wire front and solid back
  • Power bowl lift is manually operated and self-locking in bottom and top positions
  • Bowl truck
  • Quick-release agitators
  • Rubber foot pads protect floors and enhance stability
  • Floor model

  • Gear-driven transmission
  • 4 fixed speeds: 46, 80, 150, and 265 RPM
  • Stir speed: 23 RPM
  • Reinforced planetary shaft
  • Thermal overload protection
  • Triple interlock system with MagnaLock technology
  • 20-min. SmartTimer™
  • Soft-start technology
  • Shift-on-the-fly™ controls
  • Large digital control panel
  • Automatic time recall

  • 33 7⁄8 in. W x 47 1⁄10 in. D x 67 5⁄8 in. H
  • 14.8 A, 5 HP
  • 200-240 V/50-60 Hz/3 ph, hardwired

*Image may not depict product color, inclusions or accessories.

*Free shipping on Hobart HL1400C-1STD within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

200-240/50/60/3 Legacy Correctional Planetary Mixer, 5.0 HP, 140 quart capacity, (4) fixed speeds plus stir speed, gear-driven transmission, 20-Minute SmartTimer™, power bowl lift, stainless steel bowl, "B" beater, "ED" dough hook, bowl truck, stainless steel bowl guard, UL (US Correctional Facility configuration)

Warranty Icon
1-year Parts & Labor

Watch a video about this product

Hobart HL1400C-1STD Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.
