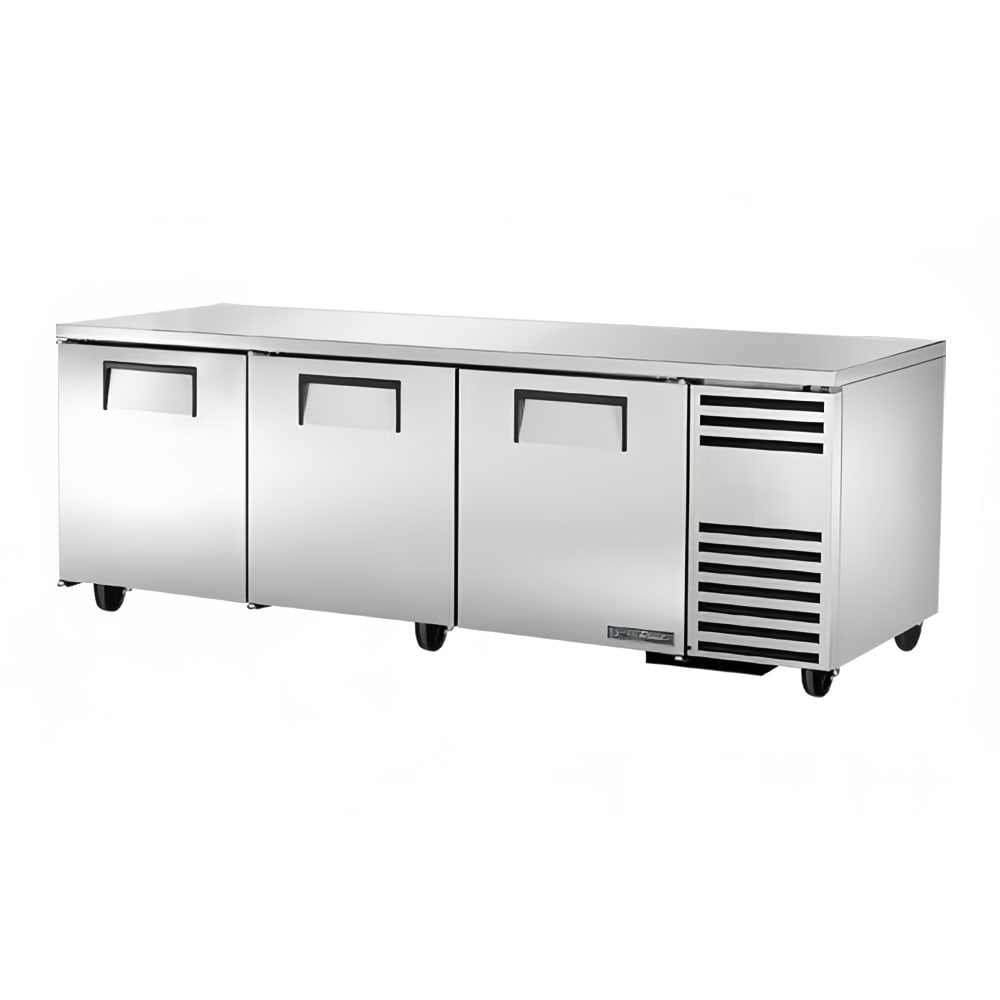

94in Deep Undercounter Refrigerator, 3 Doors, 30.9 cu ft
True - Model 598-TUC93
|
True’s deep undercounter feature the combined advantage of convenient undercounter placement with deeper refrigerated storage.
Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS
NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.
|
UNDERCOUNTER REFRIGERATOR
3 DOOR
30.9 Cubic Ft.
|
MODEL TUC93 |
STANDARD FEATURES:
- Oversized and balanced, environmentally friendly (134A) refrigeration system holds 33F to 38F.
- Stainless steel front, top and sides.
- Aluminum finished back.
- Interior - NSF approved, white vinyl coated aluminum sides and top, coved corners and 300 series stainless steel floor.
- Recessed handles.
- Work surface 36" high.
- Front breathing.
- Epoxy coated evaporator.
- Slides easily under counters, extra deep design maximizes space for refrigerated food storage.
- Adjustable vinyl coated wire shelves (door sections only).
- Slide out compressor can be serviced easily and accessed by a single repairman.
- Door swings within cabinet dimensions.
- Door/drawer variations available at full drawer list pricing.
- Self-contained system.
- Foamed-in-place high density polyurethane insulation (CFC free).
- 5" diameter swivel castors standard equipment.
- 1 year parts & labor warranty (USA).
- 5 year compressor warranty.
Energy Efficiency/Compliance:
This product is certified to the California Energy Commission by the manufacturer as meeting currently applicable efficiency standards. This
product either meets federal efficiency standards or, where there are no federal efficiency standards, meets California Energy
Commission
efficiency standards.
Features, Options & Specifications Subject to Change Without Notice. |
|
|
OPTIONAL ACCESSORIES:
Up-charge and lead times may apply. |
- Bun tray racks available for door models; applies to only one door of TUC-60-32.
|
- 6" stainless steel or optional seismic legs.
- Heavy, 16 gauge tops available.
|
|
| |
 |
|
CLICK IMAGE FOR LARGER VIEW

|
|
ROUGH - IN DATA |
This Product is recommended for commercial purposes only. |
|
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"
| Model |
Doors |
Drawers |
Capacity
(Cu. Ft.)
|
# of
Shelves |
Dimensions
(Inches) |
HP |
Volts |
PH |
Amps |
NEMA
Config. |
Cord
Length
(total feet)
|
Crated
Weight
|
| L |
D |
H * |
| TUC93 (1) |
3 |
|
30.9 |
6 |
93 1/4 |
32 1/4 |
29 3/4 |
1/2 |
115 |
1 |
9.7 |
5-15 |
7 |
520 |
|
(1) Available in drawer model
Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 6 1/4" (159 mm) for castors or 6" (153 mm) for optional legs.
Heavy, 16 gauge tops available. |
|
|
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only) |
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE |
|
Model |
Elevation |
Right |
Plan |
3D |
| TUC93 |
TFPY12E |
TFPY11S |
TFPY12P |
TFPY123 |
|
| |
|
|
|
View Installation Manuals for True Refrigeration Equipment
Product Specifications
- Product Spec Sheet
- Crated Weight: 520.00 lbs.
- Category: Undercounter Refrigeration
- Doors/Drawers: 3 Door
- Door Type: Solid
- Length (in): 94
- Type: Refrigerators
- Manufacturer: True
- Also Known As: TUC93, 890TUC93, TRUTUC93, TUC-93, TRUE TUC-93, 675-167
