	TUC-Series: Deep Undercounter Units (Drawered)

True’s deep undercounters feature the combined advantage of convenient undercounter placement with deeper refrigerated storage.

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.

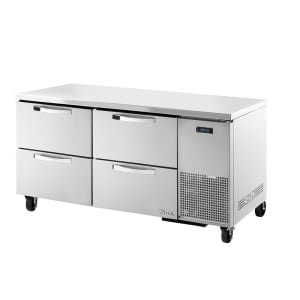

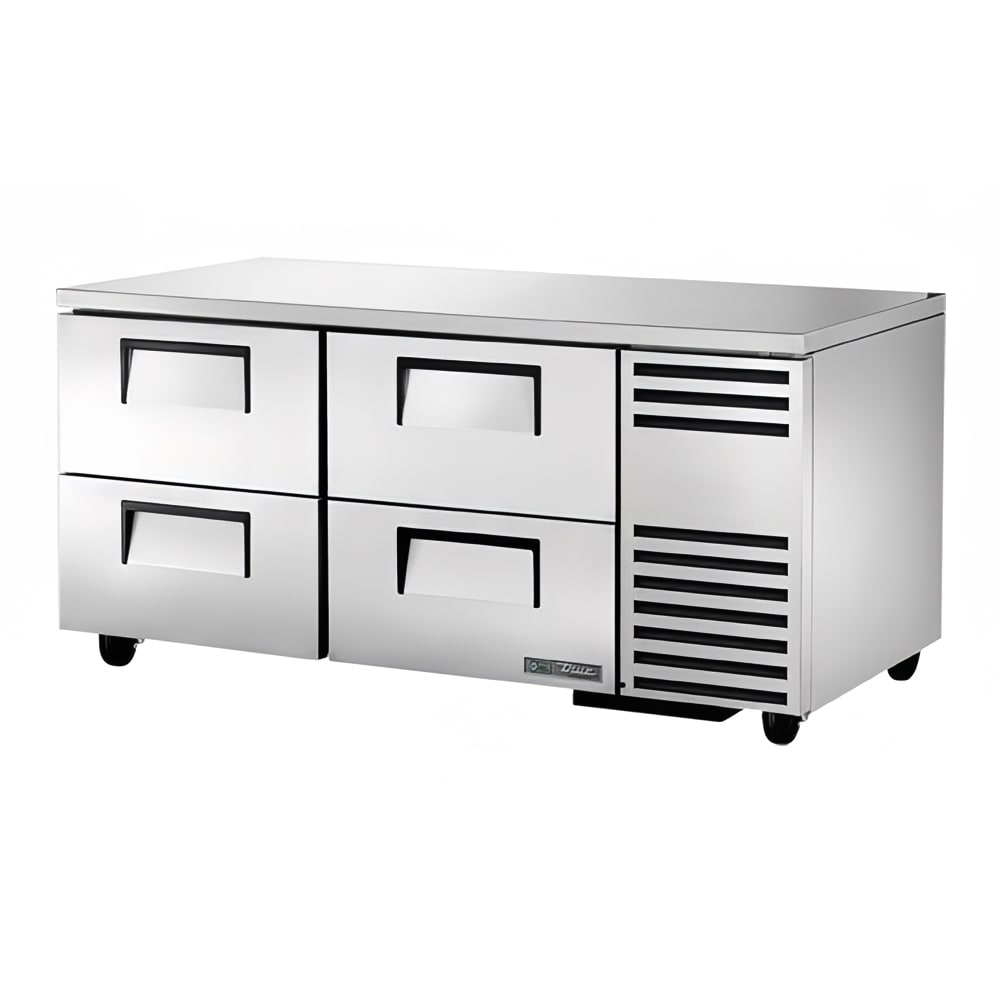

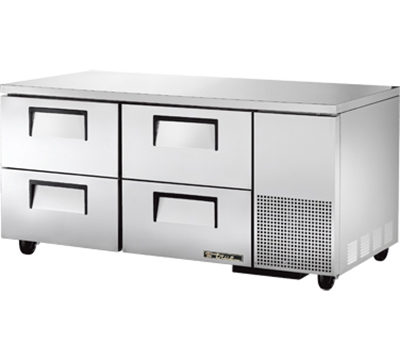

UNDERCOUNTER REFRIGERATOR
4 DRAWERS
20.6 Cubic Ft.

MODEL TUC67D4

STANDARD FEATURES:

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.
Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33F to 38F (.5C to 3.3C).
All stainless steel front, top and cabinet ends. Matching aluminum finished back.
NSF approved, white aluminum interior liner. 300 series stainless floor with coved corners.
Foamed-in-place, high density polyurethane insulation (CFC free).
Each drawer accommodates (1) full size 12"L x 20"D x 8"H (305 mm x 508 mm x 204 mm) food pan (sold separately).

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.

230 - 240V / 50 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
21/2" (64 mm) diameter castors.
Single utility shelf.
32-1/8" (816 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets.

32-1/8" (816 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
Heavy duty 16 gauge tops.
Heavy duty package - 16 gauge tops, 20 gauge door, sides and back with stainless interior.
Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model

Doors

Drawers

Capacity
(Cu. Ft.)
(Liters)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)
(total m)

Crated
Weight
(kg)

H *

TUC67D4 **

20.6

67 1/4

32 1/4

29 3/4

1/5

115/60/1

5.1

5-15P

460

524

1709

820

756

230-240/50/1

▲

2.13

209

Depth does not include 1" for rear bumpers or 1/4" for front bumper.
* Height does not include 6 1/4" (159 mm) for castors or 6" (153 mm) for optional legs.
** Heavy, 16 gauge tops available.

▲ Plug type varies by country.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	METRIC DIMENSIONS ROUNDED UP TO THE NEAREST WHOLE MILLIMETER SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
			TUC67D4	TFPY16E	TFPY65S	TFPY16P	TFPY163
