	TUC-Series: Deep Undercounter Units (Drawered)

True’s deep undercounters feature the combined advantage of convenient undercounter placement with deeper refrigerated storage.

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.

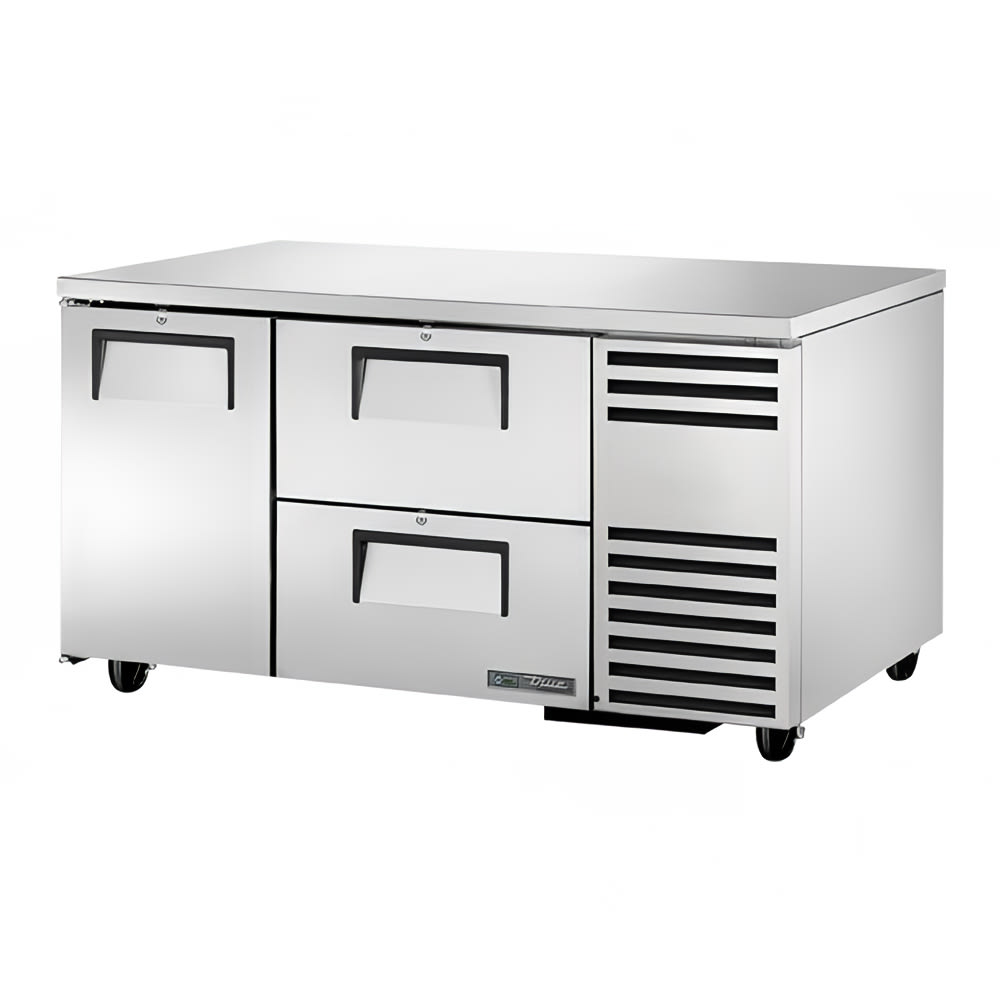

UNDERCOUNTER REFRIGERATOR
1 DOOR
2 DRAWERS
15.9 Cubic Ft.

MODEL TUC6032D2

STANDARD FEATURES:

Oversized and balanced, environmentally friendly (134A) refrigeration system holds 33F to 38F.
Stainless steel front, top and sides.
Aluminum finished back.
Interior - NSF approved, white vinyl coated aluminum sides and top, coved corners and 300 series stainless steel floor.
Recessed handles.
Work surface 36" high.
Front breathing.
Epoxy coated evaporator.
Slides easily under counters, extra deep design maximizes space for refrigerated food storage.
Adjustable vinyl coated wire shelves (door sections only).
Slide out compressor can be serviced easily and accessed by a single repairman.
Door swings within cabinet dimensions.
Door/drawer variations available at full drawer list pricing.
Self-contained system.
Foamed-in-place high density polyurethane insulation (CFC free).
5" diameter swivel castors standard equipment.
1 year parts & labor warranty (USA).
5 year compressor warranty.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
Bun tray racks available for door models; applies to only one door of TUC-60-32.	6" stainless steel or optional seismic legs. Heavy, 16 gauge tops available.

CLICK IMAGE FOR LARGER VIEW

SPECIFICATION IMAGES SHOWN: TUC6032D2

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"

Model

Doors

Drawers

Capacity
(Cu. Ft.)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)

Crated
Weight

H *

TUC6032D2 **

15.9

60 1/4

32 1/4

29 3/4

1/5

115

5.1

5-15

365

Depth does not include 1" for rear bumpers or 1/4" for front bumper.
* Height does not include 6 1/4" (159 mm) for castors or 6" (153 mm) for optional legs.
** Heavy, 16 gauge tops available.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		TUC6032D2	N/A	N/A	N/A	N/A
