49inUndercounter Freezer, 4 Drawers, 12 cu ft - Restaurant Equipment at KaTom Restaurant Supply


	TUC Series - Undercounter Freezer

Undercounter:
Drawered Freezer

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.

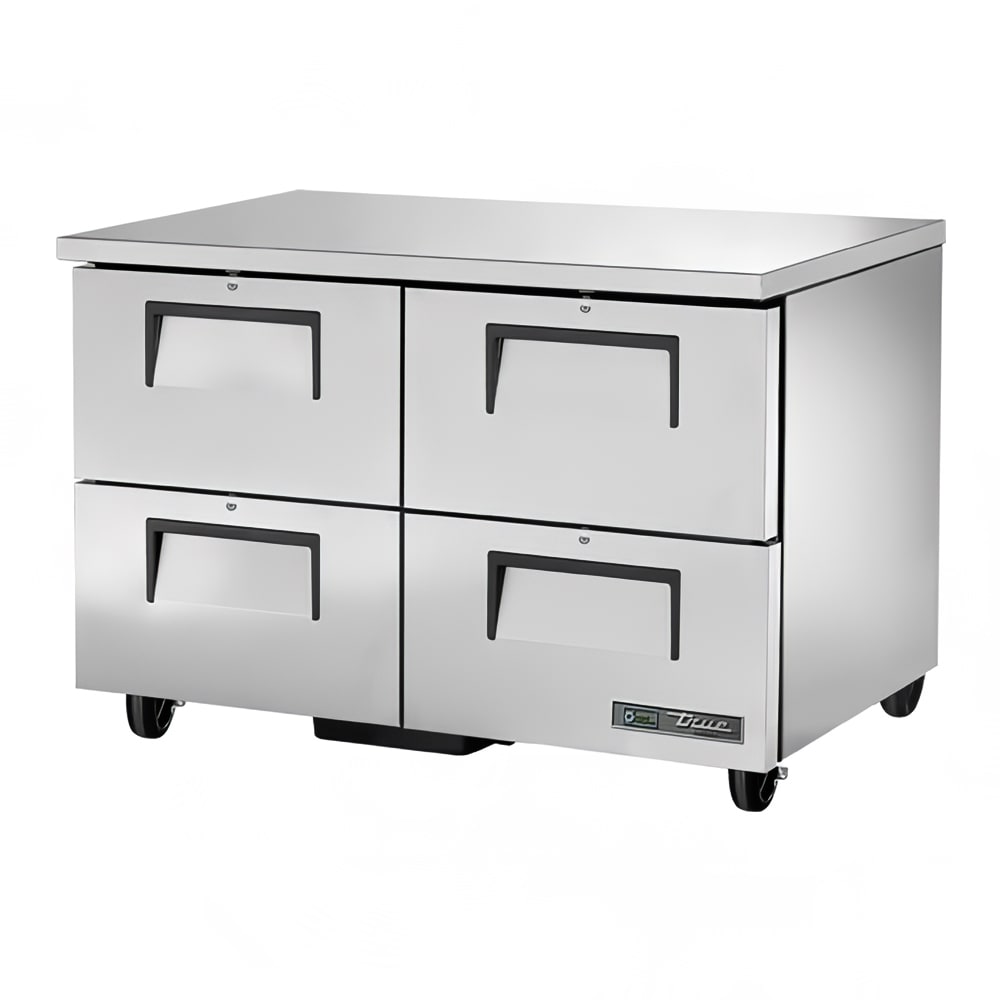

UNDERCOUNTER FREEZER
4 DRAWER
12.0 CUBIC FEET

MODEL TUC48FD4

STANDARD FEATURES:

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today's food service marketplace.
Oversized, environmentally friendly (R404A) forced-air refrigeration system holds -10F (-23.3) . Ideally suited for both frozen foods and ice cream.
All stainless steel front, top and cabinet ends. Matching aluminum finished back.
Front breathing.
Each drawer accommodates (1) 12"L x18"W x 6"D (305 mm x 458 mm x 153 mm) food storage box (supplied by others).
Foamed-in-place, high density polyurethane insulation (CFC free).

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
230 - 240V / 50 Hz. 6" (153 mm) standard legs. 6" (153 mm) seismic/flanged legs. 2 1/2" (64 mm) diameter castors. Basic overshelf. Single utility shelf. Double utility shelf. Stacking collar. 30" (762 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets	30" (762 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets. Heavy duty, 16 gauge tops. ADA compliant models with 34" (864 mm) work surface height. Low profile models with recessed castors. 311/2" (801 mm) work surface height. Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model

Drawers

Capacity
(Cu. Ft.)
(Liters)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)
(total m)

Crated
Weight
(kg)

H *

TUC48FD4

12.0

48 3/8

30 1/8

29 3/4

1/2

115/60/1

10.9

5-15P

355

340

1229

766

756

2.13

162

Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.
Heavy, 16 gauge tops available

▲ Plug type varies by country.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	METRIC DIMENSIONS ROUNDED UP TO THE NEAREST WHOLE MILLIMETER SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
			TUC48FD4	TFQY06E	TFQY05S	TFQY06P	TFQY063
