49inADA Compliant Undercounter Refrigerator, 4 Drawers, 12 cu ft - Restaurant Equipment at KaTom Restaurant Supply


	TUC Series - Undercounter Drawered - ADA Compliant

Undercounter:
Drawered Refrigerator

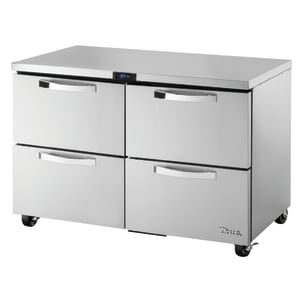

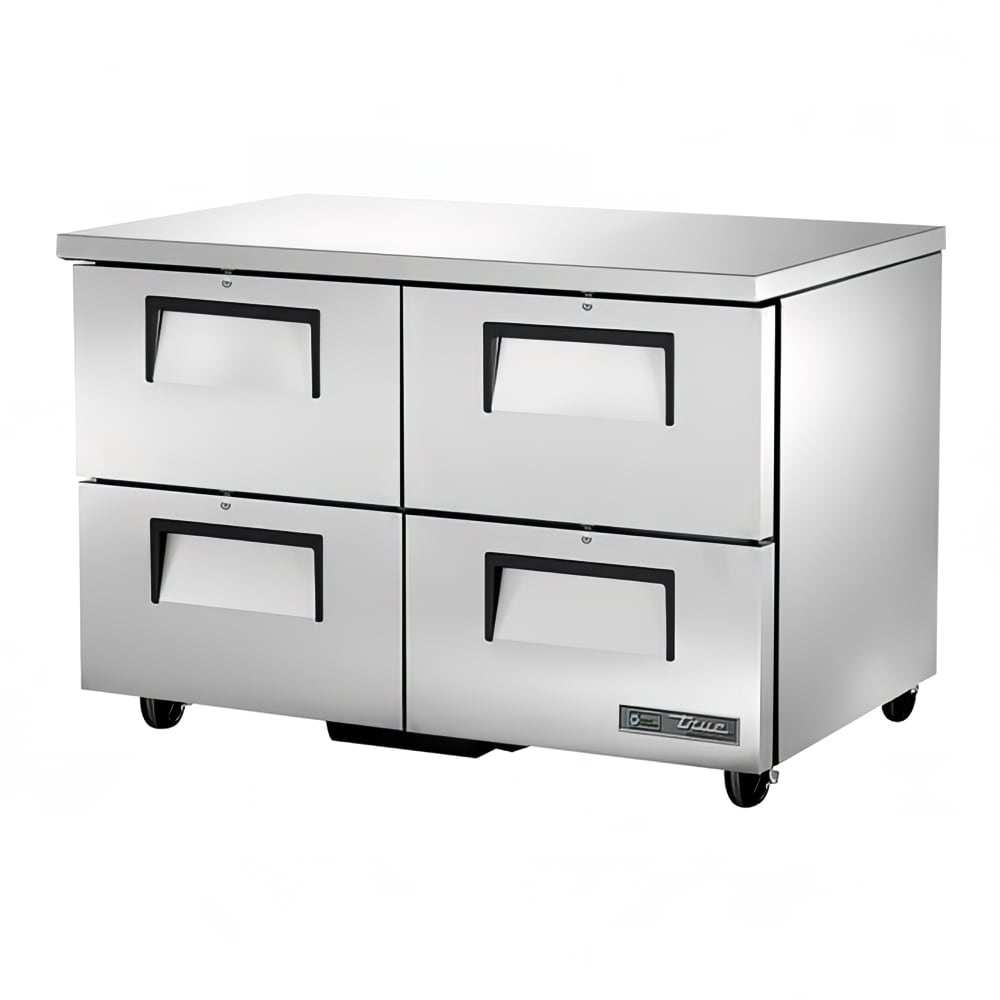

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.

UNDERCOUNTER REFRIGERATOR
4 DRAWER
12 Cubic Ft.
ADA COMPLIANT 34" WORK COUNTER HEIGHT

MODEL TUC48D4ADA

STANDARD FEATURES:

True's undercounter units are designed with enduring quality that protects your long term investment.
Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today's food service marketplace.
Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33F to 38F (.5C to 3.3 C).
All stainless steel front, top and cabinet ends. Matching aluminum finished back.
Front breathing.
Each drawer accommodates one 12"L x 20"W x 6"D (305 mm x 508 mm x 153 mm) food pan (sold separately).
Foamed-in-place, high density polyurethane insulation (CFC free).

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
230 - 240V / 50 Hz. 6" (153 mm) standard legs. 6" (153 mm) seismic/flanged legs. 21/2" (64 mm) diameter castors. Basic overshelf. Sandwich/salad service shelf. Single utility shelf. Double utility shelf. 30" (762 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets.	30" (762 mm) deep, 1/2" (13 mm) thick composite cutting board. Requires L brackets. Heavy duty 16 gauge tops. ADA compliant models with 34" (864 mm) work surface height. Low profile models with recessed castors. 311/2" (801 mm) work surface height. Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information..

CLICK IMAGE FOR LARGER VIEW

ADA Compliant 34" work counter height

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model

Doors

Drawers

Capacity
(Cu. Ft.)
(Liters)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)
(total m)

Crated
Weight
(kg)

H *

TUC48D4ADA

48 3/8

30 1/8

29 3/4

1/5

115/60/1

5.0

5-15P

310

34" WORK COUNTER HEIGHT

340

1229

766

756

230-240/50/1

▲

213

141

Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 3" for castors .

▲ Plug type varies by country.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	METRIC DIMENSIONS ROUNDED UP TO THE NEAREST WHOLE MILLIMETER SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
			TUC48D4	TFQY06E	TFQY05S	TFQY06P	TFQY063
