	TUC Series - Undercounter Glass Door - Low Profile

TRUE is the world’s largest
manufacturer
of glass door merchandisers.

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.

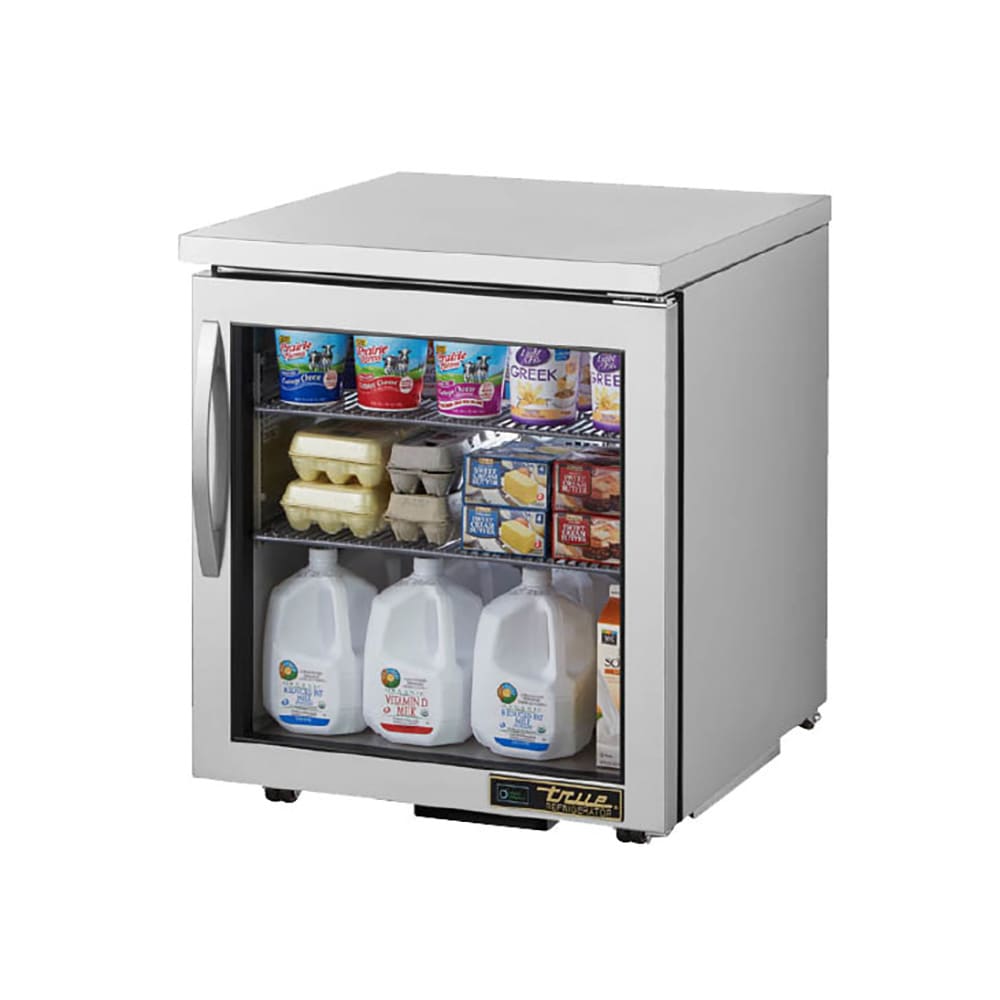

UNDERCOUNTER REFRIGERATOR
1 glass DOOR
6.5 CUBIC FEET
LOW PROFILE 31-7/8" WORK COUNTER HEIGHT
ADA COMPLIANT

MODEL TUC27GLP

STANDARD FEATURES:

True's undercounter units are designed with enduring quality that protects your long term investment.
Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.
Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33F to 38F (.5C to 3.3 C).
All stainless steel front, top and cabinet ends. Matching aluminum finished back.
Front breathing.
Foamed-in-place, high density polyurethane insulation (CFC free).
Heavy duty PVC coated wire shelves.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: TUC27
Up-charge and lead times may apply.

230 - 240V / 50 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
21/2" (64 mm) diameter castors.
Barrel lock (factory installed).
Basic overshelf.
Single utility shelf.
Double utility shelf.
Stacking collar.
30" (762 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets.

30" (762 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
Heavy duty, 16 gauge tops.
ADA compliant models with 34" (864 mm) work surface height.
Low profile models with recessed castors. 31-1/2" (801 mm) work surface height.
Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

Specification Image Shown: TUC27
ADA Compliant 31 7/8" work counter height

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" .

Model

Doors

Capacity
(Cu. Ft.)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)

Crated
Weight

H *

TUC27GADA **
31 7/8" WORK COUNTER HEIGHT

1 Glass

6.5

27 5/8

30 1/8

29 3/4

1/6

115/60/1

3.9

5-15P

210

Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 1 1/2" for castors.
** Heavy, 16 gauge tops available.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		TUC27G	n/a	n/a	n/a	n/a
