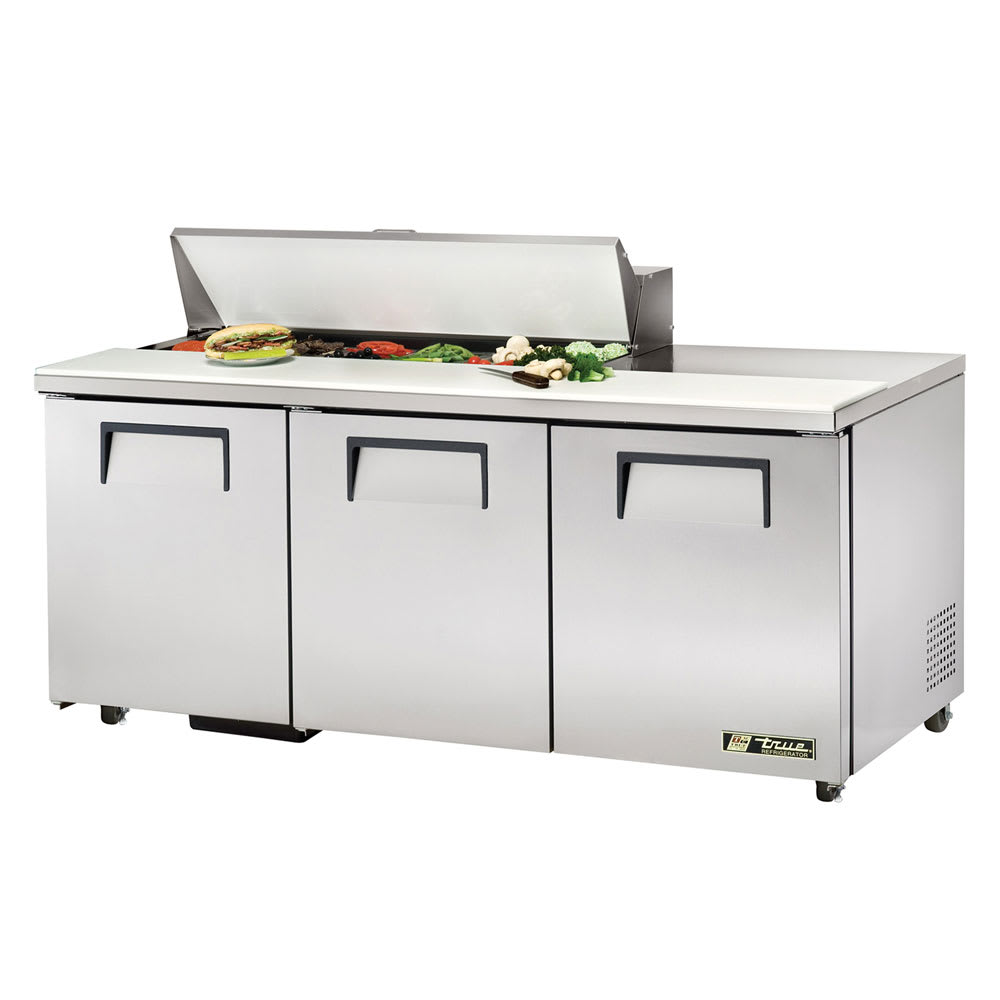

72in ADA Compliant Sandwich/Salad Unit, 12 Pans, 3 Doors, 19 cu ft
True - Model 598-TSSU7212ADA
|
Food Prep Table:
Solid Door Sandwich/Salad Unit
Photo may Include Optional Accessories!
This product typically ships in 5 - 10 days
|
73" ADA Compliant Sandwich/Salad Unit,
12 Pans, 3 Doors, 19 cu ft
34" Work Counter Height
|
MODEL TSSU7212ADA |
STANDARD FEATURES:
- Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33° F to 41° F (.5° C to 5° C).
- Complies with and listed under ANSI/NSF-7-1997-6.3.
- All stainless steel front, top and cabinet ends. Matching aluminum finished back.
- Stainless steel, patented, foam insulated lid and hood keep pans temperature colder, lock in freshness and minimize condensation. Removable for easy cleaning.
- 113/4" (299 mm) deep, full length removable cutting board included. Sanitary, high density, NSF approved white polyethylene provides tough preparation surface.
- Foamed-in-place, high density polyurethane insulation (CFC free).
- Heavy duty PVC coated wire shelves.
Features, Options & Specifications Subject to Change Without Notice. |
|
|
OPTIONAL ACCESSORIES:
Up-charge and lead times may apply. |
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 21/2" (64 mm) diameter castors.
- Additional shelves.
- Sandwich/salad service shelf.
- Single utility shelf.
- Double utility shelf.
- Sneeze guard.
- 19"(483 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets.
- 19" (483 mm) deep, 3/4" (20 mm) thick, white polyethylene cutting board. Requires L brackets.
|
- 113/4" (299 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
- 19" (483 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
- Crumb catcher. Requires crumb catcher cutting board for proper installation.
- Pan dividers.
- ADA compliant model with 34" (864 mm) work surface height.
- Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.
|
|
| |
 |
|
CLICK IMAGE FOR LARGER VIEW

ADA Compliant 34" work counter height
|
|
ROUGH - IN DATA |
This Product is recommended for commercial purposes only. |
|
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
| Model |
Doors |
Capacity
(Cu. Ft.)
(Liters) |
# of
Shelves |
# of
Pans
(top) |
Dimensions
(Inches) |
HP |
Volts |
PH |
Amps |
NEMA
Config. |
Cord
Length
(total feet)
(total m) |
Crated
Weight
(kg) |
| L |
D |
H * |
| TSSU7212ADA |
3 |
19.0 |
6 |
12 |
72 3/8 |
30 1/8 |
36 3/4 |
1/2 |
115/60/1 |
|
10.5 |
5-15P |
7 |
420 |
| 34" WORK COUNTER HEIGHT |
|
538 |
|
|
1839 |
766 |
934 |
|
|
|
|
|
2.13 |
|
|
Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs. |
|
|
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only) |
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE |
|
Model |
Elevation |
Right |
Plan |
3D |
| TSSU7212ADA |
|
|
|
|
|
| |
|
|
|
Product Specifications
- Product Spec Sheet
- Crated Weight: 420.00 lbs.
- Category: Food Prep Tables
- Cutting Board: 11-3/4 inch
- Doors/Drawers: 3 Door
- Length (in): 72
- Pans: 12
- Type: ADA/ Low Profile Food Prep Tables
- Manufacturer: True
- Also Known As: TSSU-72-12-ADA, TRUE TSSU-72-12-ADA, TSSU7212ADA, TRUTSSU7212ADA, 890TSSU7212ADA
