48inMega Top Sandwich/Salad Unit, 15 Pans, 2 Doors, 12 cu ft - Restaurant Equipment at KaTom Restaurant Supply


	TSSU Series - Mega Tops

True's TSSU series features a patented airflow system and patented roll back, insulated hood that ensures colder pan temperatures.

Photo may Include Optional Accessories!

This product typically ships in 5 - 10 days

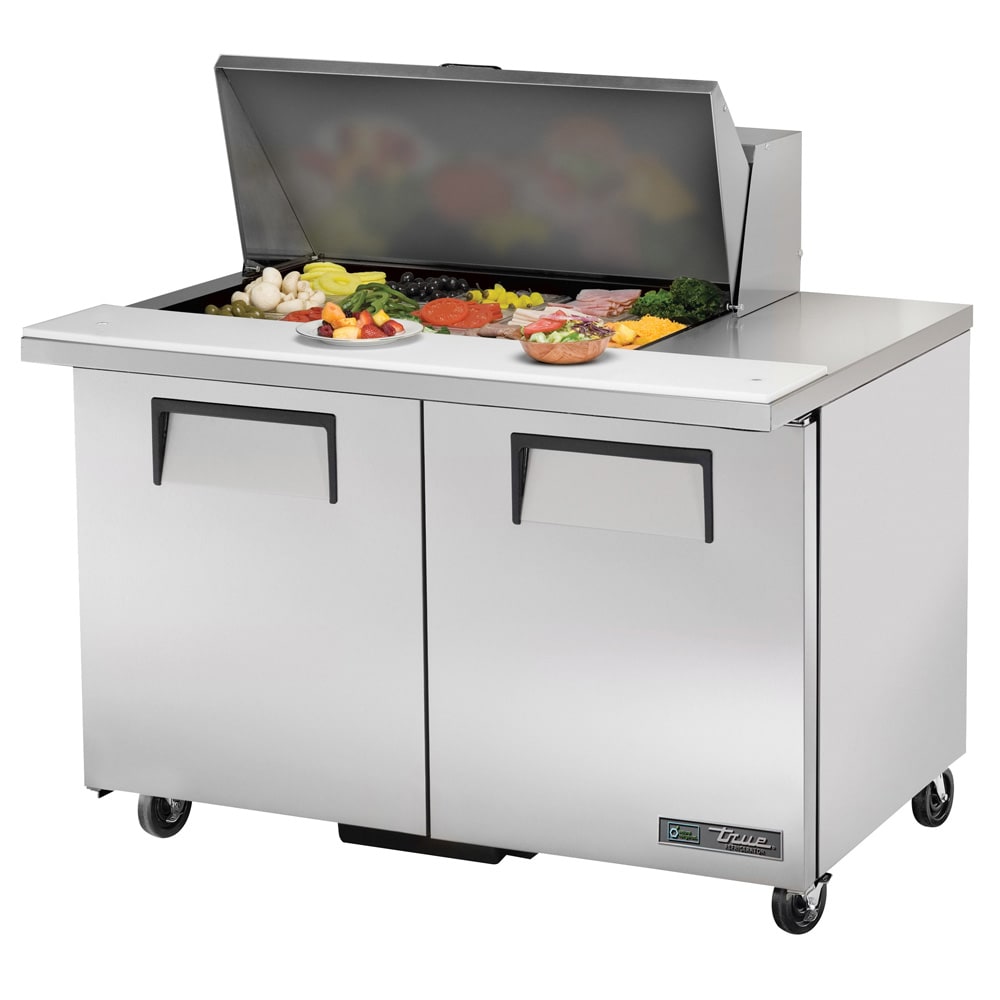

SOLID 2 DOOR MEGA TOP SANDWICH / SALAD UNIT
12 CUBIC FT. HOLDS 15 PANS

MODEL TSSU4815MB

STANDARD FEATURES:

Stainless steel front, top and sides.
Interior - NSF approved, white vinyl coated aluminum sides and top, coved corners and stainless steel floor.
Oversized and balanced, environmentally friendly (134A) refrigeration system - holds 33°F to 41°F.
Front breathing
Work surface 36" high.
Adjustable vinyl coated wire shelves.
Epoxy coated evaporator
Aluminum finished back
Recessed handles.
Stainless steel patented foam insulated cover.
8 7/8" full length removable cutting board.
Slide out compressor can be serviced easily and accessed by a single repairman.
Self-contained system.
Removable back hood and lid.
Standard (1/6) 4" deep clear polycarbonate insert pans. (TSSU- 27-12M-B has combination nine 1/6 and three 1/9 pans)
Foamed-in-place high density polyurethane insulation (CFC free).
Rear bumpers.
Door swings within cabinet dimensions.
5" castors standard equipment.
1 year parts & labor warranty (USA)
5 year compressor warranty

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
6" (153 mm) legs. Sneezeguard.	Crumb catcher. Requires crumb catcher cutting board for proper installation.

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"

Model

Doors

Capacity
(Cu. Ft.)

# of
Shelves

# of
Pans
(top)

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)

Crated
Weight

D *

TSSU4815MB

12.0

48 3/8

34 1/8

40 3/8

1/3

115

8.6

5-15

305

Depth does not include 1" for rear bumpers.
* Height does not include 61/4" for castors or 6" for optional legs.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		TSSU4815MB	TFNO42E	TFNY42S	TFNY42P	TFNY423
