49inSandwich/Salad Unit, 10 Pans, Cutting Board, 2 Door, 12 cu ft - Restaurant Equipment at KaTom Restaurant Supply


	TSSU Series - Sandwich/Salad Units

True's TSSU series features a patented airflow
system and patented roll back, insulated hood
that ensures colder pan temperatures.

NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.

Photo Includes Optional Accessories!

In Stock Ready For Immediate Pick-up or Shipping!

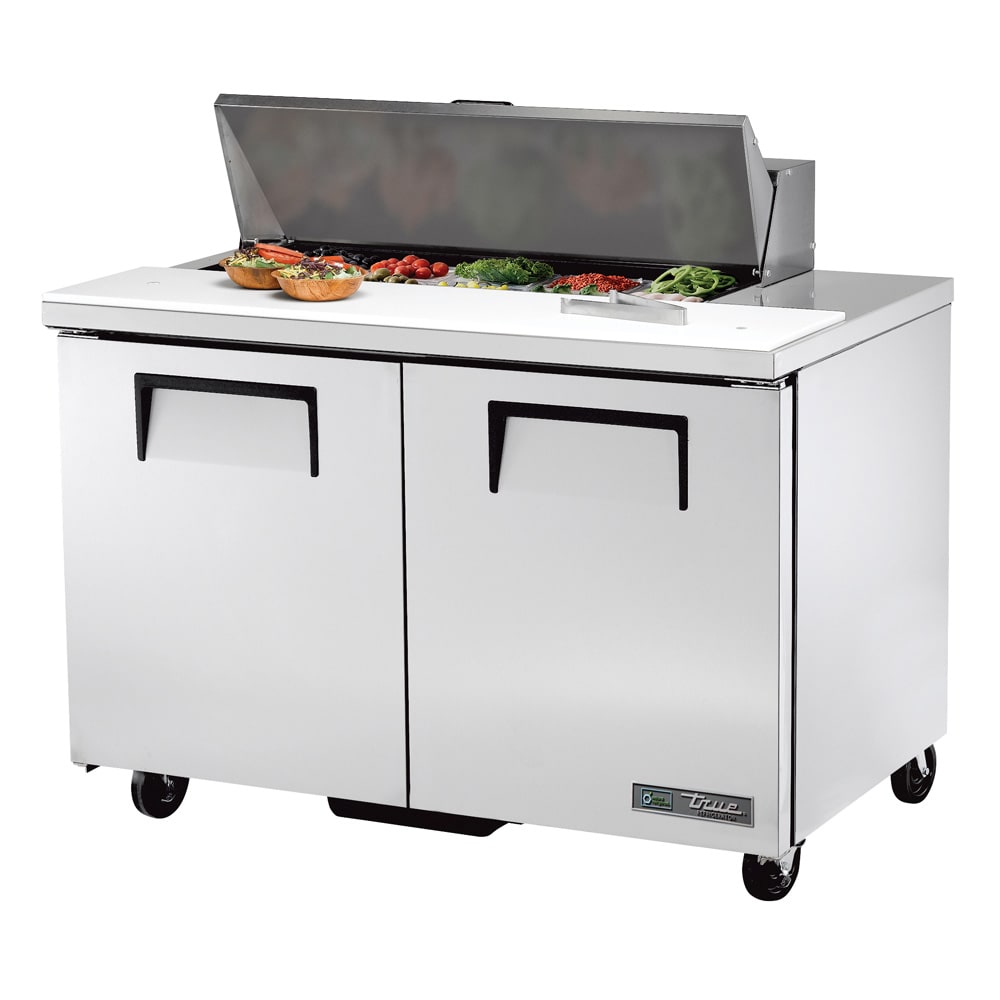

2 DOOR SALAD TOP REFRIGERATOR 8 PAN
12 CUBIC FEET

MODEL TSSU4810

STANDARD FEATURES:

Stainless steel front, top and sides.
Interior - NSF approved, white vinyl coated aluminum sides and top, coved corners and stainless steel floor.
Oversized and balanced, environmentally friendly (134A) refrigeration system - holds 33°F to 41v°F.
Extra wide 11 3/4" full length removable cutting board.
Front breathing
Work surface 36" high.
Adjustable vinyl coated wire shelves.
Epoxy coated evaporator
Aluminum finished back
Recessed handles.
Stainless steel patented foam insulated cover.
Slide out compressor can be serviced easily and accessed by a single repairman.
Self-contained system.
Removable back hood and lid.
Standard (1/6) 4" deep clear polycarbonate insert pans included.
Foamed-in-place high density polyurethane insulation (CFC free).
Recessed handles.
Door swings within cabinet dimensions.
Rear bumpers.
5" castors standard equipment.
1 year parts & labor warranty (USA)
5 year compressor warranty.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
Drawer models 19" cutting board Over shelf / service shelf Crumb catcher	Sneeze guard 6" legs ADA compliant with 2" castor package. 31 1/2" work surface height (available for TSSU-27, -36, -48, -60).

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"

Model

Doors

Capacity
(Cu. Ft.)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)

Crated
Weight

D**

TSSU4810 (1)

48 3/8

30 1/8

36 3/4

1/3

115

8.6

5-15

285

(1) Available in model with drawers.
Available in Mega-Top model (increased cabinet depth, more condiment pans, reduced cutting board)
** Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		TSSU4810	TFNY02E	TFNY02S	TFNY02P	TFNY023
