	TSSU Series - Sandwich/Salad Units (Drawers) - ADA Compliant

True® TSSU series features a patented airflow system and patented roll back, insulated hood that ensures colder pan temperatures.

NOTE: Door/drawer combination cabinets require customer to designate door / drawer orientation.

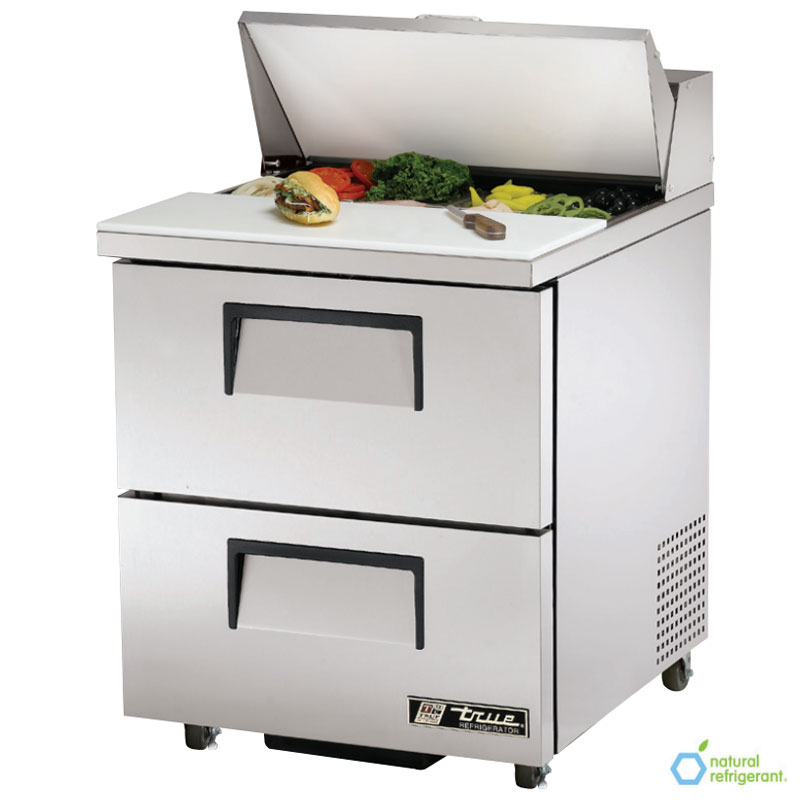

Photo Includes Optional Accessories!

In Stock Ready For Immediate Pick-up or Shipping!

SOLID 2 Drawers SANDWICH / SALAD
REFRIGERATED UNIT
6.5 CUBIC FEET
ADA COMPLIANT 34" WORK COUNTER HEIGHT

MODEL TSSU278D2ADA

STANDARD FEATURES:

True® salad/sandwich units are designed with enduring quality that protects your long term investment.
Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33° F to 41° F (.5° C to 5° C)
Complies with and listed under ANSI/NSF-7-1997-6.3.
All stainless steel front, top and cabinet ends. Matching aluminum finished back.
Stainless steel, patented, foam insulated lid and hood maintains uniform pan temperature, locks in freshness and minimizes condensation. Removable for easy cleaning.
11 3/4" (299 mm) deep full length removable cutting board included. Sanitary, high-density, NSF approved white polyethylene provides tough preparation surface.
Foamed-in-place, high density polyurethane insulation (CFC free).
Heavy duty PVC coated wire shelves..

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.

230 - 240V / 50 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
21/2" (64 mm) diameter castors.
Additional shelves.
Sandwich/salad service shelf.
Sneeze guard.
19"(483 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets.
19" (483 mm) deep, 3/4" (20 mm) thick, white polyethylene cutting board. Requires L brackets.

113/4" (299 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets
19" (483 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
Crumb catcher. Requires crumb catcher cutting board for proper installation.
Pan dividers.
ADA compliant model with 34" (864 mm) work surface height.
Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

Pan Layout
ADA Compliant 34" work counter height

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model

Drawers

Capacity
(Cu. Ft.)
(Liters)

# of
Shelves

# of
Pans
(top)

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)
(total m)

Crated
Weight
(kg)

H *

TSSU278D2ADA

6.5

27 5/8

30 1/8

36 3/4

1/5

115/60/1

4.9

5-15P

230

34" WORK COUNTER HEIGHT

185

702

766

934

1/4

230-240/50/1

2.9

▲

2.13

105

* Height does not include 4" for castors.
Depth does not include 1" (26 mm) for rear bumpers.

▲ Plug type varies by country.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	METRIC DIMENSIONS ROUNDED UP TO THE NEAREST WHOLE MILLIMETER SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
			TSSU278D2	TFNY16E	TFNY16S	TFNY16P	TFNY163
