28in Sandwich/Salad Unit, 8 Pans, Cutting Board, 1 Door, 6.5 cu ft - Restaurant Equipment at KaTom Restaurant Supply


	TSSU Series - Sandwich/Salad Units

True® TSSU series features a patented airflow
system and patented roll back, insulated hood
that ensures colder pan temperatures.

NOTE: Door/drawer combination cabinets require customer to designate door/drawer orientation.

Photo Includes Optional Accessories!

In-Stock Products Ready For Immediate Pickup or Delivery

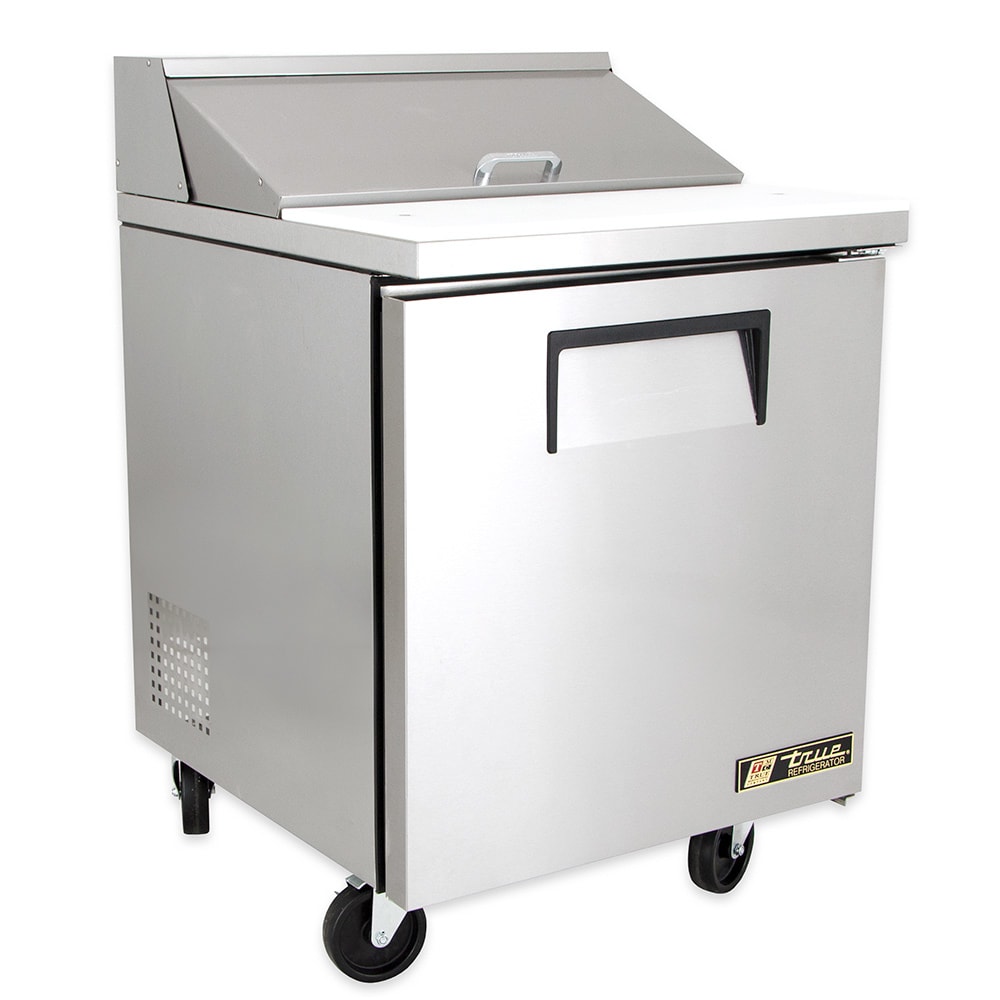

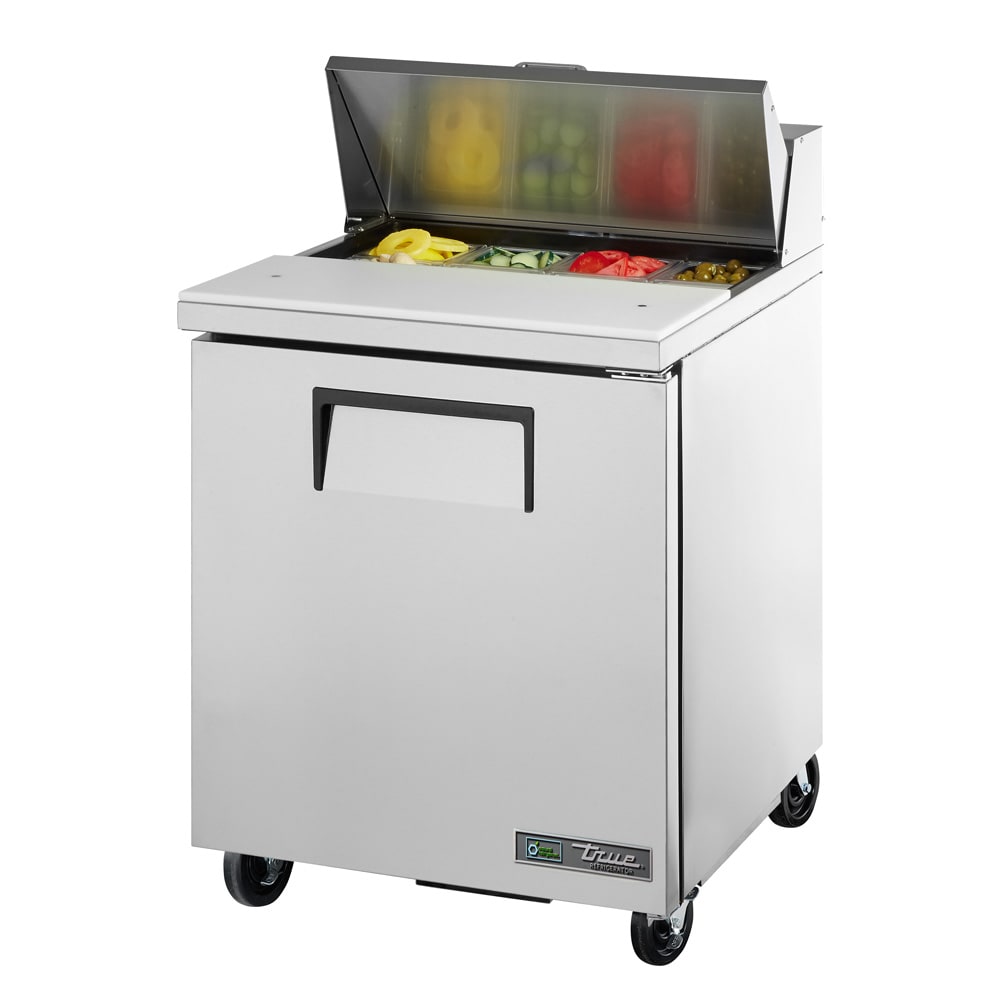

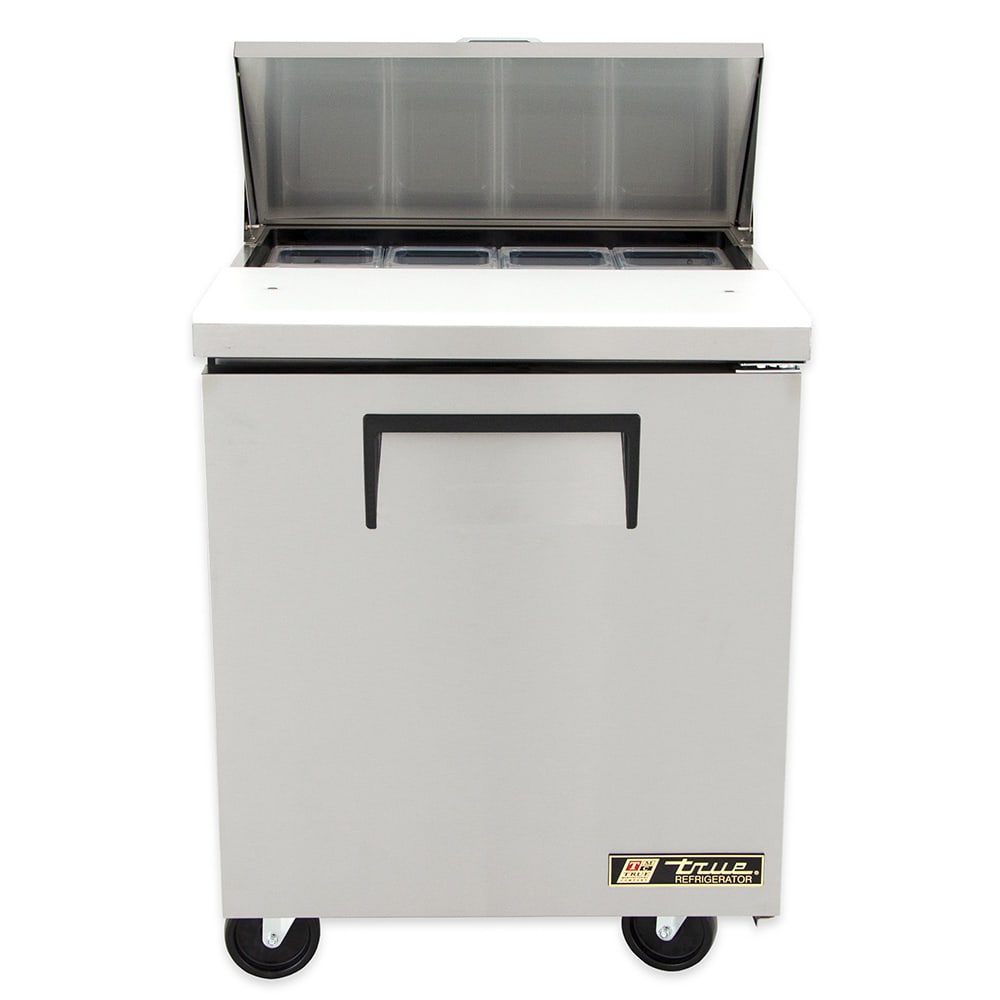

1 DOOR SALAD TOP REFRIGERATOR 8 PAN
6.5 CUBIC FEET

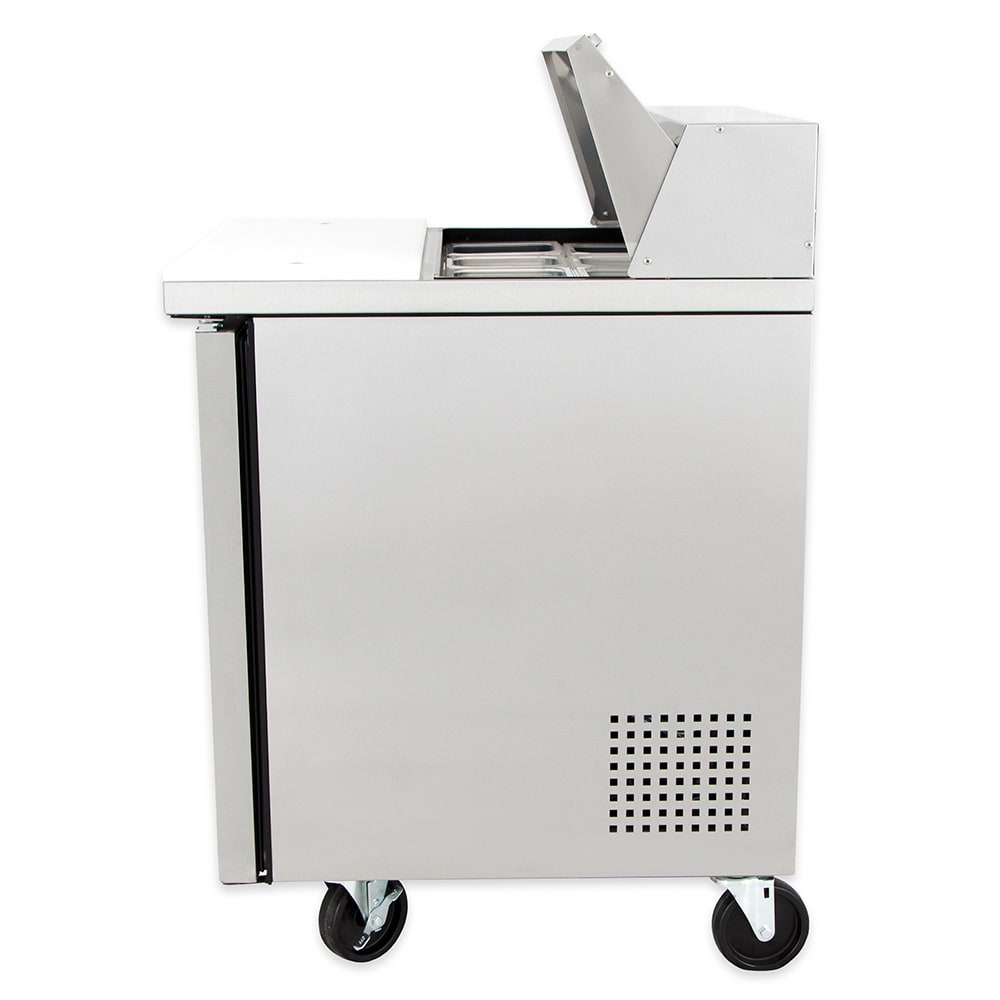

MODEL TSSU278

STANDARD FEATURES:

True® salad/sandwich units are designed with enduring quality that protects your long term investment.
Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33° F to 41° F (.5° C to 5° C).
Complies with and listed under ANSI/NSF-7-1997-6.3.

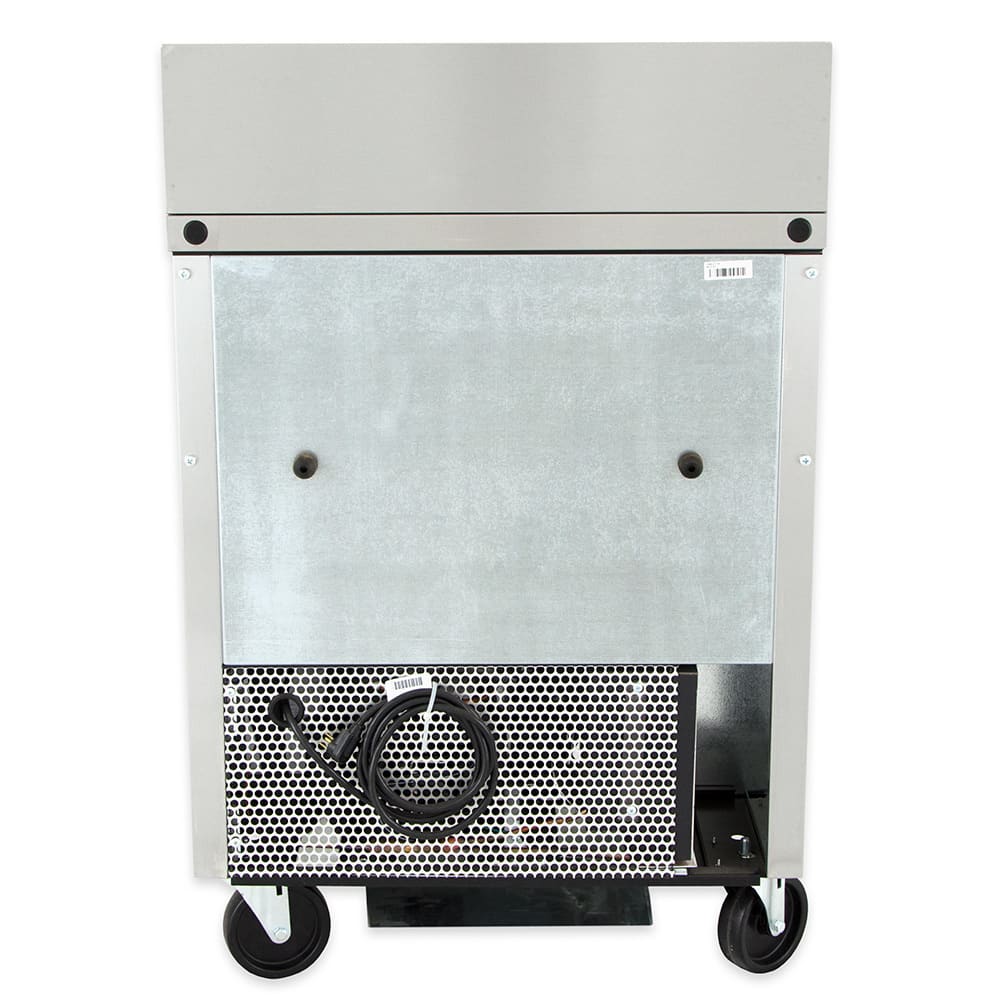

All stainless steel front, top and cabinet ends. Matching aluminum finished back.

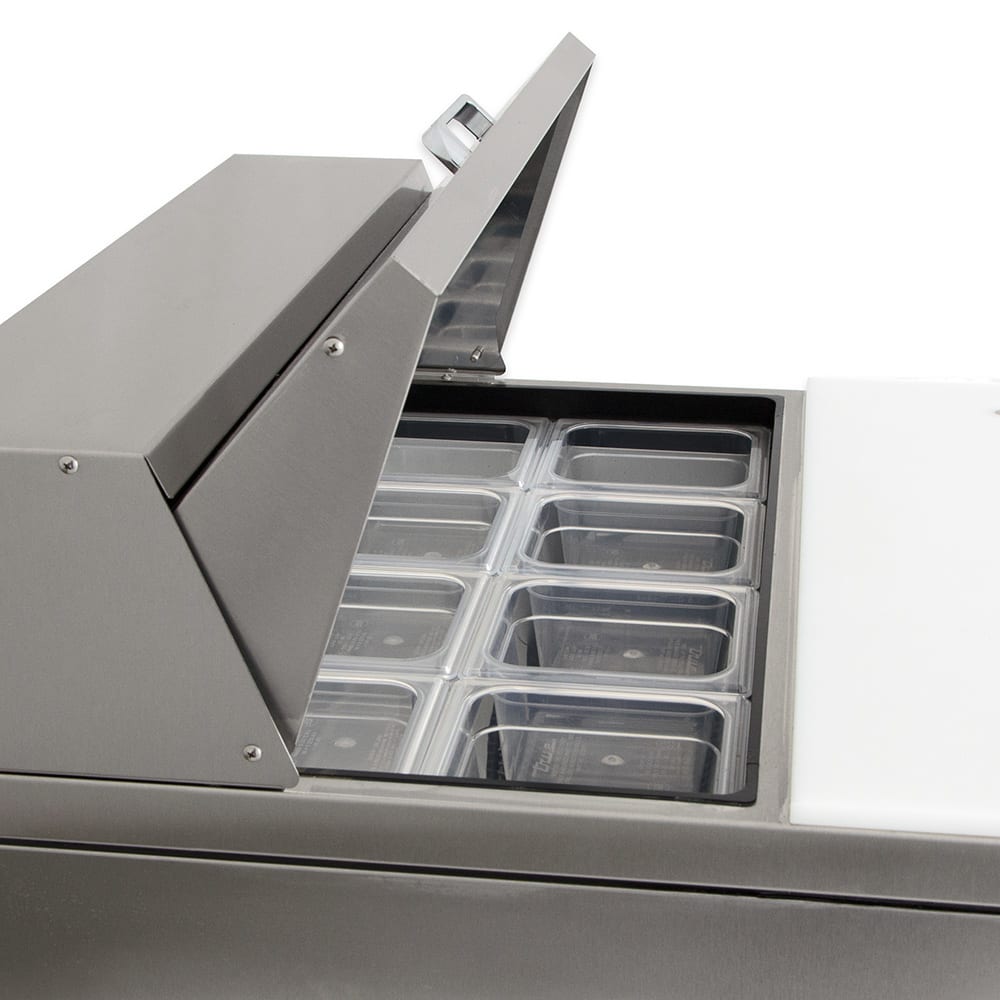

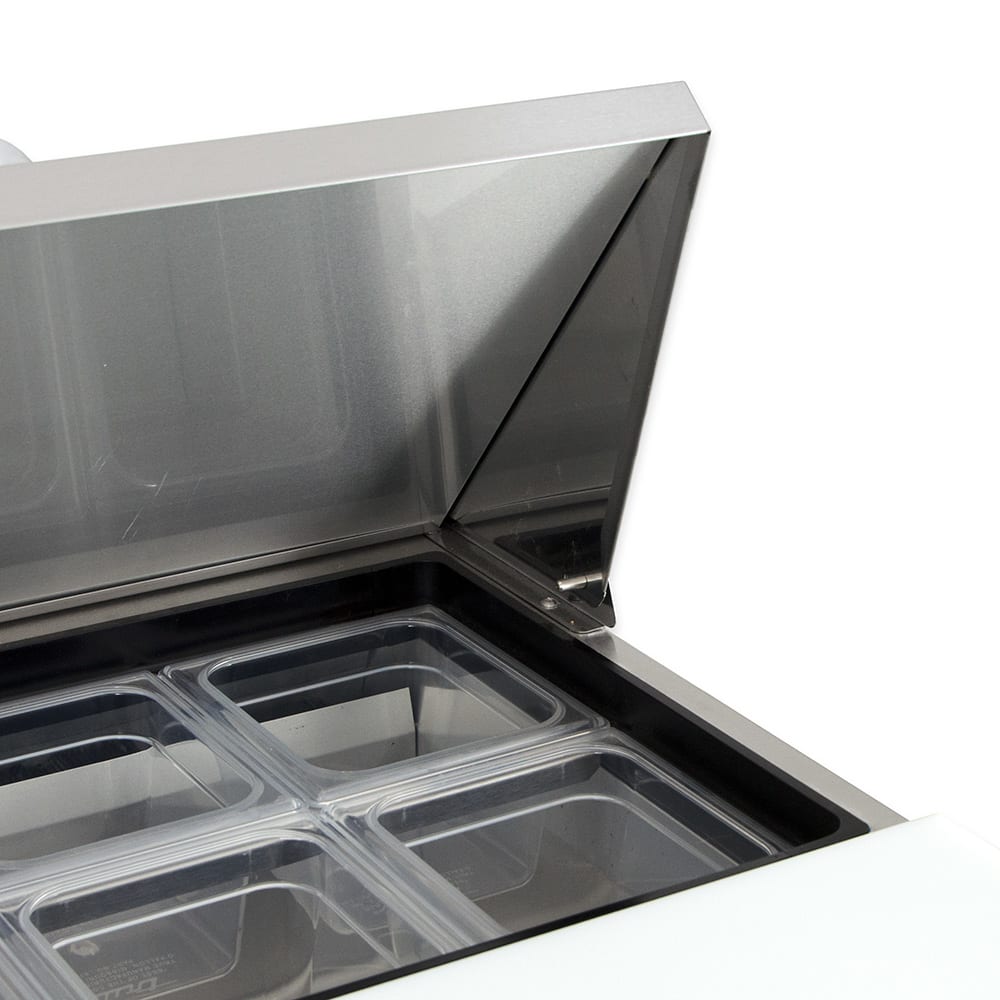

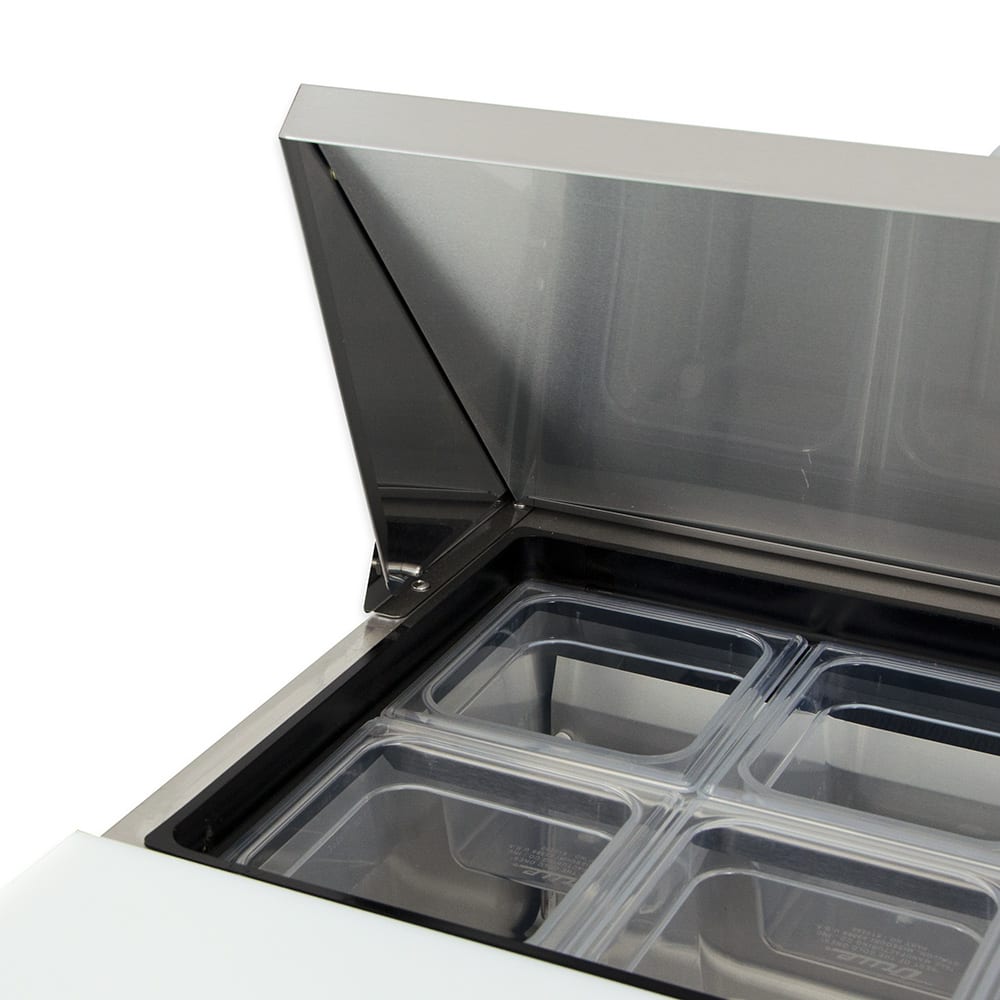

Stainless steel, patented, foam insulated lid and hood maintain uniform pan temperature, lock in freshness and minimize Condensation. Removable for easy cleaning.

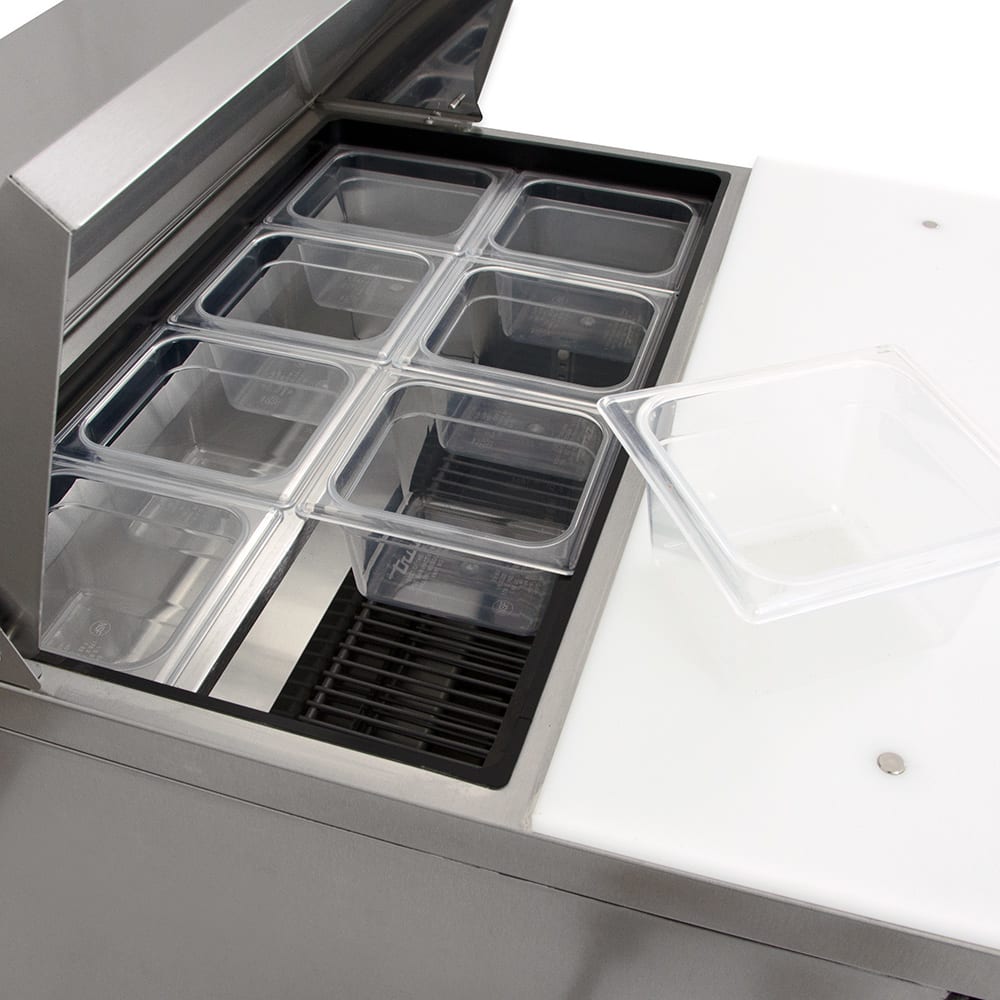

113/4" (299 mm) full length removable cutting board included. Sanitary, high density, NSF approved white polyethylene provides tough preparation surface.
Foamed-in-place, high density polyurethane insulation (CFC free).

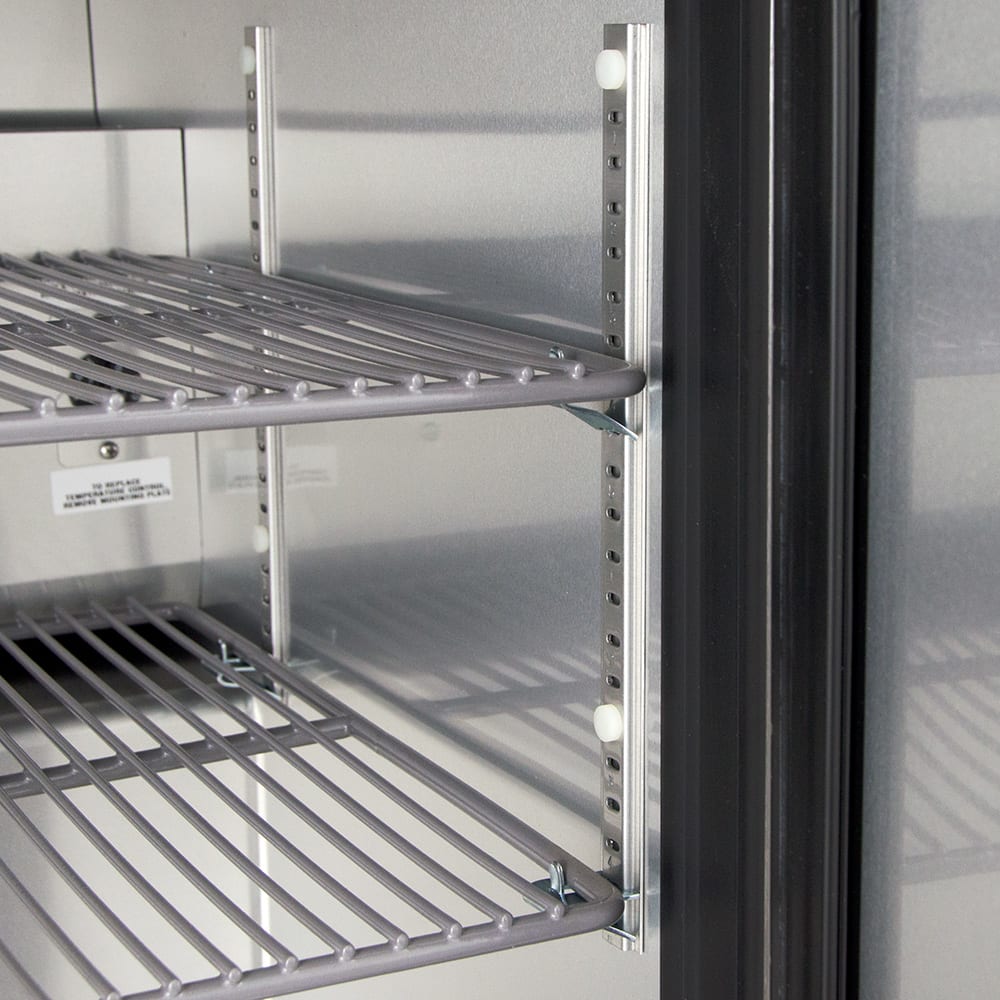

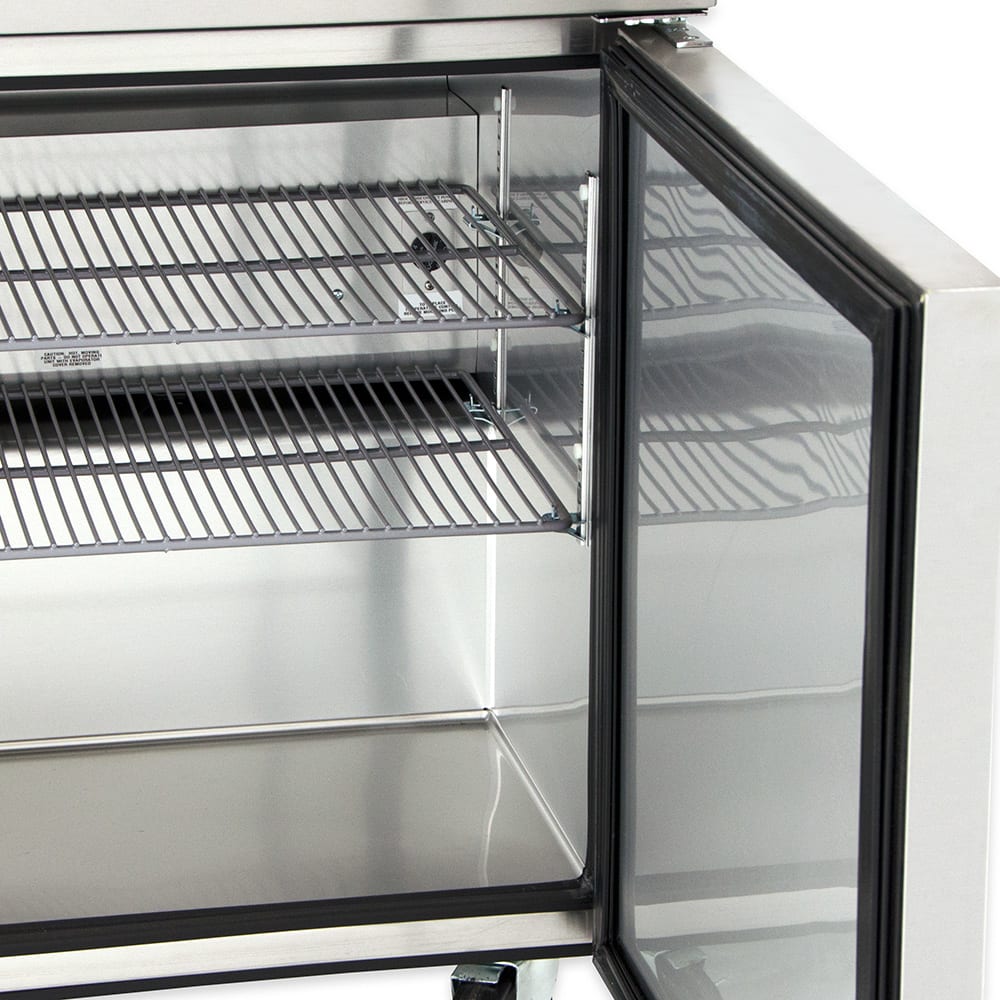

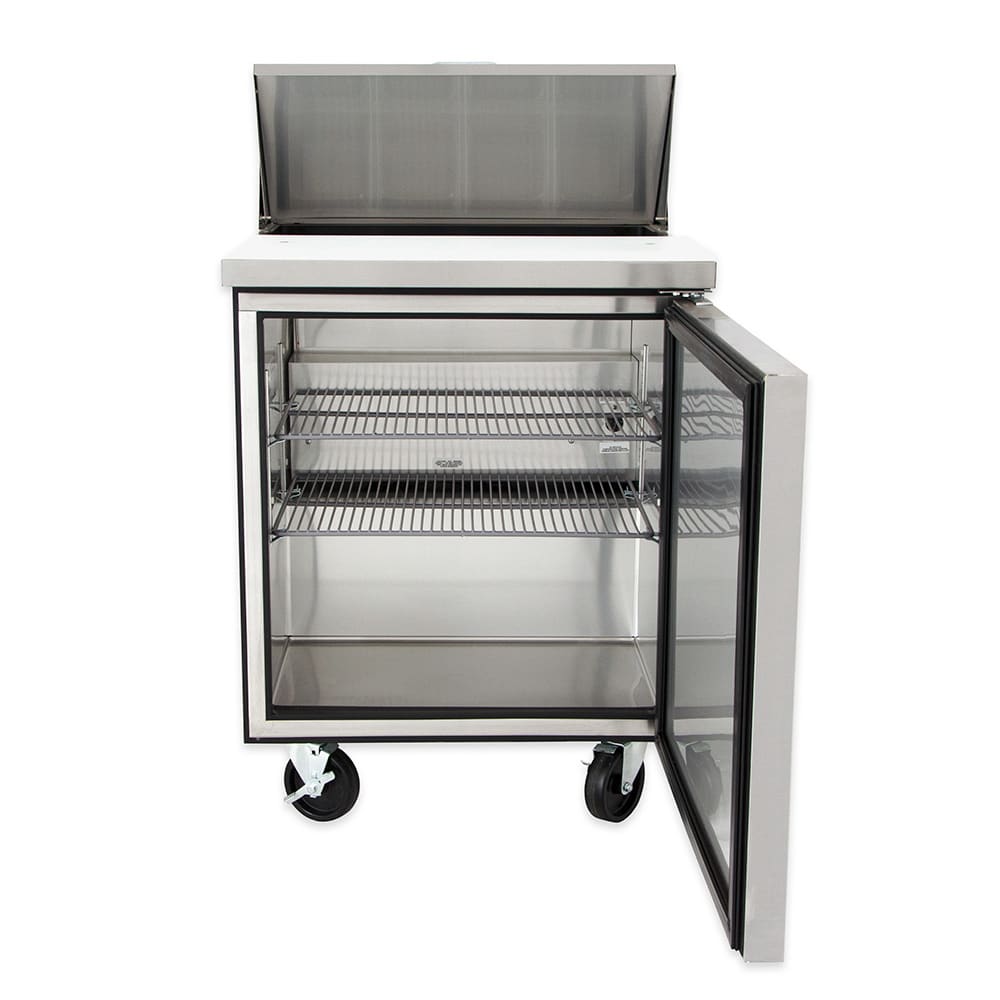

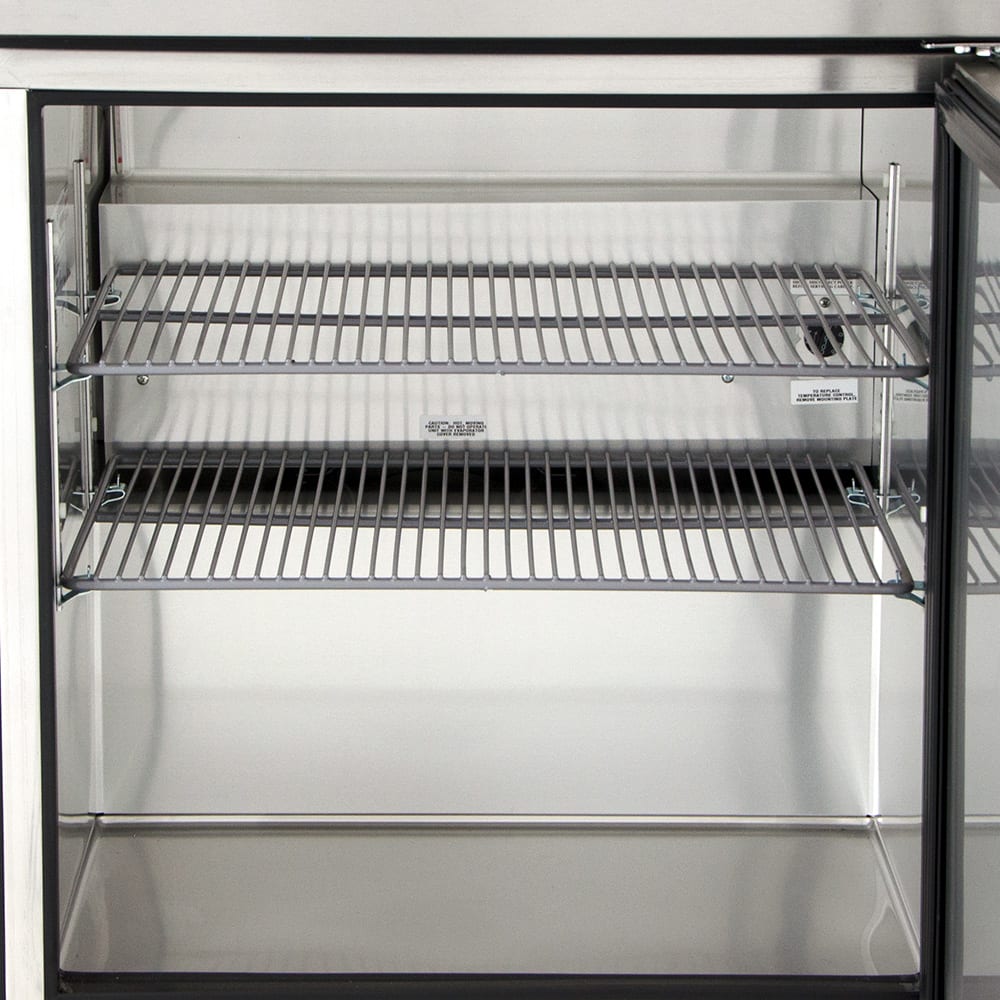

Heavy duty PVC coated wire shelves.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.

230 - 240V / 50 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
21/2" (64 mm) diameter castors.
Additional shelves.
Basic over shelf.
Single utility shelf.
Double utility shelf.
Sneeze guard.
19" (483 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets.

19" (483 mm) deep, 3/4" (20 mm) thick, white polyethylene cutting board. Requires L brackets.
1 13/4" (299 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
19" (483 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
Crumb catcher. Requires crumb catcher cutting board for proper installation.
Pan dividers.
ADA compliant models with 34" (864 mm) work surface height.
Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model

Doors

Capacity
(Cu. Ft.)
(Liters)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)
(total m)

Crated
Weight
(kg)

L **

H *

TSSU278

6.5

27 5/8

30 1/8

36 3/4

1/5

115/60/1

4.9

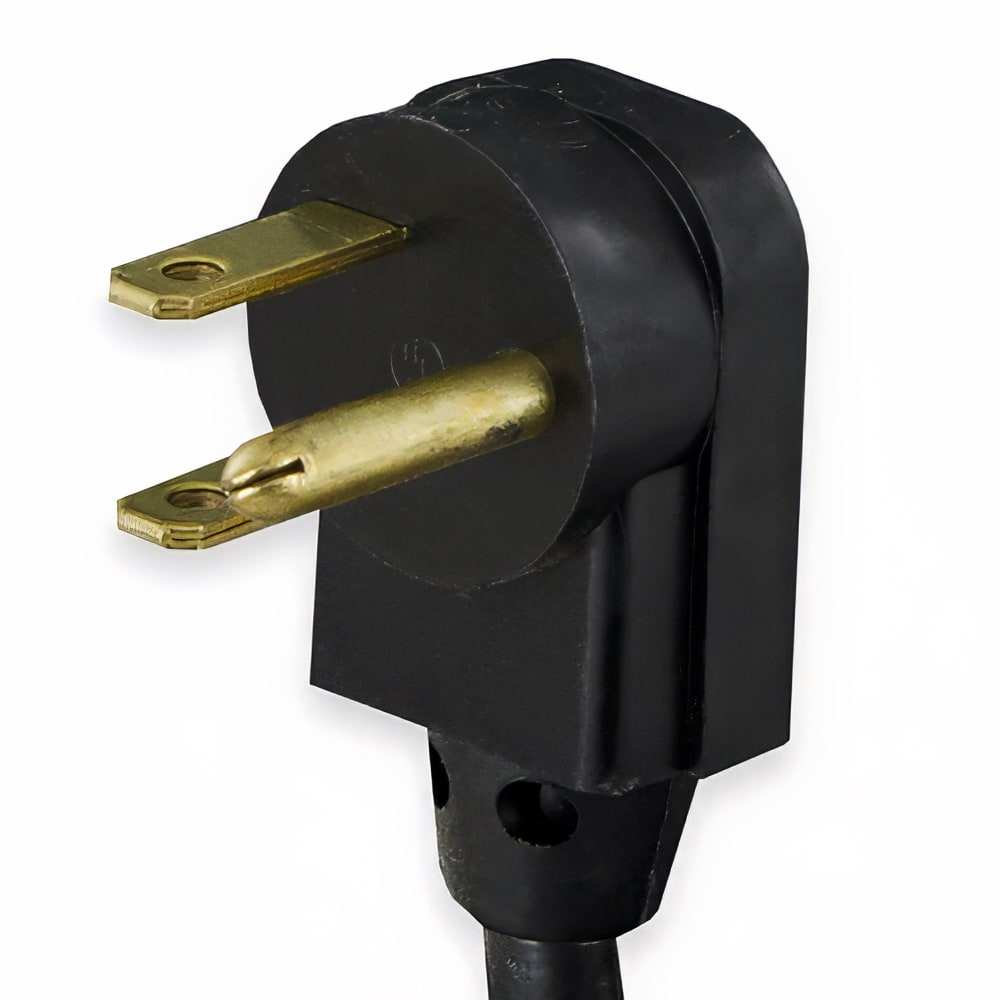

5-15P

200

185

702

766

934

1/4

230-240/50/1

2.9

▲

2.13

** Length does not include 1/8" (4 mm) each side for lid pins.
Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.

▲ Plug type varies by country.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	METRIC DIMENSIONS ROUNDED UP TO THE NEAREST WHOLE MILLIMETER SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
			TSSU278	TFNY01E	TFNY01S	TFNY01P	TFNY013
