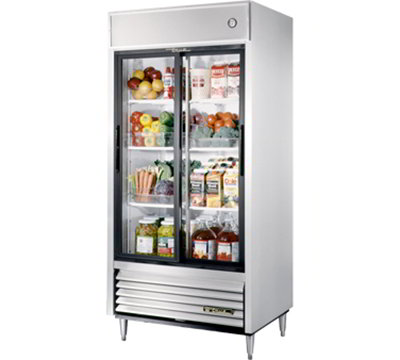

Refrigerator, Reach-In, 2 Section/Glass Sliding Doors, 33 cu ft

MODEL TSD33G

STANDARD FEATURES:

• Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.
• Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C) for the best in food preservation.
• Energy efficient, Low-E, double pane thermal glass doors.
• Adjustable, heavy duty PVC coated shelves.
• NSF-7 compliant for open food product.
• Unique space saving design for space tight kitchens.

Bottom Mounted Units Feature:

• No stoop lower shelf.
• Storage on top of cabinet.
• Compressor performs in coolest, most grease free area of kitchen.
• Easily accessible condenser coil for cleaning.

DESIGN:

• True®’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, superior food safety and the best value in today's food service marketplace.

REFRIGERATION SYSTEM:

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 33° F to 38° F (.5° C to 3.3° C ) for the best in food preservation.

• Sealed, cast iron, self-lubricating evaporator fan motor and larger fan blades give True reach-in's a superior low velocity, high volume airflow design. This unique design insures faster temperature recovery and shorter run times in the busiest of food service environments.

• Bottom mounted condensing unit positioned for easy cleaning. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

CABINET CONSTRUCTION:

• Exterior - 300 series stainless steel front grill and shroud. Anodized quality aluminum exterior ends and back.

• Interior - attractive, NSF approved, white aluminum liner. 300 series stainless floor with coved corners.

• Insulation - entire cabinet structure and solid door is foamed-in-place using high density, CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.

• Frame rail fitted with 6" (153 mm) diameter  stem castors - locks provided on front set.

DOORS:

• Low-E, double pane thermal glass inserts with mitered plastic channel frames.

• Self-closing doors, efficient counter balanced weight system for smooth, even, positive closure. Sliding doors ride on stainless steel V-  Channel with stainless steel bearings. Doors fit within plastic  channel frame.

• Each door is fitted with a 12" (305 mm) long molded plastic handle.

SHELVING:

• Six (6) adjustable, heavy duty PVC coated wire shelves 171/4"L x 211/8"D (439 mm x 537 mm). Four (4) chrome plated shelf clips included per shelf.

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING:

• Safety shielded fluorescent interior lighting.

MODEL FEATURES:

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• NSF-7 compliant for open food product.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.



OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• 230 - 240V / 50 Hz.

• 4" (102 mm) diameter castors.

• Seismic/flanged legs.

• Door locks.

• Stainless steel interior.

• Additional shelves.

• Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

Specifications subject to change without notice
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
