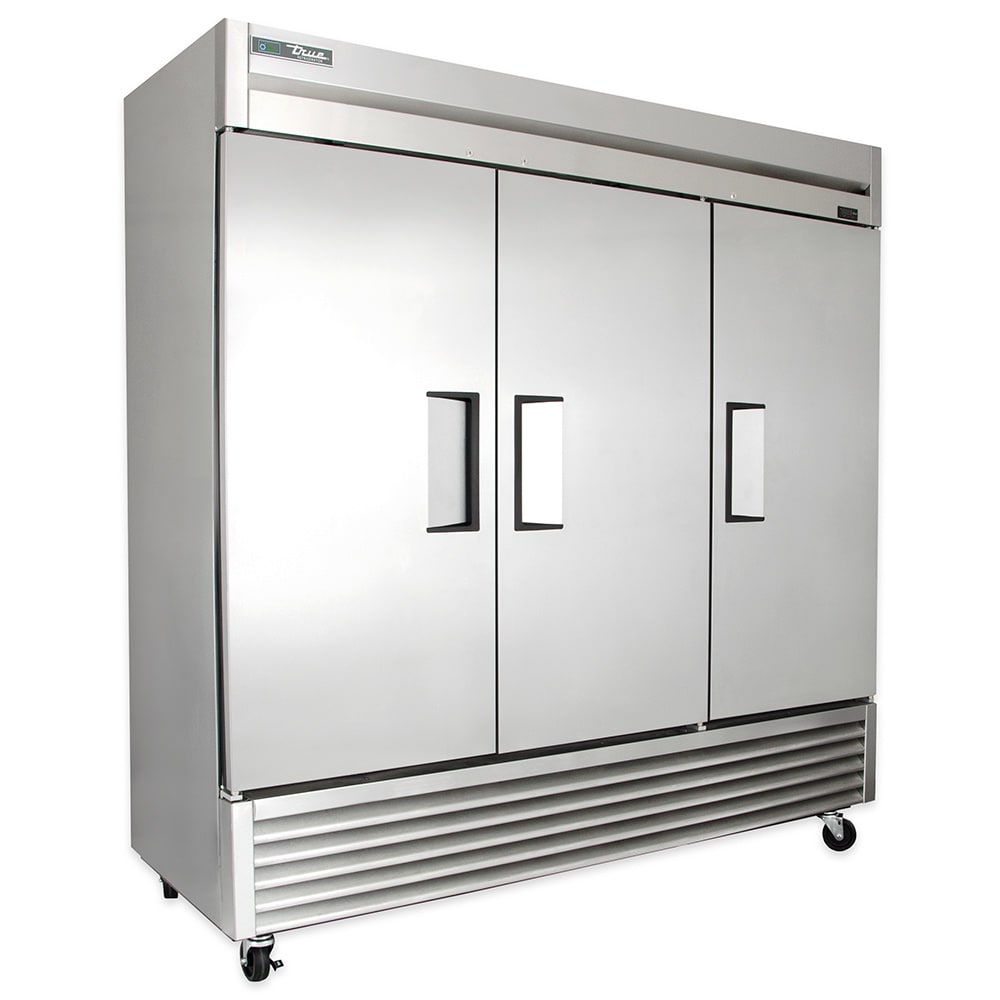

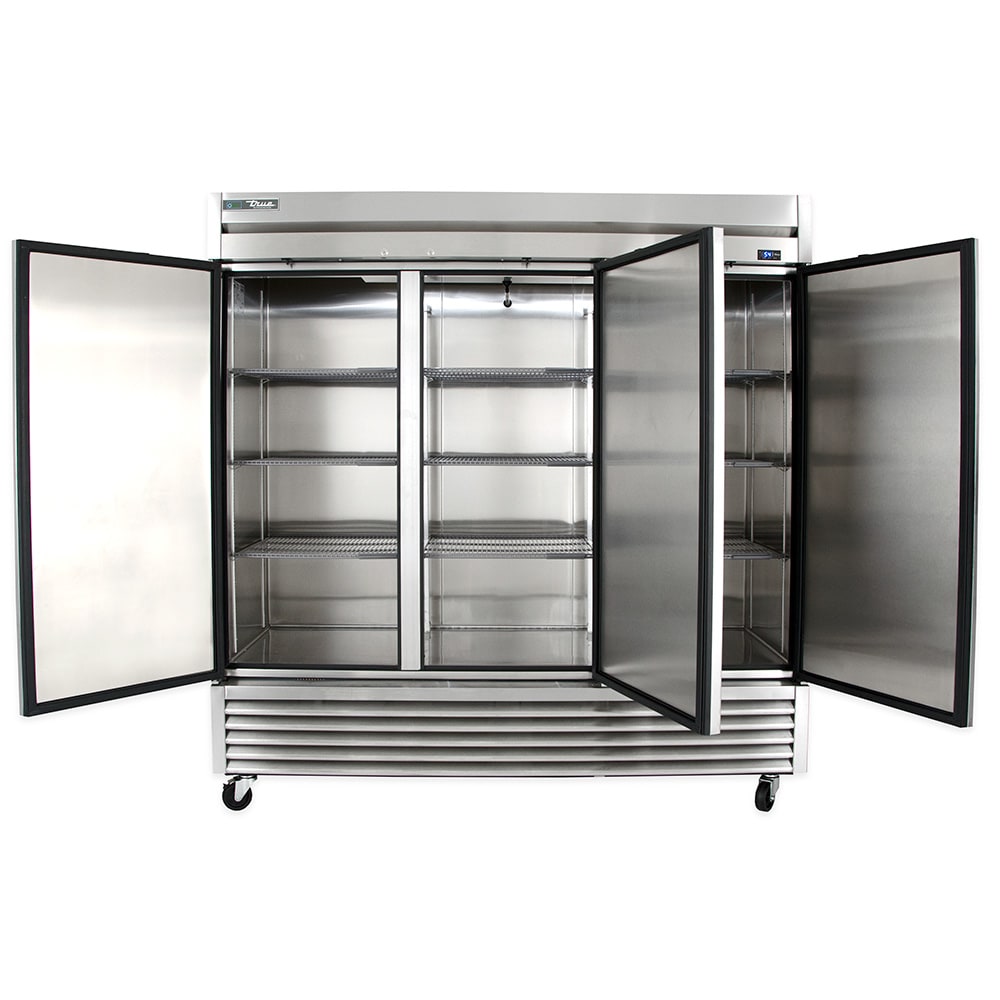

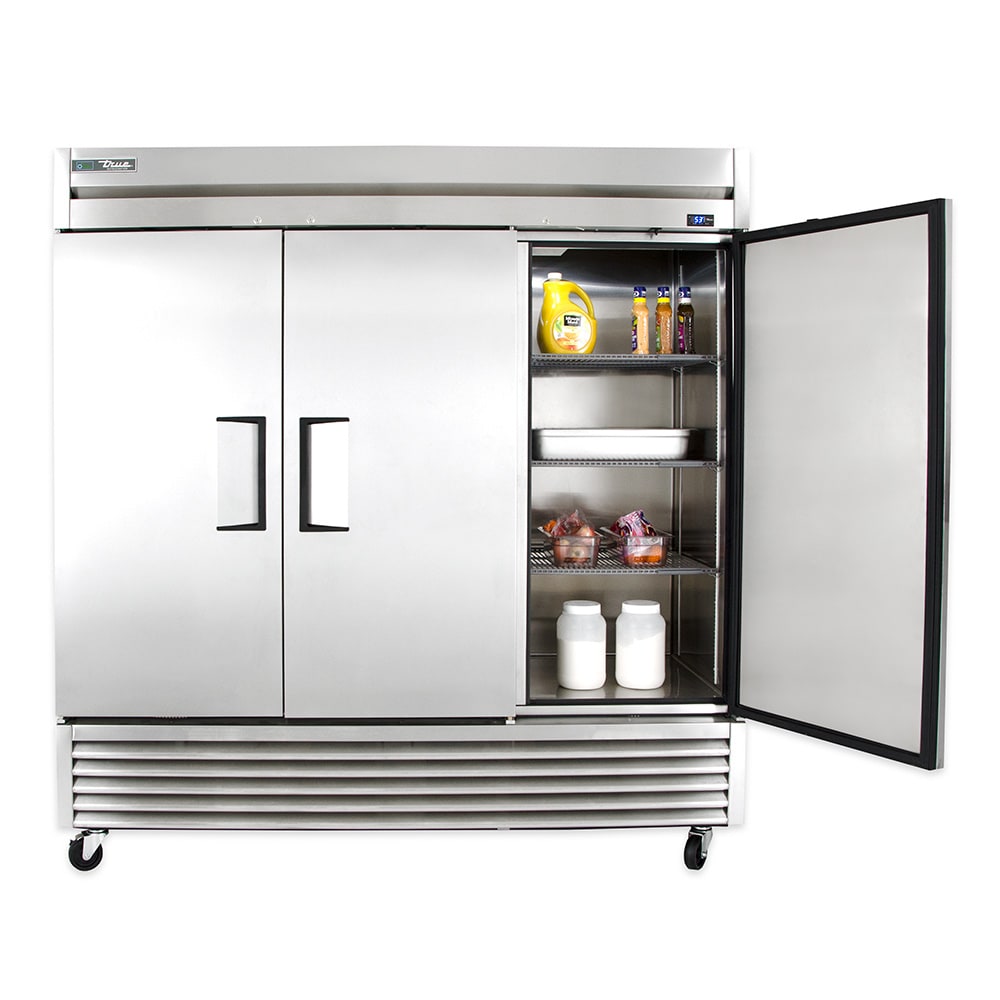

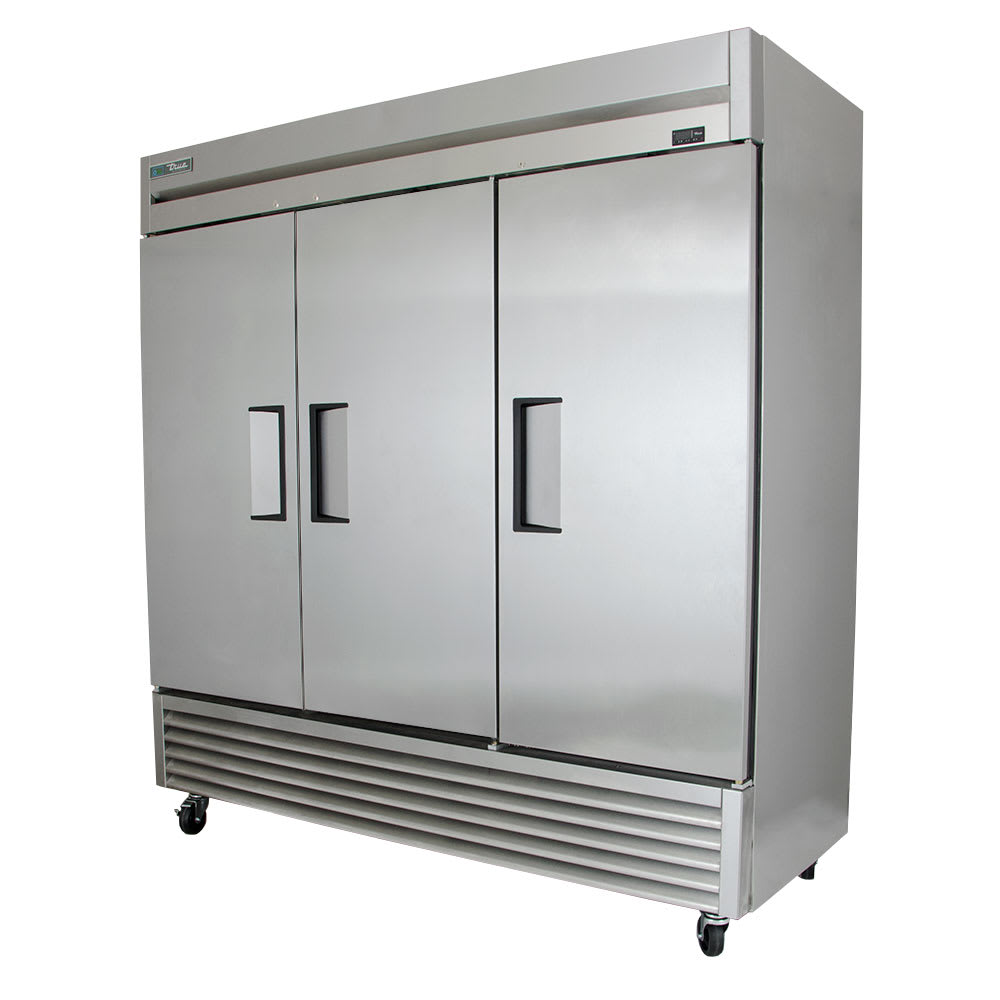

Refrigerator, Reach-In, 3 Section/SS Doors, 9 Shelves, 72 cu ft

MODEL TS72

STANDARD FEATURES:

• Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C) with  the best in food preservation.
• 300 series stainless steel solid doors, front and sides.  The very finest stainless for higher tensile strength for fewer dents and scratches.
• Adjustable, heavy duty PVC coated shelves.
• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

Bottom Mounted features:

• No stoop lower shelf.
• Storage on top of cabinet.
• Compressor performs in coolest, most grease free area of kitchen.
• Easily accessible condenser coil for cleaning.

REFRIGERATION SYSTEM:

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains 33° F to 38° F (.5° C to 3.3° C) for the best in food preservation.

• Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True reach-ins a superior low velocity, high volume airflow design. This unique design insures faster temperature recovery and shorter run times in the busiest of food service environments.

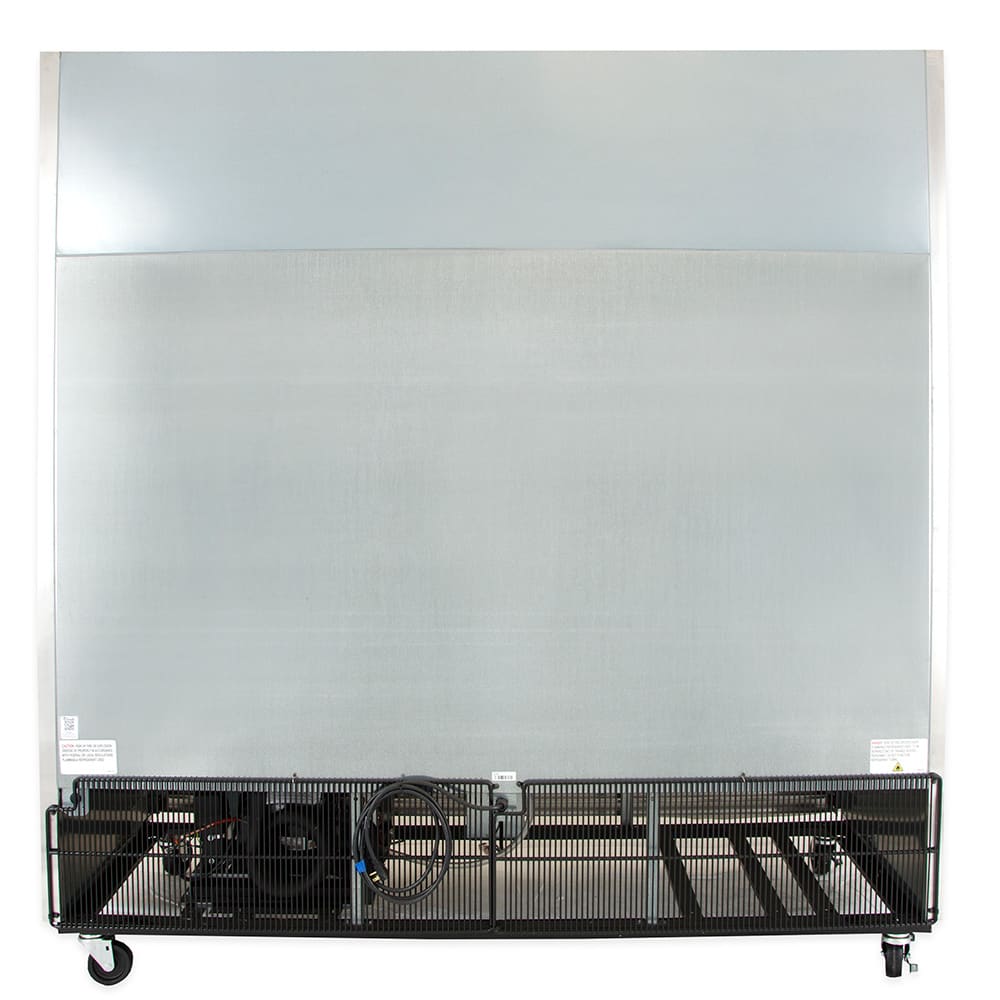

• Bottom mounted condensing unit positioned for easy maintenance.  Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

CABINET CONSTRUCTION:

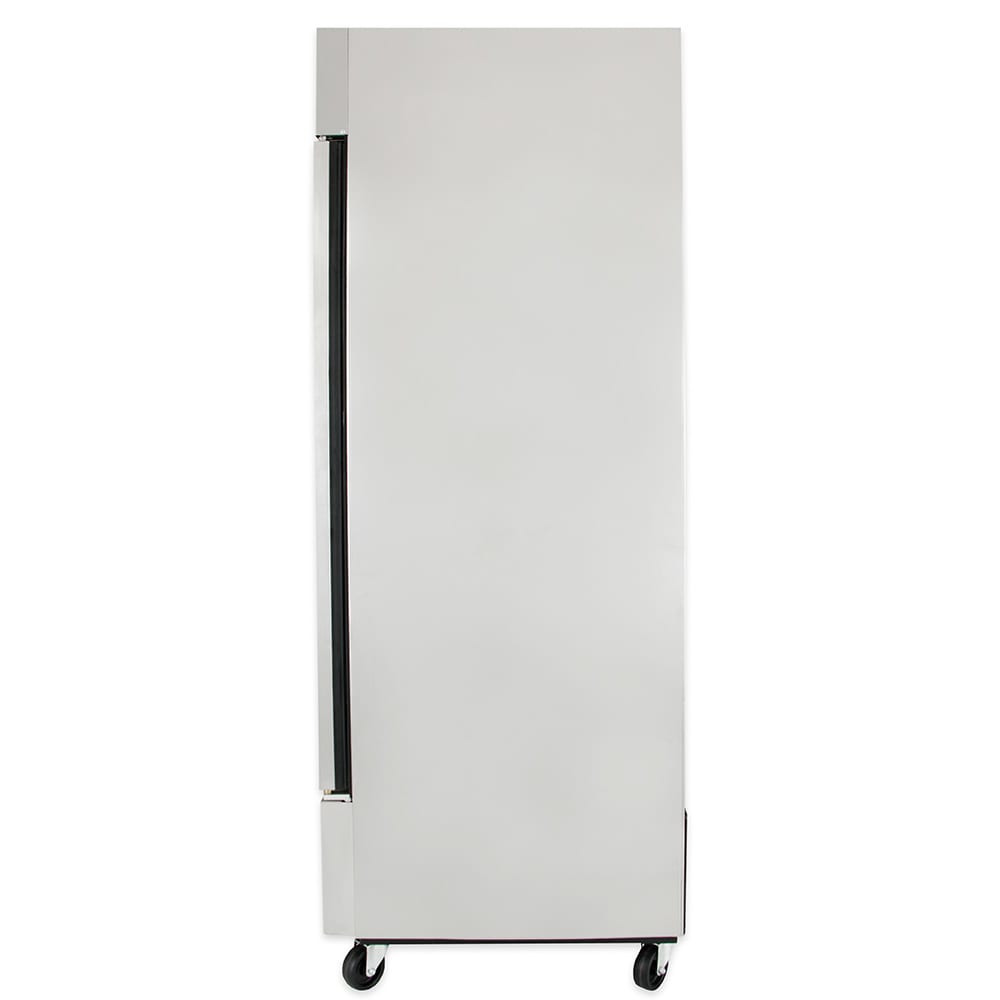

• Exterior - 300 series stainless steel doors, front and sides. Matching aluminum back.

• Interior - 300 series stainless steel liner and floor.

• Insulation - entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.

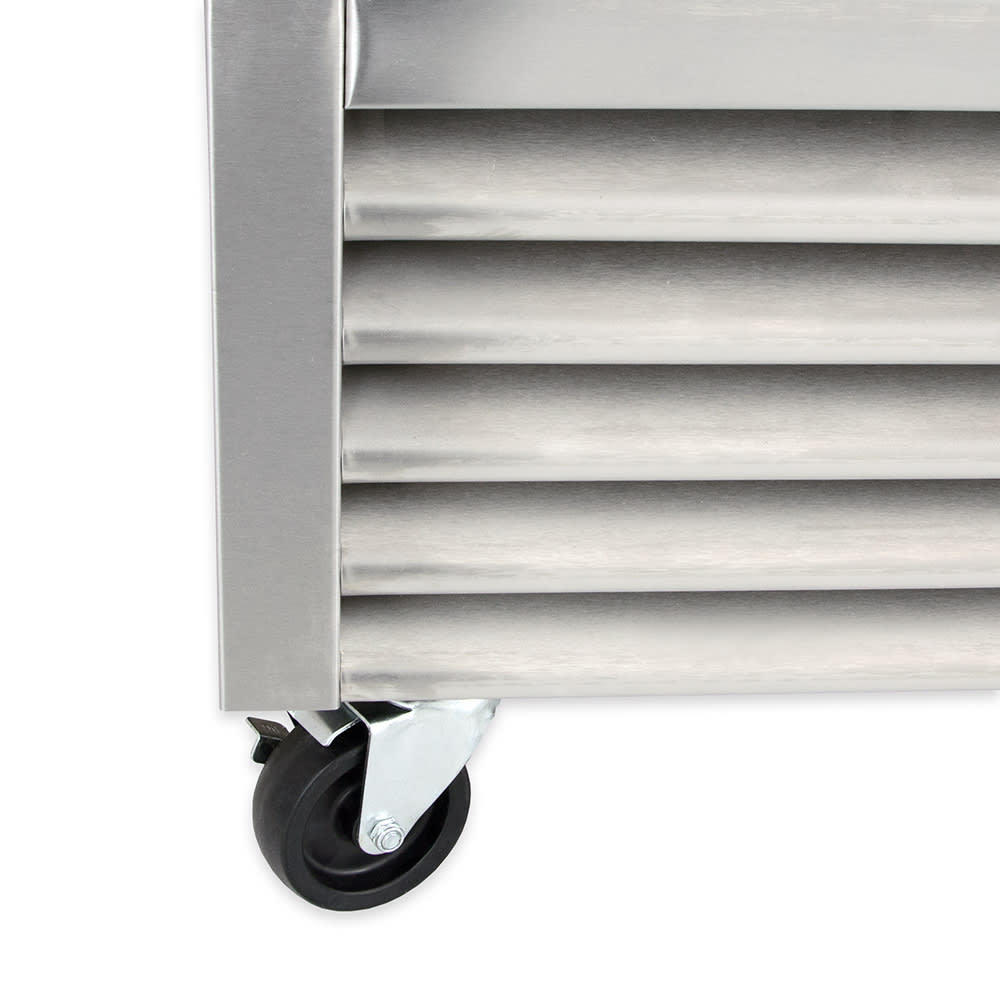

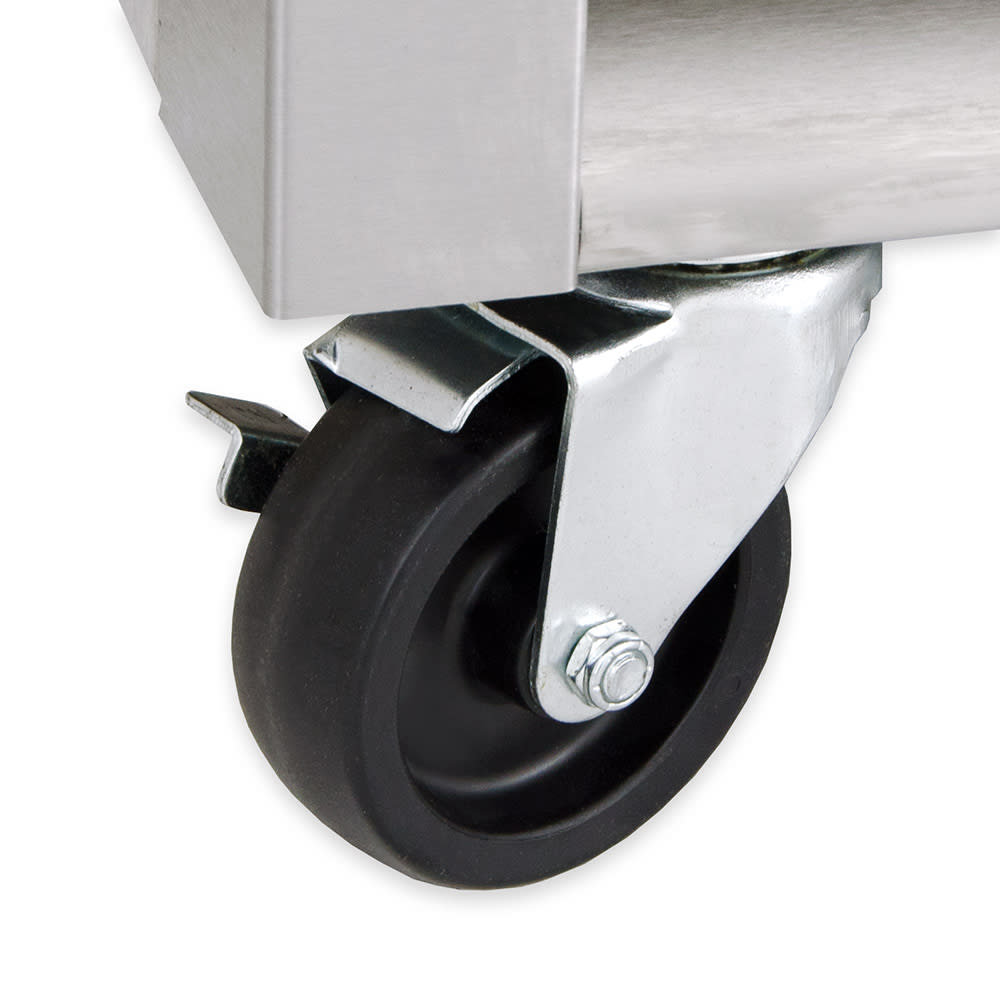

• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

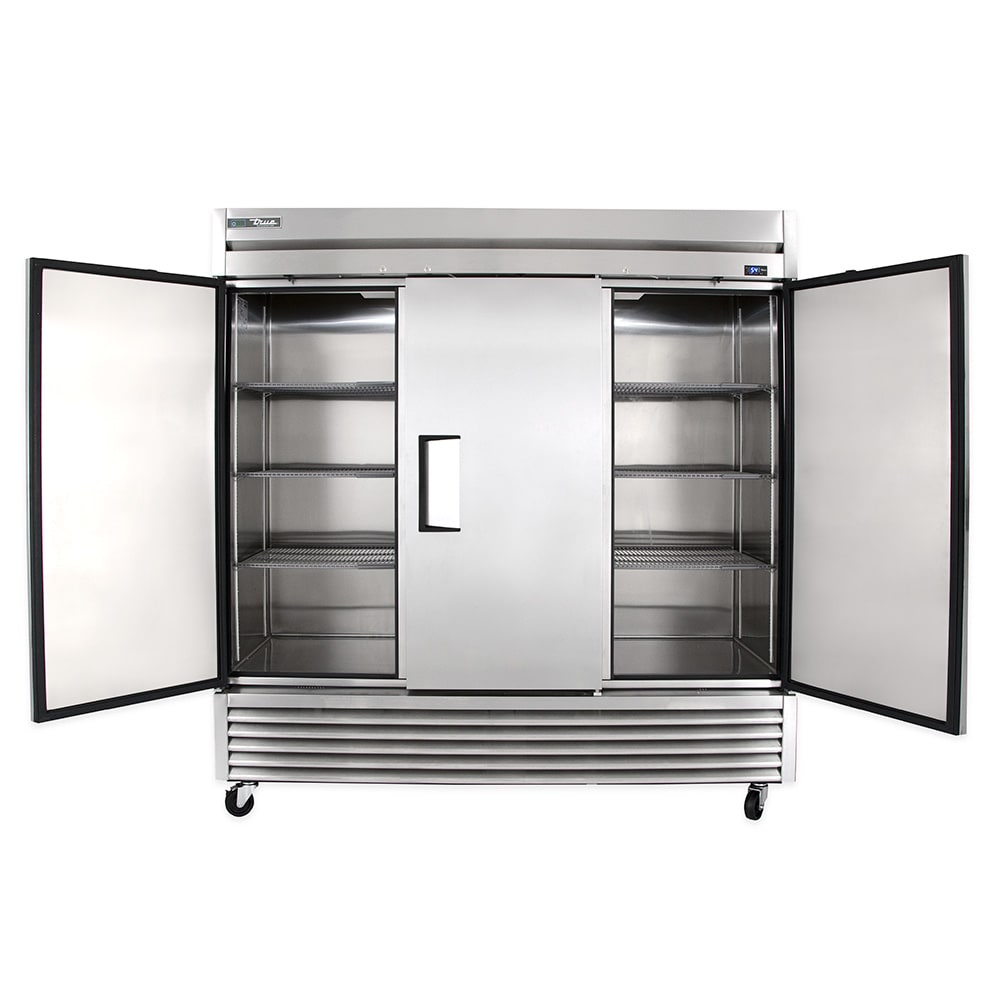

DOORS:

• 300 series stainless steel exterior and door liner. Doors extend full width of cabinet shell. Door locks standard.

• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

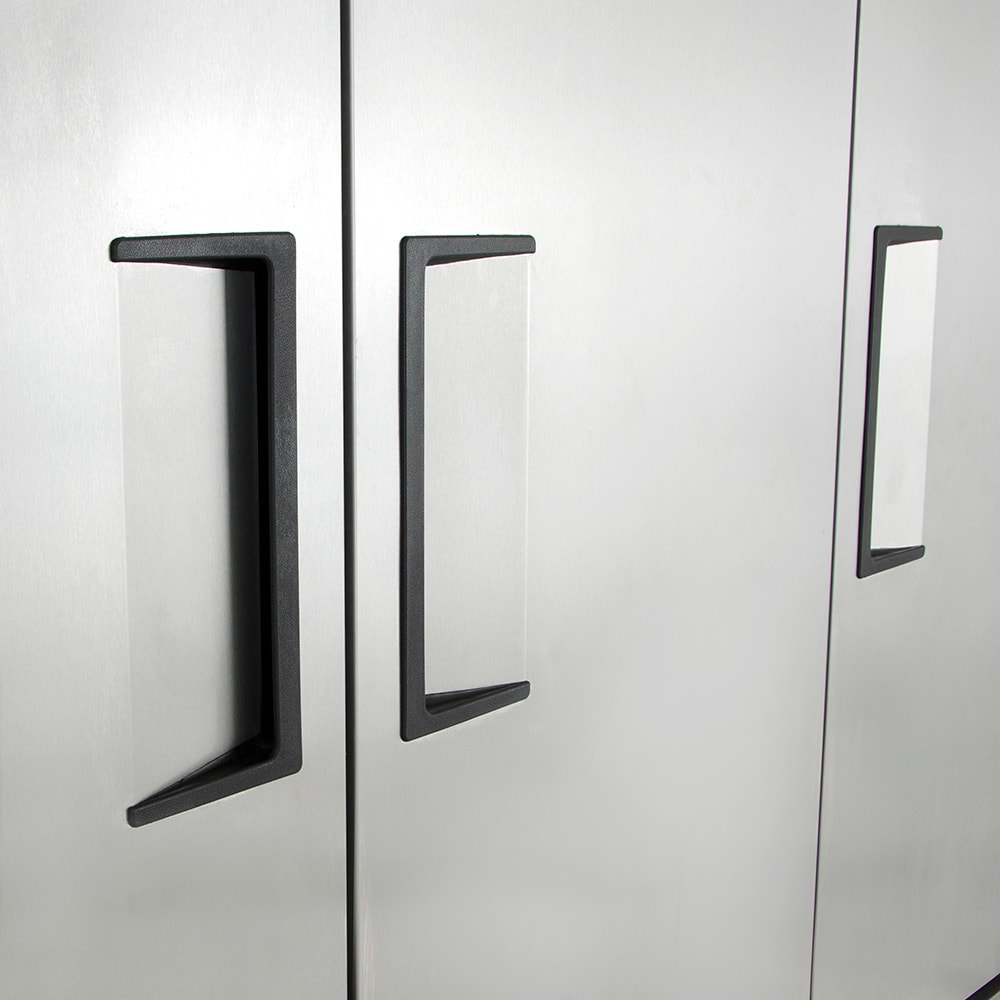

• Lifetime guaranteed recessed door handles standard. Each door fitted with 12" (305 mm) long recessed handle that is foamed in-place with a sheet metal interlock to insure permanent attachment.

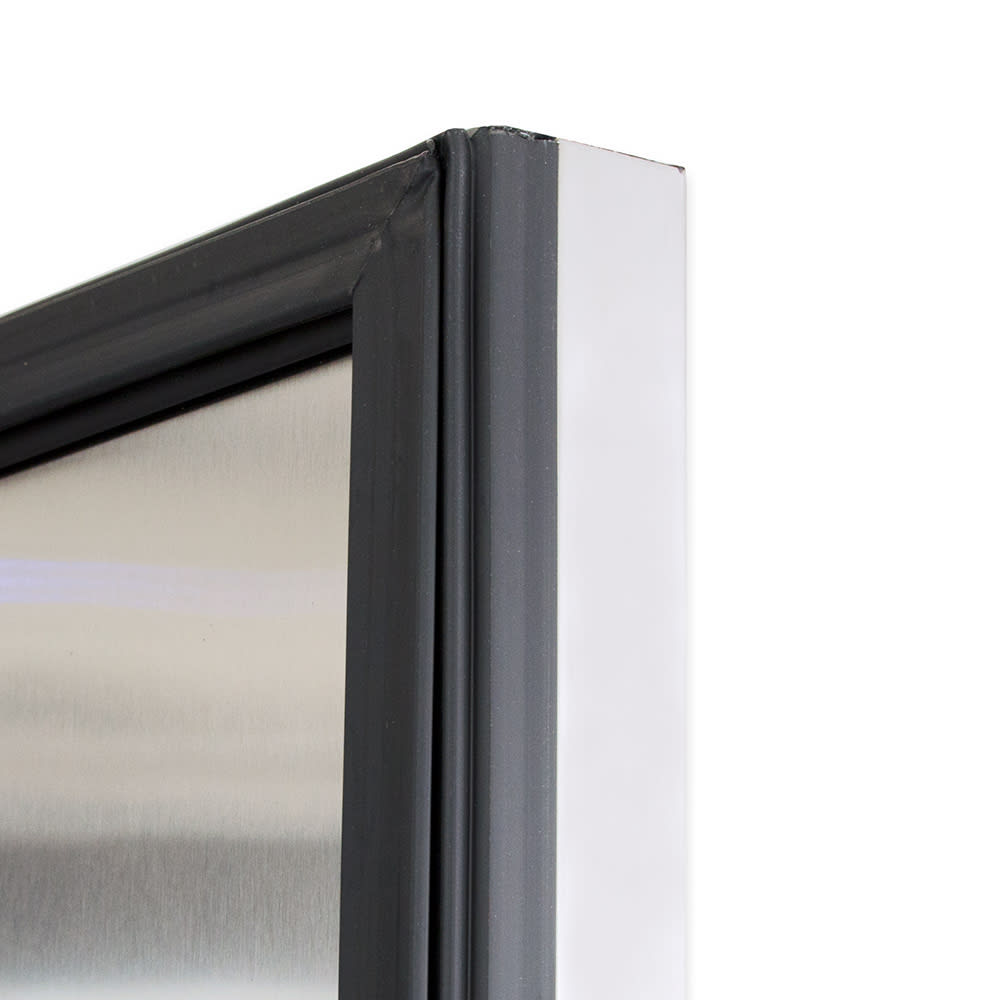

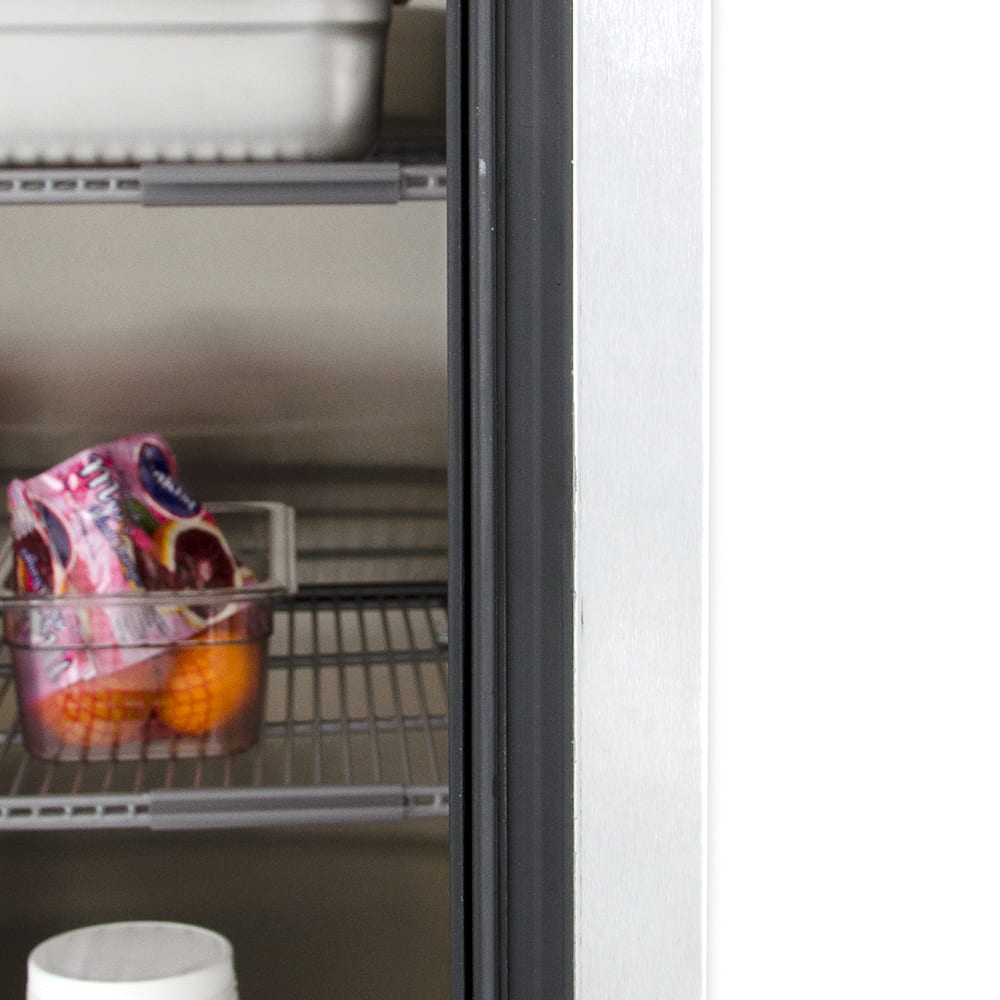

• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

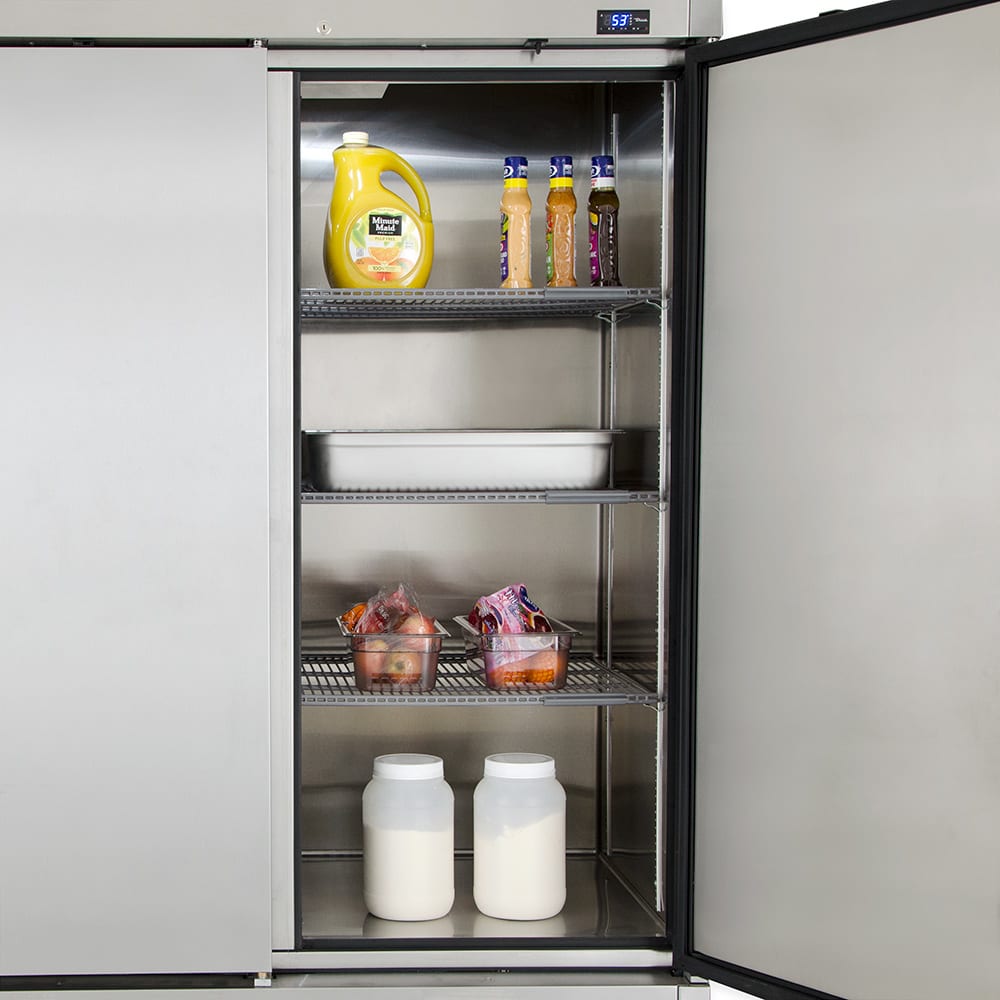

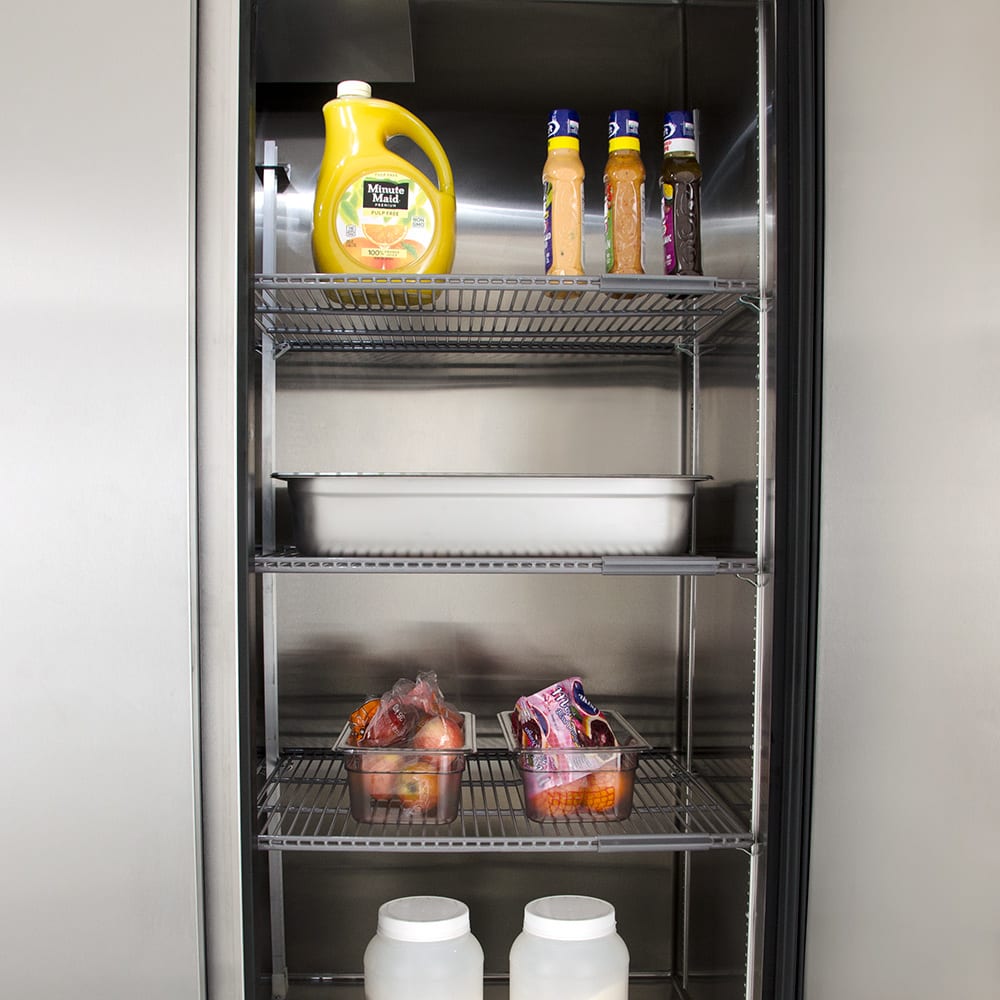

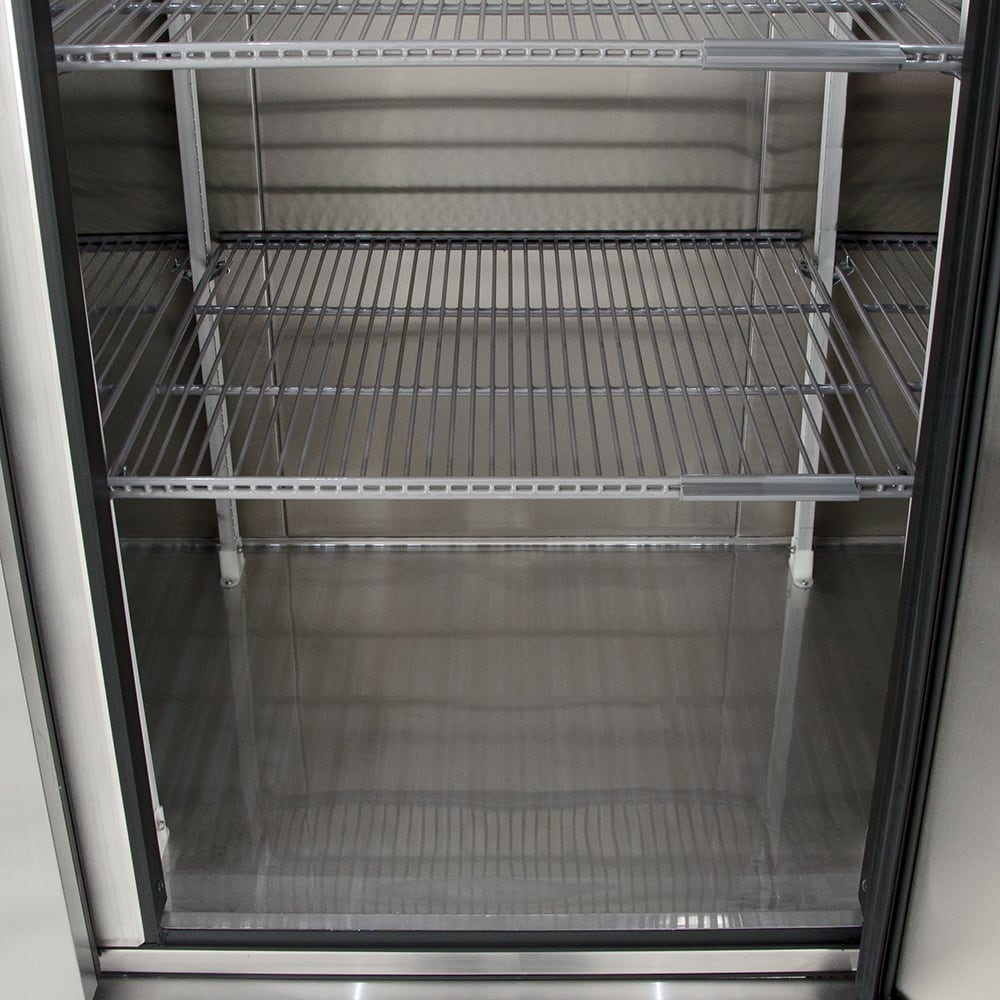

SHELVING:

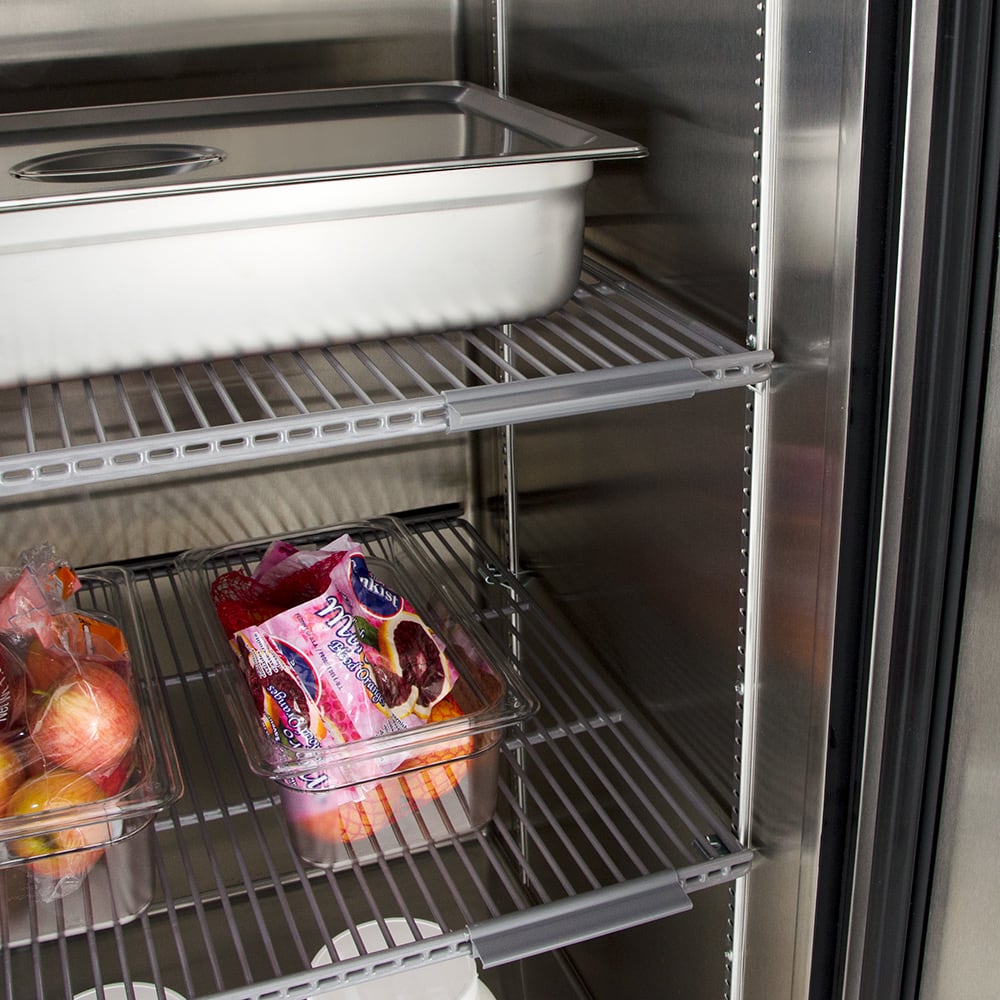

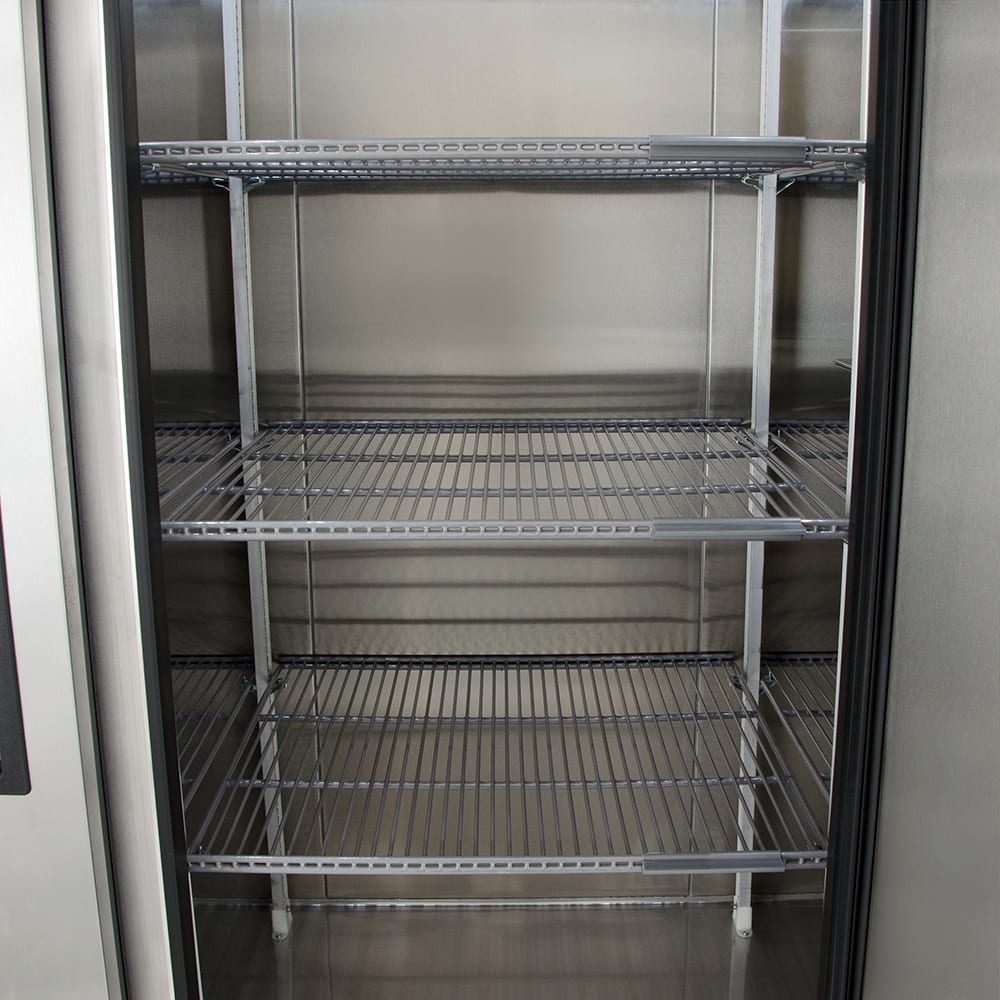

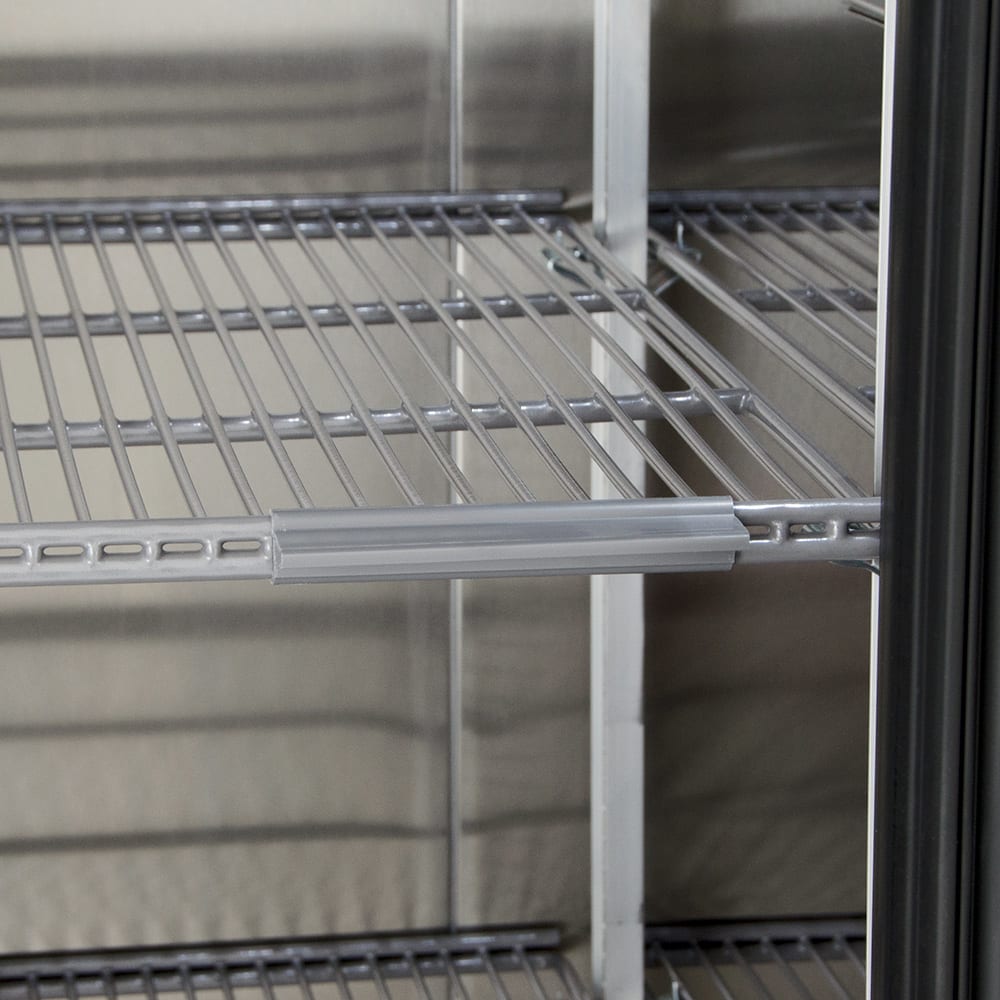

• Three (3) adjustable, heavy duty PVC coated wire shelves. 241/8"L x 223/8"D (613 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.

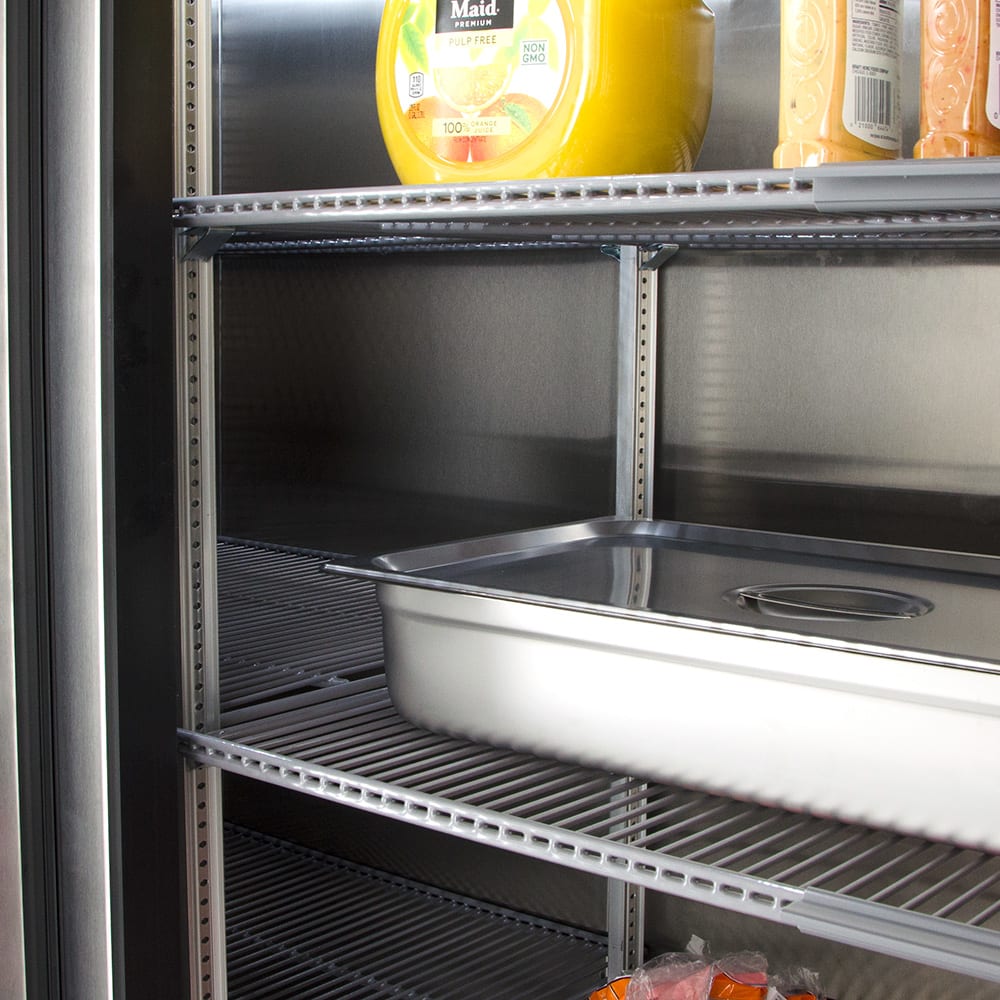

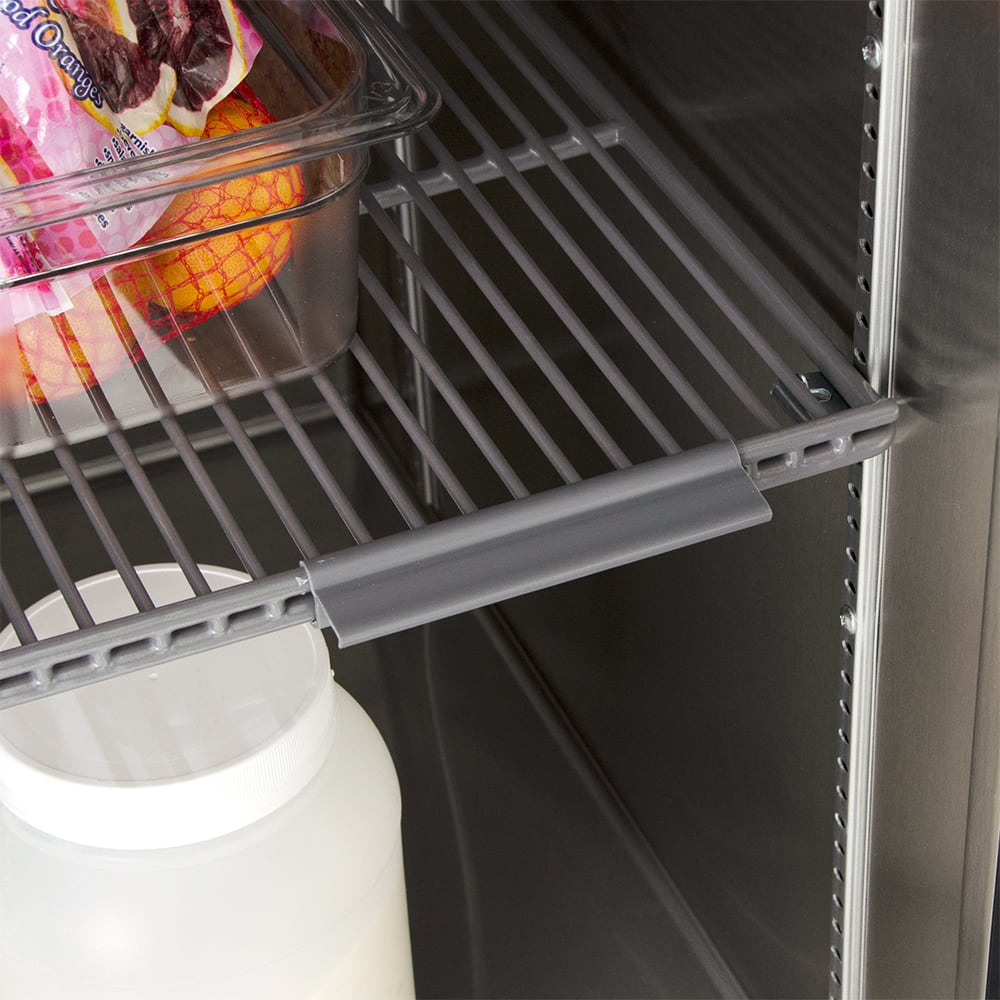

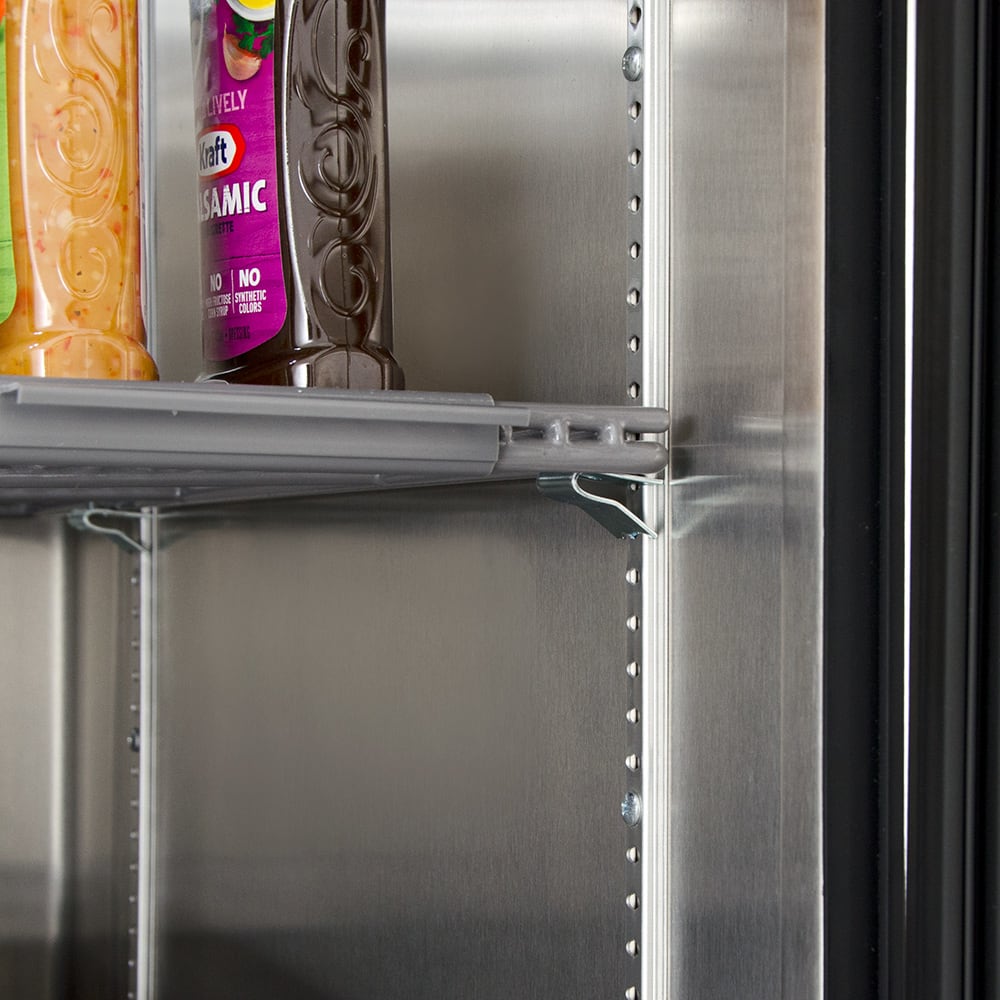

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING:

• Incandescent interior lighting - safety shielded. Lights activated by rocker switch mounted above door.

MODEL FEATURES:

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• NSF-7 compliant for open food product.

ELECTRICAL CHARACTERISTICS:

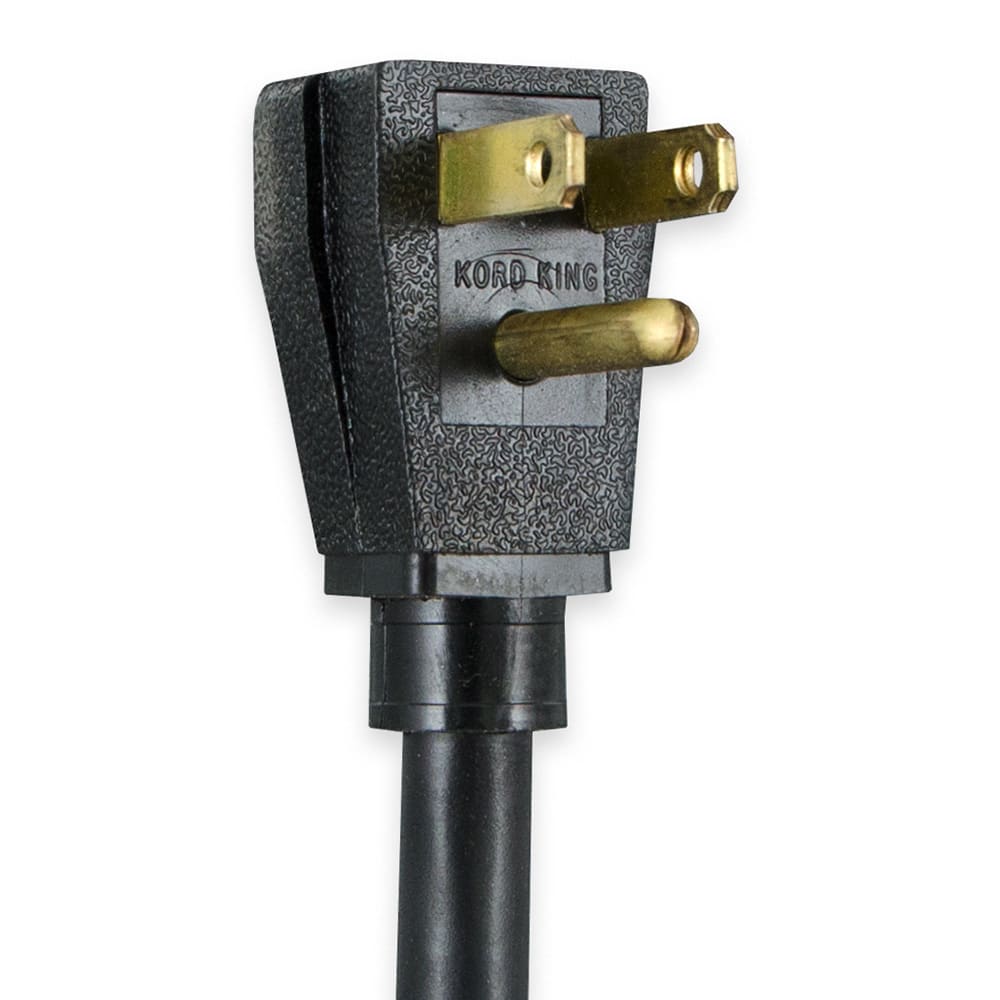

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included. True requires that a sole use circuit be dedicated for the unit.

• A sole use circuit is required.



OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• 230 - 240V / 50 Hz.

• 6"(153 mm) standard legs.

• 6" (153 mm) seismic/flanged legs.

• Alternate door hinging (factory installed).

• Additional shelves.

• Half door bun tray racks. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).

• Full door bun rack. Holds up to twenty two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).

• Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

Specifications subject to change without notice.
