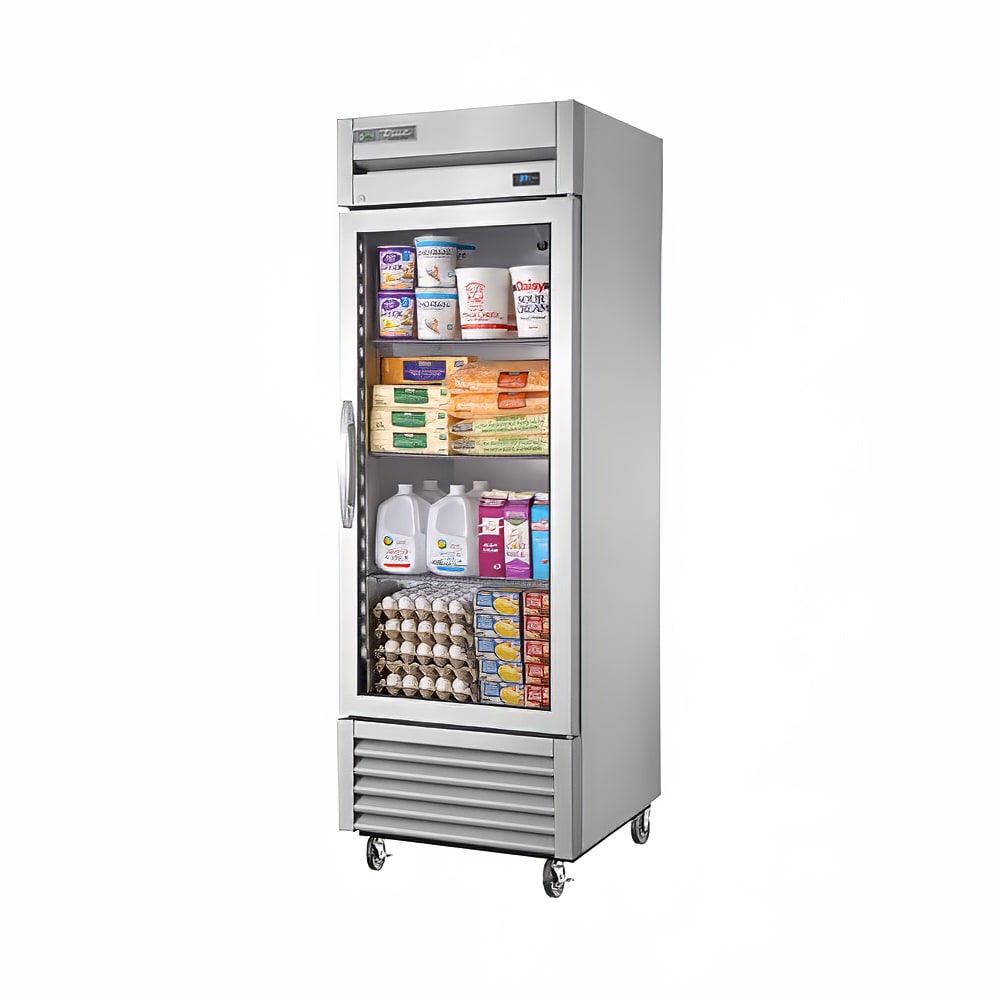

Refrigerator, Reach-In, 1 Section/Glass Door, 3 Shelves, 23 cu ft

MODEL TS23G

STANDARD FEATURES:

• Oversized and balanced, environmentally friendly (134A) refrigeration system - holds 33° F to 38° F.
• 300 series stainless steel interior and exterior.
• Recessed door handles. (lifetime guaranteed)
• Exterior mounted, solar, digital temperature monitor, large LED display for quick and easy temperature identification.
• Door locks standard.
• Magnetic door gaskets.
• Adjustable vinyl coated wire shelves.
• Epoxy coated evaporator.
• Incandescent interior lighting (fluorescent interior lighting for glass door models).
• 4" diameter swivel castors standard equipment - locking castors provided for front set.
• Foamed-in-place high density polyurethane insulation (CFC free).
• Slide out compressor can be serviced easily and accessed by a single repairman.
• Self contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty.

CABINET CONSTRUCTION:

• 300 series stainless steel interior and exterior.

• Barrel lock standard for each door. Locks keyed alike.

• Solar, digital exterior temperature monitor, large LED display for quick and easy temperature identification.

• Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors, front castors include brakes.

DOORS:

• 300 series stainless steel interior and exterior. Doors extend full width of cabinet shell. Door gaskets of one piece construction, and removable without tools for ease in cleaning.

• Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 12" long recessed handle with sheet metal interlock. Handles are foamed-in- lace to insure permanent attachment.

INSULATION:

• Entire cabinet structure and doors insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

• Adjustable vinyl coated wire shelves (3 per door). Shelves capable of supporting up to 250 lbs.

• Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.<

LIGHTING:

• Incandescent interior lighting. Light(s) activated by rocker switch mounted above door(s).

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free 134A refrigerant.

• Bottom mounted condensing unit - easy access for maintenance.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33° F to 38° F interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve)

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included. True requires that a sole use circuit be dedicated for the unit.



OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• Available with 6" stainless steel or optional seismic legs.

• Additional shelves available.

CLICK IMAGE FOR LARGER VIEW

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"
