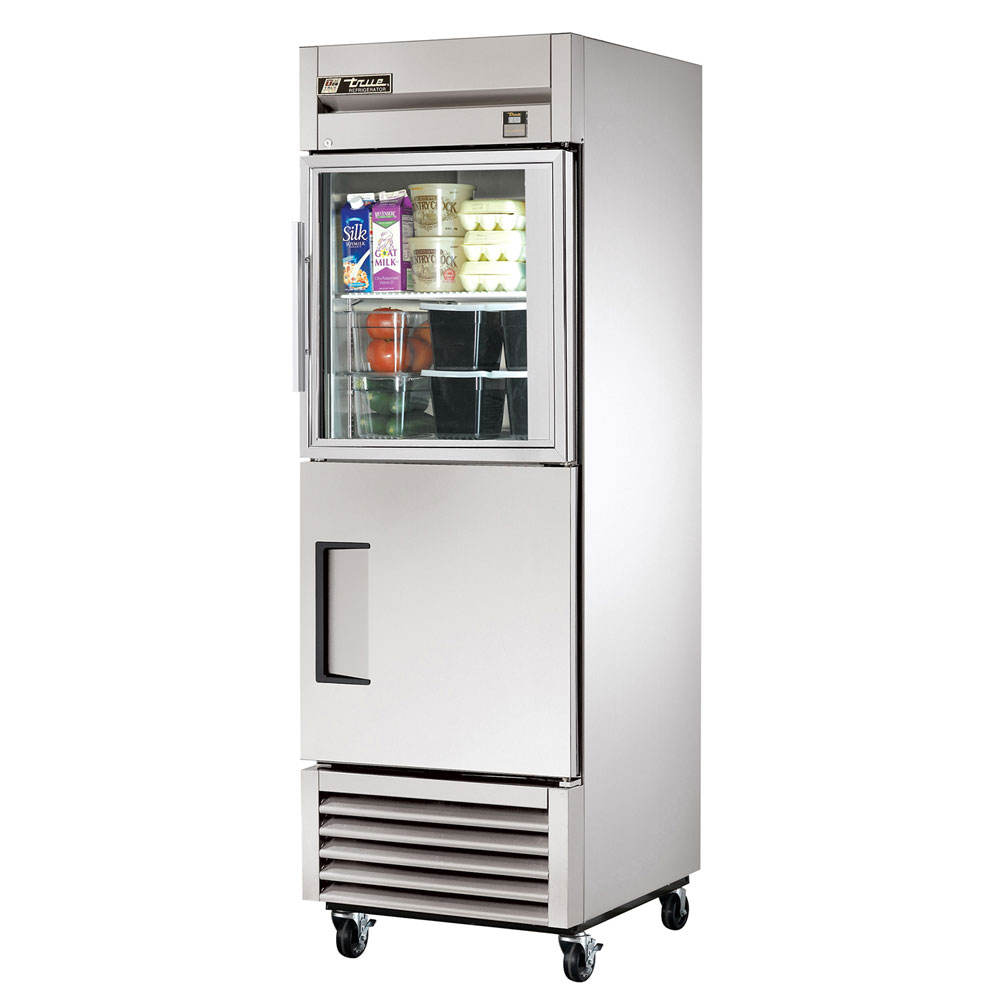

Refrigerator, Reach-In, 1 Section, Glass/SS Half Doors, 3 Shelves, 23 cu ft

MODEL TS-231G-1

STANDARD FEATURES:

• Oversized and balanced, environmentally friendly (134A) refrigeration system - holds 33° F to 38° F.
• 300 series stainless steel doors & front.
• Interior - NSF approved, white vinyl coated aluminum sides and top, 300 series stainless steel floor with coved corners.
• Anodized quality aluminum top, sides and back.
• Lifetime guaranteed recessed handles.
• Exterior mounted temperature monitor. (not available for T-12).
• Door locks (not available for T-12).
• Magnetic door gaskets.
• Adjustable vinyl coated wire shelves.
• Epoxy coated evaporator.
• Incandescent interior lighting (fluorescent interior lighting for glass door models).
• Foamed-in-place high density polyurethane insulation (CFC free).
• T-23: 4" diameter swivel castors standard equipment - locking castors provided for front set.
• T-19: 2 1/2 inch diameter castors standard equipment.
• T-12: leg levelers standard
• Slide out compressor can be serviced easily and accessed by a single repairman.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty.

CABINET CONSTRUCTION:

• 300 series stainless steel front grill, shroud and doors. Anodized quality aluminum exterior ends and back.

• NSF approved, white vinyl coated aluminum and 300 series stainless floor with coved corners.

• Barrel lock standard for each door (excluding T-12). Locks keyed alike. Dial exterior mounted temperature monitor.

• Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors (T-23), 2 1/2 inch diameter castors (T-19), front castors include brakes. T-12 standard with leg levelers (2 1/2 inch diameter castors available).

DOORS:

• 300 series stainless steel exterior with white aluminum interior to match cabinet liner. Doors extend full width of cabinet shell. Door gaskets of one piece construction.

• Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 12" long recessed handle with sheet metal interlock. Handles are foamed-in-place to insure permanent attachment.

INSULATION:

• Entire cabinet structure and solid door insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

• Adjustable vinyl coated wire shelves (3 per section). Shelves capable of supporting up to 250 lbs.

• Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

• .

LIGHTING:

• Incandescent interior lighting. Light(s) activated by rocker switch mounted above door(s).

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free 134A refrigerant.

• Bottom mounted condensing unit - easy access for maintenance.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33° F to 38° F interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve)

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

• A sole use circuit is required.


OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• Available with 6" stainless steel or optional seismic legs (not available for the T- 12)

• Additional shelves available.

• Remote condenser available for T-23.

• Left hinge door available for T-23; no charge (not field reversible) .
